Mobile / Tablets

SamsungTablet

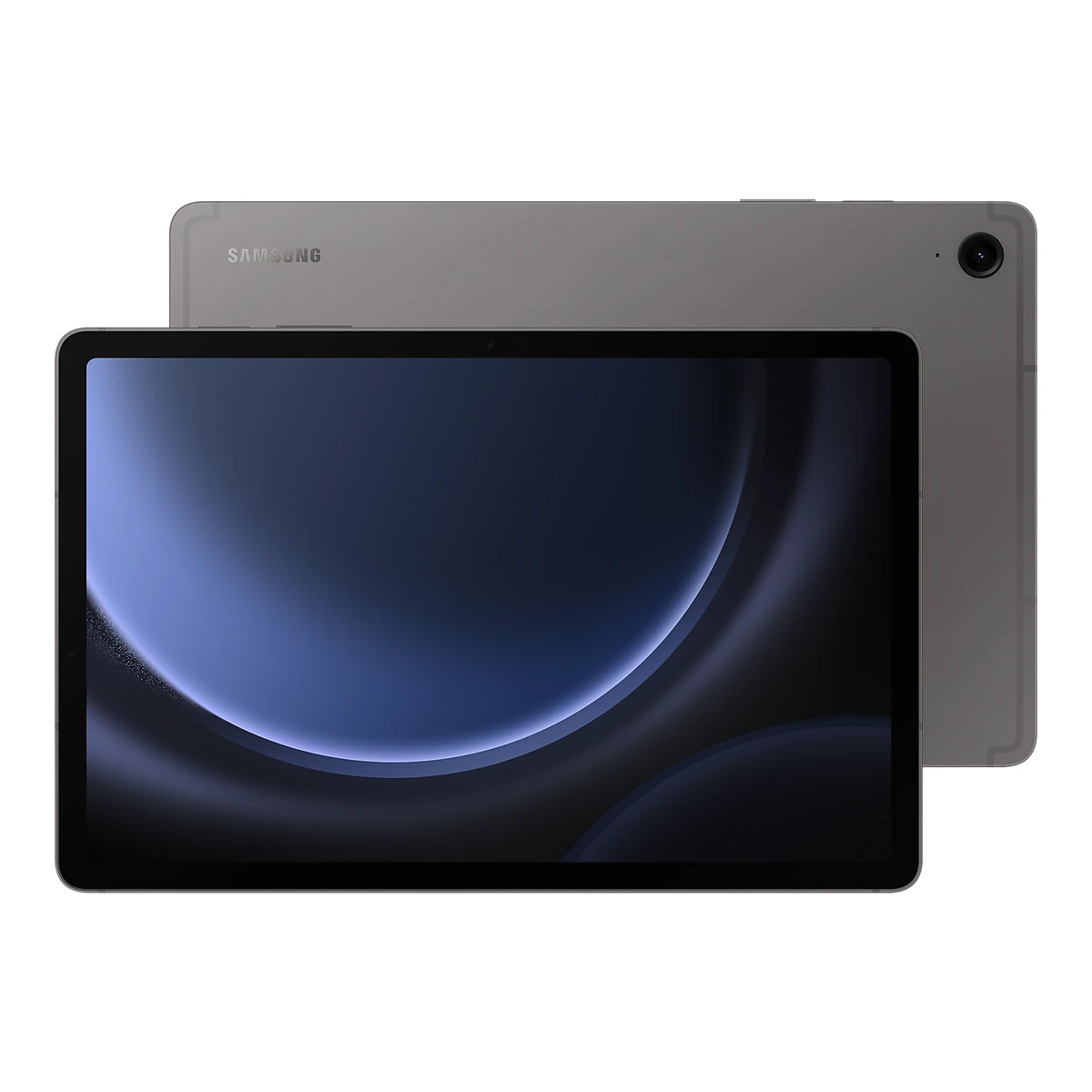

Galaxy Tab S9 FE

Released October 2023.1 Last checked 23 October 2026.

Screen size: 10.9in
Chipset: Exynos 1380
Display type: LCD (IPS)
Storage: 128, 256GB

92 of 168 fields known.

Compare with another tablet Download JSON Download CSV Get it from the API

All specs

SourceCalculatedHide missing

General

Series: Galaxy Tab S9 FE1
Model numbers: SM-X510, SM-X516B, SM-X518U6 7
GTIN / EAN: Not available
Announced: 4 October 20231
Status: Not available
Predecessor: Not available
Successor: Samsung Galaxy Tab S10 FE 11
Launch price (US): $4491
Launch price (EU): From €6291 2 6 8
Markets: US, EU1
Colours: Mint, Silver, Gray, Lavender1
Form factor: Slate1
OS updates promised: 4years1
Security updates promised: 5years1
Security updates until: Not available

Body

Front and side, drawn to scale.

Height: 254.3mm1
Width: 165.8mm1
Thickness: 6.5mm1
Weight: 523g(1.2 lb)1
Frame: Aluminium6
Front: Not available
Back: Aluminium6
Dust and water rating: IP681
MIL-STD-810: Not available
SIM: Nano-SIMs1eSIMs1eSIM onlyNo6
Built-in kickstand: Not available

Display

Screen size: 10.9in(27.7 cm)1
Resolution: 2304 × 1440px2
Pixel density: 249.3ppi
Aspect ratio: 16:106
Display type: LCD (IPS)6
Display type (as published): TFT2
Dimming zones: Not available
Refresh rate modes: Max (Hz) Variable
90 Yes
Source1
Max refresh rate: 90Hz
Min refresh rate: Not available
Brightness (typical, SDR): Not available
Peak brightness: Not available
Full-screen HDR brightness: Not available
Contrast ratio: Not available
Colour depth: Not available
DCI-P3 coverage: Not available
HDR playback formats: Not available
Fully laminated: Not available
Anti-reflection coating: Not available
Screen surface: Not available
Nano-texture option: Not available
PWM dimming frequency: Not available

Max (Hz)	Variable
90	Yes

Platform

OS at launch: Android 131
Software: Not available
Latest OS: Android 169
Chipset: Exynos 13805
Process: 5nm6
CPU cores: 81
CPU configuration: Count Core Max clock (GHz)
4 Cortex-A78 2.4
4 Cortex-A55 2
Source2 5
Max CPU clock: 2.4GHz
GPU: Arm Mali-G683 5
GPU cores: 55
NPU performance: 4.9TOPS5

Count	Core	Max clock (GHz)
4	Cortex-A78	2.4
4	Cortex-A55	2

Memory

RAM: 6, 8GB1
RAM type: Not available
Memory bandwidth: Not available
Storage: 128, 256GB1
Storage type: Not available
Memory card: microSD (own slot)6
Max card size: 1TB2 3

Rear cameras

Rear cameras: Role Resolution (MP) Autofocus
Main 8 Autofocus, mechanism not stated
Source1 2
Number of rear cameras: 1
Main camera: 8MP
Flash: Not available
Video recording: Width (px) Height (px) Max frame rate (fps)
3840 2160 30
Source2
Max video resolution: 3840 × 2160px
Video HDR: Not available
Video formats: Not available
LiDAR scanner: Not available

Role	Resolution (MP)	Autofocus
Main	8	Autofocus, mechanism not stated

Width (px)	Height (px)	Max frame rate (fps)
3840	2160	30

Front camera

Front cameras: Role Resolution (MP)
Ultrawide 12
Source1 2
Front camera resolution (as published): Not available
Front camera position: Landscape edge4
Auto framing: Not available
Front video: Not available
Front autofocus: Not available

Role	Resolution (MP)
Ultrawide	12

Audio

Number of speakers: 21
Speaker layout: Stereo (landscape)4
Stereo speakers: Yes1
Microphones: 34
3.5 mm jack: No6
Audio features: Dual speakers tuned by AKG, Dolby Atmos1 3

Network

Cellular: Yes6
Network: GSM, HSPA, LTE, 5G6
2G bands: GSM 850, GSM 900, GSM 1800, GSM 19006
3G bands: HSDPA 850, HSDPA 900, HSDPA 1700(AWS), HSDPA 1900, HSDPA 21006
4G bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B26, B28, B32, B38, B40, B41, B666
5G bands: N1, N3, N5, N7, N8, N20, N28, N38, N40, N41, N66, N77, N786
5G mmWave: No6
Max download speed: Not available
Modem: Not available

Connectivity

Wi-Fi: Wi-Fi 61 2
Wi-Fi bands: 2.4 GHz, 5 GHz2 6
Bluetooth: 5.31 2
Bluetooth codecs: Not available
NFC: No2 6
Positioning: GPS, Glonass, Beidou, Galileo, QZSS2
Dual-band GNSS: Not available
Connector: USB-C2
USB ports: 13
USB speed: USB 2.02 3
Thunderbolt: Not available
Video out over USB: Not available
Max external display: Not available
External displays: Not available

Stylus

Stylus: In the box1 6
Compatible styluses: Name Included
S Pen Yes
S Pen Creator Edition No
Source1
Pressure levels: Not available
Tilt support: Not available
Hover: Not available

Name	Included
S Pen	Yes
S Pen Creator Edition	No

Keyboard and accessories

Accessory connector: Keyboard dock port4
Official keyboards: Name Connection Trackpad Function row Included
Book Cover Keyboard Pogo pins Yes Yes No
Book Cover Keyboard Slim Not available Not available Not available No
Source1
Keyboard with trackpad: Yes
Keyboard in box: No

Name	Connection	Trackpad	Function row	Included
Book Cover Keyboard	Pogo pins	Yes	Yes	No
Book Cover Keyboard Slim	Not available	Not available	Not available	No

Features and sensors

Fingerprint: Side button4
Face unlock: Not available
Sensors: Accelerometer, Fingerprint sensor, Gyro sensor, Geomagnetic sensor, Hall sensor, Light sensor2
Extra buttons: Not available

Battery and charging

Battery capacity: Not available
Battery capacity (typical): 8,000mAh1 2
Battery energy: Not available
Claimed battery life: Use case Connection Hours (h)
Web browsing Wi-Fi 16
Video playback Not available 18
Audio playback Not available 113
Source2
Video playback (claimed): 18h
Wired charging: 45W3
Wired charging standards: QC2.0, AFC1
Charging guidance: Not available
Charge 0 to 50 %: Not available
Charge 0 to 100 %: 90min3
Reverse wired: Yes2
Charger in box: No1 3
Included charger: Not available

Use case	Connection	Hours (h)
Web browsing	Wi-Fi	16
Video playback	Not available	18
Audio playback	Not available	113

Measured

We could not find any of these 19 fields. Show them

Geekbench 6 single-core: Not available
Geekbench 6 multi-core: Not available
Geekbench 6 GPU: Not available
3DMark Wild Life Extreme: Not available
3DMark stress test stability: Not available
AnTuTu: Not available
Manual SDR brightness (measured): Not available
Brightness with auto (measured): Not available
HDR brightness (measured): Not available
Contrast ratio (measured): Not available
Colour accuracy (measured Delta E): Not available
Reflections (measured): Not available
PWM dimming (measured): Not available
PWM up to brightness (measured): Not available
Stylus latency (measured): Not available
Battery life (measured): Not available
Battery tests (measured): Not available
Full charge time (measured): Not available
Loudspeaker loudness (measured): Not available

EU label and regulatory

EU energy class: Not available
Battery endurance per cycle (EU test): Not available
Battery endurance in cycles (EU test): Not available
Drop resistance class: Not available
Repairability class: Not available
SAR body (US): 1.55W/kg6
SAR body (EU): 0.59W/kg6

In the box

In the box: Galaxy Tab S9 FE, S Pen, USB Type-C cable1

Warranty

Manufacturer warranty (source market): 2years10

Compare with

Pick a tablet to see both side by side. Differences are marked yellow.

More tablet comparisons

Variants

Each variant lists only what differs from the specs above.

Model number	Launch price (US)	Launch price (EU)	Weight	SIM	RAM	Storage	Cellular	Network	2G bands	3G bands	4G bands	5G bands	5G mmWave
SM-X510	$449	Not available	523 g	Not available	6 GB	128 GB	No	Not available	Not available	Not available	Not available	Not available	Not available
SM-X510	Not available	Not available	523 g	Not available	8 GB	256 GB	No	Not available	Not available	Not available	Not available	Not available	Not available
SM-X516B	Not available	€629	524 g	Nano-SIMs 1, eSIMs 1, eSIM only No	6 GB	128 GB	Yes	GSM, HSPA, LTE, 5G	GSM 850, GSM 900, GSM 1800, GSM 1900	HSDPA 850, HSDPA 900, HSDPA 1700(AWS), HSDPA 1900, HSDPA 2100	B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B26, B28, B32, B38, B40, B41, B66	N1, N3, N5, N7, N8, N20, N28, N38, N40, N41, N66, N77, N78	No
SM-X516B	Not available	€699	524 g	Nano-SIMs 1, eSIMs 1, eSIM only No	8 GB	256 GB	Yes	GSM, HSPA, LTE, 5G	GSM 850, GSM 900, GSM 1800, GSM 1900	HSDPA 850, HSDPA 900, HSDPA 1700(AWS), HSDPA 1900, HSDPA 2100	B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B26, B28, B32, B38, B40, B41, B66	N1, N3, N5, N7, N8, N20, N28, N38, N40, N41, N66, N77, N78	No
