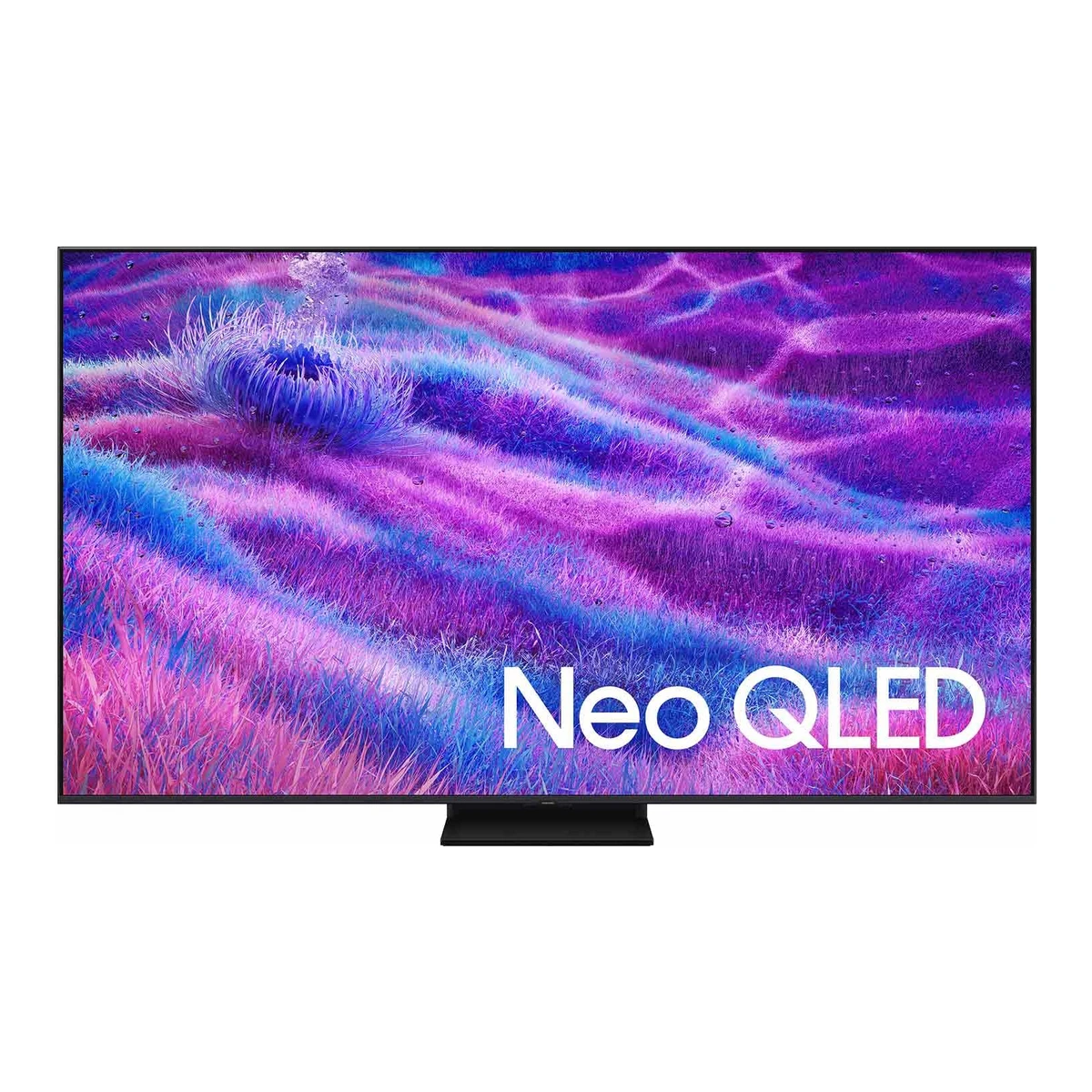

Samsung QN80F

SamsungStandard TV

QN80F

Released March 2025.5Press releasenews.samsung.com/us/samsung-launches-2025-neo-qled-tvs-powered-by-samsung-vision-aiRead 5 October 2026Maker March 26, 2025 US release expressly says QN80F available for purchase starting today and links the 65-inch reference. Later 100-inch introduction is excluded. Last checked 23 October 2026.

Screen size class
65in
Display
Mini-LED
Refresh rate
144Hz
Input lag
Not available

97 of 159 fields known.

Compare with another TVDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 4 HDMI 2.1
  • 2 USB-A

All specs

SourceCalculated

General

Series
QN80F6Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 7 October 2026Exact maker title and US model rows explicitly name QN80F. QN80FD warehouse variants are excluded.
Model numbers
QN55QN80FAFXZA, QN65QN80FAFXZA, QN75QN80FAFXZA, QN85QN80FAFXZA, QN100QN80FFXZA1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Only exact US QN65QN80FAFXZA Specs and Support rows are used. QN80FD, other sizes, siblings and Canadian versions are excluded.6Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 7 October 2026Five exact US order codes mapped individually. The 100-inch uses FF suffix, while the 55–85-inch rows use AF.
GTIN / EAN
887276931937, 887276931944, 887276931951, 887276931906, 8872769318902Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Original producer AF size table explicitly pairs QN55QN80FAFXZA with 887276931937, QN65QN80FAFXZA with 887276931944, QN75QN80FAFXZA with 887276931951 and QN85QN80FAFXZA with 887276931906. Actual UPC cells read. Maker storefront API has no UPCs. Separate 100-inch producer sheet and exact retailer proof supply its code.9Maker spec sheet (PDF)static.pcrichard.com/docs/QN100QN80F_Specifications-Sheet_01.pdfRead 7 October 2026Separate original 100-inch producer sheet explicitly gives order code QN100QN80FFXZA and UPC 887276931890. Independently corroborated by the exact B&H 100-inch table. Preliminary template has a stray 85-inch model heading and 99.8-inch diagonal. These do not override the explicit order code and UPC or final native 99.5-inch geometry.27Retailer pagebhphotovideo.com/c/product/1880755-REG/samsung_qn100qn80ffxza_qn80f_100_4k_hdr.htmlRead 7 October 2026Exact 100-inch B&H model QN100QN80FFXZA and UPC 887276931890 independently match original producer order-code and UPC cells. No replacement-remote barcode used.
Announced
5 January 202523Press releasenews.samsung.com/global/ces-2025-samsung-unveils-a-new-vision-for-displays-at-first-look-eventRead 7 October 2026Maker January 9 CES First Look recap names QN80F among the products showcased before CES opened. Primary Korean media report identifies January 5 US event date. Contemporaneous January 5 Engadget report names QN80F as unveiled. This is family announcement, separate from March retail availability.24Press articleengadget.com/home/home-theater/samsungs-ces-2025-tv-lineup-includes-8k-ai-enhancements-and-a-wireless-connect-box-030058512.htmlRead 7 October 2026January 5, 2025 report expressly names QN80F among the unveiled TVs. Used only as the model/date bridge with maker First Look recap. Generic Gen3, 165 Hz and glare-free lineup statements are not imported.26Maker product pagenews.samsung.com/medialibrary/kr/photo/59004Read 7 October 2026Original Samsung Korean media caption says the First Look event was held January 5, US local time, before CES opened. The same caption names the QN80F 100-inch showcase. This binds the family announcement date independently of the later recap publication date. It does not assert 100-inch retail availability in January.
Status
Not available
Predecessor
Not available
Successor
Samsung QN80H11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public introduction explicitly says QN80H replaced QN80F in 2026. The same-type samsung-qn80h product slug exists. This is not the lower-tier Q8F.29Reviewrtings.com/tv/reviews/samsung/qn80hRead 23 October 2026RTINGS says the Samsung QN80H replaces the Samsung QN80F.
Launch price (US)
$1,7995Press releasenews.samsung.com/us/samsung-launches-2025-neo-qled-tvs-powered-by-samsung-vision-aiRead 5 October 2026Exact 65-inch QN80F launch row USD 1799. No unstated cents or later sale price are added.
Launch price (EU)
Not available
Markets
US1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Colours
Titan Black1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Segment
Standard1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Model year
20255Press releasenews.samsung.com/us/samsung-launches-2025-neo-qled-tvs-powered-by-samsung-vision-aiRead 5 October 2026Dated producer release explicitly identifies its 2025 Neo QLED lineup.

Display

Screen size class
65in(165.1 cm)1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Sizes covered
55, 65, 75, 85, 100in1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026The exact 65-inch row defines the base reference. Five individually verified US size rows are recorded separately.6Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 7 October 2026Five individually verified US sizes: 55, 65, 75, 85 and 100 inches. UK-only 50-inch and warehouse FD variants are excluded.
Viewable size
64.5in(163.8 cm)1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Native resolution
3840 × 2160px1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Pixel density (size class)
67.8ppi
Screen surface
Not available
Anti-reflection coating
Not available

Panel

Display type
Mini-LED2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Sheet introduction expressly describes individual mini-LED zones, proving Mini LED backlight and local dimming. No zone count is inferred from Supreme UHD Dimming branding.
Display type (as published)
Neo QLED1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Panel type
VA13Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026Public November 26, 2025 article captions VA pixels on the bought US 65-inch and separately tested 100-inch model. No locked review cell used. VA is stored only for these two proved sizes.
Backlight
Mini-LED2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026
Local dimming
Yes2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026
Local dimming zones
9613Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026Public size table gives 96 zones for the tested US 65-inch and 140 for the 100-inch. Base 96 is reference-scoped. Counts for 55, 75 and 85 inches remain unknown.
Panel maker
Not available
Panel generation
Not available
Subpixel layout
Not available
Native colour depth
Not available
Native panel refresh rate
120Hz1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row states 120Hz (Up to 144Hz), separating nominal base rate from the accepted PC maximum.2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026
DCI-P3 coverage (claimed)
Not available
Rec. 2020 coverage (claimed)
Not available
Peak HDR brightness (claimed)
Not available

HDR and picture

HDR formats
HDR10, HDR10+, HDR10+ Adaptive, HDR10+ Gaming, HLG1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row expressly names HDR10+ Adaptive/Gaming and HLG. HDR10 is independently stated in the exact 65-inch review settings.11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public exact 65-inch settings and HDR compatibility material establish HDR10 playback/test mode. Added to maker HDR10+ Adaptive/Gaming and HLG. No Dolby Vision inferred.14Reviewrtings.com/tv/reviews/samsung/qn80f/settingsRead 7 October 2026Exact 65-inch settings explicitly use HDR10 and state HDR10+ support from native apps and external devices.
Filmmaker Mode
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
HGiG
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Picture processor
NQ4 AI Gen2 Processor1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Motion interpolation
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row expressly says Game Motion Plus Yes.
Black frame insertion
Yes11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public exact 65-inch BFI paragraph states an optional backlight strobing feature, supported at 60 Hz only. Presence true. No 120 Hz BFI inferred and locked table cells untouched.
Ambient light sensor
Yes6Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 7 October 2026Exact QN65QN80FAFXZA row Eco Sensor Yes. Maker tooltip defines it as adapting brightness to room light intensity. No motion sensor inferred.
Calibration software
Samsung Smart Calibration (Basic)1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026

Motion and gaming

Maximum accepted refresh rate per resolution and input
Maximum accepted refresh rate per resolution and input. The top rate is in bold.
ResolutionHDMI
3840 × 2160Native144Hz
Source1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row expressly gives 4K 144 Hz on HDMI 1, 2, 3 and 4. Sheet footnote requires a compatible PC graphics card and game. Lower-resolution maxima, chroma, bit depth, DSC and revision are not inferred.
Show as source table
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
Maximum accepted refresh rate
144Hz
Maximum accepted refresh rate at 4K
144Hz
Adaptive sync
HDMI VRR, FreeSync Premium Pro1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
VRR range per input
Not available
Low framerate compensation
Yes11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Exact bought US 65-inch QN65QN80FAFXZA public VRR paragraph expressly supports sources with Low-Frame-Compensation. Compatible GPU/source with LFC and VRR required. No onboard processing mechanism, numerical minimum/maximum range or forced HDR flag inferred. Same supported-source meaning used for earlier QN70F verification.
Dolby Vision gaming
No11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public exact 65-inch review says this TV does not support Dolby Vision, including Xbox compatibility. Dolby Vision gaming is therefore unavailable.
Auto game mode (ALLM)
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Game menu features
Dynamic Black EQ, Super Ultra Wide Game View, Game Bar, Mini Map Zoom1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row identifies Dynamic Black EQ, Super Ultra Wide Game View and Mini Map Zoom. Game Bar is separately explicit on AF sheet.2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026
Input lag (claimed)
Not available

Measured

Input lag (measured)
Not available
Input lag at 4K 60 Hz (measured)
Not available
Input lag at 4K 120 Hz (measured)
Not available
Input lag at 4K 144 Hz (measured)
Not available
SDR brightness in a real scene (measured)
Not available
HDR brightness in a real scene (measured)
458nits13Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 article: Hallway Lights 458 cd/m². FILMMAKER, Static HDR tone mapping, maximum backlight and contrast, Local Dimming High, 6500K white point per linked settings/method. Murideo 7G real scene and Konica Minolta LS-100 meter measure the brighter overhead light. Active tone mapping alternative 567 is report-only.14Reviewrtings.com/tv/reviews/samsung/qn80f/settingsRead 7 October 2026Exact tested 65-inch settings establish Static FILMMAKER HDR. Public comparison Hallway 458 is the baseline run. Active tone mapping 567 is a separate alternate result, not mixed in.15Reviewrtings.com/tv/tests/picture-quality/hdr-peak-brightnessRead 7 October 2026Official Hallway real-scene method uses a Murideo 7G source and Konica Minolta LS-100 meter. It takes peak luminance of the brighter of two overhead lights. Product value 458 comes from the public 65-inch article, not another TV example or preset.
HDR brightness per window (measured)
WindowSustainedBrightness (nits)
2%No972
2%Yes937
10%No930
10%Yes912
25%No791
25%Yes785
50%No603
50%Yes601
100%No561
100%Yes560
Source13Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 public article. Complete peaks at 2/10/25/50/100%: 972/930/791/603/561 nits. Sustained: 937/912/785/601/560. FILMMAKER, Static HDR tone mapping, maximum brightness/contrast, Local Dimming High, 6500K white point. LS-100 meter with static white windows. No 100-inch data or other preset mixed in.14Reviewrtings.com/tv/reviews/samsung/qn80f/settingsRead 7 October 2026Settings page explicitly identifies tested US QN65QN80FAFXZA. HDR FILMMAKER, brightness 50, contrast 50, tone mapping Static and Local Dimming High. No white-balance values copied to other sizes.15Reviewrtings.com/tv/tests/picture-quality/hdr-peak-brightnessRead 7 October 2026Official HDR method uses static 2/10/25/50/100% white-window slides, accurate picture mode, maximum backlight and 6500K calibrated white point. Konica Minolta LS-100 records maximum and settled sustained luminance. Product values come from the public November 2025 65-inch comparison article.
HDR peak brightness (measured)
972nits
Full-screen HDR brightness (measured)
561nits
Contrast ratio (measured)
6,611:113Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 public Native Contrast row 6611:1. Official indexed method: post-calibration settings, local dimming and image processing off, custom cave and mirrored scene, center white near 200 nits, average white and black readings. Method page currently renders a menu shell by direct access. No hidden numerical cell recovered.16Reviewrtings.com/tv/tests/picture-quality/contrast-ratioRead 7 October 2026Official public indexed March 26, 2025 method is readable through normal web search. Current direct page returns a menu shell. Custom cave and mirrored scene, white near 200 nits, two white and four black readings averaged, post-calibration. Native means local dimming and other image processing disabled. Only method text used from index, no restricted product result.
Contrast with local dimming (measured)
47,82513Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 public contrast 47825:1. Article gives white 191.3 nits and mean lowest black 0.004 nits over four black readings. Post-calibration custom cave and mirrored scene, target 200 nits, local dimming enabled. Exact settings page uses Movie and Local Dimming High. Native contrast 6611 and 100-inch contrast 23520 are separate.14Reviewrtings.com/tv/reviews/samsung/qn80f/settingsRead 7 October 2026Exact tested 65-inch SDR settings use Movie, Local Dimming High and brightness 22 near target 200 nits. Official contrast method uses post-calibration settings. Public comparison actual white 191.3 nits is retained.16Reviewrtings.com/tv/tests/picture-quality/contrast-ratioRead 7 October 2026Same official method repeats with the best selected local-dimming setting enabled. Exact 65-inch settings specify High. Public comparison gives white 191.3 nits and black 0.004 nits. Current method-body rendering limitation is recorded.
Infinite contrast (measured)
Not available
DCI-P3 coverage (measured)
Not available
Rec. 2020 coverage (measured)
Not available
Colour volume at 1,000 nits (measured)
Not available
Colour volume at 10,000 nits (measured)
37.2%13Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 public row: 10,000 cd/m² BT.2020 Coverage ITP 37.2%. Absolute HDR volume. Official method: dark room, warmed panel, accurate post-calibration mode, CR-100/CR-250, PC with HDFury Vertex HDR injection, 62 slides, ICtCp target volume. CIELAB DCI-P3 SDR volume 78.34 is not a 2D gamut value.17Reviewrtings.com/tv/tests/picture-quality/color-volume-hdr-dci-p3-and-rec-2020Read 7 October 2026Official method: dark room, warmed TV, CR-100/CR-250 instruments, PC with HDFury Vertex HDR signal, accurate post-calibration mode, 62 slides. Target is absolute Rec.2020 volume through 10,000 nits in ICtCp/ITP. Actual 37.2% comes from the dated public 65-inch comparison, not a 2D gamut or normalized volume.
Colour accuracy (measured Delta E)
Not available
Gray uniformity deviation (measured)
Not available
Colour shift angle (measured)
23°13Measurementrtings.com/tv/learn/samsung-qn80f-65-vs-100Read 7 October 2026US 65-inch, November 26, 2025 public Color washout 23 degrees. Field help defines washout despite its Colour shift label. Distinct hue shift 52 degrees is not substituted. Official method uses a CR-100 meter and Octave, measuring primary colors at different horizontal angles. Washout threshold is 80% of original chroma, not the 3-degree hue shift threshold.18Reviewrtings.com/tv/tests/picture-quality/viewing-angleRead 7 October 2026Official method uses a calibrated CR-100 colorimeter and Octave. It records red, green and blue chroma at horizontal angles. Color washout is the angle where a primary drops to 80% of its original chroma. Exact 65-inch 23-degree result comes from the public comparison article. Color shift is a separate 3-degree hue threshold.
Reflections (measured)
Not available
Total pixel response time (measured)
Not available
PWM flicker frequency (measured)
120Hz11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Bought US 65-inch QN65QN80FAFXZA. Public Flicker prose reports 120 Hz in most picture modes, except Movie at 960 Hz at all brightness levels. The scalar represents ordinary modes, not a selected maximum/minimum. Optional BFI is separate. Current review uses test bench 2.3, October 2, 2026. Linked ThorLabs/Rigol method is recorded separately.12Reviewrtings.com/tv/tests/motion/pwm-flickerRead 7 October 2026Official method uses a ThorLabs photodetector and Rigol DS1102E oscilloscope with a white window, optional flicker disabled and backlight at 0%, 50% and 100%. Accurate pre-calibration SDR and other picture modes are checked. The method is unchanged across test benches. Product frequency comes from the public exact 65-inch review prose.
VRR range (measured)
Not available
4:4:4 chroma (measured)
Yes14Reviewrtings.com/tv/reviews/samsung/qn80f/settingsRead 7 October 2026Exact tested US 65-inch settings Gaming section requires PC input label and Game Mode On for 4:4:4. The actual chroma result comes from the public Supported Resolutions paragraph, which reports proper display across supported formats up to 4K 144 Hz. Setup instructions alone were not treated as a measurement.28Measurementrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Exact bought US 65-inch public Supported Resolutions paragraph states formats up to 4K 144 Hz and proper 4:4:4 display across all supported formats. Actual test result. No restricted table cell retrieved. Paired exact settings page requires PC input label and Game Mode. Current public review testbench 2.3, October 2, 2026. Exact firmware for this observation is unpublished. No other-size test imported.
Power use SDR (measured)
Not available

Smart platform

Smart platform
Tizen1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
OS at launch
One UI Tizen5Press releasenews.samsung.com/us/samsung-launches-2025-neo-qled-tvs-powered-by-samsung-vision-aiRead 5 October 2026
Latest OS
Not available
OS upgrade support period
7years5Press releasenews.samsung.com/us/samsung-launches-2025-neo-qled-tvs-powered-by-samsung-vision-aiRead 5 October 2026Same launch page identifies One UI Tizen and up to seven years of OS updates. Numeric OS launch/latest versions are not inferred.
Chipset
Not available
RAM
Not available
Total internal storage
Not available
Voice assistants
Bixby, Alexa1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Bixby and Alexa explicitly built in. External Google Assistant compatibility is excluded from the built-in list.
Hands-free microphone
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row expressly identifies Far-Field Voice Interaction Yes. Remote microphone and radio protocol are not inferred.
Casting
Chromecast built-in2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Page 1 explicitly states Works with Google Cast Yes for the listed US AF models. Apple AirPlay version is unstated, so AirPlay 2 is omitted.
Smart home
Matter, SmartThings1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Art or ambient mode
No7Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 7 October 2026Original AF sheet page 1 states Art Mode N/A, separately from Art Store Yes. Store access does not establish the Frame Art Mode function.

Tuners

Tuners
ATSC 1.0, Clear QAM, Analog1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row explicitly names Clear QAM and Analog Tuner Yes. ATSC 1.0 is independently stated by the Samsung Representative on the exact US 65-inch product question.25Maker product pagebestbuy.com/site/questions/samsung-65-class-qn80f-series-neo-qled-mini-led-4k-uhd-samsungvision-ai-smart-tizen-tv-2025/6613493/question/f4593c8f-07c9-3eaf-823f-b6150fc5fc11Read 7 October 2026Samsung Representative answer on the exact US 65-inch product question explicitly gives a built-in ATSC 1.0/ClearQAM digital tuner. This is the maker-authored answer, not the anonymous purchaser response. Adds atsc_1 to supported standards. Physical tuner count is not inferred from the singular phrasing. Current maker API corroborates ATSC/ClearQAM generally.
Tuners per broadcast standard
Not available
Antenna inputs
TypeCount
Terrestrial and cable1
Source1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row states one terrestrial and cable socket in common use, zero satellite. This is one shared physical input.
CI+ slot
Not available
Record to USB
No19Owner's manualdownloadcenter.samsung.com/content/UM/202511/20251114040041001/BN81-27185A-670_EUG_ROPATSCF_NA_ENG-US_251022.0.pdfRead 7 October 2026Printed page 182 explicitly says recording and scheduled recording are unsupported in the U.S.A. and Canada. The retained market is US, so false. Generic conditional recording chapters and European PVR features are excluded.
Broadcast platforms
Not available

Audio

Physical speaker channels
4.01Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row and exact AF sheet both publish 4Ch, represented as 4.0. No physical speaker count or subwoofer is inferred.
Physical speaker drivers
Not available
Total built-in speaker power
30W1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact AF row and AF sheet agree at 30 W. Initially encountered PDF filename for AF actually contains QN80FD order codes and 40 W, so that different variant is excluded.2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Exact AF sheet publishes 30 W and 4Ch, matching exact API. QN80FD 40 W is excluded.
Built-in subwoofer
Not available
Up-firing speakers
Not available
Audio formats
Dolby Atmos, Dolby Digital, PCM, AAC, HE-AAC, Dolby Digital Plus, MP3, MPEG-H, AC-41Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 202619Owner's manualdownloadcenter.samsung.com/content/UM/202511/20251114040041001/BN81-27185A-670_EUG_ROPATSCF_NA_ENG-US_251022.0.pdfRead 7 October 2026Printed page 190 Supported video codecs expressly includes QN8*F and lists native input AC3, LPCM, AAC, HE-AAC, Dolby Digital+, MPEG(MP3), MPEG-H and AC-4. Eight enum values added. OPUS, Vorbis, ADPCM, G.711 and RealAudio 6 lack schema options. These are decoder facts, not eARC passthrough or Bluetooth output codec assumptions.
eARC passthrough
LPCM 5.1, LPCM 7.111Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public Audio Passthrough paragraph on the bought US 65-inch says LPCM 7.1 works only from sources that override the EDID, such as a PC. Other sources are limited to LPCM 5.1. Both accepted capabilities are qualified here. No Dolby MAT or Atmos TrueHD value inferred from locked cells.
Audio features
Q-Symphony, OTS Lite, Active Voice Amplifier Pro, Adaptive Sound Pro1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Bluetooth headphones
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026

Connectivity

Video inputs
TypeVersionCountMax bandwidth (Gbps)Max refresh rate at 4K (Hz)
HDMI2.1448144
Source1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row states four HDMI sockets, all accepting 4K 144 Hz. The public exact 65-inch review independently states HDMI 2.1 and 48 Gbps on all four. eARC socket number is unstated.11Reviewrtings.com/tv/reviews/samsung/qn80fRead 7 October 2026Public exact US 65-inch paragraph states all four HDMI inputs support the maximum HDMI 2.1 bandwidth of 48 Gbps. HDMI 2.1 revision and 48 Gbps bandwidth are added separately to the existing four-port, accepted 4K 144 Hz row. No eARC socket number inferred.
HDMI ports
4
HDMI ports with 4K 120 Hz
4
Highest HDMI version
2.1
Maximum HDMI link bandwidth
48Gbps
HDMI features
ALLM, VRR, eARC, CEC1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
USB peripheral ports
ConnectorCount
USB-A2
Source1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Ethernet speed
Not available
Wi-Fi
Wi-Fi 51Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Wi-Fi bands
Not available
Bluetooth
5.31Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Optical out
Yes1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026
Headphone out
Not available
Included connection box
None2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Page 1 expressly says One Connect Box N/A. No other Samsung connection box is inherited.

Remote

Remote control
Yes2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Exact 65 block identifies supplied US SolarCell Remote TM2560E. Canadian TM2360E alternative is excluded.
Remote connection
Infrared, Bluetooth21Maker spec sheet (PDF)content.syndigo.com/asset/072162bd-c535-4c65-91bb-1b29927cfb4d/original.pdfRead 7 October 2026Original Samsung TV Accessories sheet explicitly names TM2560E Black and SIGNAL TYPE IR, BLUETOOTH. The exact TV sheet identifies this included remote. Retail replacement VG-TM2560EN/ZA UPC, cable and accessory warranty are not transferred to the TV box.
Remote power
Solar and USB-C3Owner's manualdownloadcenter.samsung.com/content/UM/202511/20251114040041001/BN81-27185A-670_EUG_ROPATSCF_NA_ENG-US_251022.0.pdfRead 5 October 2026SolarCell troubleshooting expressly instructs charging through bottom USB C-type port or exposing solar cell. Exact AF sheet independently identifies supplied TM2560E SolarCell remote.
Voice button on remote
Yes20Owner's manualdownloadcenter.samsung.com/content/EM/202605/20260528044837001/BN68-20836B-01_RG_Y25%20QLED%20QD%20LS_ZA_ENG_260519.0.pdfRead 7 October 2026Original Samsung SolarCell Smart Remote guide MIC/LED row and Voice Assistant instructions explicitly identify a remote microphone. Exact US AF sheet names the included TM2560E, tying the guide to this hardware. This is separate from the TV far-field microphone. Hand gestures in SmartThings do not prove a pointer remote.
Pointer remote
Not available

Stand and mounting

Stand
Centre pedestal4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Page 1 exact 55-65 inch assembly and page 2 stand drawing show the Aero Center pedestal. Other-size base designs are excluded.
Stand installation positions
Not available
Stand height adjustment
No2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Page 1 expressly says Adjustable Stand N/A. Exact 65 installation guide shows the supplied Aero Center pedestal. No position count is inferred from one assembly diagram.
Space under the screen
Not available
Distance between feet
Not available
Stand footprint
Width314.96Depth279.4mm(12.4 × 11 in)2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Exact 65 block lists stand W x H x D 12.4 x 9.3 x 11 inches. Whole pedestal W x D converted by 25.4 to 314.96 x 279.4 mm. API Stand Basic width 12.3 inches conflicts by 2.54 mm, so producer PDF width takes priority.
VESA mount
400 x 3004Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Page 2 exact 65QN8*F row expressly gives 400 x 300 mm, M8 screws and 17-19 mm engagement.
VESA screw
M84Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026
Wall mount included
Not available

OLED care

We could not find any of these 3 fields. Show them
OLED care
Not available
Burn-in covered by warranty
Not available
Burn-in warranty length
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions with stand
Width1,446.5Height886.3Depth279.4mm(56.9 × 34.9 × 11 in)4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Page 2 exact 65QN8*F metric row 1446.5 x 886.3 x 279.4 mm. These direct producer dimensions take priority over rounded sheet 56.9 x 34.9 x 11 inches. API wrongly repeats bare depth 1.8 inches in with-stand row, which is excluded.
Dimensions without stand
Width1,446.5Height829.3Depth46.6mm(56.9 × 32.6 × 1.8 in)4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Same exact 65 row publishes 1446.5 x 829.3 x 46.6 mm. Sheet/API 56.9 x 32.6 x 1.8 inches are rounded publication differences.
Thinnest depth
Not available
Weight with stand
23.7kg(52.2 lb)4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Exact guide publishes 23.7 kg and 52.2 lb. API incorrectly labels 23.7 as lb. The guide metric unit is retained, not converted from the mislabeled API value.
Weight without stand
22.7kg(50 lb)4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Exact guide publishes 22.7 kg and 50.0 lb. API incorrectly labels 22.7 as lb. The guide metric unit is retained. API shipping mass 167.6 lb is also inconsistent with exact AF sheet 67.9 lb and is excluded.

Power

Power supply
Internal6Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 7 October 2026Exact TV input is AC110–120V, 50/60Hz with a two-pin mains cable. Native installation guide connects the mains cord directly to the TV without an external converter, proving an internal supply.8Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 7 October 2026Complete native installation procedure connects the mains cable directly to the TV AC inlet, with no external converter.
On-mode power in SDR (EU label)
Not available
On-mode power in HDR (EU label)
Not available
Maximum operating power
Not available
Standby power
0.5W1Maker product pagesamsung.com/us/gapi/v1/bridge/cacheable/bridge-dataRead 5 October 2026Exact row and AF sheet both explicitly state 0.5 W. Optional maximum power is omitted because exact API says 270 W and exact AF sheet says 370 W. Typical 217 W is not treated as an EU energy figure.
Networked standby
Not available
EU energy class SDR
Not available
EU energy class HDR
Not available
Energy per 1000 h SDR
Not available
Energy per 1000 h HDR
Not available

Certifications

Picture certifications
PANTONE Validated7Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 7 October 2026Original AF sheet page 1 visibly contains the PANTONE Validated logo under the TV. The PDF page was rendered and inspected because text extraction omitted the graphic. Applies to the listed US 55/65/75/85 models.
ENERGY STAR
Not available
Other certifications
Not available

In the box

In the box
SolarCell Remote TM2560E, Stand, Power cable, User manual2Maker spec sheet (PDF)static.pcrichard.com/docs/QN65QN80F_Specifications-Sheet_01.pdfRead 5 October 2026Exact 65 block lists remote, power cable and user manual. Installation guide separately shows supplied stand components.4Owner's manualdownloadcenter.samsung.com/content/EM/202504/20250401042603001/BN68-20835A-03_IG_QN80F%2055-85inch_WW_L10_250304.0.pdfRead 5 October 2026Exact installation guide shows supplied pedestal components and power cable.

Warranty

Manufacturer warranty (source market)
1year22Retailer pageabt.com/Samsung-QN80F-Neo-QLED-TV-65-Inch-4K-Smart-in-Titan-Black-QN65QN80FAFXZA/p/218343.htmlRead 7 October 2026Exact US QN65QN80FAFXZA, UPC 887276931944. Abt Warranty Information directly gives Parts Warranty 1 Year Limited and Labor Warranty 1 Year Limited. Maker linked legal contract was opened, but rendered duration fields are blank. The numerical term comes from this exact retailer summary, not the generic implied-warranty limit or a soundbar bundle.

Compare with

Pick a TV to see both side by side. Differences are marked yellow.

More TV comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)MarketsColoursScreen size classViewable sizePanel typeBacklightLocal dimmingLocal dimming zonesNative panel refresh rateMaximum accepted refresh rate per resolution and inputPhysical speaker channelsTotal built-in speaker powerRemote powerStandStand height adjustmentDistance between feetStand footprintVESA mountVESA screwDimensions with standDimensions without standWeight with standWeight without standPower supplyMaximum operating powerStandby powerIn the box
QN55QN80FAFXZA887276931937$1,299USTitan Black55 in54.6 inNot availableMini-LEDYesNot available120 Hz
Show 1 rows
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
4.030 WSolar and USB-CCentre pedestalNoNot availableNot available200 x 200M8Width 1,227.6, Height 764, Depth 247.4 mmWidth 1,227.6, Height 706.2, Depth 47.2 mm17.2 kg16.4 kgInternal225 W0.5 WSolarCell Remote TM2560E, Stand, Power cable, User manual
QN65QN80FAFXZA887276931944$1,799USTitan Black65 in64.5 inVAMini-LEDYes96120 Hz
Show 1 rows
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
4.030 WSolar and USB-CCentre pedestalNoNot availableWidth 314.96, Depth 279.4 mm400 x 300M8Width 1,446.5, Height 886.3, Depth 279.4 mmWidth 1,446.5, Height 829.3, Depth 46.6 mm23.7 kg22.7 kgInternalNot available0.5 WSolarCell Remote TM2560E, Stand, Power cable, User manual
QN75QN80FAFXZA887276931951$2,299USTitan Black75 in74.5 inNot availableMini-LEDYesNot available120 Hz
Show 1 rows
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
4.030 WSolar and USB-CCentre pedestalNoNot availableNot available400 x 400M8Width 1,670.6, Height 1,015.6, Depth 331.5 mmWidth 1,670.6, Height 958.3, Depth 47.1 mm33.5 kg32.2 kgInternal330 W0.5 WSolarCell Remote TM2560E, Stand, Power cable, User manual
QN85QN80FAFXZA887276931906$3,499USTitan Black85 in84.5 inNot availableMini-LEDYesNot available120 Hz
Show 1 rows
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
4.030 WSolar and USB-CCentre pedestalNoNot availableNot available600 x 400M8Width 1,892.8, Height 1,137.7, Depth 366.5 mmWidth 1,892.8, Height 1,082.8, Depth 48.2 mm42.2 kg40.6 kgInternal390 W0.5 WSolarCell Remote TM2560E, Stand, Power cable, User manual
QN100QN80FFXZA887276931890Not availableUSTitan Black100 in99.5 inVAMini-LEDYes140120 Hz
Show 1 rows
Width (px)Height (px)InputMaximum accepted rate (Hz)
38402160HDMI144
4.030 WSolar and USB-CFeetNo1,722.12 mmNot available600 x 400M8Width 2,229.8, Height 1,332.4, Depth 415.4 mmWidth 2,229.8, Height 1,273.4, Depth 57.4 mm60.3 kg58.9 kgInternal430 W0.5 WSamsung Smart Remote, Metal Linear stand, Power Cable, Holder-Cable, Simple User Guide, Remote control guide, Regulatory Guide

Sources

We read 29 sources for this TV. The numbers match the markers in the sheet.

  1. Read 5 October 2026Backs 40 fields
  2. Read 5 October 2026Backs 14 fields
  3. Read 5 October 2026Backs 2 fields
  4. Read 5 October 2026Backs 8 fields
  5. Read 5 October 2026Backs 6 fields
  6. Read 7 October 2026Backs 6 fields
  7. Read 7 October 2026Backs 3 fields
  8. Read 7 October 2026Backs 2 fields
  9. Read 7 October 2026Backs 2 fields
  10. Read 7 October 2026Backs 1 field
  11. Read 7 October 2026Backs 8 fields
  12. Read 7 October 2026Backs 1 field
  13. Read 7 October 2026Backs 9 fields
  14. Read 7 October 2026Backs 5 fields
  15. Read 7 October 2026Backs 2 fields
  16. Read 7 October 2026Backs 2 fields
  17. Read 7 October 2026Backs 1 field
  18. Read 7 October 2026Backs 1 field
  19. Read 7 October 2026Backs 2 fields
  20. Read 7 October 2026Backs 1 field
  21. Read 7 October 2026Backs 1 field
  22. Read 7 October 2026Backs 1 field
  23. Read 7 October 2026Backs 1 field
  24. Read 7 October 2026Backs 1 field
  25. Read 7 October 2026Backs 1 field
  26. Read 7 October 2026Backs 1 field
  27. Read 7 October 2026Backs 2 fields
  28. Read 7 October 2026Backs 1 field
  29. Read 23 October 2026Backs 1 field

See a wrong value? Tell us and name the field.

SuccessorSamsung QN80H
