PC parts / CPU coolers

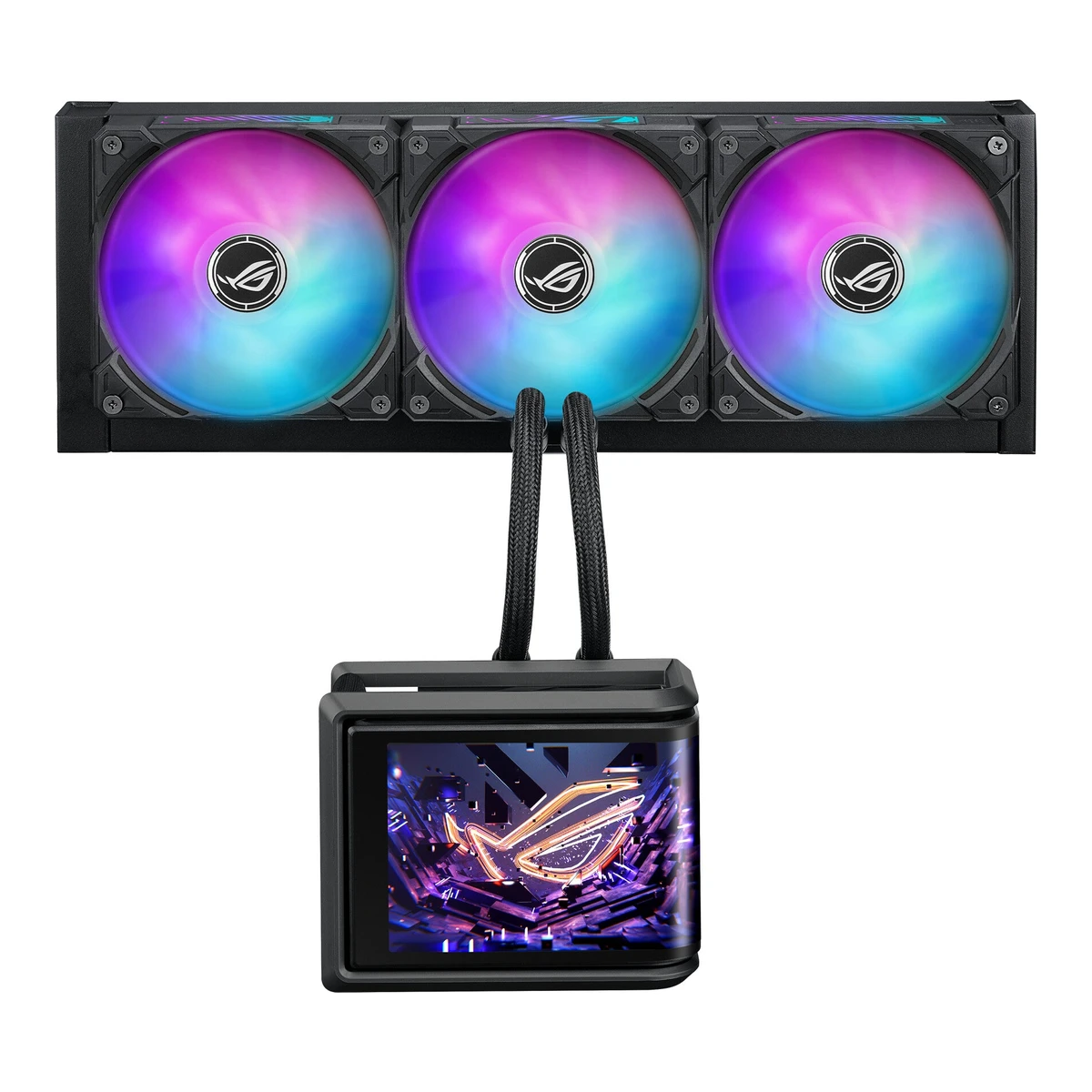

ASUS ROG Ryuo IV SLC 360 ARGB

ASUSCPU cooler

ROG Ryuo IV SLC 360 ARGB

Released June 2025.8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Review dated 25 June 2025 for the black 90RC0151-B0EAY0, which says ASUS updated its AIO range recently. The cooler was shown at CES. The month is approximate. Last checked 16 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700

30 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
ROG Ryuo IV1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026The Note block names the ROG RYUO Series. The generation IV is in the product name, so the series is stored as ROG Ryuo IV.
Model numbers
90RC0151-B0EAY0, 90RC0151-B0AAY0, 90RC0152-B0EAY03Maker product pageeshop.asus.com/us/90rc0151-b0aay0-rog-ryuo-iv-slc-360-argb.htmlRead 15 October 2026Part Number 90RC0151-B0AAY0, the US eShop code for the black edition.5Retailer pagedirectcomputers.co.uk/products/asus-rog-ryuo-iv-slc-360-argb-liquid-cpu-cooler-movable-6-67-curved-amoled-display-shortened-tubing-daisy-chained-argb-fansRead 15 October 2026SKU 90RC0151-B0EAY0.6Retailer pagedirectcomputers.co.uk/products/asus-rog-ryuo-iv-slc-360-argb-white-edition-liquid-cpu-cooler-movable-6-67-curved-amoled-display-shortened-tubing-daisy-chained-argb-fansRead 15 October 2026SKU 90RC0152-B0EAY0 for the White Edition.
GTIN / EAN
47113878506575Retailer pagedirectcomputers.co.uk/products/asus-rog-ryuo-iv-slc-360-argb-liquid-cpu-cooler-movable-6-67-curved-amoled-display-shortened-tubing-daisy-chained-argb-fansRead 15 October 2026Barcode 4711387850657. WaterCoolingUK prints the same EAN for MPN 90RC0151-B0EAY0.7Retailer pagewatercoolinguk.co.uk/product/asus-rog-ryuo-iv-slc-360-argb-aio-water-cooling-360mm-blackRead 15 October 2026MPN 90RC0151-B0EAY0, EAN 4711387850657.
Announced
Not available
Status
Available1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026The ROG page is live with a buy button. ASUS UK and US stores list a price and retailers list it as in stock. One UK shop marks its black listing as end of life.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026In regular retail sale at about 350 euros in September 2025.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
€4299Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026At launch 429 euros were asked. The review calls the UVP 429 euros and its price widget shows 429,99 euros UVP. The 429 in the text is stored. No USD launch price was found, since the US price on ASUS pages is undated.
Markets
Not available
Colours
Black, White1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026The black edition is the page named ROG Ryuo IV SLC 360 ARGB. The white one has its own ROG page.4Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb-white-edition/specRead 15 October 2026White Edition.5Retailer pagedirectcomputers.co.uk/products/asus-rog-ryuo-iv-slc-360-argb-liquid-cpu-cooler-movable-6-67-curved-amoled-display-shortened-tubing-daisy-chained-argb-fansRead 15 October 2026Product colour: Black. The listing's distributor weight row says 1.56 kg and a package weight of 3.64 kg. Those are not used. The scope of the 1.56 kg is not stated and Basic-Tutorials gives 2.27 kg with fans.6Retailer pagedirectcomputers.co.uk/products/asus-rog-ryuo-iv-slc-360-argb-white-edition-liquid-cpu-cooler-movable-6-67-curved-amoled-display-shortened-tubing-daisy-chained-argb-fansRead 15 October 2026Product colour: White.
Cooler type
AIO liquid1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Tech specs list a water block, a pump, a radiator, a sleeved FEP tube and three fans, so a sealed AIO liquid cooler.
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Water block: Block Material (CPU Plate): Copper. No plating is stated.
Thermal paste
Pre-applied1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Package content: 1 x CPU Liquid Cooler (pre-applied thermal compound). The reviews show the paste as a ROG logo on the cold plate.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 2026The features page lists pre-applied thermal paste next to the pump.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA17001Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Compatibility: AMD AM5, AM4. Intel LGA 1851, 1700. The ASUS chassis list says third-party cases must support 420 mm radiators.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Three 120 mm fan slots, so the size class is 360.
Radiator dimensions
Length394Width140Thickness32mm(15.5 × 5.5 × 1.3 in)1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Radiator Dimension: 394 x 140 x 32 mm, aluminum. Reviews describe the radiator as wider and thicker than a usual 360 mm one and measure the same figures.
Radiator material
Aluminium1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Radiator Material: Aluminum.
Tube length
200mm1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Tube: Sleeved FEP tube, Tube Length: 200 mm. Both tubes leave the middle of the radiator.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 2026The shorter 200mm tubing with a centred tube layout.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026200 mm tubes, so the radiator fits only in the case roof.
Max pump speed
3,200rpm1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Pump Motor Speed: 1800 - 3200 +/- 10% RPM. Basic-Tutorials measured 1900 to 3100 rpm.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026Pump 1800 to 3200 rpm.
Pump power connector
4-pin PWM fan header8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Technical details, Anschluss (Pumpe): 4-Pin PWM. The text says the pump plugs into the board with a 4-pin PWM connector.10Reviewbug.hr/recenzije/asus-rog-ryuo-iv-slc-360-argb-vrlo-posebna-vodenjaca-53728Read 15 October 2026The block goes to the 4-pin header made for the water pump.
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
ROG RYUO IV MF-12C ARGB12038002,65071.445.4539.6Fluid dynamic (FDB)4-pin PWM
Source1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Fan ROG RYUO IV MF-12C ARGB, 3 x 120 mm, 120 x 120 x 25 mm, Speed 800-2650 +/- 10% RPM, Static Pressure 5.45 mmH2O, Air Flow 71.44 CFM, Noise 39.6 dB(A), Control Mode PWM/DC. The figures are per fan. The bearing and the plug are in the Basic-Tutorials entry.8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026ROG RYUO IV MF-12C ARGB, Lagertyp: hydrodynamisches Gleitlager (FDB), 800 to 2650 rpm, 121.38 m3/h (71.44 CFM), 5.45 mm H2O, 39.6 dB(A). All three fans are clipped together with contacts and need one 4-pin PWM plug and one 3-pin 5 V ARGB plug.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026Fans MF-12C ARGB at 800 to 2650 rpm, 5.45 mmH2O, 71.44 CFM, 39.6 dB(A). The test sample reached the stated speeds.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026ARGB fans, AURA Sync Support: Yes.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 2026Daisy-chained ARGB fans with Aura Fan Edge side lighting.8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Three fans with eight ARGB LEDs each.
Lighting standard
ARGB 5 V8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Anschluss (LED): 3-Pin 5V (ARGB), eight addressable LEDs per fan. Lighting worked through Armoury Crate and OpenRGB.10Reviewbug.hr/recenzije/asus-rog-ryuo-iv-slc-360-argb-vrlo-posebna-vodenjaca-53728Read 15 October 2026The fans use one 4-pin power header and one 3-pin ARGB connector.
Built-in screen
OLED1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Special Features, Display: 6.67" AMOLED. AMOLED is stored as OLED.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 2026Features page: 6.67-inch curved 2K AMOLED display, shown through ASUS InfoHub. The pixel size is not stated. HardwarePremium prints 2560 x 1440, but its spec table also prints fan figures (2800 rpm, 89.73 CFM, 5.15 mmH2O, 36 dBA) that belong to the ROG Ryujin III fans, so no resolution is stored. Guru3D prints 2800 rpm too.8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 20266.67-inch 2K AMOLED, 60 Hz, curved, magnetic mount.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 20266.67-inch curved AMOLED, 2K, 60 Hz, internal USB 2.0 connection, ASUS InfoHub.10Reviewbug.hr/recenzije/asus-rog-ryuo-iv-slc-360-argb-vrlo-posebna-vodenjaca-53728Read 15 October 20266.67-inch curved AMOLED, 2K, 60 Hz. Their test also measured about 2800 rpm on the fans against 2650 rpm stated.
Screen size
6.67in(16.9 cm)1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Display: 6.67" AMOLED.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 20266.67-Inch curved AMOLED.
Screen resolution
Not available
Software
ASUS InfoHub1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Note: Software: ASUS InfoHub.
Needs a USB header
Yes8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Display connection: USB 2.0 intern. The display connects over an internal USB 2.0 header and is set up only in ASUS InfoHub.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026The display connects through a USB 2.0 port.10Reviewbug.hr/recenzije/asus-rog-ryuo-iv-slc-360-argb-vrlo-posebna-vodenjaca-53728Read 15 October 2026The display connects to an internal USB 2.0 header.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadFan settingCPU temperature (°C)
AMD Ryzen 5 1400Prime95 Small FFTs, 30 minutes, overclocked to 3.8 GHz at 1.175 VMinimum speed55.8
AMD Ryzen 5 1400Prime95 Small FFTs, 30 minutes, overclocked to 3.8 GHz at 1.175 V50% PWM (fans and pump)46.1
AMD Ryzen 5 1400Prime95 Small FFTs, 30 minutes, overclocked to 3.8 GHz at 1.175 V100% PWM (fans and pump)43.8
Intel Core i7-13700KPrime95 Small FFTs, 30 minutes1000 rpm63
Intel Core i7-13700KPrime95 Small FFTs, 30 minutesMaximum fan speed56
Source8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Basic-Tutorials (Jonas, 2025-06-25). Open bench table. AMD Ryzen 5 1400 at 3.8 GHz and 1.175 V, MSI B350 PC-Mate. Prime95 Small FFTs for 30 minutes, CPUID Hardware Monitor, room about 20 C. The review prints the maximum temperatures 55.8 C (minimum speed), 46.1 C (50% PWM for fans and pump) and 43.8 C (100% PWM for fans and pump). The fan speeds of those rows are not published in the text. Pre-applied paste was used. The review gives no noise figure and no CPU power.9Reviewallround-pc.com/artikel/kuehlung/asus-rog-ryuo-iv-slc-360-argb-im-test-wasserkuehlung-mit-mega-display-und-mega-kuehlleistungRead 15 October 2026Allround-PC (Arian Krasniqi, 2025-09-29). Room kept at 21 C by air conditioning, 20 minute warm-up, Prime95 Small FFTs for 30 minutes, HWiNFO. The review prints 63 C for the Intel Core i7-13700K at a fixed 1000 rpm and 56 C at maximum fan speed. How the median and maximum values are combined is not clear. Case or bench, paste and noise are not stated.

Dimensions and weight

Dimensions
Not available
Heatsink dimensions
Not available
Weight
2,270g(5 lb)8Reviewbasic-tutorials.de/tests/pc-hardware/asus-rog-ryuo-iv-slc-360-argbRead 15 October 2026Technical table, Gewicht (mit Luefter): 2.27 kg. The text says about 2.3 kg in total. A distributor feed on Direct Computers says 1.56 kg with no stated scope. ASUS publishes no weight.
Heatsink weight
Not available

In the box

In the box
CPU Liquid Cooler (pre-applied thermal compound), 3 x 120 mm ARGB Radiator Fan, ROG VIP card, ROG Sticker, Quick Start Guide, Accessory Pack of Screws and Brackets, Tube fastener1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Package Content as printed, without the leading quantity of 1 for single items. The reviews also mention the curved display unit in the box. The White Edition page lists the same contents.

Warranty

Manufacturer warranty (source market)
6years1Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argb/specRead 15 October 2026Note: Warranty: AIO Cooler Module 6 years, Display module 2 years. The ASUS eShop calls it a 6 years manufacturer warranty. The 6 years is stored.2Maker product pagerog.asus.com/us/cooling/cpu-liquid-coolers/rog-ryuo/rog-ryuo-iv-slc-360-argbRead 15 October 20266-Year Warranty.3Maker product pageeshop.asus.com/us/90rc0151-b0aay0-rog-ryuo-iv-slc-360-argb.htmlRead 15 October 20266 years manufacturer warranty.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
90RC0151-B0EAY04711387850657Black
90RC0151-B0AAY0Not availableBlack
90RC0152-B0EAY0Not availableWhite

Sources

We read 10 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 20 fields
  2. Read 15 October 2026Backs 7 fields
  3. Read 15 October 2026Backs 3 fields
  4. Read 15 October 2026Backs 2 fields
  5. Read 15 October 2026Backs 4 fields
  6. Read 15 October 2026Backs 3 fields
  7. Read 15 October 2026Backs 1 field
  8. Read 15 October 2026Backs 9 fields
  9. Read 15 October 2026Backs 9 fields
  10. Read 15 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
