PC parts / CPU coolers

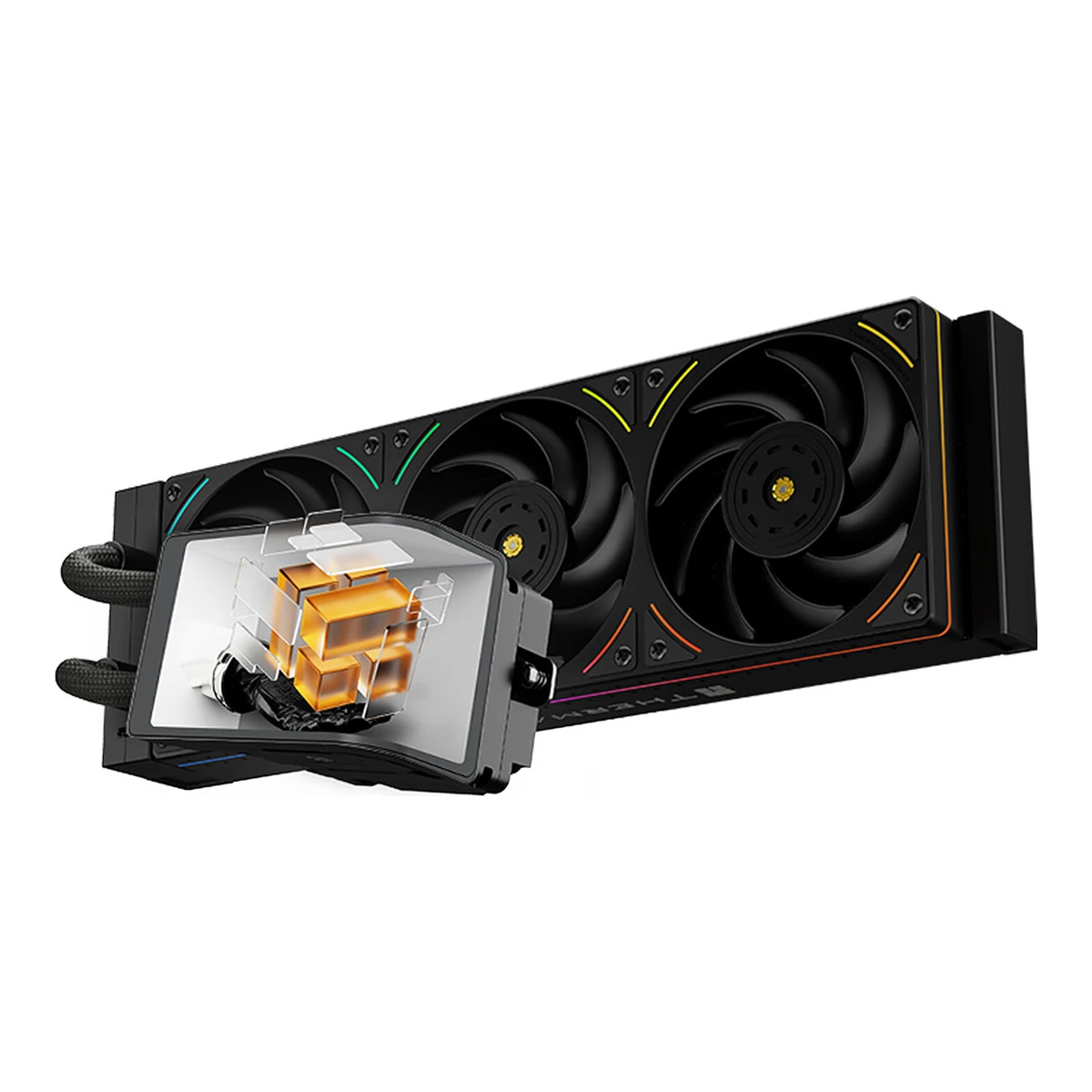

Thermalright Wonder Vision 360 UB ARGB

ThermalrightCPU cooler

Wonder Vision 360 UB ARGB

Released June 2025.1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The page record in the WordPress REST API is dated 2025-06-17. The white page is dated the same day. Thermalright issued no press release that could be read. The manual PDF was created in April 2025 and LDLC France first listed the black model on 23 Sep 2025, so the month may be a little early. Last checked 15 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066

30 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Wonder Vision1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The page tag is Wonder Vision.
Model numbers
WONVISS36UAR-BK5Retailer pageldlc.com/en/product/PB00705844.htmlRead 15 October 2026Model WONVISS36UAR-BK for the black model. The white model number was not found.
GTIN / EAN
0814256021203, 08142560212106Retailer pagewatercoolinguk.co.uk/product/thermalright-wonder-vision-360-ub-argb-aio-water-cooling-argb-6-67-oled-display-360mm-blackRead 15 October 2026EAN 0814256021203 for the black model, SKU CPTR-123.7Spec databasegeeknetic.es/comparador-precios/refrigeracion-liquida-thermalright-wonder-vision-360-ub-argb-white-360mm-3-ventiladores-pantalla-rotatoria-argb/comprarRead 15 October 2026EAN 0814256021210 for the white model. BuildCores lists another code for the white model (0753873529191), which is not stored.
Announced
Not available
Status
Available5Retailer pageldlc.com/en/product/PB00705844.htmlRead 15 October 2026Listed with a price. The product was first referenced on 23 Sep 2025.8Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-wonder-vision-360-ub-argb-black-reviewRead 15 October 2026Review of 2026-02-19 with live Amazon and Walmart prices for the black model.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The black page is Wonder Vision 360 UB ARGB BLACK.2Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-whiteRead 15 October 2026The white page is Wonder Vision 360 UB ARGB WHITE.
Cooler type
AIO liquid1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The page category is Hydro Cooling, with a pump block, a radiator and fans.
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper5Retailer pageldlc.com/en/product/PB00705844.htmlRead 15 October 2026Materials: Copper and Aluminum. The maker names the radiator as aluminium, so the copper is read as the cold plate. No source names the cold plate directly.
Thermal paste
Included3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026Component list item E: Thermal Compound X1, drawn as a syringe. It is a separate tube.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA20661Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Page header: Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5. LGA115X is written as LGA1150, LGA1151, LGA1155 and LGA1156. The page says 2011 with no suffix, so it is stored as LGA2011. Tom's Hardware lists only 1851, 1700 and AM5 / AM4.3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026Installation pages show AMD AM4/AM5, Intel LGA1700/1851, LGA115X/1200 and LGA20XX with the 2011 mounting hole.5Retailer pageldlc.com/en/product/PB00705844.htmlRead 15 October 2026Processor support lists AMD AM4/AM5 and Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011-v3 and 2066. Only the sockets Thermalright names are stored, so 2011-v3 is not.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The 360 mm class comes from the product name and the TL-UB36 fan unit dimension L360 mm x W120 mm x H25 mm, three 120 mm positions.
Radiator dimensions
Length403Width120Thickness27mm(15.9 × 4.7 × 1.1 in)1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Radiator Fimensions (sic) L403 mm x W120 mm x H27 mm. The blueprint drawing on the page prints 402 +/-1 mm for the length and 27 +/-1 mm for the thickness. The page table is stored.
Radiator material
Aluminium1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Radiator Aluminum.
Tube length
400mm1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026The blueprint drawing on the page prints 400.00 +/-10 for the tube side view. Watercooling UK and Geeknetic list a tube length of 400 mm. The page does not label the figure as the tube length.6Retailer pagewatercoolinguk.co.uk/product/thermalright-wonder-vision-360-ub-argb-aio-water-cooling-argb-6-67-oled-display-360mm-blackRead 15 October 2026Dimensions table: Tube Length 400 mm.7Spec databasegeeknetic.es/comparador-precios/refrigeracion-liquida-thermalright-wonder-vision-360-ub-argb-white-360mm-3-ventiladores-pantalla-rotatoria-argb/comprarRead 15 October 2026Specification text: tubes of 400 mm. The same page gives a total weight of 1800 g in its table and 1820 g in its text, so no weight is stored.
Max pump speed
6,400rpm1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Pump Rated Speed 6400 RPM +/-10% (MAX), 12 V DC.
Pump power connector
4-pin PWM fan header1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Connector 4 PIN PWM, in the pump block of the table.3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026Pump connection page: connect the pump power cable to the AIO_PUMP/CPU_OPT socket on the motherboard.
VRM fan
No3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026The component list has the fan, brackets, standoffs, screws and one USB cable, and no pump block fan. The pump block drawings show none.

Fans

Included fans
ModelSize (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
TL-UB3612032,150692.8727Fluid dynamic (FDB)4-pin PWM
Source1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026TL-UB36 SPECIFICATION: L360 x W120 x H25 mm, rated speed 2150 RPM +/-10% (MAX), noise 27 dBA (MAX), air flow 69X3 CFM (MAX), air pressure 2.87 mm H2O (MAX), 4 PIN PWM connector, S-FDB V2 bearing. 69X3 is read as 69 CFM for each of three fans. The 27 dBA has no per-fan or total label and is stored per fan. S-FDB is stored as fluid dynamic. Tom's Hardware prints up to 69.3 CFM and the maker's 69 is stored. The three rotors share one frame. No minimum speed is published. The white page names the fan TL-UB36W with the same figures.3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026Component list item A: one fan unit with three 120 mm rotors in one frame. Fan guide: connect the fan 4-pin power cable to the CPU_FAN header and the 3-pin ARGB cable to a 5 V 3-pin ARGB header.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: ARGB Connector 3 PIN 5V. Tom's Hardware says ARGB strips run along the fan frames and the radiator.
Lighting standard
ARGB 5 V1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: ARGB Connector 3 PIN 5V.
Built-in screen
LCD3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026The cover says Customizable LCD Screen, High Performance Fan and Pump, Addressable RGB Lighting. A Wonder Vision Display User Guide and an LCD screen wiring page follow. Retailers such as LDLC and Watercooling UK call the screen OLED, which the maker does not.8Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-wonder-vision-360-ub-argb-black-reviewRead 15 October 2026The review calls the screen a curved LCD. The maker's manual says LCD as well.
Screen size
6.67in(16.9 cm)1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Screen Size 6.67-Inch.
Screen resolution
2400 × 1080px1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Screen Resolution 2400x1080. Tom's Hardware prints 2400 x 1800 in its verdict and 2400x1080 in its text, so 1800 looks like a typo.
Software
TRCC4Maker product pagethermalright.com/support/downloadRead 15 October 2026TRCC Control Software V2.1.8 on the access date. Wonder Vision is in its list of compatible models. Tom's Hardware says the software is needed to control the display.8Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-wonder-vision-360-ub-argb-black-reviewRead 15 October 2026The review says the display needs Thermalright's TRCC software.
Needs a USB header
Yes3Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026LCD screen wiring: connect the waterblock to the motherboard USB 2.0 header with the USB cable. Display guide step 1: check the 9 pin USB cable connection between waterblock and motherboard before installing. The USB cable is in the box.8Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-wonder-vision-360-ub-argb-black-reviewRead 15 October 2026Installation step 6: connect the included cable to a USB header, as well as the AIO's PWM and ARGB cords.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))CPU temperature (°C)
AMD Ryzen 9 9950XCinebench R23 multi-core, stock power limit of about 200 W, CPU fans normalized to 39.6 dBA20039.6 dBA39.679.7
AMD Ryzen 9 9950XCinebench R23 multi-core, PBO enabled, average CPU power, CPU fans normalized to 39.6 dBA236.639.6 dBA39.6Not available
AMD Ryzen 9 9950XCinebench R23 multi-core with PBO enabled plus a 295 W GPU load, average CPU power, CPU fans normalized to 39.6 dBA220.539.6 dBA39.6Not available
AMD Ryzen 9 9950XCinebench R23 multi-core, PBO enabled, average CPU power, fans at full speed255.4100%47.2Not available
AMD Ryzen 9 9950XCinebench R23 multi-core, 200 W power limit200default motherboard fan curveNot available74.7
AMD Ryzen 9 9950XCinebench R23 multi-core, 150 W power limit150default motherboard fan curve38.959.1
AMD Ryzen 9 9950XCinebench R23 multi-core, 100 W power limit100default motherboard fan curveNot available47.6
Source8Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-wonder-vision-360-ub-argb-black-reviewRead 15 October 2026Tom's Hardware, Albert Thomas, review of 2026-02-19, values read from the bar charts and the text. Ryzen 9 9950X on an MSI X870E Carbon WiFi in a closed MSI MAG Pano 100R PZ case with an RTX 4070 Ti Super, ambient 23 C, noise from a Pyle PSPL25 meter in dBA. The install guide names Arctic MX-6 paste. Rows 1 to 3 are noise normalized: CPU fans at 39.6 dBA, system fans at 25% PWM. Row 1 is the average CPU temperature with the default 200 W limit. Rows 2 and 3 publish average CPU power only, with PBO enabled, and row 3 adds the 295 W GPU load from OCCT. Rows 4 to 7 use the default fan curve of the motherboard with system fans at 60% PWM. Row 4 is full fan speed with PBO, where the cooler held 255.4 W and the review gives 47.2 dBA as the maximum noise level. Rows 5 to 7 are the 200, 150 and 100 W power limits, as average CPU temperature. Only the 150 W row has a noise figure in the text (38.9 dBA). The review's tables also list the MSRP as $205.90 while its text says $260, so no launch price is stored.

Dimensions and weight

We could not find any of these 4 fields. Show them
Dimensions
Not available
Heatsink dimensions
Not available
Weight
Not available
Heatsink weight
Not available

In the box

In the box
Fan, INTEL Bracket x2, INTEL 115X/1700 Backplate x1, AMD Bracket x2, Thermal Compound x1, 115X Plastic Stands x4, 1700 Plastic Stands x4, LGA20XX Screws x4, INTEL nuts x4, Fan screws x12, Radiator screws x12, USB Cable x1, AM4 Screws x4, AM4 Plastic Stands x43Owner's manualdownload.thermalright.com/manuals/WONDERVISION360UBARGBBLACK.pdfRead 15 October 2026Component list items A to O for the 360: fan unit, Intel bracket x2, Intel 115X/1700 backplate x1, AMD bracket x2, thermal compound x1, 115X and 1700 plastic stands x4 each, LGA20XX screws x4, Intel nuts x4, fan screws (240/280 x8, 360/420 x12), radiator screws (240/280 x8, 360/420 x12), USB cable x1, AM4 screws x4 and AM4 plastic stands x4. The labels are small and were read from an image. The page is the series guide, so counts for the other radiator sizes differ. The 6.67 inch screen is attached to the pump block and is not listed. The listing has no ARGB splitter cable.

Warranty

Manufacturer warranty (source market)
6years1Maker product pagethermalright.com/product/wonder-vision-360-ub-argb-blackRead 15 October 2026Specification table: Warranty 6 Years, with no market named. Watercooling UK lists 12 months and LDLC France lists a 2 year seller warranty. The maker's 6 years is stored.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
WONVISS36UAR-BK0814256021203Black
Not available0814256021210White
