PC parts / CPU coolers

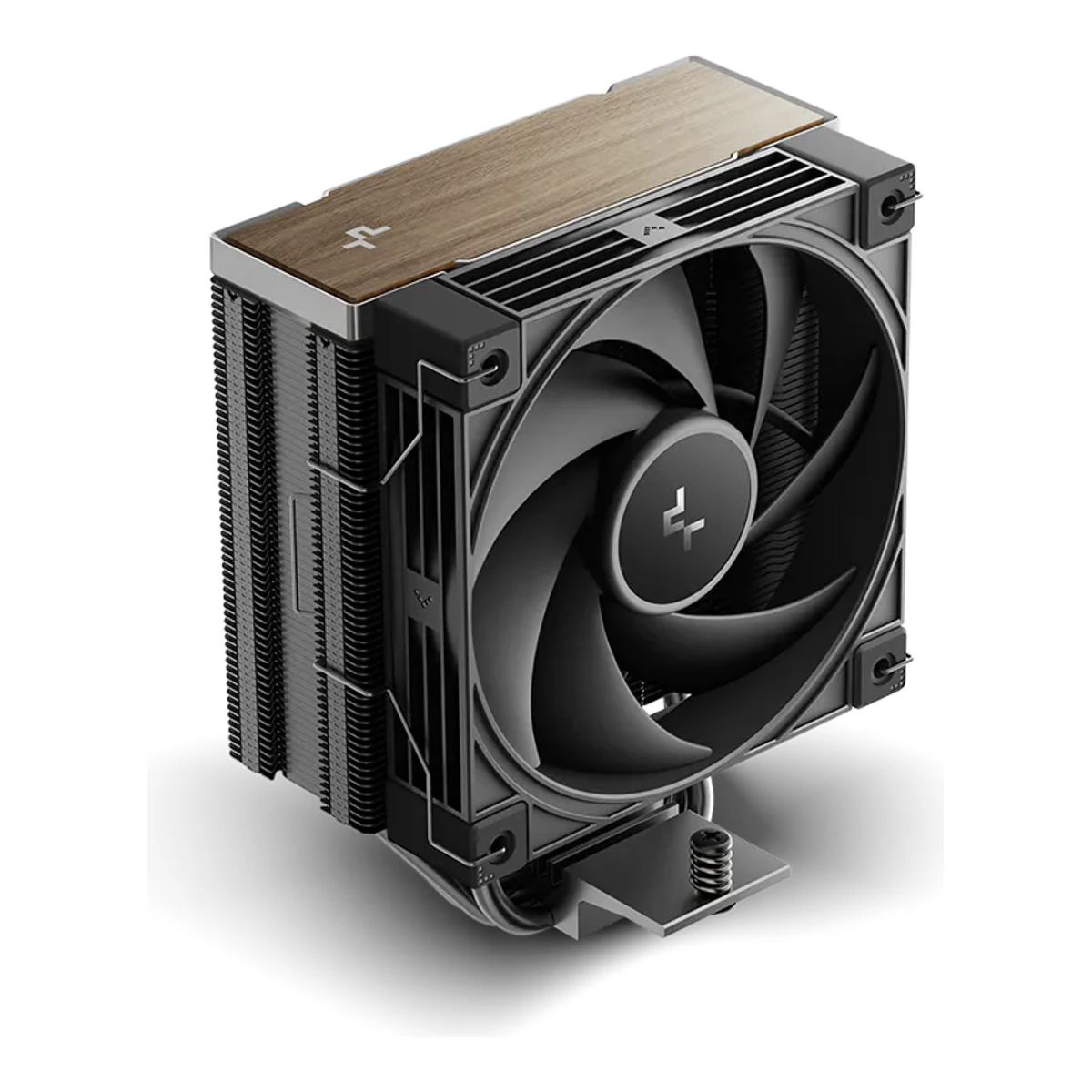

DeepCool AK400 G2

DeepCoolCPU cooler

AK400 G2

Released November 2025.6Press articlekitguru.net/components/cooling/matthew-wilson/deepcool-debuts-2nd-gen-ak-and-ak-digital-cpu-coolersRead 15 October 2026The standard models are available in the EU in January 2026. A Japanese distributor release says Japan sold the AK G2 series from 28 November 2025. Last checked 16 October 2026.

Cooler type
Air
Fans
1
Rated TDP
240W
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1155, LGA1151, LGA1150

29 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
AK G25Press releaseglobal.deepcool.com/company/pressroom/newsrelease/2025/22352.shtmlRead 15 October 2026The release names the family AK G2 with 4, 5 and 6 heat pipe models.
Model numbers
R-AK400G2-BKNNMN-GJD, R-AK400G2-WHNNMN-GJD1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Black: P/N R-AK400G2-BKNNMN-GJD. The white page 21909 gives R-AK400G2-WHNNMN-GJD. The AK400 G2 DIGITAL NYX is a separate model with its own page and is not this product.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-WH-Wood-Grain-Top-Cover-CPU-Cooler/2025/21909.shtmlRead 15 October 2026White: P/N R-AK400G2-WHNNMN-GJD.
GTIN / EAN
6933412729655, 69334127296621Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Black EAN 6933412729655. The white page gives EAN 6933412729662.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-WH-Wood-Grain-Top-Cover-CPU-Cooler/2025/21909.shtmlRead 15 October 2026White EAN 6933412729662.
Announced
4 November 20255Press releaseglobal.deepcool.com/company/pressroom/newsrelease/2025/22352.shtmlRead 15 October 2026Press release dated November 4, 2025 for the AK G2 series.6Press articlekitguru.net/components/cooling/matthew-wilson/deepcool-debuts-2nd-gen-ak-and-ak-digital-cpu-coolersRead 15 October 2026Article of November 4, 2025.
Status
Available11Retailer pagearvutitark.ee/en/pc-components/coolers/protsessori-jahutid/k-cooler-deepcool-ak400-g2-1511621Read 15 October 2026Arvutitark (Estonia) lists the black model at 37.90 EUR with 47 pieces available to order on the access date. DeepCool's page is live and Tom's Hardware says the coolers are not easy to buy in the US.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
€39.996Press articlekitguru.net/components/cooling/matthew-wilson/deepcool-debuts-2nd-gen-ak-and-ak-digital-cpu-coolersRead 15 October 2026The standard edition AK G2 models in black and white are priced at EUR 39.99 for the AK400 G2. Funkykit reports the same EUR 39.99 for the AK400 G2 (WH). The price includes VAT and the report names no country. The DeepCool release gives no prices.7Press articlefunkykit.com/news/deepcool-also-introduces-new-ak-g2-cpu-air-coolersRead 15 October 2026MSRP AK400 G2 (WH) EUR 39.99.
Markets
Not available
Colours
Black, White1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Black on this page. White on the AK400 G2 WH page 21909 with identical specs.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-WH-Wood-Grain-Top-Cover-CPU-Cooler/2025/21909.shtmlRead 15 October 2026White edition with the same technical spec table.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Black or white, with woodgrain or digital display options. The review says the AK400 G2 does not overhang the DIMM slots, so all RAM heights fit. Retailers print 40 mm or 60 mm RAM clearance and conflict, so no clearance is stored.
Cooler type
Air1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Air cooler with one 120 mm fan.
Air cooler layout
Single tower1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Text: a single-tower heat sink with four heat pipes.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Single-tower AK400 G2.
Rated TDP (claimed)
240W3Maker product pagedeepcool.com/ProductCompatibilityS_New/Default.aspxRead 15 October 2026Thermal Design Power (TDP) and CPU Socket Compatibility List: AK400 G2 240 W, and the same for AK400 G2 WH.
Base material
Copper1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Text: four direct touch copper heat pipes. The page names no base plate or plating, so the contact surface is stored as copper.
Thermal paste
Pre-applied9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Package list: the AK400 G2 includes pre-installed thermal paste, while the AK620 G2 includes a tube.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1155, LGA1151, LGA11501Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Application for Intel LGA1851/1700/1200/115X and AMD AM5/AM4. The manual names LGA1200, LGA1151, LGA1150 and LGA1155 for the 115X family, so LGA1156 is not stored.3Maker product pagedeepcool.com/ProductCompatibilityS_New/Default.aspxRead 15 October 2026The row marks LGA1851, LGA1700, LGA1200, LGA115X and AM5, AM4 and no LGA20XX or Threadripper sockets.4Owner's manualdeepcool.com/download/pdf/AK400_G2_Series.pdfRead 15 October 2026Installation chapters: Intel LGA1851/1700, Intel LGA1200/1151/1150/1155 and AMD AM5/AM4.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Spec table: AMD AM5/AM4 and Intel 1700/1851/1200/115x.11Retailer pagearvutitark.ee/en/pc-components/coolers/protsessori-jahutid/k-cooler-deepcool-ak400-g2-1511621Read 15 October 2026Sockets supported: 1150, 1151, 1155, 1200, 1700, 1851, AM4, AM5.
RAM height clearance
Not available
Offset mounting
No5Press releaseglobal.deepcool.com/company/pressroom/newsrelease/2025/22352.shtmlRead 15 October 2026The list of features marks the offset mounting solution with For AK620 G2 only, and the text says it is exclusive to the AK620 G2, so the AK400 G2 has none. The offset heat pipes on the AK400 G2 page describe the heat pipe layout, not a shifted mount.

Heatsink

Heat pipes
41Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Heatpipe: 4 pcs, 6 mm.5Press releaseglobal.deepcool.com/company/pressroom/newsrelease/2025/22352.shtmlRead 15 October 2026The release names models with 4, 5 and 6 heat pipes. The AK400 G2 is the four heat pipe model.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Four slightly staggered direct-touch copper heat pipes.
Heat pipe diameter
6mm1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Heatpipe: diameter 6 mm x 4 pcs.
Direct-contact heat pipes
Yes1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Text: four direct touch copper heat pipes.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Four direct-touch copper heat pipes embedded in the base.

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
Size (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
12012,20063.43.3331.45Hydraulic4-pin PWM
Source1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Technical spec: fan 120 x 120 x 25 mm, speed 2200 +/-10% rpm (max), airflow 63.4 CFM, air pressure 3.33 mmAq (read as mmH2O), noise <= 31.45 dB(A), 4-pin PWM, hydro bearing (the text says hydraulic bearing), 12 VDC 0.25 A. One fan is in the box, per the manual. The page gives no fan model name. The page also says 0 RPM startup and stop below 5% PWM, which is not stored as a minimum speed.4Owner's manualdeepcool.com/download/pdf/AK400_G2_Series.pdfRead 15 October 2026Parts page: one fan (B x1) and two fan clips.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Review states the fan is essentially the same model as on the AK620 G2, 2200 rpm +/-10%, 63.4 CFM, 3.33 mmAq.
Fans
1

Display and lighting

RGB lighting
No9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Spec table: Lighting None.
Lighting standard
Not available
Built-in screen
None9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026The wood-grain AK400 G2 has no screen. The digital display is on the separate Digital NYX models.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
Not available

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))Above ambient (°C)
AMD Ryzen 9 9950X3DCinebench R23 multi-core, PBO enabled, closed case, average CPU power the cooler held244.2maximum41.9Not available
AMD Ryzen 9 9950X3DCinebench R23 multi-core, 200 W stock power limit, closed case200Not availableNot available55.9
AMD Ryzen 9 9950X3DCinebench R23 multi-core with a 150 W power limit and Furmark on a GPU at 295 W, closed case150default motherboard fan curve38.945.9
AMD Ryzen 9 9950X3DCinebench R23 multi-core, PBO enabled, closed case, noise-normalized test, average CPU power the cooler held233.238.9 dB(A)38.9Not available
AMD Ryzen 9 9950X3DKarhu RAM stress test, about 153 W on the CPU, 30-minute run, closed case153Not availableNot available39.5
Source10Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-display/2Read 15 October 2026Tom's Hardware, Albert Thomas, review of 11 August 2026, values read from the bar charts. Ryzen 9 9950X3D on an MSI X870E Carbon WiFi in a closed Tryx Flova F50 case with one Noctua NF-A12 G2 intake fan and an RTX 4070 Ti Super, ambient 22 C. Paste is not stated. The temperature limit is 95 C, which every PBO air cooler reached in the maximum test, and the review gives no temperature for it. Row 1: average power with PBO, 244.2 W, with 41.9 dBA from the maximum noise chart (Pyle PSPL25 meter, distance not stated, the chart shows AK620 G2 at 42.4). Row 2: the 200 W stock limit, 55.9 C above ambient, no noise chart. Row 3: 150 W CPU with Furmark on the GPU at 295 W, 45.9 C above ambient, noise 38.9 dBA at the default fan curve of the motherboard. Row 4: noise normalized to 38.9 dBA, 233.2 W cooled. Row 5: Karhu test, 39.5 C above ambient for the CPU, no noise chart.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width132Height156Depth92mm(5.2 × 6.1 × 3.6 in)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Product Dimensions 132 x 92 x 156 mm (L x W x H), read as width 132, depth 92, height 156 by the DeepCool rule in the dimensions help. Arvutitark and a Czech distributor print the same 156 mm and 92 mm figures.11Retailer pagearvutitark.ee/en/pc-components/coolers/protsessori-jahutid/k-cooler-deepcool-ak400-g2-1511621Read 15 October 2026Cooler height 156 mm and 151 mm.
Heatsink dimensions
Width130Height151mm(5.1 × 5.9 in)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Heatsink Dimensions 130 x 92 x 151 mm (L x W x H). Width 130 and height 151 are stored. The depth of 92 mm equals the product depth with the fan, although the 25 mm fan sits in front of the fins, so the heatsink depth is not stored.
Weight
950g(2.1 lb)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 2026Net Weight 950 g.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-WH-Wood-Grain-Top-Cover-CPU-Cooler/2025/21909.shtmlRead 15 October 2026Net Weight 950 g, same as the black page.
Heatsink weight
Not available

In the box

In the box
Mounting hardware for AMD and Intel platforms, Alternative top cover, 120 mm fan and fan clips, Installation manual4Owner's manualdeepcool.com/download/pdf/AK400_G2_Series.pdfRead 15 October 2026Parts pages: heatsink x1, fan x1, Intel backplate x1, bracket x1, fan clips x2 and the Intel and AMD standoffs and screws x4 each. The alternative top cover and manual come from the Tom's Hardware package list.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Package list: mounting hardware for AMD and Intel platforms, alternative top covers, 120 mm fans and fan clips and the installation manual. The screwdriver is for the AK620 G2 only. Wording is shortened from the list.

Warranty

Manufacturer warranty (source market)
3years1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK400-G2-Wood-Grain-Top-Cover-CPU-Cooler/2025/21908.shtmlRead 15 October 20263 Years Limited Warranty Coverage. The page names no market.5Press releaseglobal.deepcool.com/company/pressroom/newsrelease/2025/22352.shtmlRead 15 October 2026Three-year warranty.9Reviewtomshardware.com/pc-components/air-cooling/deepcool-ak620-and-ak400-g2-review-quiet-and-powerful-with-woodgrain-or-a-digital-displayRead 15 October 2026Spec table: 3 years.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
R-AK400G2-BKNNMN-GJD6933412729655Black
R-AK400G2-WHNNMN-GJD6933412729662White
