PC parts / CPU coolers

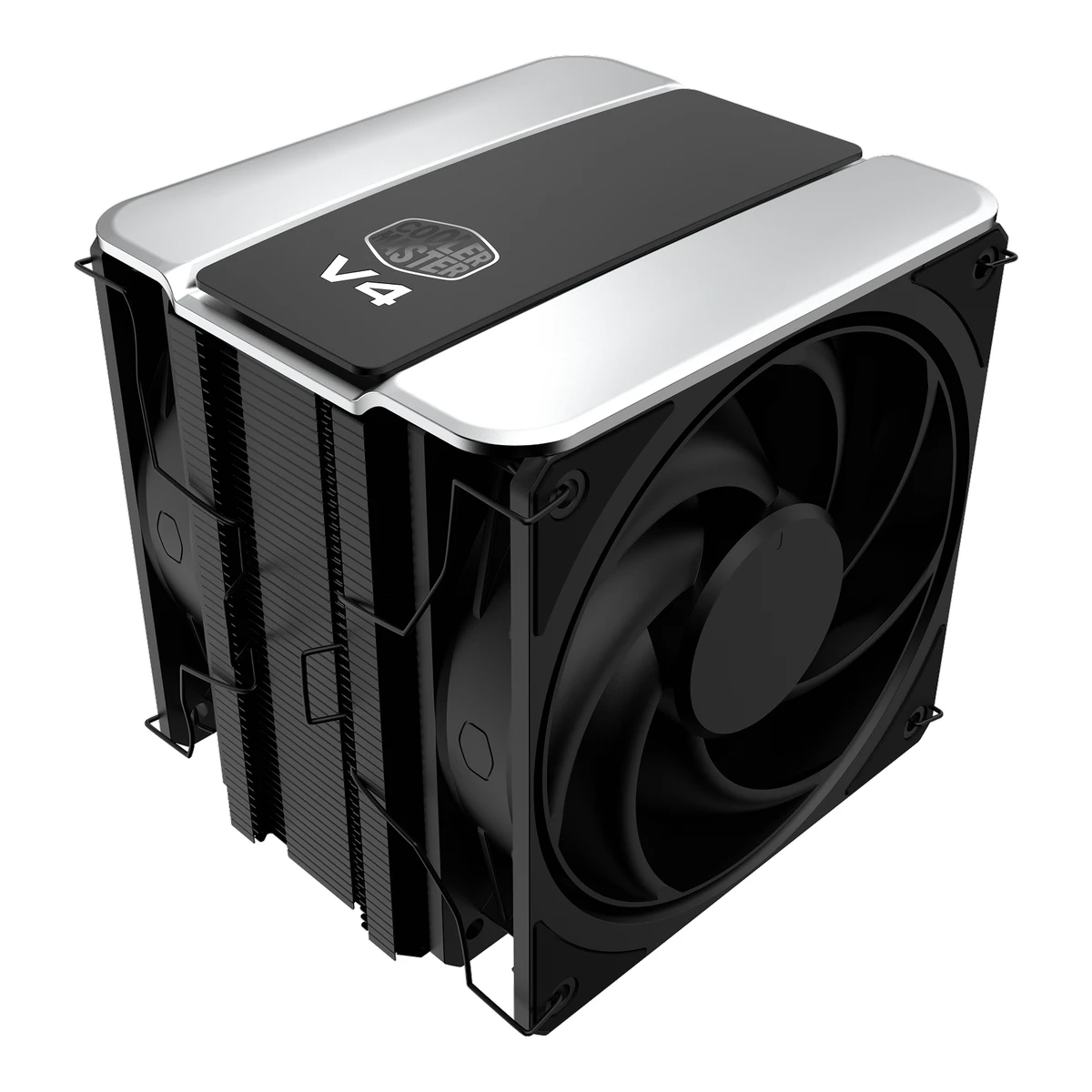

Cooler MasterCPU cooler
V4 Alpha 3DHP Black
Released October 2025.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Launch review published 20 October 2025. Last checked 16 October 2026.
- Cooler type
- Air
- Fans
- 2
- Rated TDP
- Not available
- CPU sockets
- AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150
33 of 54 fields known.
At a glance
Noise at 100% fan setting
Lower than 84% of other CPU coolers. Lower is better.
General
- Model numbers
- MAZ-T2HP-217PK-R11Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Specification table: Product Number MAZ-T2HP-217PK-R1. The Hyper 212 3DHP versions (MAY-T2HP-217PK-R1 and MAY-T2HP-217PA-R1) are separate products with one fan.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 202610Retailer pageaquatuning.com/en/detail/index/sArticle/23874Read 14 October 2026Manufacturer no. MAZ-T2HP-217PK-R1.
- GTIN / EAN
- 4719512158838, 8841021311582Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 2026Shipping details: EAN Code 4719512158838 and UPC Code 884102131158. Net weight and gross weight are listed as TBD.10Retailer pageaquatuning.com/en/detail/index/sArticle/23874Read 14 October 2026EAN 4719512158838. The listed weight of 1.5 kg is not stored because it is probably a shipping weight and conflicts with 917 g from Cybenetics and Hardware Busters.
- Announced
- 20 October 20255Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026The same day as the launch press release of 20 October 2025, which Business Wire lists. The Business Wire page itself returned 403 to the agent.9Press articleswemod.com/article/20251024_cooler-master-v4-alpha-black-3dhp/1Read 14 October 2026Swedish site copy of the Cooler Master launch press release, dated 24 October 2025 in its address. The release text announces the V4 Alpha 3DHP Black and the Hyper 212 3DHP Black.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Cooler type
- Air1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026
- Air cooler layout
- Single tower5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026The V4 Alpha uses the same single-tower heatsink as the Hyper 212 3DHP, with a second fan.6Reviewenostech.com/cooler-master-v4-alpha-3dhp-coolerRead 14 October 2026A single tower with 51 fins and two heat pipes.9Press articleswemod.com/article/20251024_cooler-master-v4-alpha-black-3dhp/1Read 14 October 2026Quote from the General Manager: all in single-tower builds.
- Rated TDP (claimed)
- Not available
- Base material
- Copper1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Text: the solid copper base covers more surface area than four-pipe coolers with direct contact. The page does not name any plating.4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications: Block Material Copper.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Technical specifications: Base Material Copper.9Press articleswemod.com/article/20251024_cooler-master-v4-alpha-black-3dhp/1Read 14 October 2026Precision-machined expanded copper contact plate. Heat pipes make contact with the CPU over a copper base.
- Thermal paste
- Included1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Cryofuze thermal paste is included. A tube is in the manual's package content list.3Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrPRead 14 October 2026Package content F: a syringe of thermal paste x1.9Press articleswemod.com/article/20251024_cooler-master-v4-alpha-black-3dhp/1Read 14 October 2026Cryofuze thermal paste is included.
Compatibility
- CPU sockets
- AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA11501Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 and AMD AM5 / AM4. No new socket and no extra kit are listed.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 20263Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrPRead 14 October 2026Pages 4 to 10: Intel LGA 1851/1700/1200/115X with parts B, C and E, and AMD AM5/AM4 with parts D and E.7Reviewtomshardware.com/pc-components/air-cooling/cooler-master-v4-and-v8-3dhp-reviewRead 14 October 2026Socket compatibility: AMD AM5/AM4 and Intel 1700/1851/1200/115x.
- RAM height clearance
- Not available
- Offset mounting
- Not available
Heatsink
- Heat pipes
- 21Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Heatpipes 2, heat sink material 2 x 3DHP / aluminum fins. Each 3DHP pipe has a third end in the centre of the fin stack, so the page counts two pipes.4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications: Heatpipes 2.6Reviewenostech.com/cooler-master-v4-alpha-3dhp-coolerRead 14 October 2026Two heat pipes, each with one additional pipe end.
- Heat pipe diameter
- 8mm4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications: Heatpipes 2, Heatpipe Diameter 8mm. Hardware Busters also lists 8 mm. Enostech only says the pipes seem to be 6 mm from a photo, which is not used.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Technical specifications: Heat pipes 2x 3DHP (8mm diameter).
Liquid cooling
We could not find any of these 7 fields. Show them
- Radiator size
- Not available
- Radiator dimensions
- Not available
- Radiator material
- Not available
- Tube length
- Not available
- Max pump speed
- Not available
- Pump power connector
- Not available
- VRM fan
- Not available
Fans
- Included fans
Model Size (mm) Fans Max speed (rpm) Airflow (CFM) Static pressure (mmH₂O) Noise (claimed) (dB(A)) Bearing Connector Mobius 120 (front) 120 1 2,050 63.1 2.69 22.6 Loop dynamic (LDB) 4-pin PWM Mobius 120 (rear) 120 1 1,850 50.5 1.77 20 Loop dynamic (LDB) 4-pin PWM Source1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Specification table, front and rear columns. Front: 120 x 120 x 25 mm, 0-2050 RPM +/-10%, 107.2 m3/h (63.1 CFM), 2.69 mmH2O, 22.6 dBA, 4-pin PWM. Rear: 0-1850 RPM +/-10%, 85.8 m3/h (50.5 CFM), 1.77 mmH2O, 20 dBA. Bearing: Loop Dynamic Bearing, stored as loop dynamic. The page labels the noise row Fan Pressure by mistake. The 0 RPM start is not stored, so no minimum speed is given. The page names the fans Mobius 120. The rear fan has the ring blade.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 2026Same figures as the product page. The sheet says the rear exhaust fan blades use a ring-shaped design.3Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrPRead 14 October 2026Step 11 shows both fans on one Y cable to a 4-pin CPU FAN header.4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications name two fans: Cooler Master MOBIUS 120 (2050RPM) and Cooler Master MOBIUS 120 (1800RPM). The maker gives 1850 rpm for the rear fan, which is stored.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Fans listed as CM Mobius 120 (2050 RPM) and CM Mobius 120 (1800 RPM), 120 x 120 x 25 mm, Loop Dynamic Bearing, 4-pin PWM, no daisy chain.- Fans
- 2
Display and lighting
- RGB lighting
- No1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Fan LED Profiles: Non-LED.7Reviewtomshardware.com/pc-components/air-cooling/cooler-master-v4-and-v8-3dhp-reviewRead 14 October 2026Spec table: Lighting None, Colors Black.
- Lighting standard
- Not available
- Built-in screen
- None1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026The cooler has no screen.
- Screen size
- Not available
- Screen resolution
- Not available
- Software
- Not available
Measured
- Cybenetics THETA, Intel LGA1851
- Silver4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026THETA Silver, Air, rated at 30 dB(A) on a Core Ultra 9 285K with the Default mount.
- Overall performance at 30 dB(A), AM5 (measured)
- 9,8524Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Overall Performance 9,852 at 30 dB(A) on a Ryzen 9 7900X (PBO enabled).
- Overall performance at 30 dB(A), LGA1851 (measured)
- 13,1974Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Overall Performance 13,197 at 30 dB(A) on a Core Ultra 9 285K (Intel default mode).
- Noise at 100% fan setting (Cybenetics)
- 29.9dB(A)4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 202629.9 dB(A) at the 100% fan setting, with the fans at 2009 and 1814 rpm. Hemi-anechoic chamber with a 6 dB(A) noise floor, Bruel & Kjaer 2270 sound analyser, microphone 1 m from the cooler at 30 to 45 degrees. The cooler never reaches more than 30 dB(A), so 30 dB(A) and full fan speed give the same row.
- Thermal tests (measured)
Test CPU Load CPU power (W) Fan setting Noise (dB(A)) CPU temperature (°C) AMD Ryzen 9 7900X Prime95 Small FFTs, full CPU load, PBO enabled 174.4 20 dB(A) 20 95.1 AMD Ryzen 9 7900X Prime95 Small FFTs, full CPU load, PBO enabled 178.1 25 dB(A) 25 95.1 AMD Ryzen 9 7900X Prime95 Small FFTs, full CPU load, PBO enabled 182.7 30 dB(A) 30 95.1 AMD Ryzen 9 7900X Prime95 Small FFTs, full CPU load, PBO enabled 182.7 100% 29.9 95.1 Intel Core Ultra 9 285K Prime95 Small FFTs, full CPU load, Intel default mode 296.6 20 dB(A) 20 96.2 Intel Core Ultra 9 285K Prime95 Small FFTs, full CPU load, Intel default mode 296.8 25 dB(A) 25 94.8 Intel Core Ultra 9 285K Prime95 Small FFTs, full CPU load, Intel default mode 297.3 30 dB(A) 30 93.3 Intel Core Ultra 9 285K Prime95 Small FFTs, full CPU load, Intel default mode 297.3 100% 29.9 93.3 AMD Ryzen 9 9950X3D PBO enabled, closed case, average CPU power when the CPU reaches its 95 C limit 237 100% 38.9 Not available Source4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Cybenetics Cooling Solutions Test Protocol. Ambient held at 25 C plus or minus 0.5 C and 30% humidity in a climate chamber, open test bench (Cooler Master Test Bench for AM5, DimasTech Bench for LGA1851), Prime95 Small FFTs (as the protocol page states), values averaged over the last 4 minutes. Fans were set to reach each normalized noise level at 1 m, or 100%. CPU power is measured at the EPS connectors. The protocol states Arctic MX-4 paste for all tests. Mount: Default. The report does not publish a temperature above ambient. The AM5 rows use the AM5 platform and the LGA1851 rows the LGA1851 platform. The last row of each platform is the full fan speed result.8Reviewtomshardware.com/pc-components/air-cooling/cooler-master-v4-and-v8-3dhp-review/2Read 14 October 2026Tom's Hardware, Albert Thomas, review of 8 July 2026. Ryzen 9 9950X3D on an MSI X870E Carbon WiFi in a closed Tryx FLOVA F50 with one Noctua NF-A12 G2 intake fan, PBO enabled. With the CPU at its 95 C limit, the spec table gives the average cooled power as 237 W for the V4 Alpha, both at full speed fans and in the noise-normalized test at 38.9 dBA, which is the V4 Alpha's maximum noise in this setup. The review gives no temperature for this test. All other results are in charts. The ambient temperature, noise distance and paste are not stated in this review.
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width133Height161Depth114mm(5.2 × 6.3 × 4.5 in)1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Dimension 133 x 114 x 161 mm. The press text gives the order as W x D x H. The size includes both fans, as the Hyper 212 3DHP with one fan is 86 mm deep and this one is 114 mm.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 2026Dimensions (L x W x H) 133 x 114 x 161 mm. Packaging 155 x 155 x 215 mm.4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications: Length 133 mm, Width 114 mm, Height 161 mm, the maker's figures.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Technical specifications: Dimensions with fans (L x W x H) 133mm x 114mm x 161mm.7Reviewtomshardware.com/pc-components/air-cooling/cooler-master-v4-and-v8-3dhp-reviewRead 14 October 2026Spec table for the V4 Alpha 3DHP: 133 (W) x 114 (D) x 161 mm (H).9Press articleswemod.com/article/20251024_cooler-master-v4-alpha-black-3dhp/1Read 14 October 2026The cooler measures 133 mm x 114 mm x 161 mm (WxDxH).
- Heatsink dimensions
- Not available
- Weight
- 917g(2 lb)4Measurementcybenetics.com/evaluations/coolers/100Read 14 October 2026Technical specifications: Weight 917g. Hardware Busters gives 917 g with fans. The maker lists the net weight as TBD.5Reviewhwbusters.com/cooling/cooler-master-v4-alpha-3dhp-black-hyper-212-3dhp-black-argb-review-less-is-moreRead 14 October 2026Technical specifications: Weight (with fans) 917g.
- Heatsink weight
- Not available
In the box
- In the box
- Cooler with two 120 mm fans, Intel backplate x1, Intel mounting bar x2, AMD mounting bar x2, Screw x2, Cryofuze thermal paste x1, Fan PWM Y cable x1, Installation manual3Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrPRead 14 October 2026Package content list on page 2 uses letters and drawings without names: cooler with fans (A) x1, Intel backplate marked LGA1700/1200/115X (B) x1, Intel bars (C) x2, AMD bars (D) x2, screws (E) x2, thermal paste syringe (F) x1 and a Y cable (G) x1. Names are read from the drawings and the installation pages. Tom's Hardware lists the installation manual in the box of the same range.
Links
- Product page
- www.coolermaster.com/en-global/v4-alpha-3dhp-black.html1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026
- Spec sheet
- coolermaster.egnyte.com/dl/kvkDKG7vf3yC1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Downloads section: Product Sheet link on the maker's Egnyte share.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 2026Two page product sheet, 2025 edition. The public link downloads the PDF.
- Manual
- coolermaster.egnyte.com/dl/sMg7tw0XrP1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Downloads section: Manual link on the maker's Egnyte share.3Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrPRead 14 October 202614 page installation guide, version 2.0 of June 2025, mostly drawings.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 5years1Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.htmlRead 14 October 2026Specification table: Warranty 5 years. The page names no market.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yCRead 14 October 2026Warranty 5 years.7Reviewtomshardware.com/pc-components/air-cooling/cooler-master-v4-and-v8-3dhp-reviewRead 14 October 2026Spec table: five years for the V4 Alpha, six years for the V8 Ace.
Compare with
Pick a CPU cooler to see both side by side. Differences are marked yellow.
Sources
We read 10 sources for this CPU cooler. The numbers match the markers in the sheet.
- Maker product pagecoolermaster.com/en-global/v4-alpha-3dhp-black.html
- Maker spec sheet (PDF)coolermaster.egnyte.com/dl/kvkDKG7vf3yC
- Owner's manualcoolermaster.egnyte.com/dl/sMg7tw0XrP
- Measurementcybenetics.com/evaluations/coolers/100
- Retailer pageaquatuning.com/en/detail/index/sArticle/23874
See a wrong value? Tell us and name the field.
