PC parts / CPU coolers

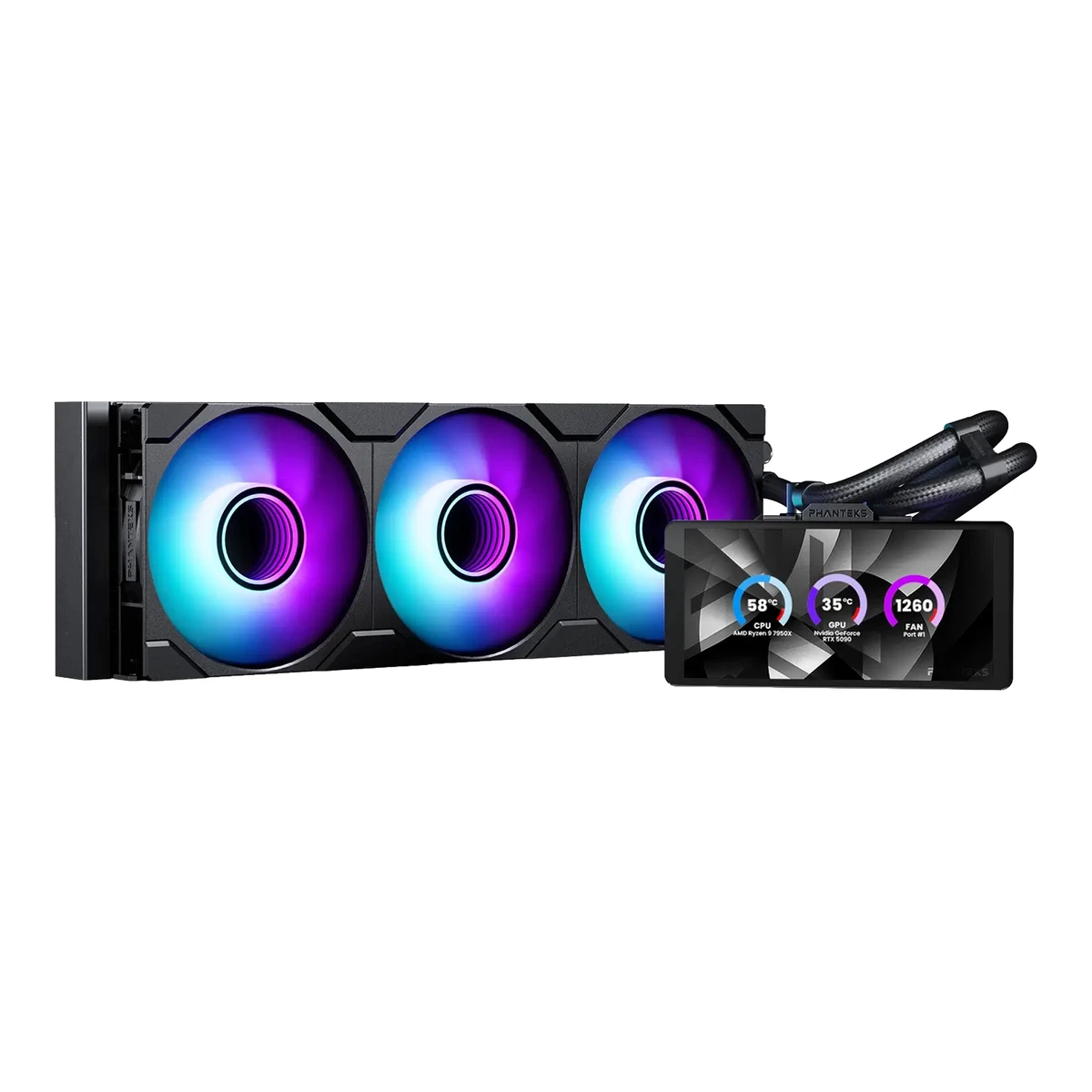

Phanteks Glacier One 360M25-LCD

PhanteksCPU cooler

Glacier One 360M25-LCD

Released February 2026.5Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026The article says the cooler is now available and will be available beginning February 26, 2026. Last checked 16 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150

32 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Glacier One1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026The page and the store call the family Glacier One. The non-LCD Glacier One 360M25G2 is a separate product.
Model numbers
PH-GO360M25G2LCD_DBK01, PH-GO360M25G2LCD_DWT011Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: Model No. PH-GO360M25G2LCD_DBK01 for Black. The White page gives PH-GO360M25G2LCD_DWT01.2Maker product pagephanteks.com/product/glacier-one-360m25-lcd-whiteRead 15 October 2026Model No. PH-GO360M25G2LCD_DWT01 for White.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026The first page lists PH-GO360M25G2LCD_DBK01 Black and PH-GO360M25G2LCD_DWT01 White.
GTIN / EAN
886523004202, 8865230042191Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: UPC Code 886523004202 for Black. The White page gives 886523004219. Both have a valid UPC-A check digit.2Maker product pagephanteks.com/product/glacier-one-360m25-lcd-whiteRead 15 October 2026UPC Code 886523004219 for White.
Announced
26 February 20265Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026Launch article of 2 March 2026 with the key specification block: Launch date February 26, 2026.7Press articlemodders-inc.com/phanteks-drops-the-new-360m25-lcd-aioRead 15 October 2026Article of 26 February 2026 based on the Phanteks announcement.
Status
Available5Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026The article says the cooler is now available.8Retailer pagephanteks.store/products/phanteks-glacier-one-360m25g2-lcd-aio-liquid-cpu-cooler-blackRead 15 October 2026The maker's US store page lists Glacier One 360M25G2-LCD Black, SKU PH-GO360M25G2LCD_DBK01, as available at $149.99 on the access date.
Predecessor
Not available
Successor
Not available
Launch price (US)
$149.995Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026MSRP $149.99 for the United States. Both colours have the same MSRP. US prices exclude tax.6Press articletech-critter.com/phanteks-glacier-one-360m25-lcd-launchedRead 15 October 2026Now on sale for US$149.99.8Retailer pagephanteks.store/products/phanteks-glacier-one-360m25g2-lcd-aio-liquid-cpu-cooler-blackRead 15 October 2026The maker's US store lists the Black model at $149.99 on the access date, the same as the launch MSRP.
Launch price (EU)
€149.95Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026MSRP EUR 149.90 for Europe, the same for Black and White. The article does not state the tax treatment, and European prices are usually printed with VAT.
Markets
Not available
Colours
Black, White1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Colors on the page: Black and White.2Maker product pagephanteks.com/product/glacier-one-360m25-lcd-whiteRead 15 October 2026Color White.5Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 2026Color options: Black and White.6Press articletech-critter.com/phanteks-glacier-one-360m25-lcd-launchedRead 15 October 2026Available in Black and White.
Cooler type
AIO liquid1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Sealed all-in-one liquid cooler with a 360 mm radiator, a pump block with a 6 inch LCD module and three M25 Gen2 fans.
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Pump Details: Material Copper | ABS. The text and the maker's US store call it a pure copper baseplate. No plating is named.8Retailer pagephanteks.store/products/phanteks-glacier-one-360m25g2-lcd-aio-liquid-cpu-cooler-blackRead 15 October 2026Text: built with a pure copper baseplate.
Thermal paste
Pre-applied1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Scope of Delivery: 1x Glacier One 360M25-LCD Pre-applied thermal paste.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA11501Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: Intel LGA 115x | 1200 | 1700 | 1851 and AMD AM4 | AM5. LGA 115x is written as LGA1150, LGA1151, LGA1155 and LGA1156. The page names no LGA1954.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Step 1 shows Intel 115X | 1200 | 1700 | 1851 and AMD AM4 | AM5 with their stand-offs and brackets.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Three 120 mm fans on a 397 mm radiator, and the title names 360.
Radiator dimensions
Length397Width120Thickness27mm(15.6 × 4.7 × 1.1 in)1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: Radiator Dimensions Length x Width x Height 397 x 120 x 27mm.
Radiator material
Not available
Tube length
400mm1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table, Tube Details: Length 400 mm, Diameter 12.5 mm, material CIIR rubber and braided sleeves. The pump DC cable is 400 + 10 mm.10Retailer pageeu.computerorbit.com/products/phanteks-glacier-one-360-m25-lcd-black-rgb-aio-cpu-coolerRead 15 October 2026Spec table: Tube length 400 mm. The Black model shows out of stock there on the access date, and the maker's US store has it available.
Max pump speed
3,100rpm1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table, Pump Details: Motor Speed 3100 RPM +/- 10% (100% Duty Cycle). Pump sound level 20.0 dBA, 12V and 0.28A to 0.45A.
Pump power connector
4-pin PWM fan header3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Step 2, connect CPU block: the pump plug goes to a Mainboard Pump Header, labelled 3 or 4-PIN Header. The drawing shows a 4-pin plug, and the specification table gives the pump speed at 100% duty cycle. So the connector is stored as 4-pin PWM.
VRM fan
No1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026The specification table and the scope of delivery list no VRM fan. The pump block carries the LCD module only.

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
M25G2-120 D-RGB12033502,00072.722.5135.13Hydraulic4-pin PWM
Source1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table, Fans M25G2-120: Fan Model M25G2-120 D-RGB, Dimensions 120 x 120 x 30 mm, Speed 350 - 2000 +/- 10% RPM, Air Flow 72.72 CFM, Fan Static Pressure 2.51 mm H2O, Sound Level 35.13 dBA, Connector Linq6, cable length 500 mm daisy-chain. The page says three fans and labels the figures for one fan. The 30 mm in the dimensions line does not match the 25 mm frame on the maker's M25 Gen2 fan page, and only the 120 mm size is stored. The bearing comes from the M25 Gen2 fan page. The Linq6 lead is the fan's own connector and the box adds a Linq6 mainboard adapter cable that ends in a 4-pin PWM header plug and an ARGB plug, so the connector is stored as 4-pin PWM.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Step 5: the LINQ6 fan cable goes through the LINQ6 extension cable to the next M25 Gen2 fan or the NexLinq Hub. The optional LINQ6 adapter splits to a mainboard ARGB header or ARGB controller and a 4-pin PWM fan header. The manual says three M25G2 fans pre-connected.4Maker product pagephanteks.com/product/m25g2-120-black-d-rgbRead 15 October 2026Maker page of the M25 Gen2 120 fan, model PH-F120M25_G2_DBK01: Bearing Type Hydraulic bearing, speed 350~2000 +/- 10% RPM, Max. Airflow 72.72 CFM, Max. Air Pressure 2.51 mm H2O, Noise Level 35.13 dBA, Connector Linq6, frame 120 x 120 x 25 mm. The figures equal the fan figures on the Glacier One page, which names the fan M25G2-120 D-RGB, so the hydraulic bearing is stored for the fans in the cooler. The Glacier One page itself states no bearing.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Fans with D-RGB lighting and an infinity mirror hub.
Lighting standard
Proprietary1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Integrated Lighting: the LINQ6 connector combines fan power and D-RGB in one connection. The D-RGB must be connected to a Phanteks controller or an A-RGB mainboard. The page states no voltage, so the maker's own Linq6 system is stored as proprietary.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Step 5: the Linq6 lead carries fan and ARGB signals, and the adapter is optional. The manual states no voltage and says a controller is needed for ARGB functions.
Built-in screen
LCD1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: LCD Screen LCD6-HD, LCD Type IPS panel.
Screen size
6in(15.2 cm)1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Text: 6 inch LCD-IPS display. The module is 145.2 x 70.5 mm.5Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 20266-inch IPS LCD.
Screen resolution
1480 × 720px1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: LCD Resolution 1480 x 720, Refresh Rate 60 Hz, Luminance 250 Nit. Width and height are stored as Phanteks prints them for the landscape position.5Press articlethepcenthusiast.com/phanteks-glacier-one-360m25-lcd-aioRead 15 October 20261480x720 at 60Hz.
Software
NexLinq1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026The display is customised with the NexLinq App for Windows, which runs on the display's own hardware.
Needs a USB header
Yes1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: LCD connector USB-C, and the accessory box has a USB-C to USB 2.0 internal header cable of 600 mm. The manual step 6 connects it to a 9-pin USB header.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Step 6, LCD module: install the USB cable to a 9-pin USB header.

Measured

We could not find any of these 6 fields. Show them
Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Not available

Dimensions and weight

Dimensions
Not available
Heatsink dimensions
Not available
Weight
1,640g(3.6 lb)1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table, Extra: Net Weight 1.64 kg. Gross Weight is 2.65 kg and is not stored.
Heatsink weight
Not available

In the box

In the box
1x Glacier One 360M25-LCD Pre-applied thermal paste, 3x M25G2 fans Pre-installed, 4x Screw corner covers Pre-installed, 4x Screw bridge covers Pre-installed, 3x Tube clip, 1x USB-C to USB 2.0 internal header 600 mm, 1x Linq6 extension cable 500 mm, 1x Linq6 Mainboard adapter cable 500 mm, 12x 36 mm 6-32 UNC Radiator screws, 12x 6 mm 6-32 UNC Radiator screws, 1x LGA 115X | 1200 | 1700 | 1851 Bracket, 1x LGA 115X | 1200 | 1700 | 1851 Plastic backplate, 4x LGA 1700 | 1851 Stand-off screws, 4x LGA 115X | 1200 Stand-off screws, 4x Thumb nuts, 2x AM4 | AM5 Adapter brackets1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Scope of Delivery, Accessory Box, Screws and Mounting Hardware lists, copied as printed.3Owner's manualphanteks.com/manuals/Glacier_One_M25_LCD_v1.1.pdfRead 15 October 2026Scope of delivery page: radiator with pump module x1, LCD6-HD module x1, M25G2 fans x3 pre-connected, Intel and AMD stand-offs x4 each, Intel backplate and bracket, USB to Type-C cable 600 mm, LINQ6 extension cable and LINQ6 adapter 500 mm. This matches the product page.

Warranty

Manufacturer warranty (source market)
5years1Maker product pagephanteks.com/product/glacier-one-360m25-lcd-blackRead 15 October 2026Specification table: Warranty 5 Years limited. The page names no market.9Retailer pageldlc.com/en/product/PB00741770.htmlRead 15 October 2026Product text: 5-year manufacturer warranty. The White model is marked sold out there on the access date.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
PH-GO360M25G2LCD_DBK01886523004202Black
PH-GO360M25G2LCD_DWT01886523004219White

Sources

We read 10 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 27 fields
  2. Read 15 October 2026Backs 4 fields
  3. Read 15 October 2026Backs 8 fields
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 8 fields
  6. Read 15 October 2026Backs 3 fields
  7. Read 15 October 2026Backs 2 fields
  8. Read 15 October 2026Backs 3 fields
  9. Read 15 October 2026Backs 1 field
  10. Read 15 October 2026Backs 1 field
