PC parts / CPU coolers

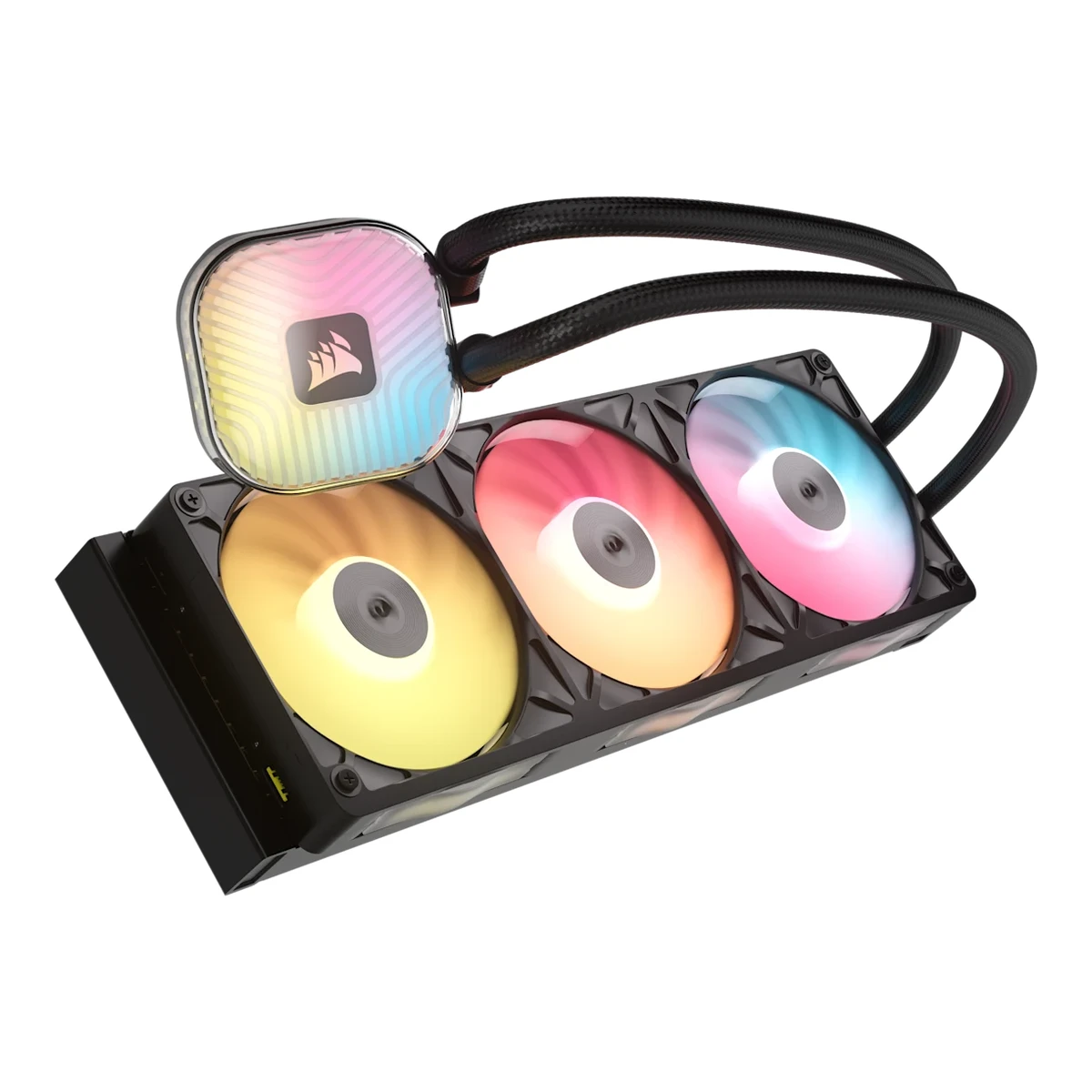

CORSAIR iCUE LINK TITAN II 360 RX RGB

CORSAIRCPU cooler

iCUE LINK TITAN II 360 RX RGB

Released August 2026.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026Press release of August 25, 2026 announces the launch of the iCUE LINK TITAN II Series. It says the coolers are available through authorized retailers and the CORSAIR webstore, with availability varying by region and model. The corsair.com page was in stock on the access date. Last checked 16 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA1700

31 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
iCUE LINK TITAN II2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Corsair names the family iCUE LINK TITAN II.
Model numbers
CW-9061037-WW, CW-9061038-WW1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026SKU CW-9061037-WW is the black cooler. The colour selector offers Black and White, and the page data names CW-9061038-WW for the white one.
GTIN / EAN
0840440419464, 08404404194717Retailer pagescan.co.uk/products/corsair-icue-link-titan-ii-360-rx-rgb-cooler-black-1x-360mm-rx360-ii-fan-copper-plate-aluminiumRead 14 October 2026Black CW-9061037-WW: EAN 0840440419464.8Retailer pagescan.co.uk/products/corsair-icue-link-titan-ii-360-rx-rgb-cooler-white-1x-360mm-rx360-ii-fan-copper-base-aluminium-radiaRead 14 October 2026White CW-9061038-WW: EAN 0840440419471.
Announced
25 August 20266Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026MILPITAS, CA, August 25, 2026.
Status
Available1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026In stock with a New badge on the access date.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026Launched on August 25, 2026 and on sale.
Predecessor
Not available
Successor
Not available
Launch price (US)
$179.996Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026Regional launch pricing table, TITAN II RX RGB, United States: $179.99. Corsair says prices are subject to change. US prices exclude tax.12Press articlekitguru.netRead 14 October 2026Article of August 26, 2026: Titan II RX RGB $179.99.
Launch price (EU)
€169.96Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026Table, TITAN II RX RGB, Europe: EUR 169,90. The release does not say whether VAT is included.12Press articlekitguru.netRead 14 October 2026Article of August 26, 2026: Titan II RX RGB EUR 169.90.
Markets
Not available
Colours
Black, White1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Colour selector: Black and White.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026The TITAN II Series coolers are available in Black or White.
Cooler type
AIO liquid1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs: cold plate material copper. The cold plate is a convex plate and no plating is stated.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026Coldplate material: Copper.
Thermal paste
Pre-applied1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Pre-applied CORSAIR XTM70 thermal paste on every cold plate.2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026XTM70 thermal paste pre-applied at the factory.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026Pre-applied CORSAIR XTM70 thermal paste.

Compatibility

CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA17001Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs list Intel 1851, Intel 1700, AMD AM5 and AMD AM4. LGA1954 comes from Corsair's comparison table, see the other manufacturer page.2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Table last updated September 17, 2026: TITAN II 360 RX RGB supports AMD AM5 and AM4 and Intel 1954, 1851 and 1700. The text says TITAN II adds support for LGA 1954. The box has only the LGA 1851 / 1700 mounting set, so no extra kit is listed for LGA1954.5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026Installation steps cover AMD AM5 and AM4 and Intel LGA 1851 and 1700 with the same Intel bracket set.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs: radiator size 360mm, with three 120 mm fans.
Radiator dimensions
Length394Width120Thickness27mm(15.5 × 4.7 × 1.1 in)3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026Specs table of September 2, 2026: radiator dimensions 394 x 120 x 27 mm.
Radiator material
Aluminium1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs: radiator material aluminum.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026Radiator material: Aluminum.
Tube length
450mm1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs: tubing length 450mm.2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Tubing length 450mm.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026Tubing length 450 mm, sleeved low-permeation rubber.
Max pump speed
3,000rpm9Reviewgeeknetic.es/Review/3634/CORSAIR-iCUE-LINK-TITAN-II-360-RX-RGB-Review-la-nueva-generacion-TITAN-se-apoya-en-iCUE-LINK-y-mejora-el-rendimiento.htmlRead 14 October 2026Geeknetic review of August 25, 2026, spec table: pump speed 2000 to 3000 RPM, PWM controlled. Corsair publishes no pump speed. The top of the range is stored. The review's fan speed row (450 to 1700 RPM) does not match Corsair's table, so this figure rests on one source.
Pump power connector
Proprietary hub or cable2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Every component connects through iCUE LINK universal connectors into the iCUE LINK System Hub that is included in the box.5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026The pump takes an iCUE LINK cable into the iCUE LINK System Hub. The hub gets power from a 6-pin PCIe cable and sends a tach signal to the CPU_FAN header. This is Corsair's own hub and cable system.
VRM fan
No3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026The 70 mm VRM fan is part of the optional 5-inch LCD screen module and of the RX LCD model. The RGB model has the standard pump cap and no VRM fan.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026The integrated VRM fan belongs to the LCD module of the RX LCD model. The RX RGB model has a pump cap with 20 LEDs.

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
iCUE LINK RX360 II RGB Unified Frame12034002,10064.73.5732.8Magnetic domeProprietary
Source1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Tech specs: fan speed 400 - 2100 RPM +/-10%, fan airflow 14.1-64.7 CFM, static pressure 0.21 - 3.57 mm-H2O, noise 10 - 32.8 dBA. The top of each range is stored. Corsair's fan table lists the same airflow, pressure and noise for the single RX120 II and the three-fan RX360 II, so the figures are per fan.2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Both fan families use Magnetic Dome bearings. The RX II RGB fans have built-in temperature sensors. Lighting is 20 LEDs on the pump and 24 on the fans.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-rgb-aio-everything-you-need-to-knowRead 14 October 2026Specs table: fan bearing Magnetic Dome, 400-2,100 RPM +/-10%, 14.12-64.7 CFM, 0.21-3.57 mm-H2O, 10-32.8 dB(A), unified frame 360 x 129 x 26 mm.4Maker product pagecorsair.com/us/en/explorer/diy-builder/fans/corsair-icue-link-rx-ii-rgb-fans-everything-you-need-to-knowRead 14 October 2026Technical specifications of the RX120 II and RX360 II: fan speed 0, 400 - 2100 RPM +/-10%, PWM range 0% and 20% - 100%, airflow 14.12 - 64.72 CFM, noise 10 - 32.8 dBA, static pressure 0.21 - 3.57 mm-H2O, Magnetic Dome bearing. The 0 is the zero RPM mode, so 400 rpm is the lowest speed while spinning. The RX360 II is three RX120 II fans in one frame with the same figures.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 202644 total addressable RGB LEDs.
Lighting standard
Proprietary2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Fan control and lighting run through iCUE LINK and iCUE software, not through a standard motherboard header.5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026Lighting is set through iCUE LINK and iCUE software. No 3-pin or 5 V ARGB cable is in the box.
Built-in screen
None2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Display: No.
Screen size
Not available
Screen resolution
Not available
Software
Corsair iCUE1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026iCUE-enabled product, controlled with CORSAIR iCUE software.5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026Requires iCUE 5.37 or higher and System Hub firmware 3.11.646 or higher.
Needs a USB header
Yes5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026The hub's USB Type-C input connects with the included USB Type-C to USB 2.0 cable to a USB 2.0 header on the motherboard.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))Above ambient (°C)
AMD Ryzen 9 7900XCPU stress test, power level as published10040 dB(A)4019.4
AMD Ryzen 9 7900XCPU stress test, power level as published15040 dB(A)4039.3
AMD Ryzen 9 7900XCPU stress test, power level as published20040 dB(A)4061.8
AMD Ryzen 9 7900XCPU stress test, power level as published100100%46.618.7
AMD Ryzen 9 7900XCPU stress test, power level as published150100%46.638.5
AMD Ryzen 9 7900XCPU stress test, power level as published200100%46.661
Source11Reviewigorslab.de/en/corsair-icue-link-titan-ii-360-rx-rgb-review-new-pump-new-fans-plenty-rgb/4Read 14 October 2026Igor's Lab review of August 25, 2026. Ryzen 9 7900X on an ASUS ROG Crosshair X670E Hero, open bench without case or added airflow, same paste for all coolers (not named, the cooler's own paste is XTM70), pump at 100% PWM. Temperatures are the CPU Die (Average) sensor as a delta to the room temperature, which is not air-conditioned and not stated. The stress tool and duration are not stated on the page. The power levels 100, 150 and 200 W are as published, and the cpu_power_w value is that level, not a measured power. Average values are stored. The peak deltas were 20.5, 42.1 and 64.4 C at 40 dB(A) and 19.5, 41.3 and 64.3 C at full speed. Noise was measured at 40 cm with a Voltcraft SL-10 meter in a room of 30.4 dB(A), so the dB(A) values do not compare with Cybenetics rows at 1 m. The 40 dB(A) rows ran the radiator fans at 81% PWM (about 1700 rpm). The full-speed rows use 100% PWM and 46.6 dB(A).

Dimensions and weight

We could not find any of these 4 fields. Show them
Dimensions
Not available
Heatsink dimensions
Not available
Weight
Not available
Heatsink weight
Not available

In the box

In the box
1x Intel LGA 1851 / 1700 Mounting Bracket Set, 1x Intel LGA 1851 / 1700 Backplate, 1x AMD AM5 / AM4 Mounting Bracket Set ( Pre-installed ), 12x Long Fan Screws, 12x Radiator Screws, 1x iCUE LINK RX360 II RGB, 1x iCUE LINK System Hub, 2x Double-sided Adhesive Tape, 1x 500mm USB Type-C to USB 2.0 Cable, 1x 800mm Tach Cable, 1x 250mm iCUE LINK Cable With Dual 90° Connectors, 1x 600mm iCUE LINK Cable With Dual 90° Connectors, 1x 600mm iCUE LINK Cable With Straight / 90° Connectors5Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii_360-rx-rgbRead 14 October 2026Included hardware of the quick start guide for the iCUE LINK TITAN II 360 RX RGB, copied as printed.

Warranty

Manufacturer warranty (source market)
6years1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061037-ww/icue-link-titan-ii-360-rx-rgb-aio-liquid-cpu-cooler-cw-9061037-wwRead 14 October 2026Six-year warranty banner. The page names no market.2Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 14 October 2026Warranty 6 years.6Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 14 October 2026The TITAN II coolers carry a six-year warranty.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
CW-9061037-WW0840440419464Black
CW-9061038-WW0840440419471White
