PC parts / CPU coolers
CORSAIRCPU cooler

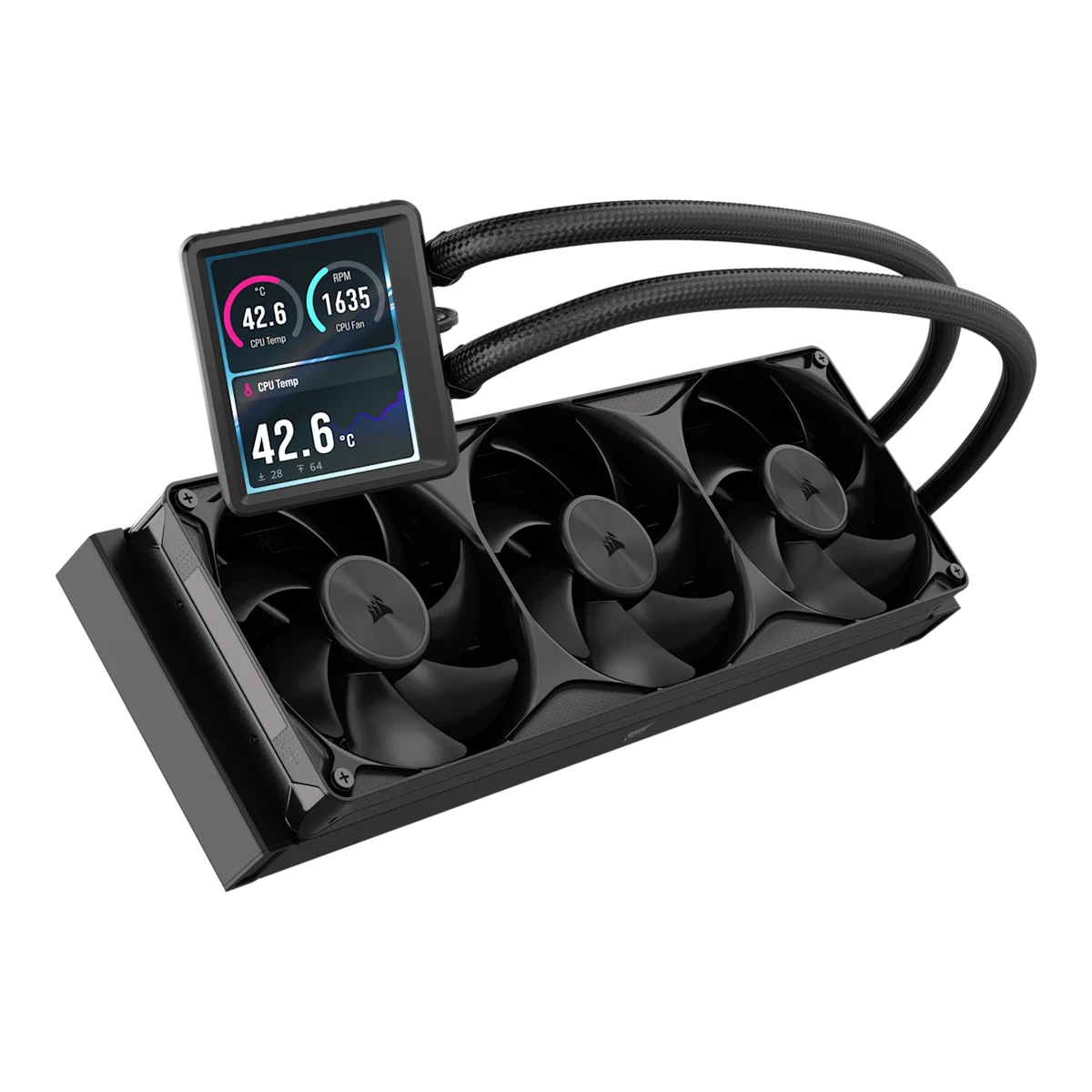

NAUTILUS II 360 RS LCD
Released September 2026.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026Press release of September 17, 2026: all products are available immediately from authorized retailers and the CORSAIR webstore. The webstore shows In Stock on the access date and LDLC referenced it on 12 Oct 2026. Last checked 16 October 2026.
- Cooler type
- AIO liquid
- Fans
- 3
- Rated TDP
- Not available
- CPU sockets
- AM5, AM4, LGA1851, LGA1700
30 of 54 fields known.
General
- Model numbers
- CW-9061053-WW, CW-9061054-WW1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026SKU CW-9061053-WW for the black 360 mm model. The color selector offers Black and White, and the white page has SKU CW-9061054-WW.2Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061054-ww/nautilus-ii-360-rs-lcd-white-liquid-cpu-cooler-cw-9061054-wwRead 15 October 2026SKU CW-9061054-WW for the white 360 mm model.8Retailer pageldlc.com/en/product/PB00759570.htmlRead 15 October 2026Model CW-9061053-WW for the black edition.
- GTIN / EAN
- Not available
- Status
- Available1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Page shows In Stock at $159.99 with delivery estimated for 10/20/2026 to 10/21/2026 on the access date.8Retailer pageldlc.com/en/product/PB00759570.htmlRead 15 October 2026Listed In stock at EUR 159.95, product referenced 12 Oct 2026.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- €149.93Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026Price table, NAUTILUS II 360 RS LCD, Europe: EUR 149,90. European prices include VAT.7Reviewgeeknetic.es/Review/3672/CORSAIR-NAUTILUS-II-360-RS-LCD-Review-ventiladores-de-marco-unificado-bomba-FlowDrive-2S-y-pantalla-LCD-por-menos-de-150-euros.htmlRead 15 October 2026Spec list: official price 149,90 euros, with shipping planned for 19 October 2026. This matches the Corsair press release.
- Markets
- Not available
- Colours
- Black, White1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Color selector: Black and White, with the same 360mm size and the same tech specs.2Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061054-ww/nautilus-ii-360-rs-lcd-white-liquid-cpu-cooler-cw-9061054-wwRead 15 October 2026Tech specs: Color WHITE.
- Air cooler layout
- Not available
- Rated TDP (claimed)
- Not available
- Thermal paste
- Pre-applied1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Pre-applied high-performance XTM60 thermal paste.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 2026The pump keeps a thinner cold plate with pre-applied XTM60 thermal paste.
Compatibility
- CPU sockets
- AM5, AM4, LGA1851, LGA17001Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Tech specs: CPU Socket Intel 1851, Intel 1700, AMD AM5, AMD AM4. The page does not list Intel 1954, which Corsair's comparison tables list for the ARGB model, and Geeknetic lists for this model.4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Box contents: Intel LGA 1851 / 1700 mounting bracket set and backplate, AMD AM5 / AM4 bracket set pre-installed.8Retailer pageldlc.com/en/product/PB00759570.htmlRead 15 October 2026Processor support: AMD AM4, AMD AM5, Intel 1700, Intel 1851.
- RAM height clearance
- Not available
- Offset mounting
- Not available
Heatsink
We could not find any of these 3 fields. Show them
- Heat pipes
- Not available
- Heat pipe diameter
- Not available
- Direct-contact heat pipes
- Not available
Liquid cooling
- Radiator dimensions
- Width120Thickness27mm(4.7 × 1.1 in)6Spec databasegeektopia.es/es/product/corsair/nautilus-ii-360-rs-lcdRead 15 October 2026Spec table, Bomba de agua y radiador: Tamano radiador 120 mm x 395 mm x 27 mm. Width 120 and thickness 27 are stored. The length is left out: Corsair's comparison table gives 394 mm for the ARGB model, its LCD page gives a product length of 395 and no radiator length, and the sources disagree by 1 mm. Geeknetic confirms the 27 mm thickness.7Reviewgeeknetic.es/Review/3672/CORSAIR-NAUTILUS-II-360-RS-LCD-Review-ventiladores-de-marco-unificado-bomba-FlowDrive-2S-y-pantalla-LCD-por-menos-de-150-euros.htmlRead 15 October 2026Spec header and text: aluminium 360 mm radiator, 27 mm thick. The review gives product dimensions of 395 x 120 x 55 mm.
- Radiator material
- Aluminium1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Tech specs: Radiator Material Aluminum.
- Max pump speed
- Not available
- Pump power connector
- 4-pin PWM fan header4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Connect the 4-pin PWM cable from the pump to the AIO_PUMP header, or to CPU_OPT or SYS_FAN. Geeknetic says the pump runs at a constant speed with no PWM control, although it uses the PWM plug.
Fans
- Included fans
Model Size (mm) Fans Min speed (rpm) Max speed (rpm) Airflow (CFM) Static pressure (mmH₂O) Noise (claimed) (dB(A)) Bearing Connector RS360 II Unified Frame 120 3 420 2,100 73 4.2 36 Magnetic dome 4-pin PWM Source1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Tech specs: Fan Speed 420 - 2100 RPM +/-10%, Fan Airflow 10.8 - 73 CFM, Fan Static Pressure 0.15 - 4.2mm-H2O, Noise Level 36dBA, PWM Yes. The top of each range is stored. 420 rpm is the lowest speed while spinning, since Corsair's comparison table for the ARGB model prints the speed as 0, 420 - 2,100 RPM and names 0 as the Zero RPM mode. That table labels the airflow and static pressure per fan and uses the same figures as this LCD page. The page names three RS II fans in a Unified Frame with daisy-chained 4-pin PWM connections. Bearing and fan model come from the press release and the quick start guide.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026RS II fans with Magnetic Dome Bearings in a Unified Frame, with Zero RPM Mode. The RS II fans have no lighting. The RS II ARGB fans are the lit version.4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Connect the long, 600 mm cable with the female PWM connector from the RS II fans to the CPU_FAN header. Fan power rating: RS360 II Fans 12Vdc Max 1.2A, Typical 0.51A. Pump: 12Vdc Max 1A.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 2026The comparison table is for the NAUTILUS II 360 RS ARGB, with RS360 II fans at 0 and 420 - 2,100 RPM, 10.8 - 73 CFM and 0.15 - 4.2 mm-H2O per fan, magnetic dome bearings and 10 - 36 dB(A). The LCD product page prints the same ranges for the LCD model.6Spec databasegeektopia.es/es/product/corsair/nautilus-ii-360-rs-lcdRead 15 October 2026Spec table: RS360 II Unified Frame, 120 x 360 x 26 mm, 10-36 dBA, 420-2100 RPM, 10.8-73 CFM, 0.15-4.2 mm H2O, magnetic dome bearing. The table matches Corsair.7Reviewgeeknetic.es/Review/3672/CORSAIR-NAUTILUS-II-360-RS-LCD-Review-ventiladores-de-marco-unificado-bomba-FlowDrive-2S-y-pantalla-LCD-por-menos-de-150-euros.htmlRead 15 October 2026Three RS II 120 mm fans in a unified 360 x 120 x 26 mm frame, 420 to 2100 RPM, 10.8 to 73 CFM and 0.15 to 4.2 mmH2O per fan, 36 dBA, Magnetic Dome, 4-pin PWM with Zero RPM mode. The review prints a pump speed of 2600 rpm (+/-5%), which conflicts with the 1,500 RPM Corsair states, so no pump speed is stored. The review's charts have no readable numbers and are not stored.- Fans
- 3
Display and lighting
- RGB lighting
- No4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026The connection steps and box contents list no lighting lead, and the fan cable is a PWM cable only. Geeknetic says the screen model is the version without ARGB lighting, and LDLC lists Luminous: No. The LCD itself is not stored as lighting.7Reviewgeeknetic.es/Review/3672/CORSAIR-NAUTILUS-II-360-RS-LCD-Review-ventiladores-de-marco-unificado-bomba-FlowDrive-2S-y-pantalla-LCD-por-menos-de-150-euros.htmlRead 15 October 2026Text: the variant with the screen is the version without ARGB lighting.8Retailer pageldlc.com/en/product/PB00759570.htmlRead 15 October 2026Luminous: No.
- Lighting standard
- Not available
- Built-in screen
- LCD1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Customizable 3.5-inch IPS LCD with a native 480x640 resolution and 60Hz refresh rate. It shows system stats, images, animations and iCUE Widgets, and works as a secondary display over DisplayPort.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026The LCD is a rectangular 3.5 inch IPS LCD with a resolution of 480x640 at 60Hz that connects via DisplayPort.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 2026The article names a rectangular 3.5 inch IPS LCD screen.
- Screen size
- 3.5in(8.9 cm)1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 20263.5" IPS LCD.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026Rectangular 3.5 inch IPS LCD.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 20263.5 inch rectangular IPS screen.
- Screen resolution
- 480 × 640px1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Native 480x640 resolution. The stored width is 480 and the height 640 as Corsair prints it. Geeknetic prints 640 x 480.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026Resolution of 480x640 at 60Hz.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 2026480x640 at 60fps, up from 480 x 480 at 30fps.
- Software
- Corsair iCUE1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026The page says the LCD supports iCUE Widgets and links the iCUE software download. The fans and pump also work from the motherboard without it.4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Software setup: install iCUE. The NAUTILUS II RS LCD tile appears in iCUE, with screen rotation, screen setup, pages and widgets.
- Needs a USB header
- No4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026The connection steps are: DisplayPort cable from the LCD to the graphics card, 4-pin PWM cable from the pump, and the 600 mm female PWM cable from the fans. No USB cable is listed. The Corsair comparison page says the first generation used an internal USB header and this one uses DisplayPort.5Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-nautilus-ii-vs-nautilus-whats-the-differenceRead 15 October 2026Last updated September 19, 2026: the NAUTILUS II LCD cooler has a rectangular 3.5 inch IPS screen that connects via DisplayPort, where the previous NAUTILUS used an internal USB 2.0 11-pin header.
Measured
We could not find any of these 6 fields. Show them
- Cybenetics THETA, AMD AM5
- Not available
- Cybenetics THETA, Intel LGA1851
- Not available
- Overall performance at 30 dB(A), AM5 (measured)
- Not available
- Overall performance at 30 dB(A), LGA1851 (measured)
- Not available
- Noise at 100% fan setting (Cybenetics)
- Not available
- Thermal tests (measured)
- Not available
Dimensions and weight
- Dimensions
- Not available
- Heatsink dimensions
- Not available
- Weight
- 2,000g(4.4 lb)1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Tech specs: Weight 2kg, with the same figure on the white page. Corsair rounds to whole kilograms and does not say whether packaging is included. Geektopia and Geeknetic copy 2000 g and 2 kg.6Spec databasegeektopia.es/es/product/corsair/nautilus-ii-360-rs-lcdRead 15 October 2026Spec table: Peso 2000 g, the same as the Corsair page rounded figure of 2kg.
- Heatsink weight
- Not available
In the box
- In the box
- 1x Intel LGA 1851 / 1700 Mounting Bracket Set, 1x Intel LGA 1851 / 1700 Backplate, 1x AMD AM5 / AM4 Mounting Bracket Set (Pre-installed), 1x PCIe Slot Cover, 12x Radiator Screws (360 RS LCD), 1x RS360 II Fans (360 RS LCD) (Pre-installed), 1x Pump with 3.5" LCD Screen4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Box contents, copied as printed for the 360 RS LCD. The guide prints the 240 and 360 radiator screw counts together, so only the 360 line is kept. The pump is listed as 1x Pump with 3.5" LCD Screen.
Links
- Product page
- www.corsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-ww1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcd4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026Quick Start Guide for the NAUTILUS II 240 / 360 RS LCD.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 5years1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061053-ww/nautilus-ii-360-rs-lcd-liquid-cpu-cooler-cw-9061053-wwRead 15 October 2026Five-year warranty in the feature list and the warranty section. The market is not named.3Press releasecorsair.com/newsroom/press-release/corsair-launches-second-generation-nautilus-ii-aio-cpu-coolers-and-upgraded-rs-ii-fans-for-quiet-effective-pc-coolingRead 15 October 2026The NAUTILUS II RS LCD is backed by a five-year warranty.4Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/nautilus-ii-240-360-rs-lcdRead 15 October 2026NAUTILUS II RS LCD Series coolers have a 5-year warranty.
Compare with
Pick a CPU cooler to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | Colours |
|---|---|
| CW-9061053-WW | Black |
| CW-9061054-WW | White |
Sources
We read 8 sources for this CPU cooler. The numbers match the markers in the sheet.
- Retailer pageldlc.com/en/product/PB00759570.html
