PC parts / CPU coolers
ThermaltakeCPU cooler

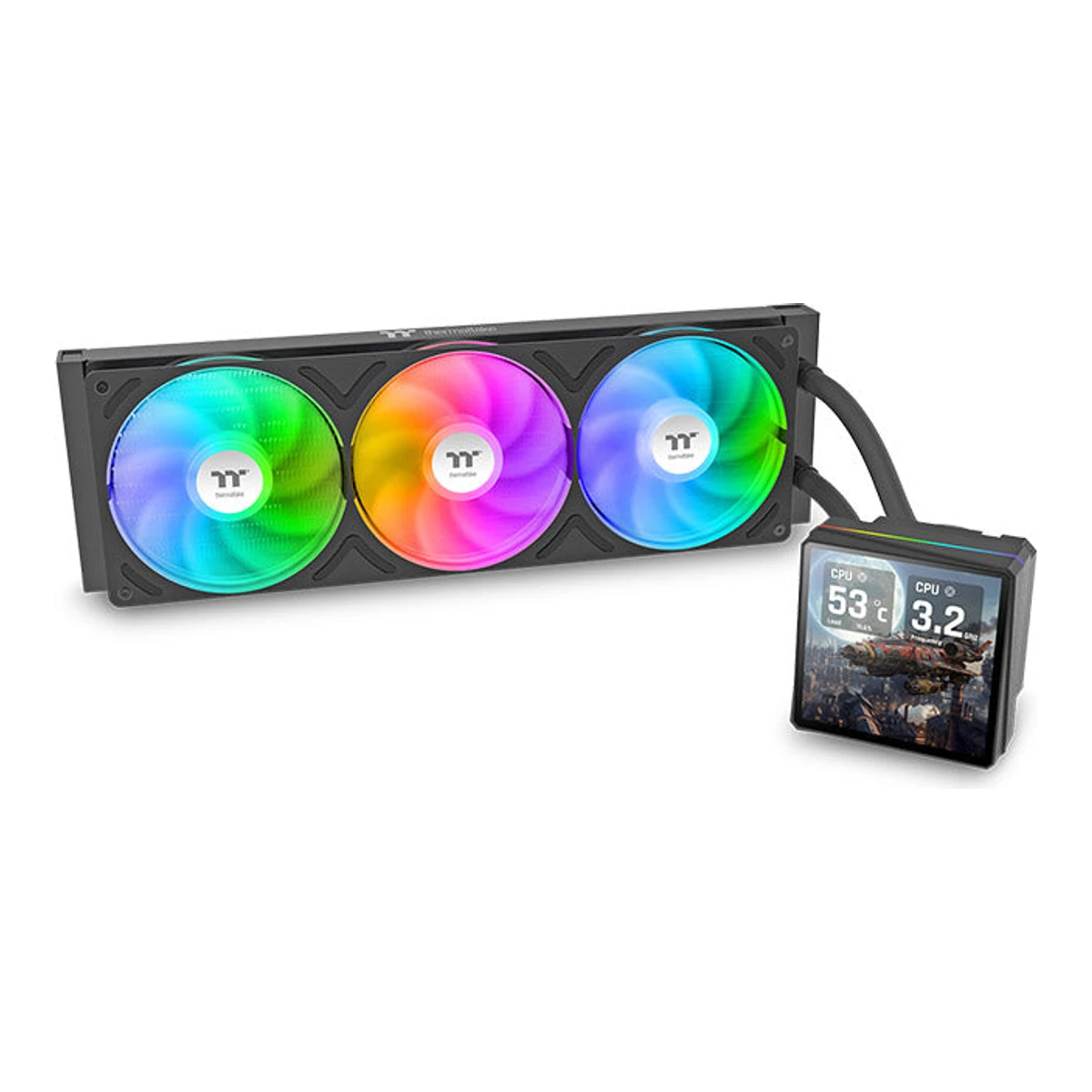

TH360 V3 Ultra ARGB Sync
Released January 2026.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026The release announces the TH V3 series with the TH360 V3 Ultra at the top. Funky Kit reviewed it on 20 February 2026, PC Gamer on 2 April 2026 and billiger.de lists the Snow model since December 2025. January 2026 is stored. Last checked 15 October 2026.
- Cooler type
- AIO liquid
- Fans
- 3
- Rated TDP
- 365W
- CPU sockets
- AM5, AM4, LGA1954, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1366, LGA2011, LGA2011-3, LGA2066
32 of 54 fields known.
General
- Series
- TH V31Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026The page lists the cooler under the TH V3 series (store tag Series=TH V3).5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026TH V3 Series ARGB Sync AIO Liquid Coolers.
- Model numbers
- CL-W474-PL12SW-A, CL-W476-PL12SW-A1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026SKU CL-W474-PL12SW-A for Black. The same store sells the Snow Edition as CL-W476-PL12SW-A with the same specification table.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026Global page, P/N CL-W474-PL12SW-A.6Retailer pagescan.co.uk/products/thermaltake-th360-v3-ultra-argb-aio-hydro-cpu-cooler-black-3-x-120mm-argb-fans-lcd-segment-display-iRead 15 October 2026Manufacturer code CL-W474-PL12SW-A.7Retailer pagecomparateur-gamer.fr/prix/thermaltake-th360-v3-ultra-argb-sync-black-4711658545978Read 15 October 2026Reference CL-W474-PL12SW-A for the Black edition.8Retailer pagebilliger.de/pricelist/5471350811-thermaltake-th360-v3-ultra-argb-sync-snowRead 15 October 2026Title names CL-W476-PL12SW-A for the Snow Edition.
- GTIN / EAN
- 4711658545978, 47116585459926Retailer pagescan.co.uk/products/thermaltake-th360-v3-ultra-argb-aio-hydro-cpu-cooler-black-3-x-120mm-argb-fans-lcd-segment-display-iRead 15 October 2026Additional Information: GTIN 4711658545978 for model CL-W474-PL12SW-A. The comparateur-gamer.fr page gives the same EAN.7Retailer pagecomparateur-gamer.fr/prix/thermaltake-th360-v3-ultra-argb-sync-black-4711658545978Read 15 October 2026EAN 4711658545978, reference CL-W474-PL12SW-A.8Retailer pagebilliger.de/pricelist/5471350811-thermaltake-th360-v3-ultra-argb-sync-snowRead 15 October 2026Product properties: EAN 4711658545992 for the Snow Edition CL-W476-PL12SW-A. One source only, and the check digit is valid.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, Snow1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Product variants on the page: Black and Snow. The Snow Edition has its own page.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026The 360 mm TH V3 Ultra is offered in Black and Snow.
- Air cooler layout
- Not available
- Thermal paste
- Included3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Parts list D is a syringe of thermal paste and E is a spatula, with the note to apply the thermal paste evenly with the spatula. Funky Kit says the pump comes with pre-applied paste and Scan UK says paste is not included. Topachat lists one tube as included. The maker's own parts list shows the syringe, so included is stored.9Retailer pagetopachat.com/pages/detail2_cat_est_micro_puis_rubrique_est_w_reliq_puis_ref_est_in20031313.htmlRead 15 October 2026Spec table: thermal paste included, one tube.
Compatibility
- CPU sockets
- AM5, AM4, LGA1954, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1366, LGA2011, LGA2011-3, LGA20661Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table: Intel LGA 2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150 and AMD AM5/AM4. The page does not list LGA1954, which the installation guide names (see the manual entry). The family 115X is written as LGA1150, LGA1151, LGA1155 and LGA1156 as the page names 1156, 1155, 1151 and 1150.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026The same socket list as the US page.3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026The Intel guide step 1 labels the bracket positions 1200/115X, 1954/1851 and 1366, and step 2 and 4 name 1954/1851/1700/1366/1200/115X with the same bracket and nuts. LGA2066/2011-3/2011 use the screws in step 4. LGA1954 needs no extra kit, so it is stored. The maker's spec table does not list it.
- RAM height clearance
- Not available
- Offset mounting
- Not available
Heatsink
We could not find any of these 3 fields. Show them
- Heat pipes
- Not available
- Heat pipe diameter
- Not available
- Direct-contact heat pipes
- Not available
Liquid cooling
- Radiator dimensions
- Length397Width120Thickness27mm(15.6 × 4.7 × 1.1 in)1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Radiator: Dimension 397 x 120 x 27 mm. Length 397 runs along the three fans and thickness is 27.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026Radiator Dimension 397 x 120 x 27 mm, the same as the US page.
- Radiator material
- Aluminium1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Radiator: Material Aluminum.
- Tube length
- 460mm1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Tube: Length 460 mm, Material Rubber.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026Tube Length 460 mm.9Retailer pagetopachat.com/pages/detail2_cat_est_micro_puis_rubrique_est_w_reliq_puis_ref_est_in20031313.htmlRead 15 October 2026Tube length 460 mm.10Reviewpcgamer.com/hardware/cooling/thermaltake-th360-v3-ultra-argb-sync-reviewRead 15 October 2026Spec list: Tubing 460 mm.
- Max pump speed
- 2,500rpm1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Pump: Motor Speed PWM 800~2500 RPM. The top of the range is stored.9Retailer pagetopachat.com/pages/detail2_cat_est_micro_puis_rubrique_est_w_reliq_puis_ref_est_in20031313.htmlRead 15 October 2026Pump speed 800 to 2500 RPM.10Reviewpcgamer.com/hardware/cooling/thermaltake-th360-v3-ultra-argb-sync-reviewRead 15 October 2026Spec list: Pump High Performance Pump at 800 - 2500 rpm.
- Pump power connector
- 4-pin PWM fan header1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Pump: Connector 2510 - 4 Pin / ARGB - 3Pin, with PWM speed control. The manual connects the pump to a CPU FAN or pump header.3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Installation guide step 2 and 3: the pump cable has a 5V ARGB plug, a CPU FAN plug and a Micro USB plug. The spec table calls the pump connector 4 Pin, and the pump speed is PWM.
Fans
- Included fans
Size (mm) Fans Min speed (rpm) Max speed (rpm) Airflow (CFM) Static pressure (mmH₂O) Noise (claimed) (dB(A)) Connector 120 3 500 2,500 85.29 3.86 37.8 4-pin PWM Source1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Fan: Fan Speed PWM 500~2500 R.P.M, Air Flow 85.29 CFM (per fan), Static Pressure 3.86 mm-H2O (per fan), Noise Level 37.8 dB-A (per fan), Connector 2510 - 4 Pin / ARGB - 3Pin. The page describes a 360 mm PWM fan module, a single-frame unit combining three 120 mm fans. The page names no fan model and no bearing type.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026Global page adds Fan Dimension 360 x 120 x 25 mm for the fan module. The speed, airflow, pressure and noise figures match the US page.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026Each fan delivers 85.29 CFM with 3.86 mm-H2O static pressure at 37.8 dB-A, in a single-frame structure of three fans for the 360 mm models. All TH V3 models share the same pump and 27 mm radiator.9Retailer pagetopachat.com/pages/detail2_cat_est_micro_puis_rubrique_est_w_reliq_puis_ref_est_in20031313.htmlRead 15 October 2026Fan block 360 x 120 x 25 mm, 500 to 2500 RPM, 85.29 CFM, 3.86 mm H2O, 37.8 dB(A), 4-pin PWM and 3-pin ARGB. No bearing is listed. The page says the product is no longer sold there, so it is used for the specification only.- Fans
- 3
Display and lighting
- Lighting standard
- ARGB 5 V1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Text: 5V motherboard sync with a 5V addressable RGB header. The caution table says the motherboard signal connector only supports a 5V header. The connector is ARGB 3-pin.3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Both the fan module and the pump have a 5V ARGB plug that goes to a 5V ARGB motherboard header, and the guide warns about positive and negative ends.
- Built-in screen
- LCD1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, CPU Display: Display Type 3.95 inch TFT-LCD.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026The TH360 V3 Ultra has a 3.95 inch square TFT LCD.
- Screen size
- 3.95in(10 cm)1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table: 3.95 inch TFT-LCD, a square display on the pump head.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 20263.95 inch square TFT LCD.
- Screen resolution
- 720 × 720px1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table: Display Resolution 720x720 (RGB) px.2Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.htmlRead 15 October 2026Display Resolution 720x720 (RGB) px.5Press releasehartware.de/2026/01/15/thermaltake-launches-th-v3-series-argb-sync-aio-liquid-coolersRead 15 October 2026720 x 720 resolution.10Reviewpcgamer.com/hardware/cooling/thermaltake-th360-v3-ultra-argb-sync-reviewRead 15 October 2026Spec list: Screen 3.95-inch TFT LCD, 720 x 720.
- Needs a USB header
- Yes1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026Specification table, Display Support: Interface Micro USB to USB (9PIN). The manual says to connect the water block to the motherboard with cable L to control the LCD with TT RGB PLUS.3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Cable L connects the water block Micro USB to the motherboard 9-pin USB header. The caution says it is needed to control the LCD with TT RGB PLUS.
Measured
- Cybenetics THETA, AMD AM5
- Not available
- Cybenetics THETA, Intel LGA1851
- Not available
- Overall performance at 30 dB(A), AM5 (measured)
- Not available
- Overall performance at 30 dB(A), LGA1851 (measured)
- Not available
- Noise at 100% fan setting (Cybenetics)
- Not available
- Thermal tests (measured)
Test CPU Load Fan setting CPU temperature (°C) Above ambient (°C) Intel Core i7-14700K Metro Exodus Enhanced Edition, 1080p Ultra, 5 runs, maximum CPU package temperature Not available Not available 49 Intel Core i7-14700K Metro Exodus Enhanced Edition, 1080p Ultra, 5 runs, average CPU package temperature Not available Not available 26 Intel Core i7-14700K Baldur's Gate 3, 1080p Ultra, maximum CPU package temperature Not available Not available 45 Intel Core i7-14700K Baldur's Gate 3, 1080p Ultra, average CPU package temperature Not available Not available 40 Intel Core i7-14700K Cinebench R23 multi-core, 10 minutes, maximum CPU package temperature Not available Not available 60 Intel Core i7-14700K Cinebench R23 multi-core, 10 minutes, average CPU package temperature Not available Not available 56 Intel Core i7-14700K x264 encode, maximum CPU package temperature Not available Not available 71 Intel Core i7-14700K x264 encode, average CPU package temperature Not available Not available 56 Intel Core i7-14700K Cinebench R23 multi-core, 10 minutes, PL1 and PL2 set to 120 W, maximum CPU package temperature Not available Not available 36 Intel Core i7-14700K Cinebench R23 multi-core, 10 minutes, PL1 and PL2 set to 120 W, average CPU package temperature Not available Not available 27 AMD Ryzen 7 9700X AIDA64 System Stability Test with CPU stress, 5 minutes, maximum CPU package temperature Default 51 Not available Source10Reviewpcgamer.com/hardware/cooling/thermaltake-th360-v3-ultra-argb-sync-reviewRead 15 October 2026PC Gamer, Zak Storey, 2 April 2026. Delta over ambient for the CPU package temperature with a Core i7-14700K, shown as maximum and average values in charts. The chart ambient temperature for this cooler is 26 C. The review does not state the fan speed, case or open bench, or thermal paste. Cinebench R23 multi-core ran for 10 minutes, once at stock and once with the 14700K at 120 W for PL1 and PL2. The review gives the 120 W as a set limit, so no CPU power is stored.11Reviewfunkykit.com/reviews/cooling/thermaltake-th360-v3-ultra-argb-sync-aio-liquid-cooler-review/5Read 15 October 2026Funky Kit, Eddie Chim, review of 20 February 2026. Ryzen 7 9700X on an MSI MPG X870E Carbon WiFi, ambient 24 C plus or minus 1, fan speed at default, included thermal paste, 5 minute AIDA64 CPU System Stability Test. The review says the CPU package reached a high of 50 C and a maximum of 51 C, and 51 is stored. The case or bench is not stated and the review prints no noise or CPU power.
Dimensions and weight
We could not find any of these 4 fields. Show them
- Dimensions
- Not available
- Heatsink dimensions
- Not available
- Weight
- Not available
- Heatsink weight
- Not available
In the box
- In the box
- Radiator with three fans and pump block x1, Intel backplate x1, Intel standoffs x4, Intel mounting nuts x4, Intel LGA2066 and LGA2011 screws x4, AMD mounting brackets x2, AMD screws x4, Thermal paste syringe x1, Thermal paste spatula x1, Fan and radiator screws x12, Pump top cover x1, Micro USB to USB 9-pin cable x13Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Parts list A to L on the guide, which uses letters and drawings without names. Names are read from the drawings and the installation steps. A is the cooler with radiator, fans and pump. B is the Intel backplate. C x4 are the standoffs that go through the backplate. F x4 are the nuts that hold the pump on the standoffs. G x4 are the screws for LGA2066 and LGA2011. H x2 are the AMD brackets. I x4 are the AMD bracket screws. J x12 are the screws for the fan module on the radiator. K is the top cover that goes on the pump. L is the Micro USB cable to the 9-pin header.
Links
- Product page
- thermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-a1Maker product pagethermaltakeusa.com/products/th360-v3-ultra-argb-sync-aio-liquid-cooler-cl-w474-pl12sw-aRead 15 October 2026
- Spec sheet
- Not available
- Manual
- file.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdf3Owner's manualfile.thermaltake.com/file/qig/TH360_V3_Ultra_ARGB_Sync_manual.pdfRead 15 October 2026Two page installation guide, file dated 29 October 2025, listed as the manual on the maker's page with release date 2025-12-16 on the global page.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years4Maker product pagesupport.thermaltake.com/csWarranty.aspxRead 15 October 2026Cooling Solutions warranty table: AIO Coolers 3 years. This is Thermaltake's support policy and PC Gamer states 3 years in the US and 2 years in the UK. The stored value is the US term.10Reviewpcgamer.com/hardware/cooling/thermaltake-th360-v3-ultra-argb-sync-reviewRead 15 October 2026Spec list: Warranty 3-years US, 2-years UK. The review calls this a painful cutback.
Compare with
Pick a CPU cooler to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Colours |
|---|---|---|
| CL-W474-PL12SW-A | 4711658545978 | Black |
| CL-W476-PL12SW-A | 4711658545992 | Snow |
Sources
We read 11 sources for this CPU cooler. The numbers match the markers in the sheet.
- Maker product pagethermaltake.com/th360-v3-ultra-argb-sync-aio-liquid-cooler.html
- Maker product pagesupport.thermaltake.com/csWarranty.aspx
See a wrong value? Tell us and name the field.
