PC parts / CPU coolers

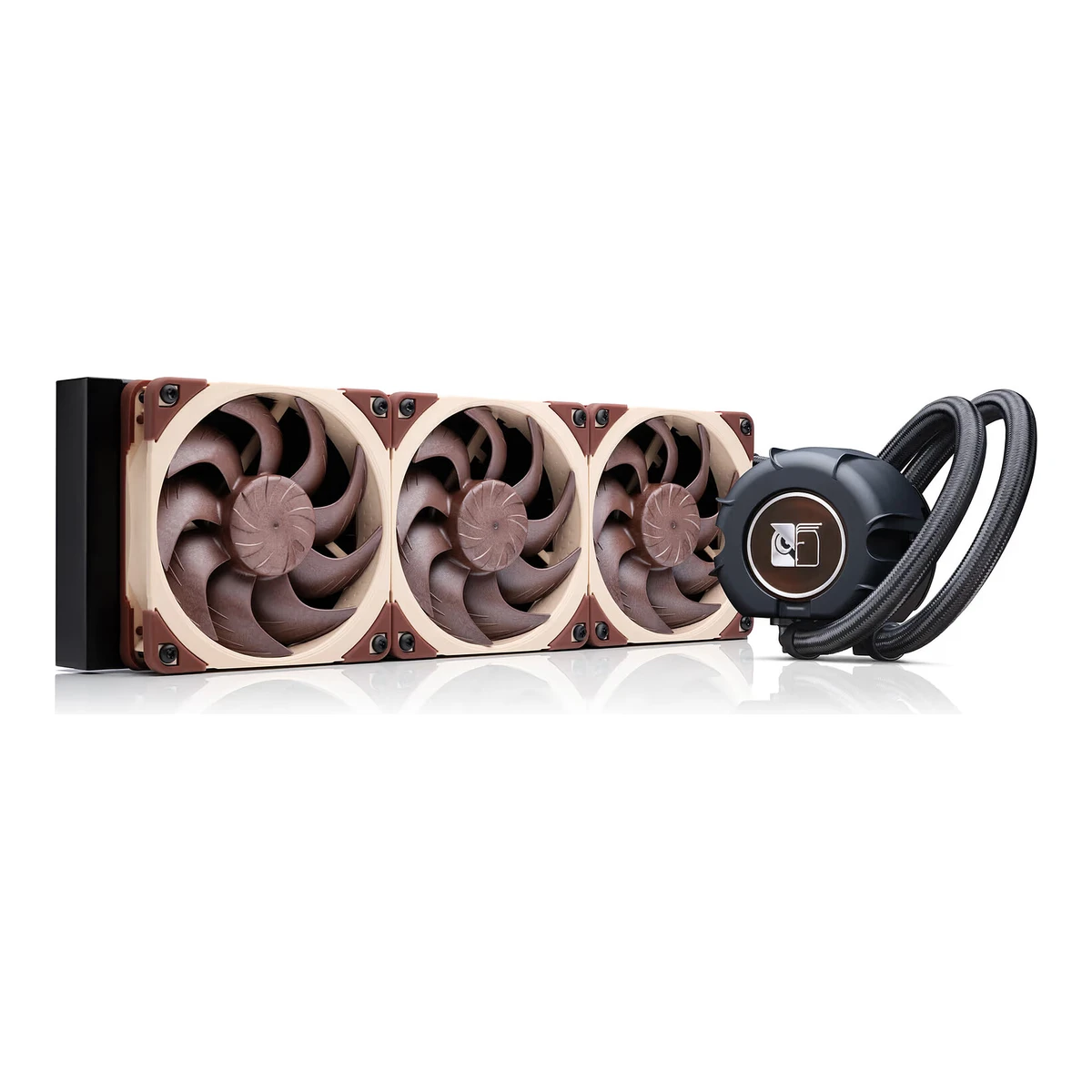

NoctuaCPU cooler
NL-LC1-36
Released June 2026.11Press articleguru3d.com/story/noctua-reveals-its-nllc1-aio-series-with-advanced-acoustic-designRead 14 October 2026Retail availability scheduled for June 16, 2026. Last checked 16 October 2026.
- Cooler type
- AIO liquid
- Fans
- 3
- Rated TDP
- 250W
- CPU sockets
- AM5, AM4, LGA1954, LGA1851, LGA1700
29 of 54 fields known.
General
- Model numbers
- NL-LC1-368Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026Spec tables: model Noctua NL-LC1-36.
- GTIN / EAN
- 90100180005592Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Copy of Noctua's comparison table, EAN barcode row: 9010018000559 for the NL-LC1-36. Watercooling UK and Vedant Computers print the same EAN. Vedant also prints UPC 841501100550, which only that shop lists and is not stored.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 2026EAN 9010018000559 (the shop also lists UPC 841501100550).5Retailer pagealternate.de/Noctua/NL-LC1-36-Wasserk%C3%BChlung/html/product/100205723Read 14 October 2026EAN 9010018000559.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $249.911Press articleguru3d.com/story/noctua-reveals-its-nllc1-aio-series-with-advanced-acoustic-designRead 14 October 2026Series table: NL-LC1-36 $249.90. Tom's Hardware's review prints an MSRP of $249.99, which is not used.12Press articlekitguru.net/components/cooling/joao-silva/noctua-introduces-its-first-aio-liquid-coolersRead 14 October 2026NL-LC1-36 priced at $249.90. US prices exclude tax.
- Launch price (EU)
- €249.911Press articleguru3d.com/story/noctua-reveals-its-nllc1-aio-series-with-advanced-acoustic-designRead 14 October 2026Series table: NL-LC1-36 EUR 249.90. PCGH and Geektopia print 250 euro and 249.90 euro.12Press articlekitguru.net/components/cooling/joao-silva/noctua-introduces-its-first-aio-liquid-coolersRead 14 October 2026NL-LC1-36 priced at EUR 249.90.15Press articlepcgameshardware.de/Wasserkuehlung-Hardware-217994/News/Noctua-NL-LC1-AIO-Prices-Release-Pump-dampening-1541270Read 14 October 2026Recommended price 250 euro for the NL-LC1-36.
- Markets
- Not available
- Colours
- Black & Brown14Reviewtomshardware.com/pc-components/liquid-cooling/noctua-nl-lc1-36-reviewRead 14 October 2026Spec table: Colors Black & Brown.
- Cooler type
- AIO liquid8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026
- Air cooler layout
- Not available
- Rated TDP (claimed)
- 250W2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Maximum TDP row: up to 250 W for the NL-LC1-36 (200 W for the 240 and 275 W for the 420).
- Base material
- Copper2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Cold plate copper CU1100 (99.95% purity), 55.5 x 55.5 mm, skived fin micro channels. No plating is stated.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 20268Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026
Compatibility
- CPU sockets
- AM5, AM4, LGA1954, LGA1851, LGA17002Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Socket compatibility: AM5, AM4, LGA1700, LGA1851, LGA1954. Computer Lounge and IgorsLab print the same list. The launch coverage in Guru3D, KitGuru and Tom's Hardware names only AM5, AM4, LGA1700 and LGA1851.3Retailer pagecomputerlounge.co.nz/products/noctua-lc1-360mm-silent-aio-cpu-liquid-coolerRead 14 October 2026Spec row lists AM5, AM4, LGA1700, LGA1851 and LGA1954.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 20268Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 202615Press articlepcgameshardware.de/Wasserkuehlung-Hardware-217994/News/Noctua-NL-LC1-AIO-Prices-Release-Pump-dampening-1541270Read 14 October 2026Noctua lists AM5, AM4, LGA1700 and LGA1851 at launch. Older Intel sockets need optional kits. LGA1954 is on the spec pages of the shops listed above.
- RAM height clearance
- Not available
- Offset mounting
- Yes7Owner's manualserverflow.ru/upload/iblock/616/130v3y3r3wb8j5l1rwkqk48yv245xlqz/%D0%93%D0%B0%D0%B9%D0%B4%20%D0%BF%D0%BE%20%D1%83%D1%81%D1%82%D0%B0%D0%BD%D0%BE%D0%B2%D0%BA%D0%B5%20Noctua%20NL-LC1-36.pdfRead 14 October 2026A reseller's copy of Noctua's NL-LC1 installation manual (the 360 mm model is the example). On AM5 and Ryzen 5000/3000 AM4 CPUs choose the -7 mm offset hole position. On 24- and 20-core LGA1851 CPUs use the +3.7 mm offset with a sideways shift. The standard position is 0.14Reviewtomshardware.com/pc-components/liquid-cooling/noctua-nl-lc1-36-reviewRead 14 October 2026Both the AMD and Intel mounting brackets come with 7 mm offset holes, which Tom's Hardware used on its Ryzen test bench.15Press articlepcgameshardware.de/Wasserkuehlung-Hardware-217994/News/Noctua-NL-LC1-AIO-Prices-Release-Pump-dampening-1541270Read 14 October 2026Offset mounting options for AM5 and LGA1851 are included to shift the cooler closer to the CPU hotspot.
Heatsink
We could not find any of these 3 fields. Show them
- Heat pipes
- Not available
- Heat pipe diameter
- Not available
- Direct-contact heat pipes
- Not available
Liquid cooling
- Radiator size
- 360mm2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026
- Radiator dimensions
- Length399.5Width120Thickness30mm(15.7 × 4.7 × 1.2 in)2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Radiator size 399.5 x 120 x 30 mm. Guru3D and KitGuru round it to 400 x 120 x 30 mm. Stored as length 399.5, width 120, thickness 30.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 2026Radiator size 399.5 x 120 x 30 mm.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026
- Radiator material
- Aluminium2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Fins, tubes and channels aluminium, frame steel.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 20268Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026
- Tube length
- 410mm4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 2026Tube length 410 mm, EPDM braided. Alternate.de and Geektopia list 400 mm. This copy of the maker's spec, igor'sLAB, Guru3D and KitGuru list 410 mm, which is stored.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026Hoses and coolant table: hose length 410 mm.10Reviewkitguru.net/components/cooling/james-dawson/noctua-nl-lc1-360-360mm-aio-cpu-cooler-review/all/1Read 14 October 2026Spec block: tubing length 410 mm.
- Max pump speed
- 3,400rpm2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Max rotational speed 3400 rpm in manual mode (2600 balanced, 2100 quiet, 750 at 0% and 20% PWM). Tom's Hardware prints 3700 rpm in its text, which is the 3400 rpm rating plus the 10% tolerance and is not used.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 202610Reviewkitguru.net/components/cooling/james-dawson/noctua-nl-lc1-360-360mm-aio-cpu-cooler-review/all/1Read 14 October 2026Spec block: pump speed 750 to 3400 rpm (+/- 10%) at maximum in manual mode.
- Pump power connector
- 4-pin PWM fan header2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Pump connector type 4-pin PWM, cable length 500 mm.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 20267Owner's manualserverflow.ru/upload/iblock/616/130v3y3r3wb8j5l1rwkqk48yv245xlqz/%D0%93%D0%B0%D0%B9%D0%B4%20%D0%BF%D0%BE%20%D1%83%D1%81%D1%82%D0%B0%D0%BD%D0%BE%D0%B2%D0%BA%D0%B5%20Noctua%20NL-LC1-36.pdfRead 14 October 2026Step 5: connect the pump to the motherboard's pump or CPU fan header, set to PWM control. The three fans connect through the supplied splitter cable to another fan header.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 202610Reviewkitguru.net/components/cooling/james-dawson/noctua-nl-lc1-360-360mm-aio-cpu-cooler-review/all/1Read 14 October 2026
Fans
- Included fans
Model Size (mm) Fans Max speed (rpm) Airflow (CFM) Static pressure (mmH₂O) Noise (claimed) (dB(A)) Bearing Connector NF-A12x25 G2 PWM 120 3 1,800 63.2 3.14 22.5 SSO or SSO2 4-pin PWM Source2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Fan table: NF-A12x25 G2 PWM, 120 x 120 x 25 mm, speed range 0 to 1800 rpm, airflow 63.2 CFM, max noise 22.5 dB(A), static pressure 3.14 mmH2O, 4-pin PWM. Airflow (max.) is 63.2 CFM in the maker's table. Other copies of the maker's spec give 107.3 m3/h (63.15 CFM). The 0 rpm minimum is a stop and is not stored.4Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36Read 14 October 2026Copy of the maker's spec: NF-A12x25 G2 PWM, 107.3 m3/h (63.15 CFM), 22.5 dB(A), 3.14 mmH2O, speed range 0 to 1800 rpm.5Retailer pagealternate.de/Noctua/NL-LC1-36-Wasserk%C3%BChlung/html/product/100205723Read 14 October 2026Spec rows: fan noise 22.5 dB, 1,800 rpm, fan bearing SSO 2, airflow 107.3 m3/h, pressure up to 3.14 mmH2O, three NF-A12x25 G2 PWM fans in a PPA/PPB version.6Retailer pagejbhifi.com.au/products/noctua-120mm-nf-a12x25-g2-sx2-pp-pwm-fan-2-packRead 14 October 2026The standalone NF-A12x25 G2 PWM PPA and PPB fans are the fan model of the NL-LC1-36. Their spec table gives an SSO2 bearing, 1800 rpm (+/- 10%), 107.3 m3/h, 22.5 dB(A) and 3.14 mmH2O without the low-noise adaptor, which the cooler does not include.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026Fan table copied from the maker's page: 3 x NF-A12x25 G2 PWM, 120 x 120 x 25 mm, 0 to 1,800 rpm, 107.3 m3/h, 3.14 mmH2O, 22.5 dB(A), 4-pin PWM. The three fans run in a PPA/PPB/PPA configuration with a slightly different speed on the middle unit.10Reviewkitguru.net/components/cooling/james-dawson/noctua-nl-lc1-360-360mm-aio-cpu-cooler-review/all/1Read 14 October 2026Spec block: NF-A12x25 G2, 120 x 120 x 25 mm, 0 to 1800 rpm, 63.15 CFM, 3.14 mmH2O, 22.5 dB(A) per fan, 4-pin PWM.- Fans
- 3
Display and lighting
- Lighting standard
- Not available
- Built-in screen
- None8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 2026No display on the pump cover.
- Screen size
- Not available
- Screen resolution
- Not available
- Software
- Not available
- Needs a USB header
- Not available
Measured
- Cybenetics THETA, AMD AM5
- Not available
- Cybenetics THETA, Intel LGA1851
- Not available
- Overall performance at 30 dB(A), AM5 (measured)
- Not available
- Overall performance at 30 dB(A), LGA1851 (measured)
- Not available
- Noise at 100% fan setting (Cybenetics)
- Not available
- Thermal tests (measured)
Test CPU Load CPU power (W) Fan setting Noise (dB(A)) Above ambient (°C) AMD Ryzen 9 7900X CPU stress at a fixed CPU power, power level as published 100 40 dB(A) at 40 cm, radiator fans 96% PWM (1650 rpm), pump 100% 40 25 AMD Ryzen 9 7900X CPU stress at a fixed CPU power, power level as published 200 40 dB(A) at 40 cm, radiator fans 96% PWM (1650 rpm), pump 100% 40 59 AMD Ryzen 9 7900X CPU stress at a fixed CPU power, power level as published 100 100% PWM (1730 rpm), pump 100% 40.5 25 AMD Ryzen 9 7900X CPU stress at a fixed CPU power, power level as published 200 100% PWM (1730 rpm), pump 100% 40.5 58 AMD Ryzen 9 9950X Cinebench R23 30-minute loop, manual overclock 5.2 GHz all cores at 1.3 V, steady-state Not available 100% 41 59 AMD Ryzen 9 9950X Cinebench R23 30-minute loop, manual overclock 5.2 GHz all cores at 1.3 V, steady-state Not available 40 dB(A) 40 62 Source9Measurementigorslab.de/en/noctua-nl-lc1-36-test-aio/3Read 14 October 2026igor'sLAB: Ryzen 9 7900X on an ASUS ROG Crosshair X670E Hero, open bench, Windows 11. Temperature is the CPU Die (Average) sensor in HWiNFO minus the room temperature. The room is not air-conditioned and its temperature is not stated. Noise is a Voltcraft SL-10 at 40 cm from the centre of the pump and radiator fans in a room of 30.4 dB(A). The 40 dB(A) run needed 96% PWM (1650 rpm) on the fans and 100% PWM on the pump. The 100% run reached 1730 rpm and 40.5 dB(A). The text gives the temperatures as 'around' 25, 59, 25 and 58 K and the charts were hidden, so these are rounded. A third power step at about 42 K (41 K at full speed) has no stated power and is not stored. The stress software and the paste are not named. The text says the same paste was used for every cooler.10Reviewkitguru.net/components/cooling/james-dawson/noctua-nl-lc1-360-360mm-aio-cpu-cooler-review/all/1Read 14 October 2026KitGuru: Ryzen 9 9950X on an ASRock X870E Nova WiFi, open bench, Arctic MX-6, 30-minute Cinebench R23 loop with all-core 5.2 GHz at 1.3 V, steady-state temperature minus an ambient of 19 to 20 C. Fans at 100% gave 59 C over ambient and 41 dBA. The 40 dBA run gave 62 C over ambient. The CPU power and the noise distance are not stated. A PBO run (62 C over ambient, average clock 52.5x) names no fan setting and is not stored.
Dimensions and weight
We could not find any of these 4 fields. Show them
- Dimensions
- Not available
- Heatsink dimensions
- Not available
- Weight
- Not available
- Heatsink weight
- Not available
In the box
- In the box
- NL-LC1-36 closed-loop liquid cooler with NL-PNA1 pump noise absorber, Metal Noctua logo faceplate, 3x NF-A12x25 G2 PWM fans with speed-offset (PPA/PPB/PPA), 3x NA-AVG1 anti-vibration gaskets (pre-installed), NA-SC1 3-way splitter cable, NA-EC1 30cm extension cable, Fan and radiator mounting screws (Torx® T20), SecuFirm2+™ multi-socket mounting system with offset options for AMD AM5/AM4 and Intel LGA1851/1700, NM-SD1 Torx® T20 screwdriver, NT-H2 thermal compound, NA-CW1 cleaning wipe, NA-TPG1 thermal paste guard for AMD AM5, Noctua metal case badge3Retailer pagecomputerlounge.co.nz/products/noctua-lc1-360mm-silent-aio-cpu-liquid-coolerRead 14 October 2026Scope of delivery as printed, with the Torx and trademark signs as in the listing.
Links
- Product page
- www.noctua.at/en/products/nl-lc1-361Maker product pagenoctua.at/en/products/nl-lc1-36Read 14 October 2026Product page of the NL-LC1-36, found in search results. noctua.at was not opened. Noctua's spec table was read in copies at QuietPC, Computer Lounge, Vedant Computers and IgorsLab.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 6years2Retailer pagequietpc.co.nl/nl-lc1Read 14 October 2026Warranty 72 months.7Owner's manualserverflow.ru/upload/iblock/616/130v3y3r3wb8j5l1rwkqk48yv245xlqz/%D0%93%D0%B0%D0%B9%D0%B4%20%D0%BF%D0%BE%20%D1%83%D1%81%D1%82%D0%B0%D0%BD%D0%BE%D0%B2%D0%BA%D0%B5%20Noctua%20NL-LC1-36.pdfRead 14 October 2026Warranty period of 6 years. The manual names no market.8Reviewigorslab.de/en/noctua-nl-lc1-36-test-aioRead 14 October 202612Press articlekitguru.net/components/cooling/joao-silva/noctua-introduces-its-first-aio-liquid-coolersRead 14 October 2026Each package has NT-H2 thermal paste and a 6-year manufacturer's warranty.
Compare with
Pick a CPU cooler to see both side by side. Differences are marked yellow.
Sources
We read 15 sources for this CPU cooler. The numbers match the markers in the sheet.
- Maker product pagenoctua.at/en/products/nl-lc1-36
- Retailer pagequietpc.co.nl/nl-lc1
- Retailer pagevedantcomputers.com/noctua-360mm-nl-lc1-36
- Measurementigorslab.de/en/noctua-nl-lc1-36-test-aio/3
See a wrong value? Tell us and name the field.
