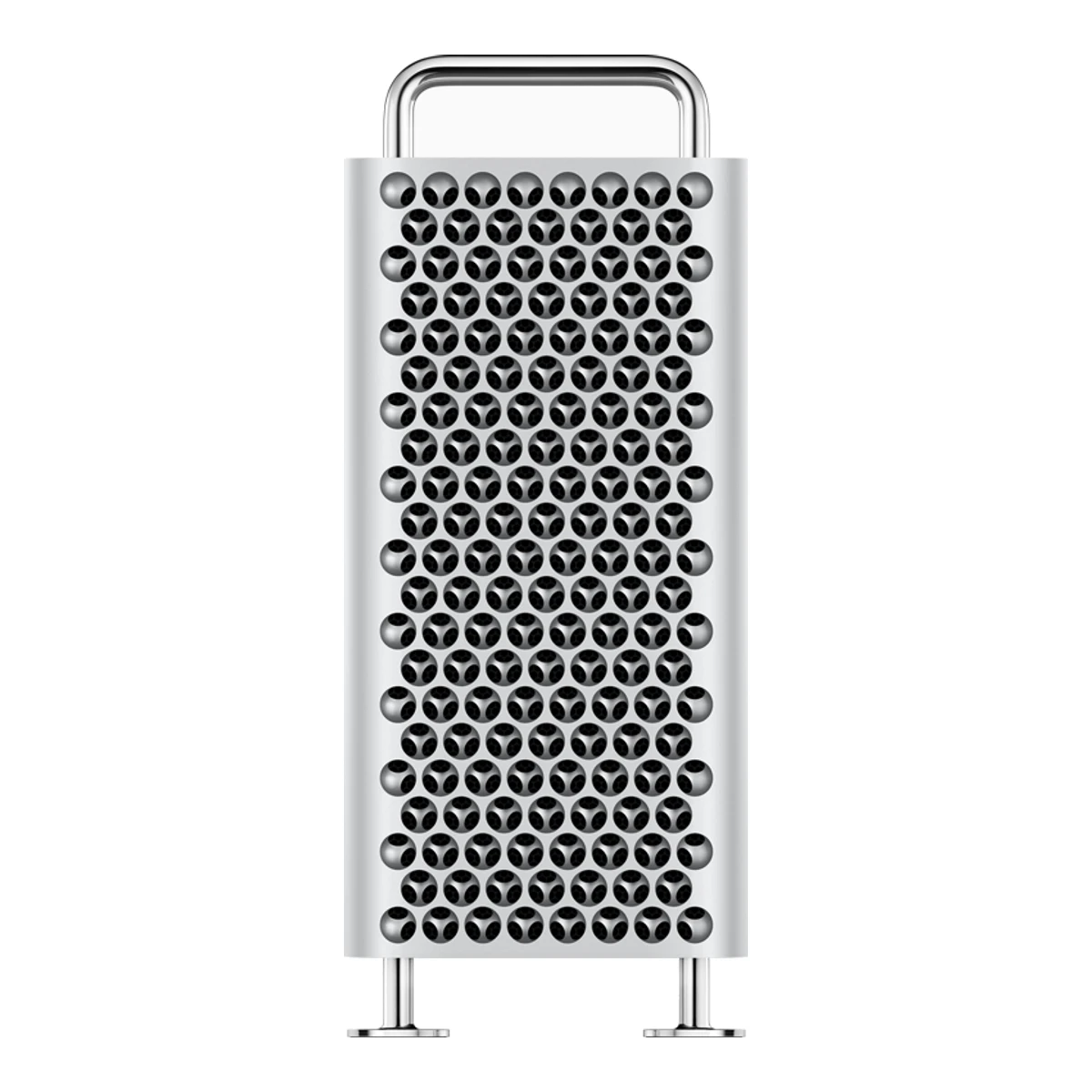

Apple Mac Pro (M2 Ultra, 2023)

AppleWorkstation desktop PC

Mac Pro (M2 Ultra, 2023)

Released June 2023.4Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026Orderable 2023-06-05. Arrives and is in stores from Tuesday, June 13, 2023. Last checked 16 October 2026.

Form factor
Tower (size tier not specified)
Processor
Apple M2 Ultra
GPU
Apple M2 Ultra 60-core GPU
RAM
64GB

72 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C Thunderbolt 4 / USB4User-facing ports
  • 6 USB-C Thunderbolt 4 / USB4Rear ports
  • 2 USB-A USB 3
  • 2 HDMI 2.1
  • 2 Ethernet (RJ45) 10Gb Ethernet
  • 3.5 mm audio

All specs

SourceCalculated

General

Series
Mac Pro1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Mac Pro (2023) tech specs, year introduced 2023.
Model numbers
A2786, Mac14,812Spec databaseeverymac.com/systems/apple/mac_pro/specs/mac-pro-m2-ultra-24-core-cpu-60-core-gpu-tower-2023-specs.htmlRead 11 October 2026Apple model number A2786 (EMC 8163) and model identifier Mac14,8 for the tower. The identifier is shared with the rack Mac Pro, so the Mac Pro (Rack, 2023) A2787 is excluded. The model is a configure-to-order system with no orderable part number.
GTIN / EAN
Not available
Announced
5 June 20234Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026Press release dated 2023-06-05.
Status
Discontinued12Spec databaseeverymac.com/systems/apple/mac_pro/specs/mac-pro-m2-ultra-24-core-cpu-60-core-gpu-tower-2023-specs.htmlRead 11 October 2026Discontinued March 26, 2026.13Press articlemacstories.net/linked/apple-discontinues-the-mac-proRead 11 October 2026Apple confirmed to 9to5Mac that the Mac Pro is discontinued. It was removed from Apple's website on a Thursday afternoon in late March 2026 and Apple has no plans for future Mac Pro hardware.
Predecessor
Not available
Successor
Not available
Launch price (US)
$6,9994Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026Mac Pro (Tower Enclosure) starts at $6,999 (U.S.). The base configuration is this product. Price excludes sales tax. The rack enclosure at $7,499 is a different product.
Launch price (EU)
€8,2995Press releaseapple.com/de/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026German press release: Mac Pro (Tower Gehaeuse) from 8,299 Euro including VAT. Germany price, tax included.
Markets
US4Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026US launch pricing and availability. The price and the stored market are the US ones.5Press releaseapple.com/de/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026US launch pricing and availability. The price and the stored market are the US ones.
Colours
Silver1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Finish: Silver.
Segment
Workstation10Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 11 October 2026ENERGY STAR record for Mac Pro A2786 / A2787 lists type Workstation and product marketed as a workstation: Yes.
Form factor
Tower (size tier not specified)1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Mac Pro tower enclosure with feet. Apple calls it a tower and gives no size tier.

Case

Front and side, drawn to scale.

Case dimensions
Width218Height529Depth450mm(8.6 × 20.8 × 17.7 in)1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Tower with feet: height 20.8 in (52.9 cm), width 8.58 in (21.8 cm), depth 17.7 in (45.0 cm). Stored as the published cm values times ten. Height with optional wheels is 55.7 cm and is not stored.
Case volume
Not available
Weight
16.86kg(37.2 lb)1Maker product pagesupport.apple.com/en-us/111343Read 11 October 202637.2 pounds (16.86 kg). Apple notes that weight varies by configuration and manufacturing process. Stated for the tower.
Case model
Not available
Case materials
Aluminium1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Mac Pro and the Environment: 70% recycled aluminum in the enclosure.11Maker spec sheet (PDF)apple.com/environment/pdf/products/desktops/Mac_Pro_PER_June2023.pdfRead 11 October 2026The enclosure is made with over 70 percent recycled aluminum.
Side panel
Not available
Front panel
Not available
Tool-less side panel
Yes8Owner's manualsupport.apple.com/en-us/104076Read 11 October 2026Housing removal: flip up the latch, rotate it 90 degrees counterclockwise, lift the housing straight up. No tool is listed for the Mac Pro (2023) housing.
Dust filters
Not available
VESA mount
Not available

Display

We could not find any of these 6 fields. Show them
Screen size
Not available
Native resolution
Not available
Panel type
Not available
Max refresh rate
Not available
Touchscreen
Not available
Brightness (SDR, claimed)
Not available

Motherboard

Motherboard
Apple service part 661-326287Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Orderable parts, logic board 661-32628: 24-core CPU, 60-core GPU, 64 GB. Apple service part, not a retail board.
Chipset
Not available
Motherboard form factor
Proprietary7Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Apple logic board with its own space frame, not an ATX class board.
CPU socket
Not available
Expansion slots
Mechanical slot typeElectrical lanesPCIe generationCountOccupied
PCIe x161642No
PCIe x8844No
PCIe x4431Yes
Source1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Six full-length PCI Express gen 4 slots (two x16, four x8) and one half-length x4 gen 3 slot with the Apple I/O card installed. See the Apple slot map for the slot detail.2Owner's manualsupport.apple.com/en-us/104947Read 11 October 2026Slots 1 and 2 gen 4 up to x16 (double-wide), slots 3 and 4 gen 4 up to x8 (double-wide), slots 5 and 6 gen 4 up to x8 (single-wide), slot 7 gen 3 up to x4 (single-wide) with the Apple I/O card from the factory. Apple names slots by lane width and does not state the physical connector size, so slot_type follows Apple's width. The Apple Thunderbolt I/O board has its own dedicated slot and is not counted.
PCIe x16 slots
2
Free expansion slots
6
Fan headers
Not available
Overclocking in BIOS
Not available

Processor

Processor
Apple M2 Ultra1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Apple M2 Ultra chip. This product is the base configuration: 24-core CPU, 60-core GPU, 64GB memory, 1TB SSD. The 76-core GPU option is a different product.
Processor brand
Apple1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Apple M2 Ultra chip.
Processor codename
Not available
Core configuration
Core typeCount
Performance16
Efficiency8
Source1Maker product pagesupport.apple.com/en-us/111343Read 11 October 202624-core CPU with 16 performance cores and 8 efficiency cores. Apple publishes no clock speeds. Third-party sources give 3.68 GHz and ENERGY STAR gives 3.5 GHz, so no clock is stored.
CPU cores
24
Performance cores
16
Efficiency cores
8
Threads
2417Spec databasehmc-tech.com/desktops/mac-pro-m2-ultra-mid-2023Read 11 October 2026Spec page for Mac Pro (M2 Ultra, Mid 2023): 24 cores (16P+8E), 24 threads. Apple lists the cores and no thread count. The page also lists a 3.69 GHz CPU clock, which is not stored because ENERGY STAR lists 3.5 GHz and EveryMac lists 3.68 GHz.
Max core turbo clock
Not available
L3 cache
Not available
CPU core process node
5nm6Press releaseapple.com/newsroom/2023/06/apple-introduces-m2-ultraRead 11 October 2026M2 Ultra is built using a second-generation 5-nanometer process. Maker process class, not a foundry node name.
CPU base power (chip rating)
Not available
Peak CPU power (configured)
Not available
Unlocked multiplier
Not available
NPU performance
31.6TOPS6Press releaseapple.com/newsroom/2023/06/apple-introduces-m2-ultraRead 11 October 202632-core Neural Engine delivering 31.6 trillion operations per second. Precision is not stated. This is not combined CPU and GPU throughput.
Integrated GPU
Apple M2 Ultra 60-core GPU1Maker product pagesupport.apple.com/en-us/111343Read 11 October 202660-core GPU in the M2 Ultra chip. Apple's PCIe article states the GPU is integrated and the Mac Pro does not support PCIe graphics cards.

Cooling

CPU cooler
Air9Owner's manualsupport.apple.com/en-us/103978Read 11 October 2026Repair manual lists system fans, a blower, a blower duct and a heat sink cover. The M2 Ultra is cooled by this heat sink and fan assembly. Apple does not state the fan count or sizes. The fans row holds only a third-party count, with no sizes.
CPU cooler model
Not available
Radiator size
Not available
Radiator position
Not available
Case fans
Fan rotors
4
Source17Spec databasehmc-tech.com/desktops/mac-pro-m2-ultra-mid-2023Read 11 October 2026Spec page lists 4 fans. Apple's repair manual lists a system fans assembly and a separate blower with no count. Only the count is stored, with no size or position. Excludes the power supply.
Number of case fans
4

Graphics

Discrete GPU
No3Owner's manualsupport.apple.com/en-us/101988Read 11 October 2026The GPU is integrated into the M2 Ultra chip and does not support additional graphics processors such as PCIe graphics cards or MPX modules.
GPU
Not available
GPU brand
Not available
Graphics card
Not available
VRAM
Not available
VRAM type
Not available
GPU board power
Not available
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
64GB1Maker product pagesupport.apple.com/en-us/111343Read 11 October 202664GB unified memory in the base configuration.
RAM type
LPDDR514Spec databaselowendmac.com/2024/mac-pro-2023Read 11 October 2026Memory line: 64GB of PC5-6400 3200 MHz LPDDR5 SDRAM unified memory.
Configured RAM speed
6,400MT/s14Spec databaselowendmac.com/2024/mac-pro-2023Read 11 October 2026LPDDR5-6400 as a data rate in MT/s, not a clock in MHz. Apple publishes only 800GB/s bandwidth. The same page lists 3.68 GHz performance cores, which is not stored because ENERGY STAR lists 3.5 GHz.17Spec databasehmc-tech.com/desktops/mac-pro-m2-ultra-mid-2023Read 11 October 2026Memory row for the base model: 64GB LPDDR5-6400. Agrees with the Low End Mac page.
Rated kit speed
Not available
Memory kit
Not available
RAM upgrade
Integrated into chip package7Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Logic boards are ordered by CPU, GPU and memory capacity (64, 128 or 192 GB). There are no memory slots.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Max RAM for this CPU and GPU
192GB1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Configurable to 128GB or 192GB at purchase. The Apple parts catalog lists a 192 GB logic board for the 60-core GPU, so 192 GB applies to this configuration.
ECC memory
Not available

Storage

Storage
1TB
Installed drives
Capacity (GB)TypePCIe generation
1,000SSD, protocol not stated4
Source1Maker product pagesupport.apple.com/en-us/111343Read 11 October 20261TB SSD in the base configuration. Apple states 1 TB = 1 trillion bytes. The parts catalog shows the 1 TB drive as two flash modules, stored here as one 1000 GB drive row. Larger sizes up to 8TB are configure-to-order.14Spec databaselowendmac.com/2024/mac-pro-2023Read 11 October 2026Drive bus line: PCIe 4.0, up to 7.4 GB/s, standard 1 TB. hmc-tech lists the 1TB drive as PCIe 4.0 x4. Only the generation is stored for the installed drive row.
Storage slots and bays
Not available
M.2 slots
Not available
Free M.2 slots
Not available
Free drive bays
Not available
Fastest storage-slot PCIe generation
Not available

Power supply

PSU rated output
Not available
PSU form factor
Proprietary7Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026The power supply is an Apple part that slides into the space frame and is held by clamp plates, not a standard ATX, SFX or TFX unit.
PSU efficiency
Not available
Modular cables
Not available
PSU model
Apple service part 661-329057Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Orderable parts, item 8 power supply 661-32905. One part for the tower and the rack.
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Top1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Two Thunderbolt 4 ports on top of the tower enclosure.
User-facing ports
TypeVersionCountMax stated link rate (Gbps)Thunderbolt or USB4
USB-CThunderbolt 4 / USB4240Thunderbolt 4
Source1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Eight Thunderbolt 4 (USB-C) ports in total: six on the back and two on top of the tower enclosure. Support for Thunderbolt 4 and USB 4 up to 40Gb/s and native DisplayPort output.
Rear ports
TypeVersionCountMax stated link rate (Gbps)Thunderbolt or USB4DP Alt ModeConnected to
USB-CThunderbolt 4 / USB4640Thunderbolt 4YesNot available
USB-AUSB 325Not availableNot availableAdd-in card
HDMIHDMI 2.12Not availableNot availableNot availableAdd-in card
Ethernet (RJ45)10Gb Ethernet210Not availableNot availableNot available
3.5 mm audioNot available1Not availableNot availableNot availableAdd-in card
Source1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Six Thunderbolt 4 (USB-C) ports on the back. Additional connections: two USB-A ports (up to 5Gb/s), two HDMI ports, two 10Gb Ethernet ports and a 3.5 mm headphone jack. The HDMI revision is not stated. A third USB-A port is internal and is not stored. Two internal SATA ports are not stored.3Owner's manualsupport.apple.com/en-us/101988Read 11 October 2026The Apple I/O card in slot 7 carries the 3.5 mm headphone jack, two HDMI ports and two USB-A ports, so those rows use source add_in_card. It can be removed. The Apple Thunderbolt I/O board has six Thunderbolt 4 ports.17Spec databasehmc-tech.com/desktops/mac-pro-m2-ultra-mid-2023Read 11 October 2026Video row lists 2x HDMI 2.1. Apple states HDMI supports 8K at 60Hz or 4K at 240Hz with VRR, which fits HDMI 2.1, but does not name the revision.
User-facing USB ports
2
User-facing USB-C ports
2
Rear USB ports
8
Thunderbolt
Yes
Ethernet speed
10Gbps
Discrete GPU output ports
Not available

Wireless

Wi-Fi
Wi-Fi 6E1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Wi-Fi 6E (802.11ax).
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Wi-Fi 6E available in countries and regions where supported, so the 6 GHz band is not available everywhere.
Wi-Fi module
Not available
Wi-Fi antenna
Internal7Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Orderable parts list antennas 076-00532 and an antenna connector cowling inside the housing. No external antenna is supplied.
Bluetooth
5.31Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Bluetooth 5.3.
Ethernet controller
Not available

Camera and audio

Webcam
Not available
Built-in speaker drivers
11Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Audio section lists a built-in speaker in the singular.
Total speaker power
Not available
Microphones
Not available
Audio features
3.5 mm headphone jack with support for high-impedance headphones, HDMI ports with multichannel audio output1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Audio section: built-in speaker, 3.5 mm headphone jack with advanced support for high-impedance headphones, HDMI port supports multichannel audio output.

Lighting

We could not find any of these 4 fields. Show them
RGB lighting
Not available
Lit parts
Not available
Lighting standard
Not available
Lighting software
Not available

Software

Operating system
macOS Ventura4Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026Mac Studio and Mac Pro come with macOS Ventura. EveryMac lists pre-installed macOS 13.4 (22F2073).
OS family
macOS4Press releaseapple.com/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026macOS Ventura.5Press releaseapple.com/de/newsroom/2023/06/apple-unveils-new-mac-studio-and-brings-apple-silicon-to-mac-proRead 11 October 2026macOS Ventura.
Control software
Not available

Upgradeability

Proprietary parts
Motherboard, PSU, Case, Fan connectors, Drive mounts7Owner's manualsupport.apple.com/en-us/103968Read 11 October 2026Logic board, power supply and housing 661-32750 are Apple assemblies. SSD modules 661-32634 use Apple connectors and need a macOS restore after replacement. System fans connect through contact springs on the logic board, not standard fan headers.
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench single-core
2,766points12Spec databaseeverymac.com/systems/apple/mac_pro/specs/mac-pro-m2-ultra-24-core-cpu-60-core-gpu-tower-2023-specs.htmlRead 11 October 2026Geekbench 6 single-core average of user-submitted results for model identifier Mac14,8, calculated by EveryMac. Not a controlled review test. Mixed macOS and Geekbench 6 versions. The identifier also covers the 76-core GPU option and the rack, which share the same CPU.
Geekbench multi-core
21,209points12Spec databaseeverymac.com/systems/apple/mac_pro/specs/mac-pro-m2-ultra-24-core-cpu-60-core-gpu-tower-2023-specs.htmlRead 11 October 2026Geekbench 6 multi-core average of user-submitted results for model identifier Mac14,8, calculated by EveryMac. Not a controlled review test. Mixed macOS and Geekbench 6 versions. The identifier also covers the 76-core GPU option and the rack, which share the same CPU.
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 6 fields. Show them
Fan noise per load
Not available
Highest measured fan noise
Not available
Measured fan noise at idle
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured power

We could not find any of these 6 fields. Show them
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Power draw sleep or off
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available

Certifications

ENERGY STAR
Yes1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Mac Pro and the Environment: ENERGY STAR certified.10Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 11 October 2026Record lists the Mac Pro as certified, available on the market 2023-06-05.
EPEAT
Gold11Maker spec sheet (PDF)apple.com/environment/pdf/products/desktops/Mac_Pro_PER_June2023.pdfRead 11 October 2026Footnote 4: Mac Pro achieved a Gold rating in the United States and Canada and is listed on the EPEAT Registry.
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
28.8kWh10Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 11 October 2026tec_of_model_kwh 28.8 for the 64 GB record. The 192 GB record 4513869 shows 28.3 and is excluded. The record covers A2786 and A2787.
Other certifications
EU RoHS (Directive 2011/65/EU, with applicable exemptions)1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026Footnote 11: Apple products comply with EU Directive 2011/65/EU and its amendments, including exemptions for the use of lead.

In the box

In the box
Mac Pro, Magic Keyboard with Touch ID and Numeric Keypad, Magic Mouse, Power cord (2 m), USB-C Charge Cable (1 m)1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026In the Box list.
Included extras
Keyboard, Mouse1Maker product pagesupport.apple.com/en-us/111343Read 11 October 2026In the Box: Magic Keyboard with Touch ID and Numeric Keypad and Magic Mouse. The optional Magic Trackpad is excluded.

Warranty

Manufacturer warranty (source market)
1year15Maker product pageapple.com/legal/warranty/products/embedded-mac-warranty-us.htmlRead 11 October 2026Apple One (1) Year Limited Warranty for Mac products in the US.
Warranty service
Carry-in, Mail-in15Maker product pageapple.com/legal/warranty/products/embedded-mac-warranty-us.htmlRead 11 October 2026US warranty lists carry-in and mail-in service. Mail-in applies when Apple finds the product eligible.

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 17 sources for this desktop PC. The numbers match the markers in the sheet.

  1. Read 11 October 2026Backs 28 fields
  2. Read 11 October 2026Backs 1 field
  3. Read 11 October 2026Backs 2 fields
  4. Read 11 October 2026Backs 6 fields
  5. Read 11 October 2026Backs 3 fields
  6. Read 11 October 2026Backs 2 fields
  7. Read 11 October 2026Backs 7 fields
  8. Read 11 October 2026Backs 1 field
  9. Read 11 October 2026Backs 1 field
  10. Read 11 October 2026Backs 3 fields
  11. Read 11 October 2026Backs 2 fields
  12. Read 11 October 2026Backs 4 fields
  13. Read 11 October 2026Backs 1 field
  14. Read 11 October 2026Backs 3 fields
  15. Read 11 October 2026Backs 2 fields
  16. Read 11 October 2026Backs 1 field
  17. Read 11 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
