Computers / Desktop PCs

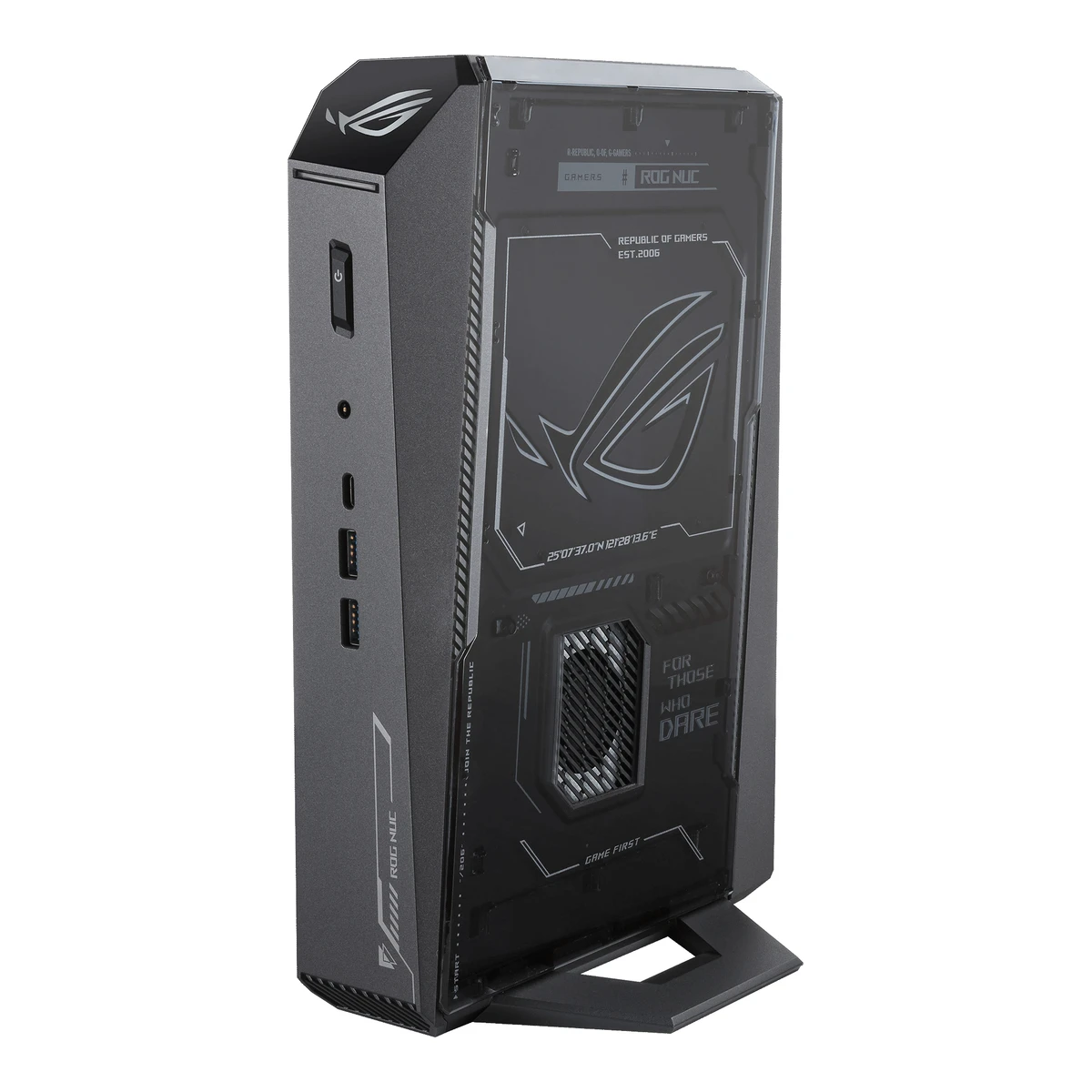

ASUS ROG NUC (2025)

ASUSGaming desktop PC

ROG NUC (2025)

Released May 2025.8Press articlenotebookcheck.net/Asus-releases-ROG-NUC-2025-gaming-mini-PC-with-Intel-Core-Ultra-9-275HX-and-Nvidia-GeForce-RTX-5080.1025845.0.htmlRead 5 October 2026May 28, 2025 report says 275HX / RTX 5080 Laptop / 32 GB / 2 TB ROG NUC can already be purchased in China as RNUC15JNK9X28AA6. This establishes first global retail month for the same NUC15JNKU9X9 hardware configuration. US AAU country-kit code is the reference for specs and box, not a claim of US first sale in May. Later June US preorder coverage and July delivery estimates are not first global retail. China order code is not added as a variant and no local Chinese price enters USD MSRP. Last checked 16 October 2026.

Form factor
Mini PC
Processor
Intel Core Ultra 9 275HX
GPU
NVIDIA GeForce RTX 5080 Laptop GPU
RAM
32GB

92 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-A USB 3.2 Gen 2User-facing ports
  • USB-C USB 3.2 Gen 2x2
  • 3.5 mm audio
  • USB-C Thunderbolt 4 / USB4
  • 4 USB-A USB 3.2 Gen 2Rear ports
  • 2 HDMI 2.1 FRL
  • 2 DisplayPort 2.1
  • Ethernet (RJ45)
  • DC in

All specs

SourceCalculated

General

Series
ROG NUC1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Model numbers
RNUC15JNK9X28AAU, NUC15JNK, NUC15JNKU9X91Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026Reference configuration is US RNUC15JNK9X28AAU, Core Ultra 9 275HX, RTX 5080 Laptop GPU, two 16 GB DDR5-6400 CSO-DIMMs and one 2 TB PCIe 4.0 NVMe SSD, Windows 11 Home. Technical Product Specification maps this hardware to NUC15JNKU9X9, regulatory model NUC15JNK. RNUC15JNK9X28AA2 is an overseas order code, not added as a variant. All other GPU and CPU configurations are excluded.3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 20266Retailer pagebhphotovideo.com/c/product/1901680-REG/asus_rnuc15jnk9x28aau_rog_nuc_mini_desktop.htmlRead 5 October 2026Exact US RNUC15JNK9X28AAU with 275HX, RTX 5080, 32 GB, 2 TB confirms sold configuration, 36 MB L3 cache and power adapter/cable. Retailer states three-year manufacturer warranty, while Newegg same model lists one year. No exact primary ASUS duration was located, so warranty_years is omitted. Current prices are not launch prices.
GTIN / EAN
Not available
Announced
7 January 20255Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026Maker January 7, 2025 CES introduction predates May retail. Claims 3 L chassis, dual vapor chamber air cooling, ARGB ROG logo and Aura Sync lighting. Its preliminary table mistakenly says 1000 W 80 PLUS Gold supply and old DDR5-5600 slots. Final user guide and exact SKU list 330 W external adapter and DDR5-6400 CSO-DIMMs and are used instead. No early preliminary PSU value is stored.
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 20266Retailer pagebhphotovideo.com/c/product/1901680-REG/asus_rnuc15jnk9x28aau_rog_nuc_mini_desktop.htmlRead 5 October 2026
Colours
Black1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Segment
Gaming5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026
Form factor
Mini PC5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026

Case

Front and side, drawn to scale.

Case dimensions
Width56.5Height282.4Depth187.7mm(2.2 × 11.1 × 7.4 in)3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Printed page 32 Mechanical Considerations drawing was rendered and inspected. In required vertical operating orientation, body height is 282.4 mm, thickness/width 56.5 mm and front-to-back depth 187.7 mm. Explicitly excludes stand. Headline table labels the triplet W/D/H inconsistently with this drawing, and another summary says including feet. Detailed labelled mechanical drawing is retained. Fixed base width 146 mm is not the body width. Maker states vertical-only operation and that the fixed base cannot be removed.
Case volume
3L5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026
Weight
3.12kg(6.9 lb)1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026Maker states system weight 3.12 kg. Stand-inclusion scope is not specified for weight. Detailed mechanical drawing supplies body dimensions excluding the stand and is preferred over the ambiguous W/D/H ordering in the headline specifications.
Case model
NUC15JNK1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 20263Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Mechanical section explicitly identifies the NUC15JNK chassis. There is no separately sold retail case or standardized motherboard form factor stated.
Case materials
Plastic7Reviewpcworld.com/article/2886749/rog-nuc-2025-review.htmlRead 5 October 2026Matching 275HX/5080/32GB/2TB review describes plastic exterior panels, front lighting strip and RGB side logo, with Armoury Crate cooling and lighting controls. Plastic is the confirmed exterior material only. Transparent panel is not assumed acrylic or glass. No generic RGB voltage/connector standard is inferred. Radio is inside chassis, with no external antenna option. Review generic port versions and description of GPU as desktop-class conflict with maker Laptop GPU and exact port table and are excluded.
Side panel
Not available
Front panel
Not available
Tool-less side panel
Yes2Owner's manualretailerno12.netset.eu/pdf/679DB2A9-4BE1-43E4-A976-B77F9D185DD6.pdfRead 5 October 2026
Dust filters
Not available
VESA mount
None3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Package section explicitly says system is not wall mountable. VESA bracket not supplied or supported. No unsupported mount conversion is proposed.

Display

We could not find any of these 6 fields. Show them
Screen size
Not available
Native resolution
Not available
Panel type
Not available
Max refresh rate
Not available
Touchscreen
Not available
Brightness (SDR, claimed)
Not available

Motherboard

Motherboard
Not available
Chipset
Intel HM8703Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026
Motherboard form factor
Not available
CPU socket
FCBGA21144Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Expansion slots
Not available
PCIe x16 slots
Not available
Free expansion slots
Not available
Fan headers
33Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Hardware Monitor Subsystem explicitly states three fan headers. Block diagrams name CPU, GPU and memory fan connections. Header counts are not treated as rotor counts, and total three-fan marketing count includes excluded GPU/CPU-cooler fans, so fans is omitted.
Overclocking in BIOS
Not available

Processor

Processor
Intel Core Ultra 9 275HX1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Processor brand
Intel4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Processor codename
Arrow Lake4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Core configuration
Core typeCountBase clock (GHz)Max core turbo clock (GHz)
Performance82.75.4
Efficiency162.14.6
Source4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026275HX CPU Specifications: 8 P cores at 2.7 GHz base / 5.4 GHz turbo, 16 E cores at 2.1 GHz base / 4.6 GHz turbo, 24 threads, 36 MB Intel Smart Cache, TSMC N3B CPU node, base power 55 W, FCBGA2114, Intel Graphics, Intel AI Boost peak 13 TOPS Int8. ECC memory support explicitly No. Intel maximum turbo power 160 W is not a configured ASUS PL2 and is omitted. ASUS cTDP range 45-75 W is dependent on thermal mode and not a documented single maximum PL2.
CPU cores
24
Performance cores
8
Efficiency cores
16
Threads
244Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Max core turbo clock
5.4GHz
L3 cache
36MB4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 20266Retailer pagebhphotovideo.com/c/product/1901680-REG/asus_rnuc15jnk9x28aau_rog_nuc_mini_desktop.htmlRead 5 October 2026
CPU core process node
3nm4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
CPU base power (chip rating)
55W4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Peak CPU power (configured)
Not available
Unlocked multiplier
Not available
NPU performance
13TOPS4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026
Integrated GPU
Intel Graphics4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026

Cooling

CPU cooler
Air5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026
CPU cooler model
Not available
Radiator size
Not available
Radiator position
Not available
Case fans
Not available
Number of case fans
Not available

Graphics

Discrete GPU
Yes1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
GPU
NVIDIA GeForce RTX 5080 Laptop GPU1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
GPU brand
NVIDIA1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Graphics card
Not available
VRAM
16GB3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026
VRAM type
GDDR73Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026
GPU board power
175W3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Printed page 9 NUC15JNKU9X9 column: RTX 5080 Laptop GPU 150 W plus 25 W Dynamic Boost, maximum 175 W. Dynamic Boost is conditional on shared CPU/GPU thermal and power budget. Chip-family reference power, generic desktop RTX 5080 ratings and transient measured clocks are excluded.
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
32GB1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
RAM type
DDR51Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Configured RAM speed
6,400MT/s9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026Default-profile sample Armoury Crate screenshot shows memory frequency 6400, and CPU-Z 2.16.0 Memory tab shows DDR5, 32 GB and DRAM clock 3196.4 MHz. Stores nominal configured 6400 MT/s, not a module SPD rating. Exact matched two 16 GB CSO-DIMM configuration. Installed supplier parts are not guaranteed for every US unit.
Rated kit speed
6,400MT/s1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026Included memory is DDR5-6400 CSO-DIMM. This states module rating. Nominal stock configured 6400 MT/s is now separately verified by the matching ALKtech default-profile sample captures. Module rating and configured rate remain separate fields. Clocked SO-DIMMs use the schema sodimm physical connector class. Maximum 96 GB requires two 48 GB ordinary DDR5 SO-DIMMs at up to 5600 MT/s. The same CPU and GPU are retained.
Memory kit
Not available
RAM upgrade
Slots1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Memory slots
SlotCountOccupiedModule size (GB)
SO-DIMM2Yes16
Source1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
RAM slots
2
Free RAM slots
0
Max RAM for this CPU and GPU
96GB1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
ECC memory
No4Maker product pageintel.com/content/www/us/en/products/sku/242293/intel-core-ultra-9-processor-275hx-36m-cache-up-to-5-40-ghz/specifications.htmlRead 5 October 2026

Storage

Storage
2TB
Installed drives
Capacity (GB)TypePCIe generation
2,000NVMe SSD4
Source1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026Exact SKU includes one 2 TB M.2 2280 PCIe 4.0 NVMe SSD. Decimal capacity is 2000 GB. Source does not fix drive vendor/model. No optional second drive is counted as installed.
Storage slots and bays
Form factorInterfacePCIe lanesCountOccupied
M.2 2280PCIe NVMe41Yes
M.2 2280PCIe NVMe41No
Source3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Board layout and storage summary document two M.2 2280 Key-M NVMe-only connectors, one Gen4 x4 and one Gen5 x4. Matching review has one factory 2 TB drive and one free connector. The review does not identify which physical connector contains the factory Gen4 drive. Occupancy groups therefore retain one occupied and one free socket, both x4, without assigning a generation to either group. No Gen5 capability is transferred to the installed Gen4 SSD. Source confirms overall Gen5 maximum but schema derives it from rows, so it remains unavailable when that correlation cannot be proved. No SATA bay is inferred.
M.2 slots
2
Free M.2 slots
1
Free drive bays
0
Fastest storage-slot PCIe generation
Not available

Power supply

PSU rated output
330W2Owner's manualretailerno12.netset.eu/pdf/679DB2A9-4BE1-43E4-A976-B77F9D185DD6.pdfRead 5 October 2026Printed pages 15-16 explicitly identify supplied 330 W external power adapter, 19.5 V output, 16.9 or 16.92 A and rated 330.0 W. The scalar is the published adapter rating, not a calculation from rounded volts and amps. No 80 PLUS tier is claimed.
PSU form factor
External adapter2Owner's manualretailerno12.netset.eu/pdf/679DB2A9-4BE1-43E4-A976-B77F9D185DD6.pdfRead 5 October 2026
PSU efficiency
Not available
Modular cables
Not available
PSU model
Not available
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Front1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
User-facing ports
TypeVersionCountMax stated link rate (Gbps)Power out (W)
USB-AUSB 3.2 Gen 2210Not available
USB-CUSB 3.2 Gen 2x212015
3.5 mm audioNot available1Not availableNot available
Source2Owner's manualretailerno12.netset.eu/pdf/679DB2A9-4BE1-43E4-A976-B77F9D185DD6.pdfRead 5 October 2026System overview and Type-C specifications, printed pages 9-10, explicitly give front USB-C 20 Gbps with 5 V / 3 A maximum 15 W. Headline technical-table text calls it USB3.2 Gen2 / 10 Gbps but detailed user guide and front-view drawing say 20 Gbps, corroborated by exact SKU retailer. Detailed port specification wins. Rear TB4 supports 40 Gbps and output up to 18 W at 9 V / 2 A or 12 V / 1.5 A.
Rear ports
TypeVersionCountMax stated link rate (Gbps)Thunderbolt or USB4Power out (W)DP Alt ModeConnected to
USB-CThunderbolt 4 / USB4140Thunderbolt 418YesMotherboard
USB-AUSB 3.2 Gen 2410Not availableNot availableNot availableMotherboard
HDMI2.1 FRL2Not availableNot availableNot availableNot availableGraphics card
DisplayPort2.12Not availableNot availableNot availableNot availableGraphics card
Ethernet (RJ45)Not available12.5Not availableNot availableNot availableMotherboard
DC inNot available1Not availableNot availableNot availableNot availableNot available
Source2Owner's manualretailerno12.netset.eu/pdf/679DB2A9-4BE1-43E4-A976-B77F9D185DD6.pdfRead 5 October 20263Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Feature summary separates discrete NVIDIA two HDMI 2.1 FRL plus two DisplayPort 2.1 outputs from Intel processor Thunderbolt 4 output. No accepted timing tables or reference GPU output capability are used to invent model-specific refresh maxima.
User-facing USB ports
3
User-facing USB-C ports
1
Rear USB ports
5
Thunderbolt
Yes
Ethernet speed
2.5Gbps
Discrete GPU output ports
Not available

Wireless

Wi-Fi
Wi-Fi 71Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026Wireless feature summary explicitly supports 2.4, 5 and 6 GHz. Technical Product Specification calls radio Killer BE1750x, while exact live SKU table says Intel BE200. Wi-Fi module model is omitted because this label difference was not resolved. Both maker sources agree on Wi-Fi 7 and Bluetooth 5.4. Bluetooth version may change with OS. US reference supports stated bands, not every regional restriction.
Wi-Fi module
Not available
Wi-Fi antenna
Internal7Reviewpcworld.com/article/2886749/rog-nuc-2025-review.htmlRead 5 October 2026
Bluetooth
5.41Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Ethernet controller
Intel Killer E3100G3Maker spec sheet (PDF)barcodesinc.com/media/pdf/Asus/ROG_NUC_2025.pdfRead 5 October 2026

Camera and audio

We could not find any of these 5 fields. Show them
Webcam
Not available
Built-in speaker drivers
Not available
Total speaker power
Not available
Microphones
Not available
Audio features
Not available

Lighting

RGB lighting
Yes5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 2026
Lit parts
Case strip7Reviewpcworld.com/article/2886749/rog-nuc-2025-review.htmlRead 5 October 2026Published front light strip is stored as case_strip. The RGB ROG logo is on the side panel, not the front. Schema has no side-panel lighting-zone option, so its location is omitted rather than map it to front_panel.
Lighting standard
Not available
Lighting software
ASUS Aura Sync / Armoury Crate5Press releaserog.asus.com/us/articles/product-news/the-2025-rog-nuc-your-next-gen-mini-pc-for-tomorrows-aaa-gamesRead 5 October 20267Reviewpcworld.com/article/2886749/rog-nuc-2025-review.htmlRead 5 October 2026

Software

Operating system
Windows 11 Home1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
OS family
Windows1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026
Control software
ASUS Armoury Crate7Reviewpcworld.com/article/2886749/rog-nuc-2025-review.htmlRead 5 October 2026

Upgradeability

We could not find any of these 4 fields. Show them
Proprietary parts
Not available
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

Cinebench 2024 single-core
133points9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026Exact tested hardware: Core Ultra 9 275HX, RTX 5080 Laptop GPU, 32 GB DDR5-6400 and Micron 3500 2 TB SSD, Windows 11 Home. ASUS Singapore loan unit, not the stored US part number or Singapore retail 1 TB unit. Benchmarks & Test Setup explicitly leaves maker defaults: BIOS Balance Enabled, BIOS fan Performance, Armoury Crate Performance. BIOS 0027, ambient 30 C. GPU-Z 2.68.0 screenshot identifies Nvidia 581.15. This replaces earlier TechRadar 132/2011 results whose default profile was unproved.
Cinebench 2024 multi-core
1,930points9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026Cinebench 2024 multi-core 1930 on the same exact matching default-profile sample. Cinebench R23 results are excluded.
Geekbench single-core
Not available
Geekbench multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
6,947MB/s9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026CrystalDiskMark 9.0.1 x64 screenshot: internal Micron 3500 2 TB SSD, SEQ1M Q8T1 read 6946.63 MB/s, three runs, 1 GiB, 16% used (302/1906 GiB). Rounded to 6947 for integer field. Same proved maker-default profiles and BIOS 0027. Vendor/model describes the measured sample only and does not become a guaranteed supplier BOM.
Game frame rates
GameWidth (px)Height (px)PresetUpscalingRay tracingAverage FPS
Black Myth: Wukong38402160HighTSR, Super Resolution 100%No37
Black Myth: Wukong25601440HighTSR, Super Resolution 100%No67
Cyberpunk 207738402160Ray Tracing Low, custom with upscaling offOffYes40.81
Cyberpunk 207725601440Ray Tracing Low, custom with upscaling offOffYes88.5
F1 2338402160Ultra High, TAA, 16x AFOffNot available38
F1 2325601440Ultra High, TAA, 16x AFOffNot available73
Shadow of the Tomb Raider38402160Custom, Ultra ray-traced shadowsOffYes47
Shadow of the Tomb Raider25601440Custom, Ultra ray-traced shadowsOffYes94
Source9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026Eight in-game benchmark rows from the exact matching 32 GB / 2 TB loan unit, same proved maker-default BIOS/Armoury modes, BIOS 0027 and 30 C ambient. Wukong uses TSR 100%, DLSS off and frame generation off. Cyberpunk v2.3 uses RT Low modified to disable all resolution scaling and frame generation. F1 Ultra High uses TAA and 16x AF with upscaling off, its ray tracing and frame generation state is not separately reported. F1 4K screenshot version 1.21.1093537. Tomb Raider uses Custom settings and Ultra RT shadows, not a named Highest preset. 4K screenshot proves DX12, SMAA4x, DLSS and XeSS off and game v1.0 build 492.0_64. Minima are not average 1% lows. No Notebookcheck FPS are transferred without proof of its default profile.

Measured noise and temperature

Fan noise per load
ProfileLoadDistance (cm)Noise (dB(A))
PerformanceIdle1530.8
PerformanceGaming1545.2
PerformanceMax load1545.1
Source10Measurementnotebookcheck.net/Best-Mini-Gaming-PC-2025-Asus-ROG-NUC-15-with-GeForce-RTX-5080-Core-Ultra-9-review.1159781.0.htmlRead 8 October 2026Exact tested 275HX/RTX 5080 Laptop/32 GB DDR5-6400/Micron MTFDKBA2T0TGD marketed 2 TB sample, 330 W adapter, Nvidia 581.15. Reviewer labels regional unit 90AS00I1, not US AAU. Published Performance energy profile. Its BIOS mode, fan profile and BIOS version are not reported, so factory-default status is not established. Earthworks M23R at 15 cm, ambient floor 25 dB(A). Idle maximum 30.8 from 29.5/29.8/30.8 table, maximum-load 45.1, Cyberpunk 2077 Ultra gaming 45.2. Rounded 30/45 prose is excluded. Sample header reports 115 W GPU including 25 W Dynamic Boost, distinct from maker 175 W conditional maximum. Only source-qualified noise/power observations are retained, not default-profile point scores or FPS.
Highest measured fan noise
45.2dB(A)
Measured fan noise at idle
30.8dB(A)
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
77°C9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026HWiNFO64 GPU temperature average 77.0 C, not maximum 79.7 C or memory-junction 77.1 C. Actual workload: F1 23 in-game benchmark, 3840x2160 Ultra High, TAA, 16x AF, DLSS off, Singapore circuit, five laps (~9 minutes). BIOS Balance Enabled, BIOS fan Performance and Armoury Performance maker defaults, BIOS 0027, Nvidia 581.15, ambient around 30 C. HWiNFO64 version is not stated. CPU gaming temperatures do not populate CPU stress fields.

Measured power

Power draw idle
37.1W10Measurementnotebookcheck.net/Best-Mini-Gaming-PC-2025-Asus-ROG-NUC-15-with-GeForce-RTX-5080-Core-Ultra-9-review.1159781.0.htmlRead 8 October 2026Metrahit Energy wall-power table: average idle 37.1 W, range 30-44.4 W. Same Performance test profile and matching 32 GB / 2 TB regional review sample. AC input voltage and BIOS/fan state are not reported, so no US mains or maker-default condition is inferred.
Power draw gaming
297W10Measurementnotebookcheck.net/Best-Mini-Gaming-PC-2025-Asus-ROG-NUC-15-with-GeForce-RTX-5080-Core-Ultra-9-review.1159781.0.htmlRead 8 October 2026Metrahit Energy wall-power chart: Cyberpunk 2077, 1920x1080 Ultra, FSR off, mean 297 W (287-344 W). Same Performance test profile. DLSS, frame generation, game patch and AC input voltage are not specified. Separate from ALKtech F1 GPU-only 173 W software reading.
Power draw max
347W10Measurementnotebookcheck.net/Best-Mini-Gaming-PC-2025-Asus-ROG-NUC-15-with-GeForce-RTX-5080-Core-Ultra-9-review.1159781.0.htmlRead 8 October 2026Combined Prime95 28.10 and FurMark 1.25 at 1280x720: wall-power peak 347 W, mean 292 W (260-347 W), Metrahit Energy. Same Performance profile. CPU-only Prime95 peak 246 W is excluded. Wall input can exceed rated 330 W adapter output and is not a substitute PSU rating.
Power draw sleep or off
4.7W10Measurementnotebookcheck.net/Best-Mini-Gaming-PC-2025-Asus-ROG-NUC-15-with-GeForce-RTX-5080-Core-Ultra-9-review.1159781.0.htmlRead 8 October 2026Published Off/Standby row 1.3/4.7 W. Stores Standby 4.7 W only. ACPI sleep state and AC input voltage are not specified. Same regional sample and Metrahit Energy method.
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
173W9Measurementalktech.co/articles/review-asus-rog-nuc-2025-mini-pcRead 8 October 2026Same exact F1 five-lap workload and conditions: HWiNFO64 GPU-only software mean 173.0 W. Maximum 174.0 W is separate. This is neither wall/system gaming draw nor the 175 W maker TGP ceiling.

Certifications

We could not find any of these 5 fields. Show them
ENERGY STAR
Not available
EPEAT
Not available
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
Not available
Other certifications
Not available

In the box

In the box
ROG NUC (2025) mini PC, 330 W power adapter, Power cord, Safety/Caution/Regulatory insert, Warranty card1Maker product pagerog.asus.com/us/desktops/mini-pc/rog-nuc-2025/specRead 5 October 2026SKU accessories list adapter, power cord, safety/caution/regulatory insert and warranty card. Global note says some regional SKUs lack the cord. Exact US order number retailer confirms supplied power adapter and cable. Integrated fixed base is not treated as a separate boxed vertical stand. No mouse or keyboard is included.6Retailer pagebhphotovideo.com/c/product/1901680-REG/asus_rnuc15jnk9x28aau_rog_nuc_mini_desktop.htmlRead 5 October 2026
Included extras
Not available

Warranty

We could not find any of these 2 fields. Show them
Manufacturer warranty (source market)
Not available
Warranty service
Not available

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 10 sources for this desktop PC. The numbers match the markers in the sheet.

  1. Read 5 October 2026Backs 24 fields
  2. Read 5 October 2026Backs 6 fields
  3. Read 5 October 2026Backs 14 fields
  4. Read 5 October 2026Backs 11 fields
  5. Read 5 October 2026Backs 7 fields
  6. Read 5 October 2026Backs 4 fields
  7. Read 5 October 2026Backs 5 fields
  8. Read 5 October 2026Backs 1 field
  9. Read 8 October 2026Backs 7 fields
  10. Read 8 October 2026Backs 5 fields

See a wrong value? Tell us and name the field.
