Computers / Desktop PCs
GMKtecMini PC desktop PC

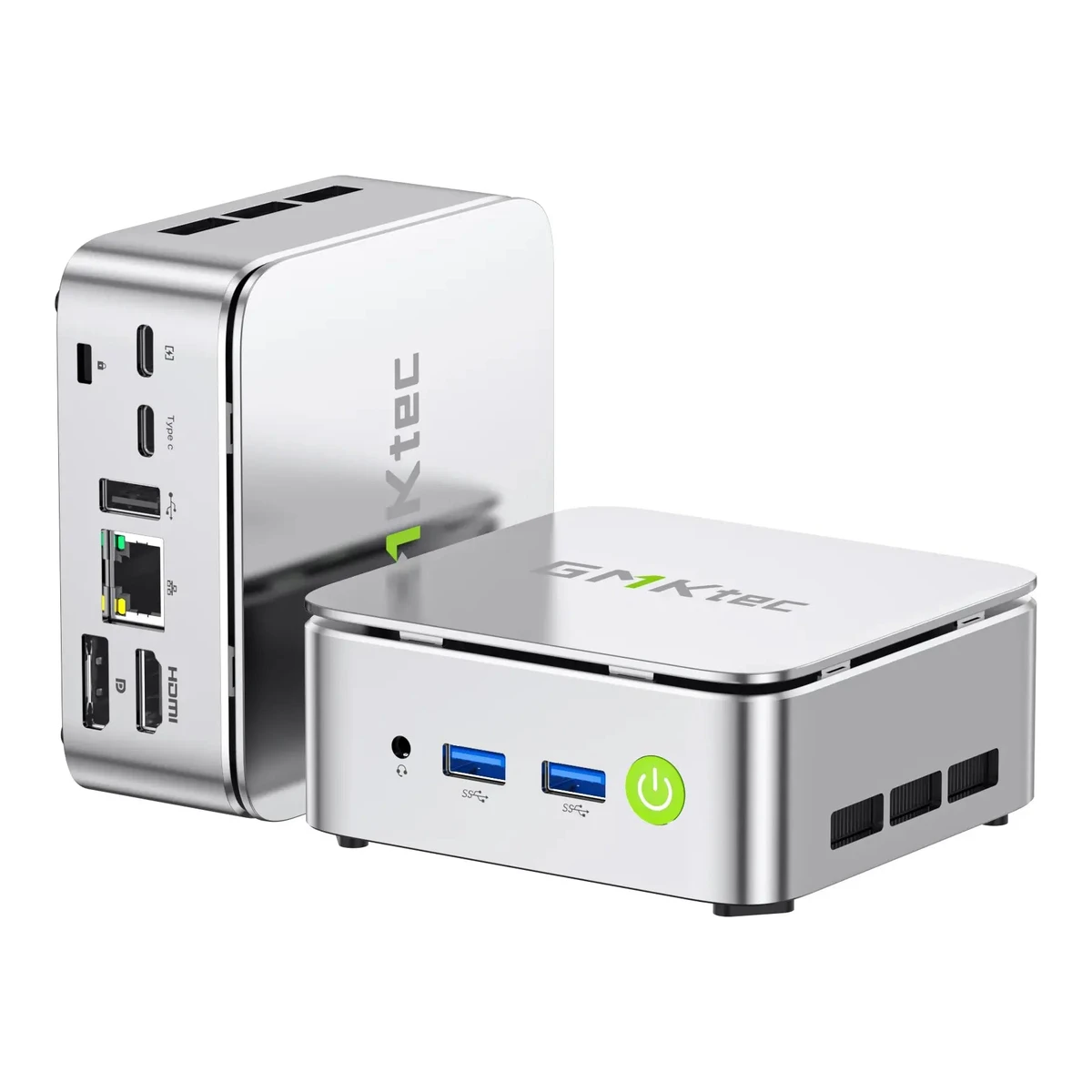

NucBox G10
Released June 2025.3Maker product pagede.gmktec.com/en/products/gmktec-nucbox-g10-amd%c2%ae-ryzen%e2%84%a2-5-3500u-mini-pc.jsonRead 15 October 2026Maker's EU store product feed: the G10 page was created and published on 2025-06-23. The US store page was created later, on 2025-11-27, so 2025-06 is the first maker listing month. Last checked 15 October 2026.
- Form factor
- Mini PC
- Processor
- AMD Ryzen 5 3500U
- GPU
- AMD Radeon Vega 8 Graphics
- RAM
- 16GB
68 of 160 fields known.
At a glance
Ports
- 2 USB-A USB 3.2 Gen 1
- 3.5 mm audio CTIA headset jack
- USB-C USB 3.2 Gen 1 with DisplayPort 1.4 Alt Mode and Power Delivery
- USB-C Power Delivery input only
- USB-A USB 2.0
- HDMI 2.1
- DisplayPort 1.4
- Ethernet (RJ45) 2.5 Gigabit Ethernet
General
- Model numbers
- G10, G10-11-33S, G10-11-33U, G10-11-33K, G10-11-33A, G10-11-33U-EU22Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pc.jsonRead 15 October 2026US store product feed. The 16GB RAM+512GB SSD variant has SKUs G10-11-33S (US), G10-11-33U (EU), G10-11-33K (UK) and G10-11-33A (AU). G10 is the model number on the Amazon listing.3Maker product pagede.gmktec.com/en/products/gmktec-nucbox-g10-amd%c2%ae-ryzen%e2%84%a2-5-3500u-mini-pc.jsonRead 15 October 2026EU store SKU for the 16GB RAM+512GB SSD variant: G10-11-33U-EU2. The EU store lists the barebone as G10-11-00U-EU2 and the 16GB RAM+1TB SSD variant as G10-11-34U-EU2.8Retailer pageamazon.com/dp/B0FSXDC7NRRead 15 October 2026Model Number G10, Model Name G10. Item weight 0.95 kg on this listing is far above the 0.24 to 0.30 kg other sources give, and a retailer lists the packed box at 0.93 kg, so it is not stored as the system weight.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- US, EU, GB, AU2Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pc.jsonRead 15 October 2026The store sells US, EU, UK and AU power plug versions of each configuration.
- Colours
- Silver5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Price section: the G10 comes only in a silver case.7Retailer pageb2b.legit.si/mini-pc-gmktec-g10-amd-ryzen-5-3500u-16gb-ram-512gb-ssd-win-11-proRead 15 October 2026Technical info: Color Silver. A second row on the page says White, which the photos and TechRadar do not support.
Case
Front and side, drawn to scale.
- Case dimensions
- Width103Height42Depth98mm(4.1 × 1.7 × 3.9 in)1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Chassis Dimensions row: 103 x 98 x 42 mm. The page does not name the axes. Height is the smallest value. Width and depth follow the maker's order. TechRadar's spec table says 32 mm high, which the maker page and retailer listings do not support.
- Case volume
- Not available
- Weight
- Not available
- Case model
- Not available
- Case materials
- Plastic5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Design section: Plastic construction.7Retailer pageb2b.legit.si/mini-pc-gmktec-g10-amd-ryzen-5-3500u-16gb-ram-512gb-ssd-win-11-proRead 15 October 2026Specifications: Housing material Plastic.9Spec databasestarryhope.com/minipcs/models/gmktec-g10Read 15 October 2026Says plastic top and bottom panels sit between metal sides. TechRadar, the retailer spec and owner reviews describe a plastic body with a metallic silver finish, so only plastic is stored.
- Side panel
- Not available
- Front panel
- Not available
- Dust filters
- Not available
- VESA mount
- Not available
Display
We could not find any of these 6 fields. Show them
- Screen size
- Not available
- Native resolution
- Not available
- Panel type
- Not available
- Max refresh rate
- Not available
- Touchscreen
- Not available
- Brightness (SDR, claimed)
- Not available
Motherboard
- Motherboard
- Not available
- Chipset
- Not available
- Motherboard form factor
- Not available
- CPU socket
- FP51Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026
- Expansion slots
Mechanical slot type Count Occupied M.2 E-key 1 Yes - PCIe x16 slots
- 0
- Free expansion slots
- 0
- Fan headers
- Not available
- Overclocking in BIOS
- Not available
Processor
- Processor
- AMD Ryzen 5 3500U1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026CPU Model row: AMD Ryzen 5 3500U.
- Processor brand
- AMD4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026
- Processor codename
- Picasso4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026Former Codename: Picasso.
- Core configuration
Core type Count Core Base clock (GHz) Max core turbo clock (GHz) Performance 4 Zen+ 2.1 3.7 Source1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026CPU row: quad-core, eight-thread, Max Turbo 3.7GHz. The 2.1 GHz base clock is from AMD's page.4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 20264 cores, base clock 2.1 GHz, max boost up to 3.7 GHz. AMD names the AMD Zen Core Architecture only. The Zen+ core name comes from TechRadar and Gizmochina.5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Calls the 3500U a 12nm chip from the Zen+ era with four cores.6Press articlegizmochina.com/2025/06/15/gmktec-g10-mini-pc-launched-specs-priceRead 15 October 2026Describes the 12nm Zen+ architecture, 4 cores, 8 threads, 2.1 GHz base, 3.7 GHz boost.- CPU cores
- 4
- Performance cores
- 4
- Efficiency cores
- 0
- Threads
- 81Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026CPU row: Quad-Core, Eight-Thread.4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 20268 threads.
- Max core turbo clock
- 3.7GHz
- L3 cache
- 4MB1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026CPU row: 4MB L3 Cache.4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026L3 cache 4 MB.
- CPU core process node
- 12nm1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026CPU row: 12nm process.4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026Processor Technology for CPU Cores: 12nm.
- CPU base power (chip rating)
- 15W4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026Default TDP 15W. AMD's configurable TDP is 12 to 35 W.
- Unlocked multiplier
- No4Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-3000-series/amd-ryzen-5-3500u.htmlRead 15 October 2026Unlocked for Overclocking: No.
- NPU performance
- Not available
Cooling
- CPU cooler model
- Not available
- Radiator size
- Not available
- Radiator position
- Not available
- Case fans
- Not available
- Number of case fans
- Not available
Graphics
- GPU
- Not available
- GPU brand
- Not available
- Graphics card
- Not available
- VRAM
- Not available
- VRAM type
- Not available
- GPU board power
- Not available
- GPU boost clock
- Not available
- Graphics card length
- Not available
- Graphics card thickness
- Not available
- GPU power connector
- Not available
Memory
- Rated kit speed
- Not available
- Memory kit
- Not available
- Memory slots
Slot Count Occupied Module size (GB) SO-DIMM 2 Yes 8 Source1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Two SO-DIMM sockets. The 16GB configuration has two 8GB modules per TechRadar and Starry Hope (dual-channel 2x8GB).5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Review unit had two 8GB SO-DIMM modules (dual channel).9Spec databasestarryhope.com/minipcs/models/gmktec-g10Read 15 October 2026Ships with 16GB as 2x8GB in dual channel at DDR4-2400.- RAM slots
- 2
- Free RAM slots
- 0
- Max RAM for this CPU and GPU
- 64GB1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Memory row: up to 64GB supported.
- ECC memory
- Not available
Storage
- Storage
- 512GB
- Installed drives
Capacity (GB) Type PCIe generation 512 NVMe SSD 3 - Storage slots and bays
Form factor Interface PCIe generation PCIe lanes Count Occupied M.2 2280 PCIe NVMe 3 4 1 Yes M.2 2280 PCIe NVMe 3 4 1 No Source1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Storage row: 2x M.2 2280 PCIe 3.0x4. One slot holds the SSD in the 512GB configuration and one is free.5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Two full-length 2280 M.2 PCIe 3.0 x4 slots. The second slot reached 3,750 MB/s with a Kingston KC3000, so it has four lanes.- M.2 slots
- 2
- Free M.2 slots
- 1
- Free drive bays
- 0
- Fastest storage-slot PCIe generation
- 3
Power supply
- PSU rated output
- 64.98W5Reviewtechradar.com/computing/gmktec-nucbox-g10-mini-pc-reviewRead 15 October 2026Specs table: PSU 19V 3.42A 64.98W. The maker page gives 19V/3.42A only.
- PSU form factor
- External adapter1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Power row: Type-C charger, 19V/3.42A, supports PD and non-PD chargers. The unit has no barrel DC jack.
- PSU efficiency
- Not available
- Modular cables
- Not available
- PSU model
- Not available
- ATX version
- Not available
- Native 12V-2x6 cable
- Not available
Ports
- User-facing I/O position
- Front1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Front and rear port positions are read from the maker's main product photo (power button, two blue USB-A ports and headset jack on the front). Gizmochina agrees.
- User-facing ports
Type Version Count Max stated link rate (Gbps) USB-A USB 3.2 Gen 1 2 5 3.5 mm audio CTIA headset jack 1 Not available Source1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026External Ports row: USB-A 2x USB 3.2 Gen1 (5Gbps), audio 3.5mm CTIA. The photo shows both USB-A ports and the jack on the front panel.6Press articlegizmochina.com/2025/06/15/gmktec-g10-mini-pc-launched-specs-priceRead 15 October 2026The front has two USB-A ports.9Spec databasestarryhope.com/minipcs/models/gmktec-g10Read 15 October 2026Front panel: two USB 3.0 ports at 5 Gbps and a 3.5mm combo jack.- Rear ports
Type Version Count Max stated link rate (Gbps) DP Alt Mode Connected to USB-C USB 3.2 Gen 1 with DisplayPort 1.4 Alt Mode and Power Delivery 1 5 Yes Motherboard USB-C Power Delivery input only 1 Not available Not available Motherboard USB-A USB 2.0 1 0.48 Not available Motherboard HDMI 2.1 1 Not available Not available Motherboard DisplayPort 1.4 1 Not available Not available Motherboard Ethernet (RJ45) 2.5 Gigabit Ethernet 1 2.5 Not available Motherboard Source1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026External Ports row: Type-C 1x (DP1.4 4K@30Hz + USB3.2 Gen1 + PD) and 1x PD only, USB-A 1x USB 2.0, HDMI 1x HDMI 2.1 (4K60Hz), DisplayPort 1x DP1.4 (4K60Hz), RJ45 1x. The rear photo shows two USB-C, one USB-A, RJ45, DisplayPort, HDMI and a Kensington lock slot. HDMI is stored as 2.1 as the maker states. TechRadar's table says HDMI 2.0. The USB 2.0 rate of 0.48 Gbps is the USB 2.0 signalling rate as stored for other products.6Press articlegizmochina.com/2025/06/15/gmktec-g10-mini-pc-launched-specs-priceRead 15 October 2026The rear has one USB-A, two USB-C with power delivery, one HDMI 2.1, one DisplayPort 1.4 and an Ethernet jack.9Spec databasestarryhope.com/minipcs/models/gmktec-g10Read 15 October 2026Rear panel: HDMI 2.1, DisplayPort 1.4, two USB-C with DisplayPort Alt Mode and Power Delivery, one USB 2.0 and 2.5 Gigabit Ethernet.- User-facing USB ports
- 2
- User-facing USB-C ports
- 0
- Rear USB ports
- 3
- Thunderbolt
- Not available
- Ethernet speed
- 2.5Gbps
- Discrete GPU output ports
- 0
Wireless
- Wi-Fi bands
- 2.4 GHz, 5 GHz8Retailer pageamazon.com/dp/B0FSXDC7NRRead 15 October 2026Hardware Interface lists 802.11 ac/b/g/n, which covers 2.4 GHz and 5 GHz. No 6 GHz.
- Wi-Fi module
- Realtek RTL8822CE1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Network row: Realtek RTL8822CE.
- Wi-Fi antenna
- Not available
Camera and audio
We could not find any of these 5 fields. Show them
- Webcam
- Not available
- Built-in speaker drivers
- Not available
- Total speaker power
- Not available
- Microphones
- Not available
- Audio features
- Not available
Lighting
We could not find any of these 4 fields. Show them
- RGB lighting
- Not available
- Lit parts
- Not available
- Lighting standard
- Not available
- Lighting software
- Not available
Software
- Operating system
- Windows 11 Pro1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Operating System row: Windows 11 Pro. The barebone has no OS, so this applies to the 16GB configurations.
- OS family
- Windows1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026
- Control software
- Not available
Upgradeability
We could not find any of these 4 fields. Show them
- Proprietary parts
- Not available
- Max graphics card length
- Not available
- Max CPU cooler height
- Not available
- Warranty kept after upgrade
- Not available
Measured performance
We could not find any of these 8 fields. Show them
- Cinebench 2024 single-core
- Not available
- Cinebench 2024 multi-core
- Not available
- Geekbench single-core
- Not available
- Geekbench multi-core
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- SSD sequential read (measured)
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 6 fields. Show them
- Fan noise per load
- Not available
- Highest measured fan noise
- Not available
- Measured fan noise at idle
- Not available
- CPU temperature in stress test
- Not available
- CPU clock in stress test
- Not available
- GPU temperature while gaming
- Not available
Measured power
We could not find any of these 6 fields. Show them
- Power draw idle
- Not available
- Power draw gaming
- Not available
- Power draw max
- Not available
- Power draw sleep or off
- Not available
- Sustained CPU power (measured)
- Not available
- GPU power while gaming (measured)
- Not available
Certifications
We could not find any of these 5 fields. Show them
- ENERGY STAR
- Not available
- EPEAT
- Not available
- Copilot+ PC
- Not available
- Typical annual energy consumption (TEC)
- Not available
- Other certifications
- Not available
In the box
- In the box
- User Manual, Warranty Card, Power Adapter, VESA Stand, HDMI Cable1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Packaging List row, verbatim.
Warranty
- Manufacturer warranty (source market)
- 1year1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026Page badge: 1-Year Warranty, US store. The Amazon listing says GMKtec gives a 1-year limited warranty for each mini PC.
- Warranty service
- Not available
Links
- Product page
- www.gmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pc1Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pcRead 15 October 2026
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Compare with
Pick a desktop PC to see both side by side. Differences are marked yellow.
Sources
We read 9 sources for this desktop PC. The numbers match the markers in the sheet.
- Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pc
- Maker product pagegmktec.com/products/gmktec-g10-amd-ryzen-5-3500u-mini-pc.json
- Retailer pageamazon.com/dp/B0FSXDC7NR
- Spec databasestarryhope.com/minipcs/models/gmktec-g10
See a wrong value? Tell us and name the field.
