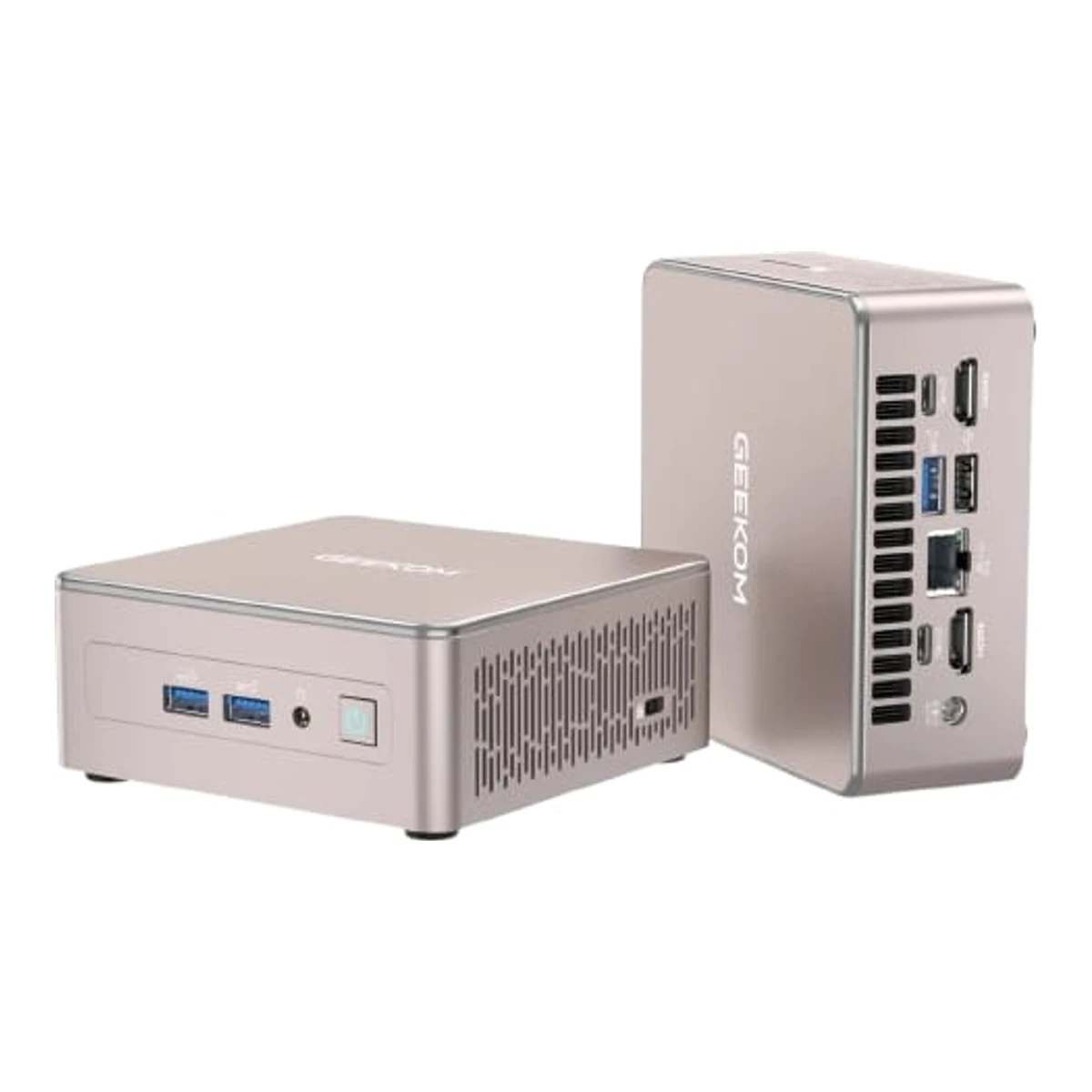

GEEKOM A5 (Ryzen 5 7430U)

GEEKOMMini PC desktop PC

A5 (Ryzen 5 7430U)

Released May 2025.10Press articlegarumax.comRead 14 October 2026Japanese spec article for the GEEKOM A5 2025 Edition posted 3 June 2025. Its images were uploaded in May 2025 and StarryHope's page data gives 23 May 2025. No source states the exact launch day, so the month is approximate. Last checked 14 October 2026.

Form factor
Mini PC
Processor
AMD Ryzen 5 7430U
GPU
AMD Radeon RX Vega 7
RAM
16GB

62 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-A USB 3.2 Gen 2User-facing ports
  • 3.5 mm audio Headphone jack
  • SD card Left side
  • 2 USB-C USB 3.2 Gen 2
  • USB-A USB 3.2 Gen 2Rear ports
  • USB-A USB 2.0
  • 2 HDMI 2.0
  • Ethernet (RJ45) 2.5 Gigabit Ethernet
  • DC in 19 V input

All specs

SourceCalculated

General

Series
Not available
Model numbers
Not available
GTIN / EAN
Not available
Announced
Not available
Status
Available1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026The A5 page offers R5-7430U 16 GB RAM + 512 GB SSD and R5-7430U 16 GB RAM + 1 TB SSD, with add to cart and US stock. The page is titled A5 2027 Edition and its spec table covers the Ryzen 7 7730U and Ryzen 5 7430U. Items that differ from the 2025 hardware, such as Bluetooth 5.4 and maximum storage, are not used.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Mini PC1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Sold in the maker's Mini PC range.
Form factor
Mini PC1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Maker calls it a Mini PC.

Case

Front and side, drawn to scale.

Case dimensions
Width117Height49.2Depth112mm(4.6 × 1.9 × 4.4 in)2Maker product pagegeekom.co.uk/geekom-a5-mini-pcRead 14 October 2026Form Factor row: 117 x 112 x 49.2 mm. The three numbers have no axis labels. The last is the height. Width and depth are assigned in the listed order, so they may be swapped. This UK page lists the Ryzen 7 7730U, and Mighty Gadget says the 2025 Edition has the identical chassis.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Chassis 117 x 112 x 49.2 mm, identical to the 2023 A5. Axis order is not labelled.
Case volume
Not available
Weight
0.652kg(1.4 lb)1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Net weight: About 652 g. Stored as exactly 0.652 kg. Mighty Gadget and Droix give the same 652 g.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Approximately 652 g.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 2026652 g (1.43 lbs).
Case model
Not available
Case materials
Plastic, Other7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026PC+ABS composite top with a metal middle frame and bottom cover. The metal is not named, so other is used next to plastic.
Side panel
Not available
Front panel
Not available
Tool-less side panel
Not available
Dust filters
Not available
VESA mount
Not available

Display

We could not find any of these 6 fields. Show them
Screen size
Not available
Native resolution
Not available
Panel type
Not available
Max refresh rate
Not available
Touchscreen
Not available
Brightness (SDR, claimed)
Not available

Motherboard

Motherboard
Not available
Chipset
Not available
Motherboard form factor
Not available
CPU socket
FP66Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026FP6.
Expansion slots
Not available
PCIe x16 slots
Not available
Free expansion slots
Not available
Fan headers
Not available
Overclocking in BIOS
Not available

Processor

Processor
AMD Ryzen 5 7430U1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026CPU row lists AMD Ryzen 5 7430U (6 Cores, 12 Threads, 16MB Cache, 2.0 GHz ~ 4.3 GHz).
Processor brand
AMD6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026
Processor codename
Barcelo-R6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026Former codename Barcelo-R. The AMD site did not load for direct fetches, so these values come from the page as returned by search.
Core configuration
Core typeCountCoreBase clock (GHz)Max core turbo clock (GHz)
Performance6Zen 32.34.3
Source6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 20266 Zen 3 cores, 2.3 GHz base and up to 4.3 GHz boost on AMD's page. GEEKOM and Mighty Gadget list 2.0 GHz as the base. AMD is used for the chip.
CPU cores
6
Performance cores
6
Efficiency cores
0
Threads
121Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 20266 cores and 12 threads.6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 202612 threads.
Max core turbo clock
4.3GHz
L3 cache
16MB1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 202616 MB cache in the maker row. AMD lists 16 MB L3.6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026L1 384 KB, L2 3 MB, L3 16 MB. Mighty Gadget lists 6 MB L3, which conflicts with AMD and the maker.
CPU core process node
7nm6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026TSMC 7nm FinFET for the CPU cores.
CPU base power (chip rating)
15W6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026Default TDP 15 W. Mighty Gadget quotes 15 to 25 W. The maker's configured power limit is not published.
Peak CPU power (configured)
Not available
Unlocked multiplier
No6Maker product pageamd.com/en/products/processors/laptop/ryzen/7000-series/amd-ryzen-5-7430u.htmlRead 14 October 2026AMD lists the processor as not unlocked for overclocking.
NPU performance
Not available
Integrated GPU
AMD Radeon RX Vega 71Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Graphics row: AMD Radeon Graphics. Reviews and the maker's 2025 Edition images name Radeon RX Vega 7.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Radeon Vega 7.

Cooling

CPU cooler
Air4Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-1.webpRead 14 October 2026Maker image: IceBlast 2.0 cooling system with a larger fan, dual copper tubes and an all-copper heat sink. That is an air cooler with one fan.
CPU cooler model
GEEKOM IceBlast 2.04Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-1.webpRead 14 October 2026IceBlast 2.0 is the maker's cooling system name, not a retail cooler model.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Maker name IceBlast 2.0.
Radiator size
Not available
Radiator position
Not available
Case fans
Not available
Number of case fans
Not available

Graphics

Discrete GPU
No1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Graphics row lists only AMD Radeon Graphics, the processor graphics. No discrete GPU is offered.
GPU
Not available
GPU brand
Not available
Graphics card
Not available
VRAM
Not available
VRAM type
Not available
GPU board power
Not available
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
16GB3Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-3.webpRead 14 October 2026Maker image for the A5 2025 Edition on the maker site, exploded view: 16GB DDR4-3200 RAM (expandable to 64GB).
RAM type
DDR43Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-3.webpRead 14 October 2026DDR4 in the same image. The manual says two DDR4 SO-DIMM slots.
Configured RAM speed
3,200MT/s3Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-3.webpRead 14 October 2026DDR4-3200 in the maker image. An older Amazon page for the 2027 Edition lists 2666 MHz, which does not match the 7430U reviews.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 202616GB dual channel DDR4 3200MHz SODIMM, expandable up to 64GB.
Rated kit speed
Not available
Memory kit
Not available
RAM upgrade
Slots5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Two SO-DIMM slots accept DDR4 SO-DIMM modules, so the memory is not soldered.
Memory slots
SlotCountOccupiedModule size (GB)
SO-DIMM2Yes8
Source5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Installing Memory Modules: two SO-DIMM slots, up to two DDR4 SO-DIMM modules. Reviews say the 16 GB kit is two 8 GB modules in dual-channel.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Two DDR4 SO-DIMM slots. The included 16 GB runs in dual-channel mode, so it is two modules.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 202616GB dual channel, 260-pin SODIMM.9Spec databasestarryhope.com/minipcs/models/geekom-a5-7430uRead 14 October 2026Lists the 16 GB as two 8 GB SODIMM modules with both slots occupied.
RAM slots
2
Free RAM slots
0
Max RAM for this CPU and GPU
64GB1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Memory row: High-Speed RAM, up to 64 GB. The UK page says DDR4 SODIMM up to 64GB.
ECC memory
Not available

Storage

Storage
512GB
Installed drives
Capacity (GB)TypePCIe generation
512NVMe SSD3
Source3Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-3.webpRead 14 October 2026512GB M.2 2280 NVMe PCIe Gen 3.0 x 4 SSD in the same image. Stored as 512 GB. The 1 TB option is a separate configuration. The SSD maker is named Foresee by Mighty Gadget and Wodposit by another reviewer, so no drive model is stored.
Storage slots and bays
Form factorInterfacePCIe generationPCIe lanesCountOccupied
M.2 2280PCIe NVMe341Yes
M.2 2242SATANot availableNot available1No
2.5-inch baySATANot availableNot available1No
Source3Maker product pagegeekompc.com/wp-content/uploads/2023/09/A5-2025-EDITION-PICTURE-3.webpRead 14 October 2026Image: M.2 2280 PCIe Gen 3.0 x4 slot, M.2 2242 SATA3 slot and a HDD slot, all expandable. The manual says one M.2 2280 PCIe Gen3x4 SSD, one M.2 2242 SATA III SSD and a 7 mm 2.5-inch drive. Only the 2280 slot is filled in the reference configuration.5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Installing M.2 SSDs: 1 x M.2 2280 PCIe Gen3*4 SSD and 1 x M.2 2242 SATAIII SSD. Installing a 2.5-inch drive: 7 mm only.
M.2 slots
2
Free M.2 slots
1
Free drive bays
1
Fastest storage-slot PCIe generation
3

Power supply

PSU rated output
65W1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Adapter row: 65 W, 19V/3,42A. The user manual lists a 120 W adapter for other models and regions, and Mighty Gadget says the 2025 Edition ships with the 65 W unit.5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Adapter note: 120 W (+19V 6.32A) or 65 W (+19V 3.42A) depending on model and region.
PSU form factor
External adapter1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026External adapter that plugs into a DC jack.
PSU efficiency
Not available
Modular cables
Not available
PSU model
Not available
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Front5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Front View: USB 3.2 Gen2 Type-A, headphone and microphone port, power button. The 2025 Edition has a second front USB-A according to reviews.
User-facing ports
TypeVersionCountMax stated link rate (Gbps)
USB-AUSB 3.2 Gen 2210
3.5 mm audioHeadphone jack1Not available
SD cardLeft side1Not available
Source7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Front: two USB-A 3.2 Gen 2, a 3.5 mm headphone jack and the power button. The SD card reader is on the side panel. The reviewer calls it a side slot, and the maker's manual puts it on the left.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 2026Two front USB 3.2 Gen 2 Type-A and a 3.5 mm headset jack. A full-size SD card reader on the left side.
Rear ports
TypeVersionCountMax stated link rate (Gbps)DP Alt ModeConnected to
USB-CUSB 3.2 Gen 2210YesMotherboard
USB-AUSB 3.2 Gen 2110Not availableMotherboard
USB-AUSB 2.010.48Not availableMotherboard
HDMI2.02Not availableNot availableMotherboard
Ethernet (RJ45)2.5 Gigabit Ethernet12.5Not availableMotherboard
DC in19 V input1Not availableNot availableMotherboard
Source1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026I/O row for the page: 3 USB 3.2 Gen 2 Type-A, 2 USB 3.2 Gen 2 Type-C, 1 USB 2.0 Type-A, 2 HDMI 2.0, 3.5 mm headphone jack, 1 2.5G RJ45 LAN, 1 SD card reader and 1 DC in. The front and rear split comes from Mighty Gadget. Video outputs come from the processor, so the source is the motherboard.5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026USB-C ports are USB 3.2 Gen2 with DisplayPort 1.4 output, up to 5120x2160@60Hz. HDMI up to 4096x2304@60Hz. Ethernet supports Wi-Fi 6 and Bluetooth 5.2.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Rear: two HDMI 2.0b, two USB 3.2 Gen 2 Type-C with DisplayPort output, one USB 3.2 Gen 2 Type-A, one USB 2.0 Type-A, 2.5GbE and the barrel jack. No USB4 or Thunderbolt.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 2026Back: two HDMI 2.0, two USB 3.2 Gen 2 Type-C, one USB 3.2 Gen 2 Type-A, one USB 2.0 and a 2.5G Ethernet port.
User-facing USB ports
2
User-facing USB-C ports
0
Rear USB ports
4
Thunderbolt
Not available
Ethernet speed
2.5Gbps
Discrete GPU output ports
0

Wireless

Wi-Fi
Wi-Fi 62Maker product pagegeekom.co.uk/geekom-a5-mini-pcRead 14 October 2026Wireless LAN: Wi-Fi 6.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Wi-Fi 6, not 6E.
Wi-Fi bands
Not available
Wi-Fi module
Realtek RTL8852BE7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Realtek RTL8852BE card, Wi-Fi 6 without 6E. Sits under the NVMe drive.
Wi-Fi antenna
Not available
Bluetooth
5.22Maker product pagegeekom.co.uk/geekom-a5-mini-pcRead 14 October 2026UK page lists Bluetooth 5.2 and Wi-Fi 6. The current US page lists Bluetooth 5.4, which conflicts. Reviews of the 2025 Edition and the maker manual say 5.2, so 5.2 is stored.5Owner's manualsupport.geekompc.com/uploads/Download-Center/AMD%20Series/A%20Series/A5/A5_UserManual/A5_User-Manual.pdfRead 14 October 2026Ethernet port entry says Wi-Fi 6 (up to 2500 Mbps) and Bluetooth 5.2 pairing.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Bluetooth 5.2.
Ethernet controller
Not available

Camera and audio

We could not find any of these 5 fields. Show them
Webcam
Not available
Built-in speaker drivers
Not available
Total speaker power
Not available
Microphones
Not available
Audio features
Not available

Lighting

We could not find any of these 4 fields. Show them
RGB lighting
Not available
Lit parts
Not available
Lighting standard
Not available
Lighting software
Not available

Software

Operating system
Windows 11 Pro1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Windows 11 Pro is stated in the page bullets and on the UK page.7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Comparison table lists Windows 11 Pro.8Reviewdroix.net/blogs/geekom-a5-2025-reviewRead 14 October 2026Windows 11 Pro.
OS family
Windows1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Windows 11 Pro.
Control software
Not available

Upgradeability

We could not find any of these 4 fields. Show them
Proprietary parts
Not available
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench single-core
Not available
Geekbench multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

Fan noise per load
Not available
Highest measured fan noise
Not available
Measured fan noise at idle
Not available
CPU temperature in stress test
72°C7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026About 72 degrees Celsius under stress testing, no throttling over several hours. The stress tool and the BIOS performance mode setting are not stated.
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured power

Power draw idle
6W7Reviewmightygadget.com/geekom-a5-2025-edition-reviewRead 14 October 2026Idle power measured 6 W. The meter is not named. The reviewer's energy-monitoring smart plug is the only power tool mentioned. DROIX measured 3.9 W idle with a different method. Mighty Gadget is the single reviewer used for this field.
Power draw gaming
Not available
Power draw max
Not available
Power draw sleep or off
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available

Certifications

We could not find any of these 5 fields. Show them
ENERGY STAR
Not available
EPEAT
Not available
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
Not available
Other certifications
Not available

In the box

In the box
A5 Mini PC, VESA Mount, Power Adapter, HDMI Cable, User Guide, Thank You Card1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026What's Included, verbatim: 1 x A5 Mini PC, 1 x VESA Mount, 1 x Power Adapter, 1 x HDMI Cable, 1 x User Guide, 1 x Thank You Card.
Included extras
VESA bracket1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026VESA mount is in the box.

Warranty

Manufacturer warranty (source market)
3years1Maker product pagegeekompc.com/geekom-a5-mini-pcRead 14 October 2026Page header and warranty section state a 3-year warranty. US and UK pages.
Warranty service
Not available
