PC parts / Graphics cards

ASRockGraphics card

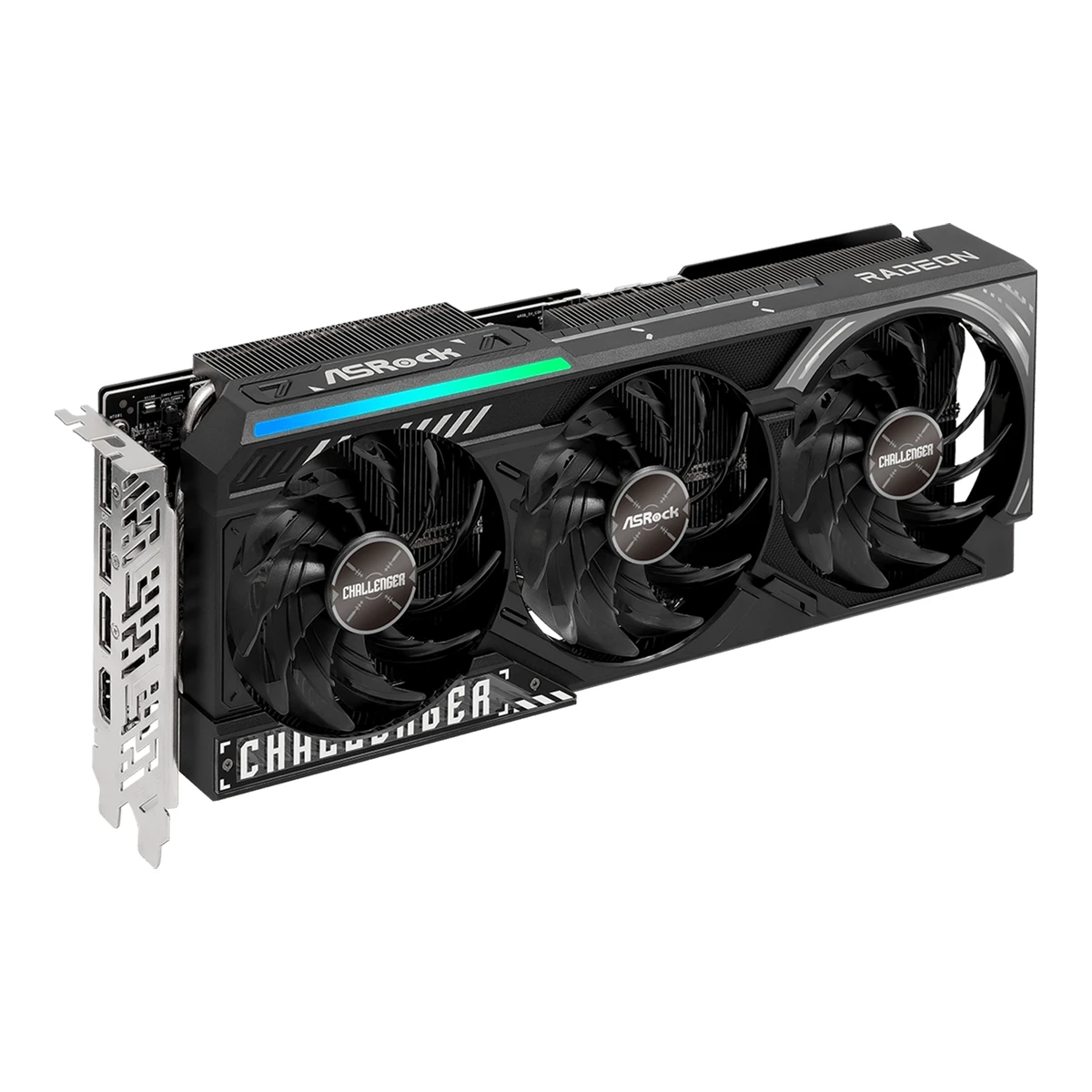

Radeon RX 9070 XT Challenger 16GB

Released March 2025.10 Last checked 14 October 2026.

GPU: AMD Radeon RX 9070 XT
VRAM: 16GB
Length: 290mm
Board power: 304W

63 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Boost clock
2,970MHz1 4
Higher than 83% of other graphics cards.
Reference boost clock
2,970MHz8
Higher than 83% of other graphics cards.

Ports

HDMI 2.1b
3 DisplayPort 2.1a

All specs

SourceCalculatedHide missing

General

Series: Challenger1
Model numbers: RX9070XT CL 16G, 90-GA61ZZ-00UANF, 90-GA61ZZ-00UANZ1 2 3
GTIN / EAN: 47104839427612 3
Announced: Not available
Status: Available2
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black6
GPU: AMD Radeon RX 9070 XT8
GPU brand: AMD8
Reference launch price (US): $59910

GPU

GPU architecture: RDNA 410
GPU die: Navi 4811
Process: TSMC N4P11
Transistors: 53.9billion8 11
Die size: 357mm²11
Compute units: 648
Shader cores: 4,0968
Ray tracing cores: 648
AI cores: 1288
ROPs: 1288
L2 cache: 8MB12
Infinity Cache (L3): 64MB8
FP32 compute (claimed): 48.7TFLOPS8
AI performance (claimed): Precision With sparsity Throughput (TOPS)
FP16 No 195
FP16 Yes 389
FP8 No 389
FP8 Yes 779
INT8 No 389
INT8 Yes 779
INT4 No 779
INT4 Yes 1,557
Source8

Precision	With sparsity	Throughput (TOPS)
FP16	No	195
FP16	Yes	389
FP8	No	389
FP8	Yes	779
INT8	No	389
INT8	Yes	779
INT4	No	779
INT4	Yes	1,557

Clocks

Base clock: Not available
Game clock: 2,400MHz1 4
Boost clock: 2,970MHz1 4
Boost clock in OC mode: Not available
Reference boost clock: 2,970MHz8

Memory

VRAM: 16GB8
VRAM type: GDDR68
Memory bus width: 256bits8
Memory speed: 20Gbps1 8
Memory bandwidth: 640GB/s8

Connectivity

PCIe generation: 51 8
PCIe lanes: 161 8
Display outputs: Type Version Count
HDMI 2.1b 1
DisplayPort 2.1a 3
Source1 4
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1a
Fastest DisplayPort link: Not available
Max displays: 41
Max output resolution: Resolution7680 × 4320 pxRefresh rate144 Hz1 10
HDCP version: Not available

Type	Version	Count
HDMI	2.1b	1
DisplayPort	2.1a	3

Video engine

Video encoders: Not available
Video decoders: Not available
Hardware video encode: H.264, H.265 (HEVC), AV18
Hardware video decode: H.264, H.265 (HEVC), VP9, AV18 9

Graphics features

DirectX: 12 Ultimate1
Vulkan: 1.413
OpenGL: 4.61
Upscaling technologies: FSR 410
Frame generation: FSR Frame Generation, AMD Fluid Motion Frames 210

Power

Board power: Not available
Reference board power: 304W8
PSU wattage (card maker): 800W1 5
Power connector: 2 x 8-pin PCIe1 4 5

Cooling

Cooler type: Open air1
Fans: 31 2 6
Radiator size: Not available
Fan stop at low load: Yes1 4
Dual BIOS: Not available

Dimensions and weight

Length: 290mm1 4 6
Height: 123mm1 4
Thickness: 56mm1 4
Slot width: 2.8slots1 4 6
Low profile: Not available
NVIDIA SFF-Ready: Not available
Weight: 1,038g(2.3 lb)1 2 3 5 6
Package weight: Not available

Lighting and software

We could not find any of these 3 fields. Show them

RGB lighting: Not available
Lighting sync: Not available
Software: Not available

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: Quick Installation Guide1 2 3
Power adapter cable included: No1
Support bracket included: No1

Warranty

Manufacturer warranty (source market): 2years2
