PC parts / Graphics cards
ASRockGraphics card

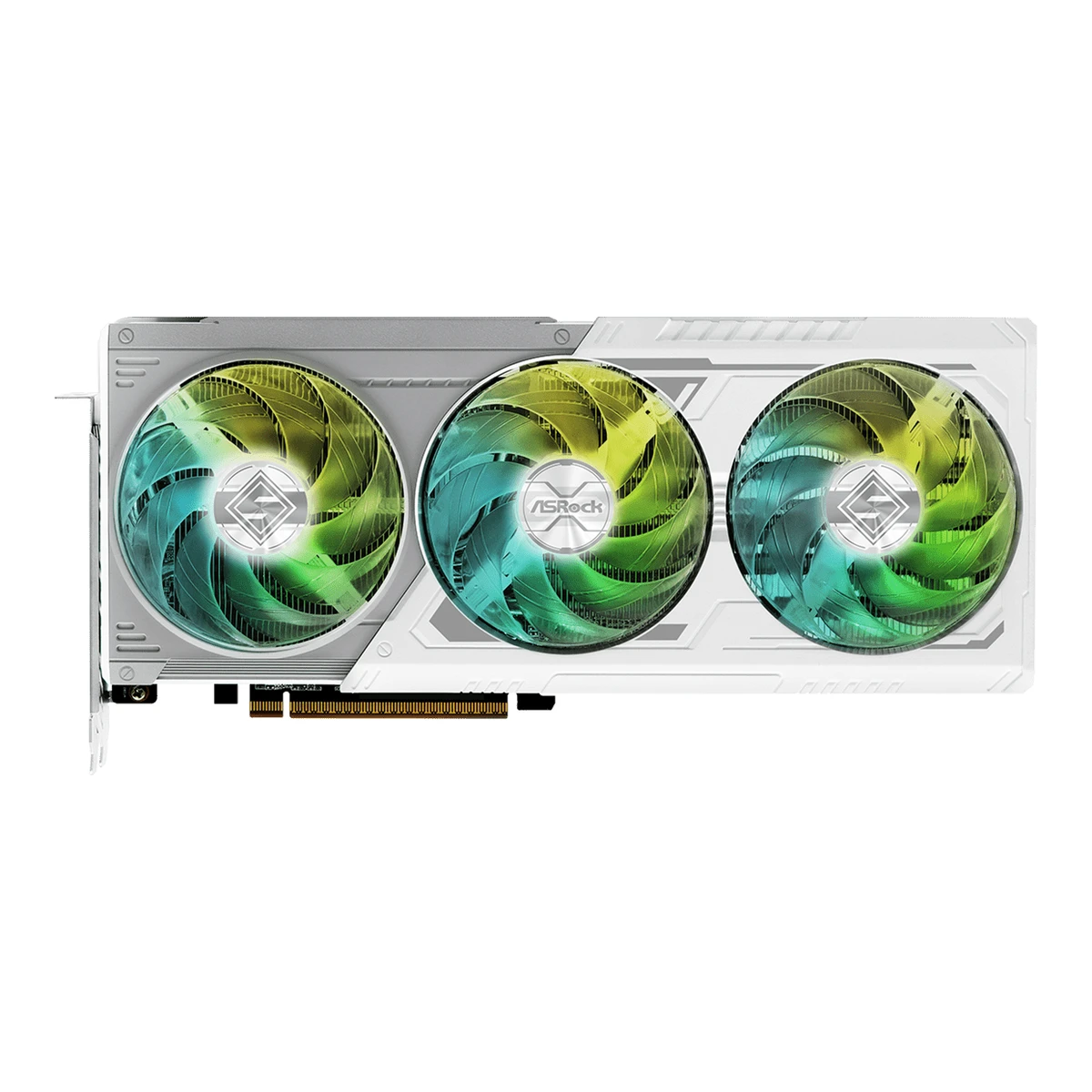

Radeon RX 9070 XT Steel Legend 16GB
Released March 2025.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Review of the card dated 21 March, no year shown, at the launch of the RX 9070 XT. Last checked 15 October 2026.
- GPU
- AMD Radeon RX 9070 XT
- VRAM
- 16GB
- Length
- 298mm
- Board power
- 304W
69 of 100 fields known.
At a glance
Boost clock
Higher than 83% of other graphics cards.
Reference boost clock
Higher than 83% of other graphics cards.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1a
General
- Model numbers
- RX9070XT SL 16G, 90-GA5DZZ-00UANF2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026SKU RX9070XT SL 16G.3Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026SKU 90-GA5DZZ-00UANF.4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026Part number 90-GA5DZZ-00UANF. The page lists ASRock Europe B.V. as the brand owner.
- GTIN / EAN
- 47115814904513Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026Shopify product feed: barcode 4711581490451 for SKU 90-GA5DZZ-00UANF.4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026EAN 4711581490451.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- White4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026Color: white.5Retailer pageparadigit.ie/asrock-amd-radeon-rx-9070-xt-steel-legend/21862562/productRead 15 October 2026Colour of product: White.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: the card comes in white and black. The white model was tested and is the one with the RX9070XT SL 16G code.
GPU
- GPU die
- Navi 4813Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 15 October 2026Spec table: Navi 48.
- Process
- TSMC N4P13Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 15 October 2026Spec table: TSMC N4P (4nm). AMD names no node.
- Transistors
- 53.9billion10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Transistor Count 53.9 B.
- Die size
- 357mm²13Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 15 October 2026Spec table: 357mm2.
- Shader cores
- 4,09610Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Stream Processors 4096.
- Ray tracing cores
- 6410Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Ray Accelerators 64.
- Infinity Cache (L3)
- 64MB10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026AMD Infinity Cache Technology 64 MB.
- FP32 compute (claimed)
- 48.7TFLOPS10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Peak Single Precision (FP32 Vector) Performance 48.7 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 195 FP16 Yes 389 FP8 No 389 FP8 Yes 779 INT8 No 389 INT8 Yes 779 INT4 No 779 INT4 Yes 1,557
Clocks
- Base clock
- Not available
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 16GB2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 202610Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026
- VRAM type
- GDDR62Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 202610Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026
- Memory bus width
- 256bits2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 202610Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026
- Memory speed
- 20Gbps2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Memory Clock 20 Gbps.10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Memory Speed up to 20 Gbps.
Connectivity
- PCIe generation
- 52Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Bus Standard PCI Express 5.0 x16.10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026
- PCIe lanes
- 162Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Bus Standard PCI Express 5.0 x16.10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Bus Type PCIe 5.0 x16.
- Display outputs
Type Version Count HDMI 2.1b 1 DisplayPort 2.1a 3 - Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a
- Fastest DisplayPort link
- Not available
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Digital Max Resolution: 7680 x 4320. The 144 Hz is AMD's figure for 8K from its launch press release.12Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144Hz with 12-bit HDR.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV110Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV110Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is from the AMD codec footnote reproduced on ASUS's Radeon RX 9070 XT page.11Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 15 October 2026Footnote 4 on ASUS's page for a card with the same GPU quotes AMD: video codec acceleration includes at least HEVC (H.265), H.264, VP9 and AV1.
Graphics features
- Upscaling technologies
- FSR 43Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026AMD FidelityFX Super Resolution 4 image upscaling.12Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026AMD FidelityFX Super Resolution 4 (FSR 4) on the RX 9000 Series.
- Frame generation
- FSR Frame Generation, AMD Fluid Motion Frames 23Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026Advanced frame generation in supported games and AMD Fluid Motion Frames 2 in HYPR-RX.12Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026FSR 4 combines with in-game FSR 3.1 frame generation. HYPR-RX includes AMD Fluid Motion Frames 2.1, which is written as Fluid Motion Frames 2 like the other AMD cards.
Power
- Board power
- Not available
- Reference board power
- 304W10Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Typical Board Power (Desktop) 304 W. Minimum PSU recommendation 750 W.
- Power connector
- 2 x 8-pin PCIe2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Power Connector 2 x 8pin.3Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 20262x 8-pin Power Connectors.
Cooling
- Fans
- 32Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Fans: 3. Key features: Triple Fan Design.5Retailer pageparadigit.ie/asrock-amd-radeon-rx-9070-xt-steel-legend/21862562/productRead 15 October 2026Number of fans 3.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: triple fan design with three 90 mm fans.
- Radiator size
- Not available
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 298mm2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Dimensions 298 x 131 x 58mm, 2.9-slot. The table does not say whether the bracket is included. LanOC measured the same three numbers.4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026Dimensions 298 x 131 x 58 mm.5Retailer pageparadigit.ie/asrock-amd-radeon-rx-9070-xt-steel-legend/21862562/productRead 15 October 2026Length 298 mm, height 131 mm, depth 58 mm.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: 298 mm long, 131 mm tall and 58 mm thick, which is 2.9 slots.
- Height
- 131mm2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Second value of 298 x 131 x 58 mm.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: 131 mm tall.
- Thickness
- 58mm2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Third value of 298 x 131 x 58 mm.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: 58 mm thick.
- Slot width
- 2.9slots2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 20262.9-slot, as the ASRock table writes it.5Retailer pageparadigit.ie/asrock-amd-radeon-rx-9070-xt-steel-legend/21862562/productRead 15 October 2026Number of slots 2.9.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: 2.9 slots. The ASRock table writes the same.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- 1,155g(2.5 lb)2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Net Weight 1155 g. The 0.95 kg in the site's own shipping field is not the ASRock figure.4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026Weight 1.155 kg.5Retailer pageparadigit.ie/asrock-amd-radeon-rx-9070-xt-steel-legend/21862562/productRead 15 October 2026Weight 1.16 kg, and the description says 1155 grams.
- Package weight
- Not available
Lighting and software
- RGB lighting
- Yes2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026RGB: Yes. Key features: Polychrome SYNC.3Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026Polychrome SYNC: integrated ARGB LEDs that can be switched on and off with an LED switch.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: addressable RGB lighting in the fan hubs and behind the Steel Legend logo, with a lighting switch on the card.
- Lighting sync
- ASRock Polychrome SYNC3Retailer pageus.computerorbit.com/products/asrock-rx-9070-xt-steel-legend-16gb-graphics-card.jsonRead 15 October 2026Polychrome SYNC can be synchronized with ASRock motherboards that support Polychrome SYNC.6Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Text: the lighting is controlled with Polychrome Sync.
- Software
- Not available
Measured performance
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Port Royal
- 17,816points8Measurementlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Same page and bench: 17816 in Port Royal.
- 3DMark Speed Way
- 6,191points8Measurementlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Same page and bench: 6191 in Speed Way.
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Average FPS Cyberpunk 2077 3840 2160 Ultra Off 60.52
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
- In the box
- Quick Installation Guide2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026Accessories: 1 x Quick Installation Guide.7Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Packaging page: the review sample had no documentation inside. The ASRock accessory list names a quick installation guide.
- Power adapter cable included
- No2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026The accessory list holds only the quick installation guide, and the card takes 8-pin cables directly.7Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Packaging page: the card uses PCIe power connections, so no adapter cable is included.
- Support bracket included
- No2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9070-xt-steel-legend-16gb-gddr6-graphics-card-4096-streams-2970mhz-boost-clock-triple-fan-3x-displayports-1x-hdmi-portRead 15 October 2026The accessory list holds only the quick installation guide.7Reviewlanoc.org/review/video-cards/asrock-rx-9070-xt-steel-legendRead 15 October 2026Packaging page: the card is not huge, so no support is included. You get the card and that is about it.
Links
- Product page
- www.asrock.com/Graphics-Card/AMD/Radeon%20RX%209070%20XT%20Steel%20Legend%2016GB1Maker product pageasrock.com/Graphics-Card/AMD/Radeon%20RX%209070%20XT%20Steel%20Legend%2016GBRead 15 October 2026The ASRock page answers agents with an Incapsula bot check, so it was not opened. The link is the maker page named in the product job. The ASRock spec table was read in the copies on gigante.co.uk and computerorbit.com.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years4Retailer pageb2b.100mega.com/en/316797-asrock-radeon-rx-9070-xt-steel-legend-16gbRead 15 October 2026Warranty 36 months on this Czech distributor listing. Other European and Asian listings also write 3 years. The value is for Europe. The ASRock Challenger card in the catalog is listed with 2 years in the US.
