PC parts / Graphics cards
ASRockGraphics card

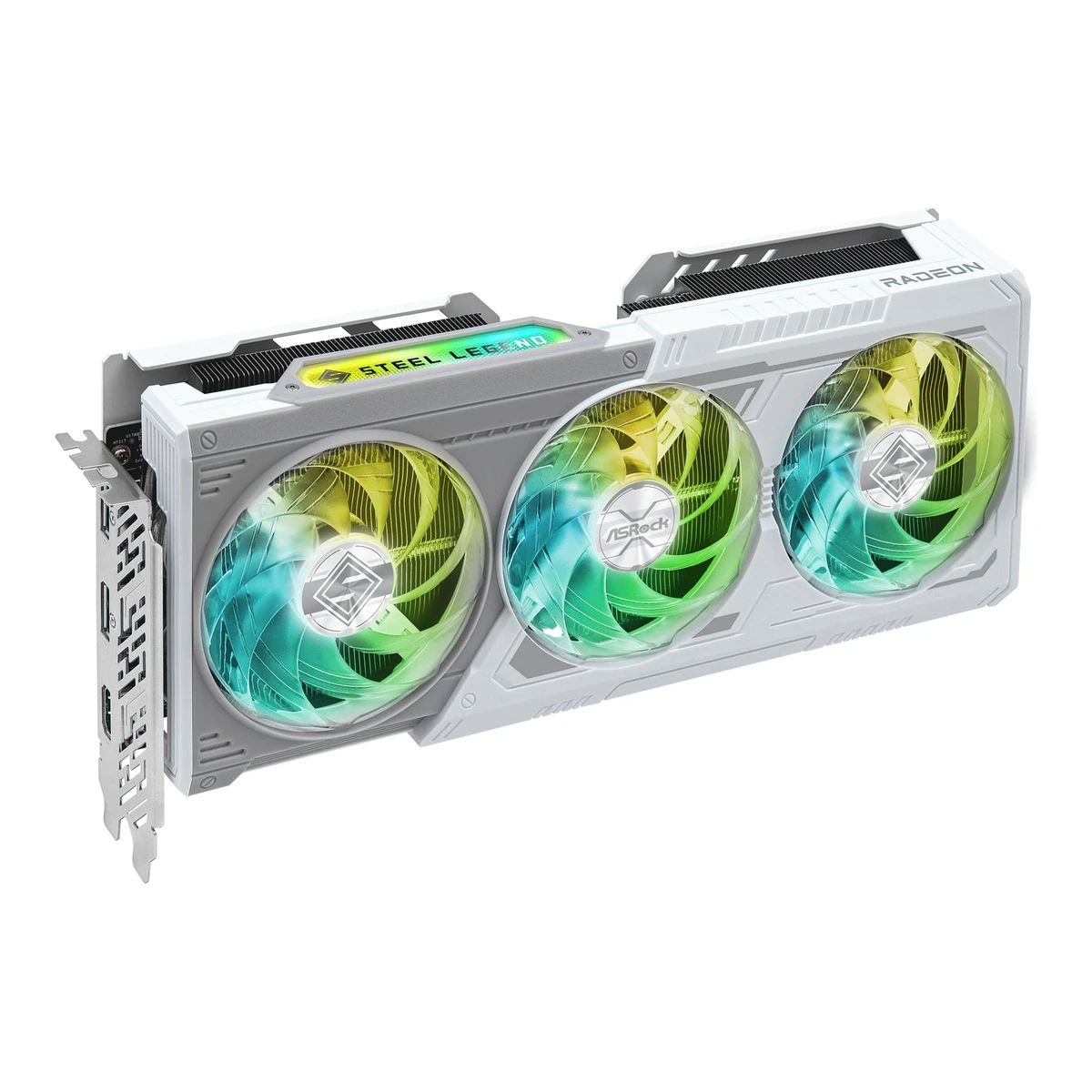

Radeon RX 9060 XT Steel Legend 16GB OC
Released June 2025.6Reviewkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Roundup dated 2025-06-16, a week after the AMD launch on 2025-06-05. It prices the Steel Legend at 375 GBP. Last checked 16 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 298mm
- Board power
- 160W
74 of 100 fields known.
At a glance
Boost clock
Higher than 97% of other graphics cards.
Reference boost clock
Higher than 92% of other graphics cards.
Game clock
Higher than 90% of other graphics cards.
PSU wattage
Lower than 77% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- RX9060XT SL 16GO, 90-GA5JZZ-00UANF, 90-GA5JZZ-00UANZ3Retailer pagedirectcomputers.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Grade section: Part Number RX9060XT SL 16GO.4Spec databasebuildcores.com/products/GPU/rgohtf1f6/ASRock-AMD-Radeon-RX-9060-XT-Steel-Legend-16GB-OCRead 16 October 2026Part Numbers: RX9060XT SL 16GO, 90-GA5JZZ-00UANF and 90-GA5JZZ-00UANZ. Igor's Lab names 90-GA5JZZ-00UANF for the same card.
- GTIN / EAN
- 47115814908572Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Variant barcode 4711581490857. BuildCores lists the same number as the EAN.4Spec databasebuildcores.com/products/GPU/rgohtf1f6/ASRock-AMD-Radeon-RX-9060-XT-Steel-Legend-16GB-OCRead 16 October 2026UPC and EAN both print 4711581490857.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- White3Retailer pagedirectcomputers.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Product colour: White.4Spec databasebuildcores.com/products/GPU/rgohtf1f6/ASRock-AMD-Radeon-RX-9060-XT-Steel-Legend-16GB-OCRead 16 October 2026Manufacturer Color: White / Gray.
GPU
- GPU architecture
- RDNA 48Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 16 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- Transistors
- 29.7billion7Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Transistor Count: 29.7 B.
- Ray tracing cores
- 327Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Ray Accelerators: 32.
- Infinity Cache (L3)
- 32MB7Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026AMD Infinity Cache Technology: 32 MB.
- FP32 compute (claimed)
- 25.6TFLOPS7Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- Not available
- Boost clock in OC mode
- Not available
Memory
Connectivity
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1a UHBR13.5 2 54 Source2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Interface: 2x DisplayPort 2.1a and 1x HDMI 2.1b. The table names no UHBR class. UHBR13.5 and 54 Gbps come from Igor's Lab, whose RX 9060 XT table lists DP 2.1a UHBR13.5. No HDMI bandwidth is stored.13Reviewigorslab.de/asrock-steel-legend-radeon-rx-9060xt-16-gb-im-test-weisse-unschuld-vom-lande-von-wegenRead 16 October 2026Page 1 spec table for the RX 9060 XT 16GB: HDMI 2.1b and DP 2.1a (UHBR13.5). It is a GPU-level class list. UHBR13.5 is 54 Gbps.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- 32Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Multi-view 3. directcomputers.co.uk prints Maximum displays per videocard 3.3Retailer pagedirectcomputers.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Maximum displays per videocard: 3.
- Max output resolution
- 7680 × 4320px2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Resolution: Digital Max Resolution 7680 x 4320. ASRock and AMD state no refresh rate for this card.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV17Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), AV17Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is not listed.
Graphics features
- Upscaling technologies
- FSR 48Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 16 October 2026The cards deliver gaming with FSR 4 ML-enhanced upscaling. ASRock's launch text names FSR 4 for this card.
- Frame generation
- AMD Fluid Motion Frames7Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Supported Technologies: AMD Fluid Motion Frames, with no version. ASRock's launch text says advanced frame generation. A feature of the GPU family and the driver.
Power
- Board power
- Not available
Cooling
- Cooler type
- Open air2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Key Features: Triple Fan Design with Striped Ring Fan, Air Deflecting Fin and Ultra-fit Heatpipe. The fans blow onto the heatsink.11Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026Triple-fan cooling system with Striped Axial Fans, Air Deflecting Fins and Ultra-fit Heatpipes.
- Radiator size
- Not available
Dimensions and weight
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Package weight
- Not available
Lighting and software
- RGB lighting
- Yes2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026RGB: Yes. Key Features: Polychrome SYNC.6Reviewkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Page 2: the Steel Legend logo is lit by RGB LEDs, there is an ARGB header and a physical switch for the lighting.
- Lighting sync
- ASRock Polychrome SYNC2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Key Features: Polychrome SYNC, which lets the ARGB LEDs sync with ASRock motherboards.11Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The ARGB LED panel and ARGB fans work with ASRock's Polychrome SYNC software.
- Software
- Not available
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Average FPS 1 % low FPS Cyberpunk 2077 1920 1080 Ultra Off 105.1 84.6 A Plague Tale: Requiem 1920 1080 Ultra Not available 76.4 67.9 Starfield 1920 1080 Ultra, Dynamic Res Off, 100% render scale Off 52.5 41.8
Measured noise and temperature
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- 52.5°C5Measurementkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026GPU Temperatures chart: 52.5 C, measured over 30 minutes of A Plague Tale: Requiem as a steady-state reading at the default fan curve. Room temperature is not stated.
Measured power
- GPU power while gaming (measured)
- 189.8W5Measurementkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Graphics Card-Only Power Draw chart: 189.8 W with NVIDIA PCAT, PCIe slot and cables combined, in A Plague Tale: Requiem at 1920x1080 and the Ultra preset. The text says close to 190 W.
In the box
- In the box
- Quick Installation Guide2Retailer pagegigante.co.uk/products/asrock-amd-radeon-rx-9060-xt-steel-legend-oc-16gb-gddr6-graphics-card-2048-streams-3320mhz-boost-clock-triple-fan-2x-displayports-1x-hdmi-portRead 16 October 2026Accessories: 1x Quick Installation Guide.6Reviewkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Page 2: the only included accessory is a quick-start guide.
Links
- Product page
- www.asrock.com/Graphics-Card/AMD/Radeon%20RX%209060%20XT%20Steel%20Legend%2016GB%20OC1Maker product pageasrock.com/Graphics-Card/AMD/Radeon%20RX%209060%20XT%20Steel%20Legend%2016GB%20OCRead 16 October 2026The ASRock page answers agents with an Incapsula bot check, so it was not opened. The link is the maker page named in the product job and a HEAD request returns 200. The ASRock spec table was read in the copies on gigante.co.uk and directcomputers.co.uk.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
