PC parts / Graphics cards
ASUSGraphics card

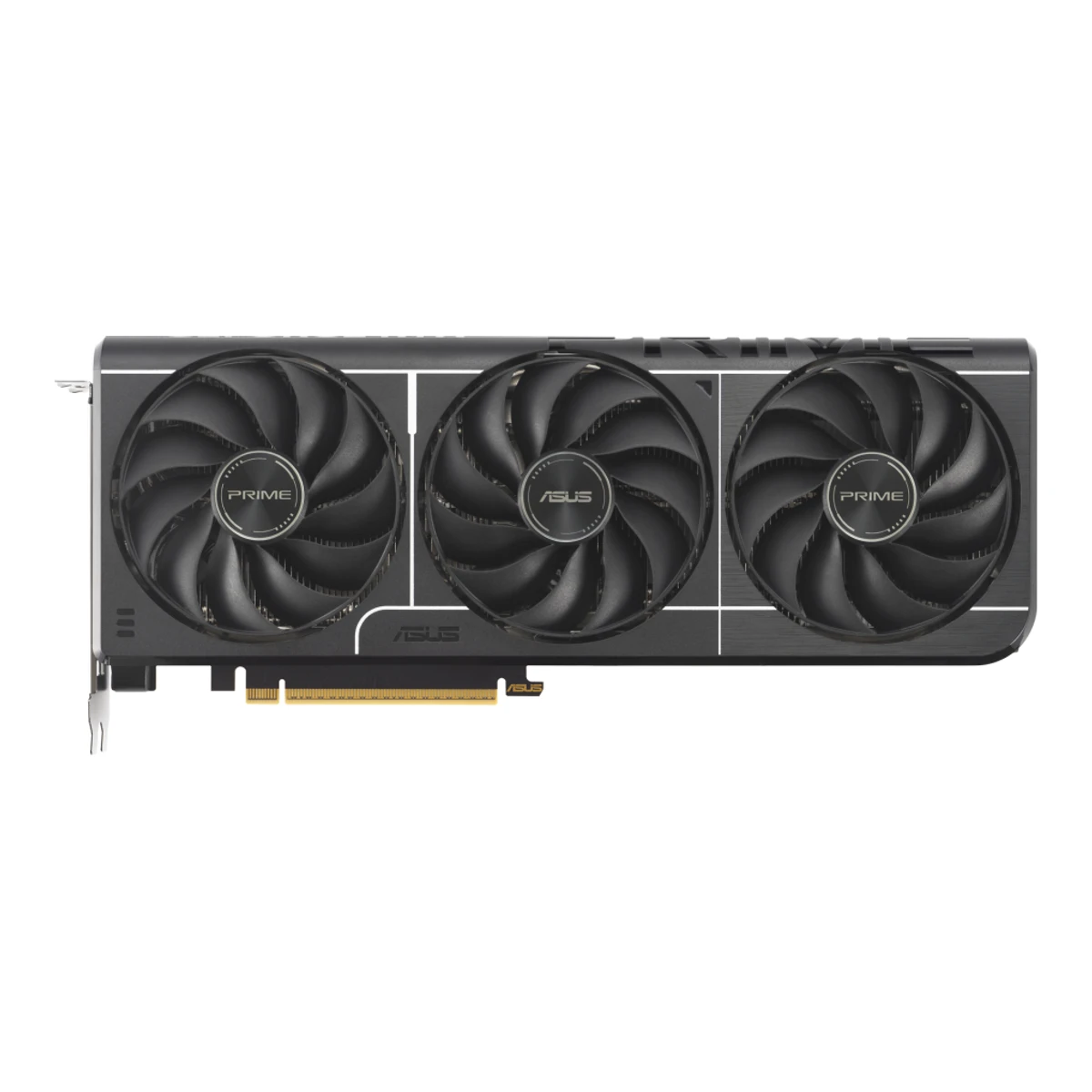

Prime GeForce RTX 5060 Ti 16GB GDDR7 OC Edition
Released April 2025.5Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/b7c14b9d/68001391d26fc3f8204fc735/product-pdfRead 14 October 2026Data sheet publication date 2025-04-16, the launch day of the RTX 5060 Ti. Last checked 14 October 2026.
- GPU
- NVIDIA GeForce RTX 5060 Ti
- VRAM
- 16GB
- Length
- 304mm
- Board power
- 180W
76 of 100 fields known.
At a glance
PSU wattage
550W1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Recommended PSU 550 W. ASUS says the figure is based on a fully overclocked GPU and CPU system. NVIDIA states 600 W required system power for the chip.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Required System Power 600 W for a PC with a Ryzen 9 9950X.
Lower than 77% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- PRIME-RTX5060TI-O16G, 90YV0MH2-M0NA00, 90YV0MH2-MVAA001Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Model: PRIME-RTX5060TI-O16G.3Maker product pageeshop.asus.com/us/90yv0mh2-mvaa00-asus-prime-geforce-rtxtm-5060-ti-16gb-gddr7-oc-edition.htmlRead 14 October 2026Part Number: 90YV0MH2-MVAA00, the US code for PRIME-RTX5060TI-O16G.5Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/b7c14b9d/68001391d26fc3f8204fc735/product-pdfRead 14 October 2026Product code 90YV0MH2-M0NA00 for PRIME-RTX5060TI-O16G.
- GTIN / EAN
- 47113879940545Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/b7c14b9d/68001391d26fc3f8204fc735/product-pdfRead 14 October 2026EAN 4711387994054 printed on the data sheet.
- Announced
- Not available
- Status
- Available2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026Product page is live with a Where to buy link on 2026-10-14. The ASUS US eshop also sells it. No price is shown on this page.3Maker product pageeshop.asus.com/us/90yv0mh2-mvaa00-asus-prime-geforce-rtxtm-5060-ti-16gb-gddr7-oc-edition.htmlRead 14 October 2026The page offers the card with an Add to Cart button.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- GPU
- NVIDIA GeForce RTX 5060 Ti1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026
GPU
- GPU architecture
- Blackwell6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVIDIA Architecture: Blackwell.
- Process
- TSMC 4N9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: TSMC N4 (4nm). NVIDIA names its Blackwell node 4N, and thepcenthusiast.com writes TSMC 4nm 4N NVIDIA Custom Process.10Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-reviewRead 14 October 2026Spec table: TSMC 4nm 4N NVIDIA Custom Process.
- Transistors
- 21.9billion9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: 21.9bn.
- Die size
- 181mm²9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: 181 mm2.
- Compute units
- 369Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: 36 of 36 SMs.
- Shader cores
- 4,6081Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026CUDA Core: 4608.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 Ti column: NVIDIA CUDA cores 4608.
- Ray tracing cores
- 369Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: 36 RT cores, 4th generation.
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 23.7TFLOPS9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: FP32 Boost TFLOPS 23.7 for the RTX 5060 Ti chip.
- AI performance (claimed)
- Not available
Clocks
- Base clock
- Not available
- Game clock
- Not available
Memory
- VRAM
- 16GB1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Standard memory config: 16 GB or 8 GB GDDR7. This card has 16 GB.
- VRAM type
- GDDR71Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026
- Memory bus width
- 128bits1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Memory interface width 128-bit.
Connectivity
- PCIe generation
- 51Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026PCI Express Gen 5.
- PCIe lanes
- 810Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-reviewRead 14 October 2026Spec table: PCI Express interface Gen 5 (x8). A chip-level figure that the 16 GB and 8 GB cards share.11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026Text: full-length PCIe x16 connector electrically wired for x8.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Native HDMI 2.1b x 1 and native DisplayPort 2.1b x 3. The UHBR20 class and the 80 Gbps link rate come from NVIDIA's RTX 5060 family page.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Footnote 2: DisplayPort 2.1b with UHBR20. UHBR20 is 80 Gbps. Row: 3x DisplayPort and 1x HDMI.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 41Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Maximum Display Support: 4.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Multi Monitor: up to 4 independent displays at 4K 165 Hz.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026ASUS states a digital maximum of 7680 x 4320. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Footnote 1: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC.
Video engine
- Video encoders
- 16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 Ti column: 1x ninth generation NVENC.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 Ti row: 1 chip, 1 total NVENC.
- Video decoders
- 16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 Ti column: 1x sixth generation NVDEC.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 Ti row: 1 chip, 1 total NVDEC.
- Hardware video encode
- H.264, H.265 (HEVC), AV17Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 Ti row: H.264, H.265 (HEVC) and AV1 encode are marked YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV17Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 Ti row: H.264, H.265, VP9 and AV1 decode are marked YES.
Graphics features
- DirectX
- 12 Ultimate6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Microsoft DirectX 12 Ultimate: Yes.
- Vulkan
- 1.46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Row: Vulkan 1.4, OpenGL 4.6.8Maker product pagedeveloper.nvidia.com/vulkan-driverRead 14 October 2026NVIDIA lists the GeForce RTX 5060 Ti under the GeForce RTX 50 series with Vulkan 1.4 support.
- OpenGL
- 4.61Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026OpenGL 4.6.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Row: Vulkan 1.4, OpenGL 4.6.
- Upscaling technologies
- DLSS 46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026The DLSS row lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 180W6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Total Graphics Power 180 W for the RTX 5060 Ti. NVIDIA says the table describes the Founders Edition or reference design. NVIDIA makes no 5060 Ti Founders Edition, so this is the chip figure.9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table: board power 180 W.
- PSU wattage (card maker)
- 550W1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Recommended PSU 550 W. ASUS says the figure is based on a fully overclocked GPU and CPU system. NVIDIA states 600 W required system power for the chip.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Required System Power 600 W for a PC with a Ryzen 9 9950X.
- Power connector
- 1 x 8-pin PCIe1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Power Connectors: 1 x 8-pin.9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Text: the card needs no dongle or 12V-2x6 cable and uses a single 8-pin PCIe connector.11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026Text: one 8-pin PCIe connector.
Cooling
- Fans
- 32Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026Page text: three Axial-tech fans with dual-ball bearings.11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026Text: a triple-fan cooling solution with dual-ball bearings.12Reviewgeeknetic.es/Review/3161/ASUS-GEFORCE-PRIME-RTX-5060-Ti-OC-Review.htmlRead 14 October 2026Spanish text: three axial fans along the length of the card.
- Radiator size
- Not available
- Fan stop at low load
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 20260dB Technology: all three fans stop below 50 C and start again above 55 C.12Reviewgeeknetic.es/Review/3161/ASUS-GEFORCE-PRIME-RTX-5060-Ti-OC-Review.htmlRead 14 October 2026Spanish text: the fans stop completely when the card idles or runs light loads.
- Dual BIOS
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026Dual BIOS with Performance and Quiet modes.9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Text: the Prime OC has a Dual BIOS, shipped on Performance, with a Quiet setting.11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026Text: a Performance/Quiet mode switch along the long edge of the card.
Dimensions and weight
- Slot width
- 2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Slot: 2.5 Slot.2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026Page text: 2.5-slot design.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026Page text: an SFF-Ready Enthusiast GeForce card with a 2.5-slot design. NVIDIA's SFF-Ready list page, last updated 2025-01-06, has no RTX 5060 Ti entries.3Maker product pageeshop.asus.com/us/90yv0mh2-mvaa00-asus-prime-geforce-rtxtm-5060-ti-16gb-gddr7-oc-edition.htmlRead 14 October 2026Feature list: SFF-Ready Enthusiast GeForce Card.5Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/b7c14b9d/68001391d26fc3f8204fc735/product-pdfRead 14 October 2026SFF ready: yes.
Lighting and software
- RGB lighting
- No11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026Page text: ASUS has done away with RGB LEDs of any sort on this card. The review is dated 2025-04-22.12Reviewgeeknetic.es/Review/3161/ASUS-GEFORCE-PRIME-RTX-5060-Ti-OC-Review.htmlRead 14 October 2026Spanish text: a sober and functional design without LED lighting.
- Lighting sync
- Not available
- Software
- ASUS GPU Tweak III1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Software row: ASUS GPU Tweak III, MuseTree and the NVIDIA drivers.2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026GPU Tweak III adjusts core clocks, memory frequency and voltage.
Measured performance
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- 3,595points9Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Chart 3DMark Steel Nomad, score, RTX 5060 Ti 16GB bar reads 3,595. Same test system.
- 3DMark Port Royal
- Not available
- Game frame rates
Game Width (px) Height (px) Average FPS 1 % low FPS Assassin's Creed Mirage 1920 1080 131 97 Assassin's Creed Mirage 2560 1440 103 78 Final Fantasy XIV: Dawntrail 1920 1080 161 Not available Final Fantasy XIV: Dawntrail 2560 1440 105 Not available Forza Motorsport 1920 1080 77 Not available Forza Motorsport 2560 1440 55 Not available Mount & Blade II: Bannerlord 1920 1080 235 148 Mount & Blade II: Bannerlord 2560 1440 160 115 Tom Clancy's Rainbow Six Extraction 1920 1080 230 Not available Tom Clancy's Rainbow Six Extraction 2560 1440 155 Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
In the box
- In the box
- 1 x Speedsetup Manual, 1 x ASUS Velcro Hook & Loop, 1 x Thank You Card1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026Accessories list on the spec page, verbatim.11Reviewalktech.co/articles/review-asus-prime-geforce-rtx-5060-ti-16gb-gddr7-oc-editionRead 14 October 2026The review lists Velcro hook-and-loop, a warranty card, a thank you card and a quick start guide. The ASUS spec page list is stored.
Links
- Product page
- www.asus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16gRead 14 October 2026
- Spec sheet
- www.asus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspec1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060ti-o16g/techspecRead 14 October 2026
- Manual
- www.asus.com/us/supportonly/prime-rtx5060ti-o16g/helpdesk_manual4Maker product pageasus.com/us/supportonly/prime-rtx5060ti-o16g/helpdesk_manualRead 14 October 2026ASUS support page for PRIME-RTX5060TI-O16G with the manuals and drivers.
- EPREL registration number
- Not available
Warranty
