PC parts / Graphics cards
GIGABYTEGraphics card

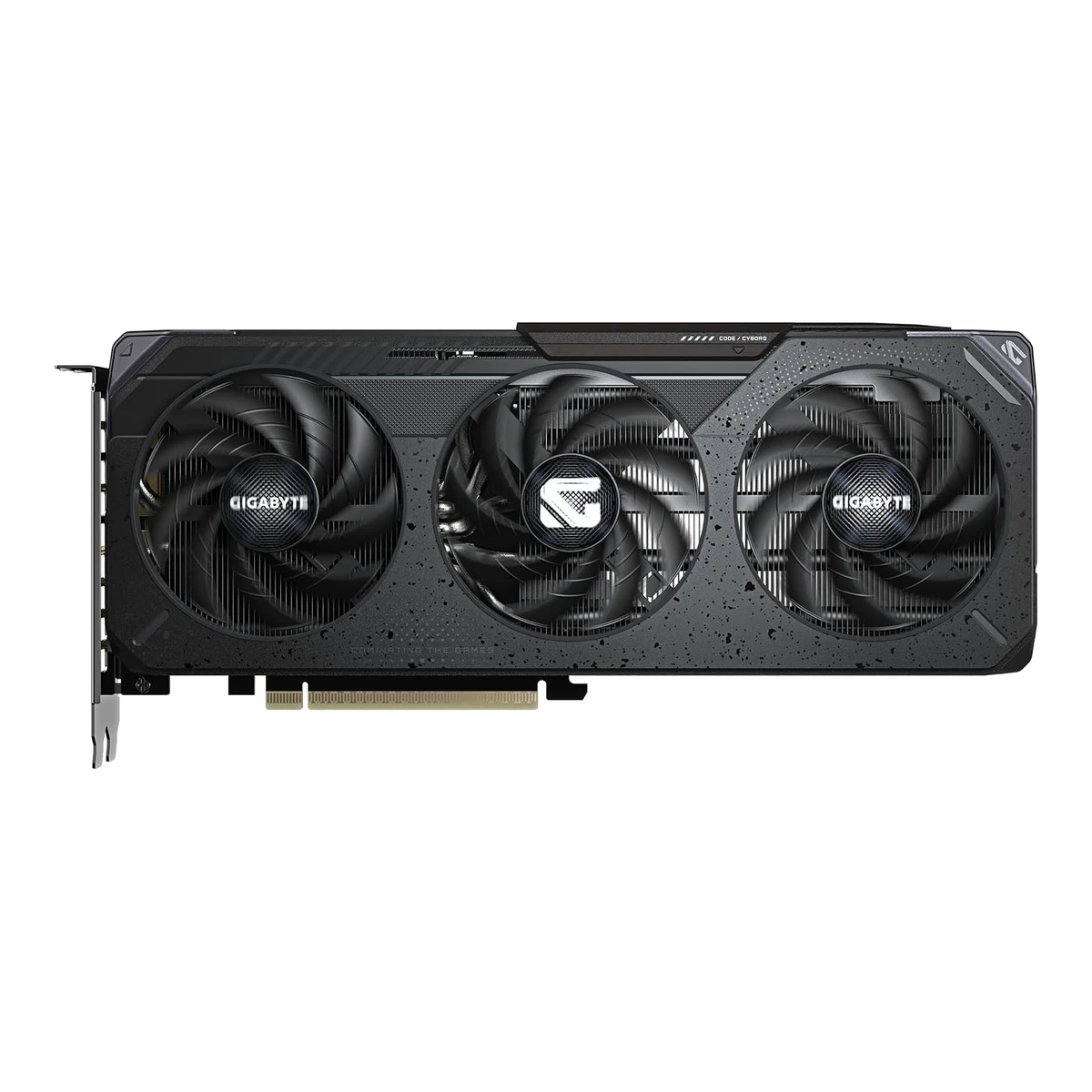

GeForce RTX 5060 Ti Gaming OC 16G
Released April 2025.5Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-arrives-for-every-gamer-starting-at-299Read 23 October 2026The RTX 5060 Ti 16 GB is available from 2025-04-16. This is family availability. Last checked 23 October 2026.
- GPU
- NVIDIA GeForce RTX 5060 Ti
- VRAM
- 16GB
- Length
- 281mm
- Board power
- 180W
76 of 100 fields known.
At a glance
Thickness
Lower than 84% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- GV-N506TGAMING OC-16GD1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Header: GV-N506TGAMING OC-16GD.
- GTIN / EAN
- 8895230493039Retailer pageamazon.com/dp/B0F5BD1X83Read 23 October 2026UPC 889523049303. It is a 12-digit UPC-A.
- Announced
- Not available
- Status
- Available2Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GDRead 23 October 2026The product page is live on 2026-10-23 and names no end of sale. Amazon US lists the card with 268 ratings.9Retailer pageamazon.com/dp/B0F5BD1X83Read 23 October 2026Live listing on 2026-10-23 with 268 ratings and a best sellers rank of #178 in Computer Graphics Cards.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
GPU
- GPU architecture
- Blackwell7Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-reviewRead 23 October 2026GeForce RTX 50 Series Specifications table, RTX 5060 Ti column: NVIDIA Blackwell.
- Transistors
- 21.9billion6Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 23 October 2026Spec table: 21.9bn.
- Die size
- 181mm²6Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 23 October 2026Spec table: 181mm2.
- Shader cores
- 4,6081Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026CUDA Cores: 4608.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026RTX 5060 Ti column: NVIDIA CUDA cores 4608.
- Ray tracing cores
- 366Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 23 October 2026Text: 36 RT Cores.
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 23.7TFLOPS6Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 23 October 2026Spec table: FP32 Boost TFLOPS 23.7 for the RTX 5060 Ti chip.
- AI performance (claimed)
- Not available
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock in OC mode
- Not available
- Reference boost clock
- 2,572MHz1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Core Clock row: Reference card 2572 MHz.6Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 23 October 2026Boost clock 2572 MHz, which matches Gigabyte's reference card value.
Memory
- VRAM type
- GDDR71Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Memory Type: GDDR7.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Memory: GDDR7 in 16 GB and 8 GB models.
- Memory bus width
- 128bits1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Memory Bus: 128 bit.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Memory Interface Width: 128-bit.
Connectivity
- PCIe generation
- 51Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Card Bus: PCI-E 5.0.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026PCI Express Gen 5.
- PCIe lanes
- 87Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-reviewRead 23 October 2026Same table, RTX 5060 Ti column: PCI Express Interface Gen 5 (x8). The table repeats NVIDIA's press kit.8Reviewthefpsreview.com/2025/04/21/gigabyte-geforce-rtx-5060-ti-gaming-oc-16g-video-card-reviewRead 23 October 2026Page 1: while the GeForce RTX 5060 Ti supports PCI-Express 5.0, it runs with x8 lanes instead of x16.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Output: DisplayPort 2.1b x3 and HDMI 2.1b x1. The page gives no UHBR class. UHBR20 and the 80 Gbps link rate come from the NVIDIA RTX 5060 family page footnote. HWCooling page 2 says this card has three DisplayPort 2.1b connectors with UHBR20.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Standard Display Connectors: 3x DisplayPort, 1x HDMI. Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. HDMI footnote: HDMI 2.1b.12Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/2Read 23 October 2026Page 2: three DisplayPort 2.1b connectors with UHBR20 and one HDMI 2.1b. UHBR20 is 80 Gbps.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 41Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Multi-view: 4.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Multi Monitor: up to 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Digital max resolution: 7680x4320. The page states no refresh rate. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Footnote: DisplayPort 2.1b with DSC, 8K at 165 Hz.
Video engine
- Video encoders
- 13Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026NVENC: 1x Ninth Generation.4Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026GeForce RTX 5060 Ti row: Total NVENC 1.
- Video decoders
- 13Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026NVDEC: 1x Sixth Generation.4Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026GeForce RTX 5060 Ti row: Total NVDEC 1.
- Hardware video encode
- H.264, H.265 (HEVC), AV14Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026GeForce RTX 5060 Ti row: H.264, HEVC and AV1 encode are supported.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV14Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026GeForce RTX 5060 Ti row: H.264, HEVC, VP9 and AV1 decode are supported.
Graphics features
- OpenGL
- 4.61Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026OpenGL: 4.6.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026Row: Vulkan 1.4, OpenGL 4.6.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation3Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 23 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.
Power
Cooling
- Cooler type
- Open air2Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GDRead 23 October 2026WINDFORCE cooling system with Hawk fans, a copper plate and composite copper heat pipes, and Screen cooling. The fans blow onto the heatsink. No liquid cooling is mentioned.12Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/2Read 23 October 2026Page 2: three fans blow down onto a heatsink with transverse fins. A pass-through opening takes nearly half of the backplate.
- Fans
- 38Reviewthefpsreview.com/2025/04/21/gigabyte-geforce-rtx-5060-ti-gaming-oc-16g-video-card-reviewRead 23 October 2026Page 1: the card is a triple-fan video card with a full metal backplate.12Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/2Read 23 October 2026Page 2: a dual-slot cooler with three fans blowing down onto a heatsink. The middle fan is counter-rotating. The impellers are 7.6 cm.
- Radiator size
- Not available
- Dual BIOS
- Yes2Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GDRead 23 October 2026Feature list: Dual BIOS (Performance / Silent). The factory default is Performance mode.11Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/1Read 23 October 2026Page 1: two BIOSes, default Performance and Silent. Clock, power limit and other parameters do not differ. Only the fan curve differs.
Dimensions and weight
- Length
- 281mm1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Card size: L=281 W=119 H=40 mm. The page does not say whether the bracket is included.8Reviewthefpsreview.com/2025/04/21/gigabyte-geforce-rtx-5060-ti-gaming-oc-16g-video-card-reviewRead 23 October 2026Page 1: measures 281mm in length, 119mm in width and 40mm in height. This matches Gigabyte.12Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/2Read 23 October 2026Page 2: the card length from the bracket is slightly over 28 cm. Gigabyte's 281 mm is stored.
- Slot width
- Not available
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- Not available
- Package weight
- Not available
Lighting and software
- Lighting sync
- Not available
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Cyberpunk 2077 1920 1080 Ultra Off No 126.8 Cyberpunk 2077 2560 1440 Ultra Off No 80.8 Cyberpunk 2077 3840 2160 Ultra Off No 35.1 Cyberpunk 2077 1920 1080 RT Ultra Off Yes 55.4 Cyberpunk 2077 2560 1440 RT Ultra Off Yes 34.3 Cyberpunk 2077 3840 2160 RT Ultra Off Yes 16.3 F1 24 1920 1080 High Off No 190 F1 24 2560 1440 High Off No 153.7 F1 24 3840 2160 High Off No 98 F1 24 1920 1080 Ultra High Off Yes 76 F1 24 2560 1440 Ultra High Off Yes 54.7 F1 24 3840 2160 Ultra High Off Yes 29.3 Metro Exodus Enhanced Edition 1920 1080 Extreme Off Not available 63.3 Metro Exodus Enhanced Edition 2560 1440 Extreme Off Not available 47.9 Metro Exodus Enhanced Edition 3840 2160 Extreme Off Not available 27.5 Satisfactory 1920 1080 Ultra, custom settings above the global maximum TSR at native resolution Not available 75.9 Satisfactory 2560 1440 Ultra, custom settings above the global maximum TSR at native resolution Not available 55.6 Satisfactory 3840 2160 Ultra, custom settings above the global maximum TSR at native resolution Not available 32.1 Source13Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/4Read 23 October 2026One average frame rate per chart, no 1 percent lows. Cyberpunk 2077 at Global settings Ultra (no ray tracing) and RT Ultra, charts scaling off: Ultra 126.8, 80.8 and 35.1 fps at 1920x1080, 2560x1440 and 3840x2160. RT Ultra 55.4, 34.3 and 16.3 fps. Performance tests ran in the Silent BIOS (page 1). Test system: Ryzen 7 9800X3D, Aorus X870 Elite WiFi7, 64 GB DDR5-6000, Fractal Design Meshify 2 case with system fans at about 780 rpm. The review states no driver version.14Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/7Read 23 October 2026F1 24, average frame rate of one lap on the Singapore map in rain, TAA. High (no ray tracing): 190.0, 153.7 and 98.0 fps. Ultra High (ray tracing active): 76.0, 54.7 and 29.3 fps. The 4K chart titles read 3480 x 2160 and are taken as 3840 x 2160. Same test system.15Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/10Read 23 October 2026Metro Exodus Enhanced Edition, Extreme profile: 63.3, 47.9 and 27.5 fps. The chart does not state the ray tracing setting, so that key is left out. Same test system.16Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/11Read 23 October 2026Satisfactory, Ultra with the review's own custom settings above the global maximum, TSR with no downscaling: 75.9, 55.6 and 32.1 fps. Ray tracing is not stated. Same test system.
Measured noise and temperature
- Fan noise per load
Profile Load Distance (cm) Noise (dB(A)) Performance BIOS Gaming 35 41 Silent BIOS Gaming 35 34.5 - Fan noise while gaming
- 41dB(A)
- Hot spot temperature while gaming
- Not available
Measured power
- Card power at idle (measured)
- Not available
In the box
- In the box
- Quick guide1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026Accessories: Quick guide.11Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/1Read 23 October 2026Page 1: the accessories include only a brief power guide, matching Gigabyte's Quick guide.
- Power adapter cable included
- No1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026The Accessories row lists only a quick guide, so no adapter is in the box.11Reviewhwcooling.net/en/gigabyte-geforce-rtx-5060-ti-gaming-oc-16gb-price-feels-outdated/1Read 23 October 2026Page 1: a standard eight-pin connector is used, so no adapter is needed.
Links
- Product page
- www.gigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD2Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GDRead 23 October 2026
- Spec sheet
- www.gigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/sp1Maker product pagegigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/spRead 23 October 2026The Specifications tab of the product page is the only spec sheet.
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years9Retailer pageamazon.com/dp/B0F5BD1X83Read 23 October 2026Warranty Description 3 Year Manufacturer. The value is for the US.
