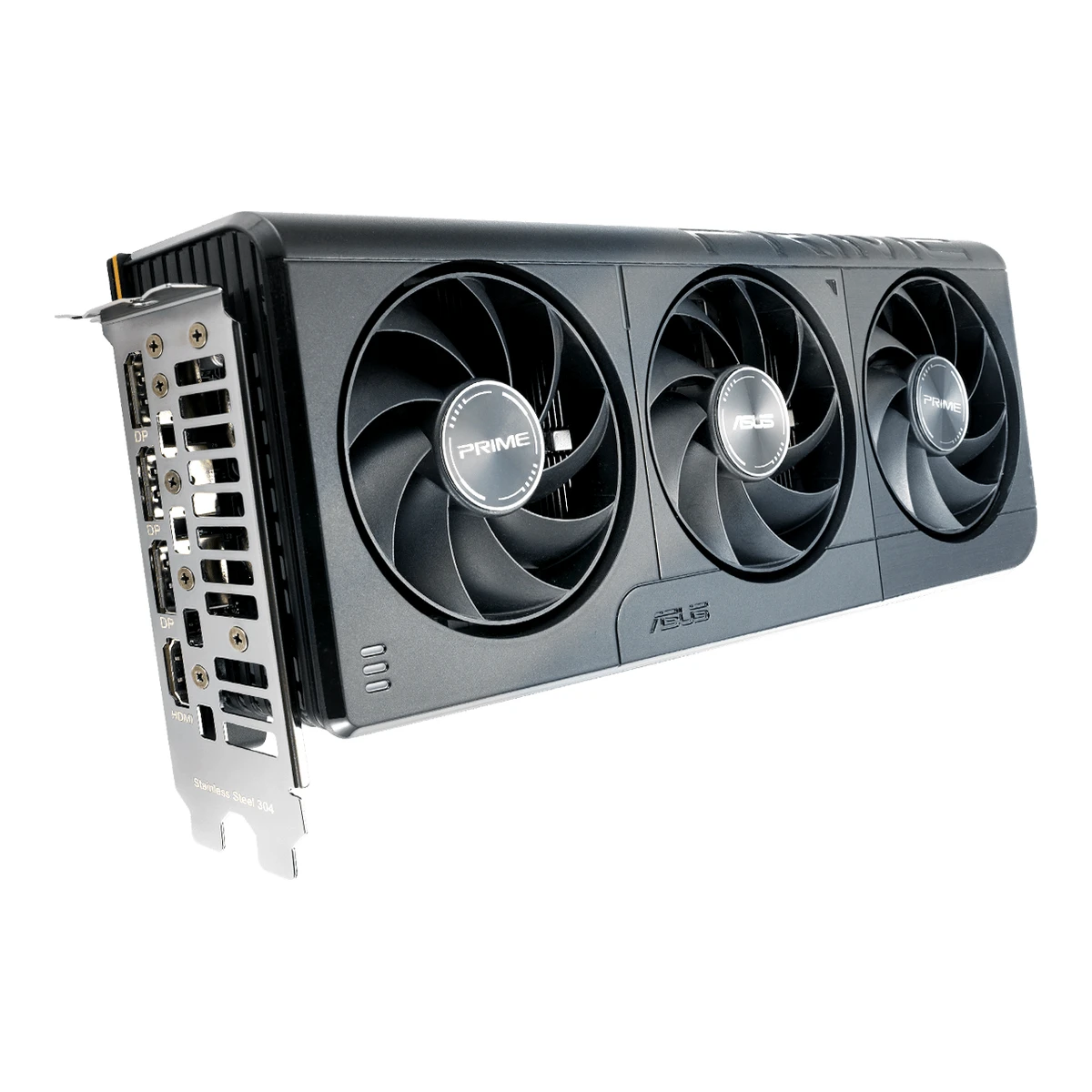

ASUS Prime GeForce RTX 5060 8GB GDDR7 OC Edition
GPU
NVIDIA GeForce RTX 5060
VRAM
8GB
Length
268.3mm
Board power
145W

77 of 100 fields known.

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Announced
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
NVIDIA GeForce RTX 50601Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Graphic Engine: NVIDIA GeForce RTX 5060.
Reference launch price (US)
$2998Press releaseinvestor.nvidia.com/news/press-release-details/2025/NVIDIA-Blackwell-GeForce-RTX-Arrives-for-Every-Gamer-Starting-at-299/default.aspxRead 15 October 2026Dated 2025-04-15: GeForce RTX 5060 graphics cards will be available starting in May at $299. This is the chip maker price. No tax is stated.

GPU

Process
TSMC 4N15Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 15 October 2026GB206 table, RTX 5060 column: TSMC 4nm 4N NVIDIA Custom.
Compute units
309Reviewguru3d.com/review/asus-geforce-rtx-5060-prime-reviewRead 15 October 2026Introduction text: 30 SMs.15Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 15 October 2026GB206 table, RTX 5060 column: 30 streaming multiprocessors.
Shader cores
3,8401Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026CUDA Core: 3840.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026RTX 5060 column: CUDA cores 3840.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
19.2TFLOPS14Reviewmezha.ua/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 15 October 2026Text: theoretical compute 19.2 TFLOPS (FP32).
AI performance (claimed)
Not available

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,565MHz1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Engine Clock, Default mode: 2565MHz (Boost Clock).
Boost clock in OC mode
2,595MHz1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Engine Clock, OC mode: 2595MHz.

Memory

Memory speed
28Gbps1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Memory Speed: 28 Gbps.

Connectivity

PCIe generation
51Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Bus Standard: PCI Express 5.0.
PCIe lanes
815Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 15 October 2026GB206 table: PCIe interface Gen 5 8x.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Digital Max Resolution 7680 x 4320. ASUS states no refresh rate. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Footnote: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC.

Video engine

Video encoders
16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026NVENC: 1x Ninth Generation.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5060 row: Total # of NVENC 1.

Graphics features

Upscaling technologies
DLSS 46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026The DLSS row lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
Not available
PSU wattage (card maker)
550W1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Recommended PSU: 550W. A footnote says the figure assumes a fully overclocked GPU and CPU system. NVIDIA also states 550 W required system power.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Required System Power 550 W, based on a PC with a Ryzen 9 9950X.
Power connector
1 x 8-pin PCIe1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Power Connectors: 1 x 8-pin.

Cooling

Cooler type
Open air2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8gRead 15 October 2026Three Axial-tech fans on a shroud, heatsink and heat pipes layout. No liquid cooling.
Radiator size
Not available
Fan stop at low load
Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8gRead 15 October 20260dB: all three fans stop below 50 C and start again above 55 C.

Dimensions and weight

Length
268.3mm1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Dimensions: 268.3 x 120 x 50 mm. The page does not say whether the bracket is included.
Height
120mm1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Middle value of 268.3 x 120 x 50 mm.
Thickness
50mm1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Last value of 268.3 x 120 x 50 mm.
Slot width
2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rtx5060-o8g/techspecRead 15 October 2026Slot: 2.5 Slot.
Low profile
Not available
Weight
775g(1.7 lb)5Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0n10-m0na00.pdfRead 15 October 2026Weight 775 g. The Mezha review prints 765 g. The data sheet value is used.
Package weight
1,420g(3.1 lb)5Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0n10-m0na00.pdfRead 15 October 2026Package weight 1.42 kg, box 405 x 233 x 88.5 mm.

Lighting and software

Lighting sync
Not available

Measured performance

GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
13,788points13Reviewguru3d.com/review/asus-geforce-rtx-5060-prime-review/page-23Read 15 October 2026Chart 3DMark Time Spy Graphics Score, DirectX 12, Async on, Windows 11 x64. ASUS GeForce RTX 5060 Prime (P) reads 13788. Driver 576.52. The page says it lists the GPU score.
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
GameWidth (px)Height (px)PresetAverage FPS
Hitman 319201080Ultra quality, DirectX 12230
Hitman 325601440Ultra quality, DirectX 12150
Hitman 338402160Ultra quality, DirectX 1277

Measured noise and temperature

Fan noise per load
ProfileLoadDistance (cm)Noise (dB(A))
Performance BIOS (P)Gaming4036
Silent BIOS (S)Gaming4033
Fan noise while gaming
36dB(A)
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

Card power at idle (measured)
9W10Reviewguru3d.com/review/asus-geforce-rtx-5060-prime-review/page-5Read 15 October 2026Chart Guru3D: Idle power consumption Watt, ASUS GeForce RTX 5060 Prime (P) reads 9 W. The page does not state the capture method or the number of displays. The value is the card alone, not the wall. The Mezha review also reports 9 W at idle.
GPU power while gaming (measured)
129W10Reviewguru3d.com/review/asus-geforce-rtx-5060-prime-review/page-5Read 15 October 2026Chart Guru3D: Typical power consumption Watt (Gaming), ASUS GeForce RTX 5060 Prime (P) reads 129 W. The page names no game and no capture method. The conclusion says about 130 W under intense gaming. P is the Performance BIOS.

In the box

Warranty

Manufacturer warranty (source market)
3years4Maker product pageeshop.asus.com/us/90yv0n10-mvaa00-asus-prime-geforce-rtxtm-5060-8gb-gddr7-oc-edition.htmlRead 15 October 2026ASUS US eshop: 3 year manufacturer warranty. The market is the United States.
