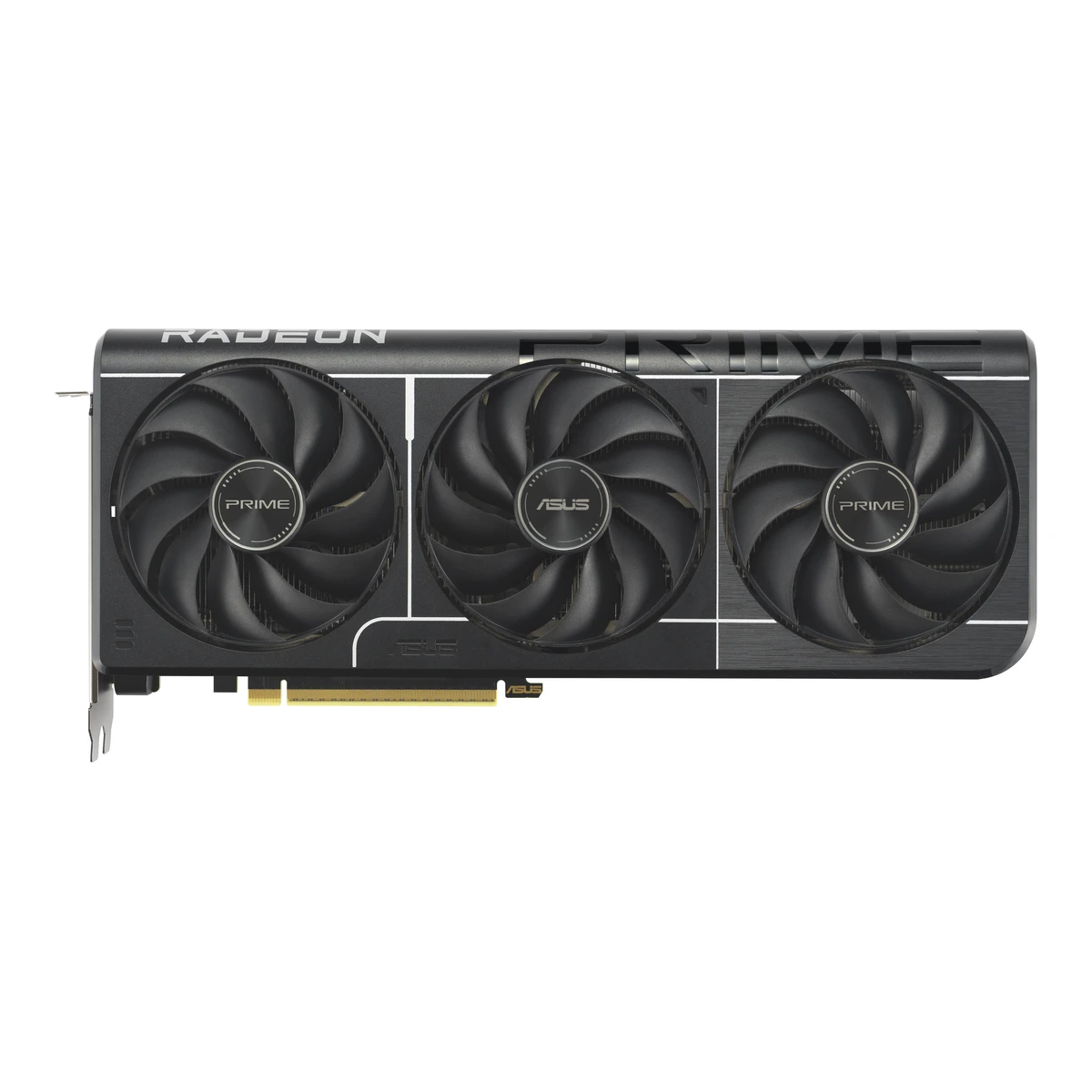

ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC Edition

ASUSGraphics card

Prime Radeon RX 9060 XT 16GB GDDR6 OC Edition

Released June 2025.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Review published 2025-06-04. AMD sampled KitGuru with this ASUS Prime card because there is no reference card. AMD's RX 9060 XT launch date was 2025-06-05 (Tom's Hardware). Last checked 15 October 2026.

GPU
AMD Radeon RX 9060 XT
VRAM
16GB
Length
304mm
Board power
160W

78 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 2 DisplayPort 2.1a

All specs

SourceCalculated

General

Series
Prime1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026The page is in the Prime graphics card family.5Press releasepress.asus.com/news/press-releases/asus-radeon-rx-9060-xt-graphics-cardsRead 15 October 2026The release lists the card in the Prime family.
Model numbers
PRIME-RX9060XT-O16G, 90YV0LF1-M0NA00, 90YV0LF1-MVAA002Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Model: PRIME-RX9060XT-O16G.4Maker product pageeshop.asus.com/us/90yv0lf1-mvaa00-asus-prime-radeontm-rx-9060-xt-16gb-gddr6-oc-edition.htmlRead 15 October 2026Product Name PRIME-RX9060XT-O16G, Part Number 90YV0LF1-MVAA00, the US part number.6Spec databasemedia.jacob.de/media/dc/50/46/1752657935/mY0ftukE6dPE5CRgCNzX7TQr-1V0n8CoqS1Y-jP-ibnS6QFmBJ1X4enr1g6nayNaC-Z48C-xBOTSvq2k7RSnUEysFp4G5BB-pHMRZdELYWY76YkdU7i2THKwwJYzCHH9wzfwyQ9eeDukqo7AP5WTJh8fSFx7-2rfftuzR-I0fP8Q-HPlvGNMEFdCTcgRsloU.pdfRead 15 October 2026Manufacturer part number 90YV0LF1-M0NA00, an EU part number.7Retailer pageparadigit.ie/asus-prime-radeon-rx-9060-xt-o16g-amd-16-gb-gddr6/80069351/productRead 15 October 2026Product number manufacturer 90YV0LF1-M0NA00.
GTIN / EAN
47113879942146Spec databasemedia.jacob.de/media/dc/50/46/1752657935/mY0ftukE6dPE5CRgCNzX7TQr-1V0n8CoqS1Y-jP-ibnS6QFmBJ1X4enr1g6nayNaC-Z48C-xBOTSvq2k7RSnUEysFp4G5BB-pHMRZdELYWY76YkdU7i2THKwwJYzCHH9wzfwyQ9eeDukqo7AP5WTJh8fSFx7-2rfftuzR-I0fP8Q-HPlvGNMEFdCTcgRsloU.pdfRead 15 October 2026Jacob Elektronik distributor data sheet (1WorldSync data): EAN/UPC 4711387994214 for manufacturer part number 90YV0LF1-M0NA00.
Announced
20 May 20255Press releasepress.asus.com/news/press-releases/asus-radeon-rx-9060-xt-graphics-cardsRead 15 October 2026ASUS press release dated Taipei, May 20, 2025: four new Radeon RX 9060 XT cards across TUF Gaming, Prime and Dual, including the Prime Radeon RX 9060 XT 16GB OC Edition. It names no launch price.
Status
Available7Retailer pageparadigit.ie/asus-prime-radeon-rx-9060-xt-o16g-amd-16-gb-gddr6/80069351/productRead 15 October 2026Listed as in stock on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black7Retailer pageparadigit.ie/asus-prime-radeon-rx-9060-xt-o16g-amd-16-gb-gddr6/80069351/productRead 15 October 2026Colour of product: Black.
GPU
AMD Radeon RX 9060 XT2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Graphic Engine: AMD Radeon RX 9060 XT.
GPU brand
AMD9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026AMD Radeon RX 9060 XT.
Reference launch price (US)
$34910Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 15 October 2026Dated 2025-05-20. The Radeon RX 9060 XT 16GB has an SEP of $349 USD. The 8GB card is $299.

GPU

GPU architecture
RDNA 41Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Section text: powered by AMD RDNA 4.10Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 15 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
GPU die
Navi 4412Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 15 October 2026Spec table: Architecture Navi 44.13Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 15 October 2026Text: the chip is code named Navi 44. A chip fact from a review of another card with the same GPU.
Process
TSMC N4P12Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 15 October 2026Spec table and text: TSMC N4P. AMD names no node. KitGuru's table writes TSMC N4.13Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 15 October 2026Text: produced on TSMC's N4P node.
Transistors
29.7billion9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Transistor Count 29.7 B.12Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 15 October 2026Spec table: 29.7 billion.13Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 15 October 2026Text: a 29.7 billion transistor chip.
Die size
199mm²12Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 15 October 2026Spec table: 199 mm2.13Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 15 October 2026Text: a die size of approximately 199 mm square.
Compute units
329Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Compute Units 32.
Shader cores
2,0482Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Stream Processors: 2048.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Stream Processors 2048.
Ray tracing cores
329Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Ray Accelerators 32.
AI cores
649Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026AI Accelerators 64.
ROPs
649Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026ROPs 64.
L2 cache
4MB13Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 15 October 2026Text: each chip also features 4 MB of L2 cache and 32 MB of L3 cache.
Infinity Cache (L3)
32MB9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026AMD Infinity Cache Technology 32 MB.
FP32 compute (claimed)
25.6TFLOPS9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP16No103
FP16Yes205
FP8No205
FP8Yes410
INT8No205
INT8Yes410
INT4No410
INT4Yes821
Source9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026AMD lists FP16, FP8 (E5M2, E4M3), INT8 and INT4 matrix rates with and without structured sparsity. FP16 and FP8 figures are in TFLOPS and stored unchanged. Figures are for the reference GPU.

Clocks

Base clock
Not available
Game clock
2,740MHz2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Engine Clock, Default mode: up to 2740 MHz (Game Clock). OC mode set in GPU Tweak III: up to 2760 MHz.
Boost clock
3,310MHz2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Engine Clock, Default mode: up to 3310 MHz (Boost Clock). ASUS says the boost clock is the maximum frequency on a bursty workload.
Boost clock in OC mode
3,330MHz2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Engine Clock, OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock).
Reference boost clock
3,130MHz9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Boost Frequency up to 3130 MHz, Game Frequency 2530 MHz.

Memory

VRAM
16GB2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Video Memory: 16GB GDDR6.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Max Memory Size 16 GB, GDDR6, 128-bit.
VRAM type
GDDR62Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Video Memory: 16GB GDDR6.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Memory Type GDDR6.
Memory bus width
128bits2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Memory Interface: 128-bit.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Memory Interface 128-bit.
Memory speed
20Gbps2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Memory Speed: 20 Gbps.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Memory Speed up to 20 Gbps.
Memory bandwidth
320GB/s9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Memory Bandwidth up to 320 GB/s.

Connectivity

PCIe generation
52Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Bus Standard: PCI Express 5.0.9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Bus Type PCIe 5.0 x16.
PCIe lanes
169Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Bus Type PCIe 5.0 x16. The Prime has a full-length connector and the chip maker lists 16 lanes.
Display outputs
TypeVersionCount
HDMI2.1b1
DisplayPort2.1a2
Source2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Interface: 1 x native HDMI 2.1b and 2 x native DisplayPort 2.1a. ASUS names no UHBR class, and neither does AMD for the RX 9060 XT, so the DisplayPort rows hold no link rate.
Display outputs in total
3
HDMI ports
1
DisplayPort ports
2
Highest HDMI version
2.1b
Highest DisplayPort version
2.1a
Fastest DisplayPort link
Not available
Max displays
32Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Maximum Display Support: 3.
Max output resolution
Resolution7680 × 4320 pxRefresh rate144 Hz2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Resolution: Digital Max Resolution 7680 x 4320. The 144 Hz is AMD's figure for 8K with DisplayPort 2.1a and HDMI 2.1b (RDNA 4 press release).11Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144 Hz with 12-bit HDR. A figure for the RDNA 4 family.
HDCP version
2.32Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Interface row: HDCP Support Yes (2.3).

Video engine

Video encoders
Not available
Video decoders
Not available
Hardware video encode
H.264, H.265 (HEVC), AV19Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 encode: Yes.
Hardware video decode
H.264, H.265 (HEVC), AV19Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is not listed.

Graphics features

DirectX
Not available
Vulkan
1.414Certification listkhronos.org/conformance/adopters/conformant-products/vulkanRead 15 October 2026AMD submissions 969 (Windows 10) and 970 (Ubuntu), dated 2026-01-01, list the Radeon RX 9060 XT as Vulkan 1.4 conformant.
OpenGL
4.62Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026OpenGL 4.6.
Upscaling technologies
FSR 41Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Section text names AMD FidelityFX Super Resolution 4.10Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 15 October 20261440p gaming with FSR 4 ML-enhanced upscaling.
Frame generation
AMD Fluid Motion Frames9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Supported technologies list AMD Fluid Motion Frames. The list also names AMD FSR Redstone.

Power

Board power
Not available
Reference board power
160W9Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 15 October 2026Typical Board Power (Desktop) 160W.
PSU wattage (card maker)
550W2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Recommended PSU: 550W. ASUS says the recommendation is based on a fully overclocked GPU and CPU system. AMD states 450 W as its minimum for the chip.
Power connector
1 x 8-pin PCIe2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Power Connectors: 1 x 8-pin.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: power is delivered by a single 8-pin connector.

Cooling

Cooler type
Open air1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Three Axial-tech fans blow onto the heatsink, with a vented backplate.
Fans
31Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Page text: a triple-fan setup, three Axial-tech fans with dual-ball bearings.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: a triple-fan setup, Axial-Tech design with dual-ball bearings, each fan 90mm.
Radiator size
Not available
Fan stop at low load
Yes1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 20260dB Technology: all three fans stop below 55 C and start again above 60 C.
Dual BIOS
Yes1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Dual BIOS with a Performance mode and a Quiet mode. Quiet keeps the same power target and top-end settings with a less aggressive fan curve.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: a dual-BIOS switch offers Performance or Quiet modes.

Dimensions and weight

Length
304mm2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Dimensions: 304 x 126 x 50mm. ASUS writes no axis names and does not say whether the bracket is included. KitGuru and the Jacob data sheet give the same three sizes.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: it measures 304 x 126 x 50mm, a 2.5 slot thickness.
Height
126mm2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Middle value of 304 x 126 x 50mm.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: 304 x 126 x 50mm.
Thickness
50mm2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Last value of 304 x 126 x 50mm.15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: 304 x 126 x 50mm.
Slot width
2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026Page text: a compact 2.5-slot design.2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Slot: 2.5 Slot.5Press releasepress.asus.com/news/press-releases/asus-radeon-rx-9060-xt-graphics-cardsRead 15 October 2026All four ASUS RX 9060 XT cards are only 2.5 slots wide.
Low profile
No7Retailer pageparadigit.ie/asus-prime-radeon-rx-9060-xt-o16g-amd-16-gb-gddr6/80069351/productRead 15 October 2026Form factor: Full-Height/Full-Length (FH/FL). The same listing gives a weight of 871 g, which is not stored because KitGuru weighed the card at 869 g.
NVIDIA SFF-Ready
Not available
Weight
869g(1.9 lb)15Reviewkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asusRead 15 October 2026Page 2: it weighed in at 869g on the reviewer's scales, the card alone. A retail feed lists 871 g.
Package weight
Not available

Lighting and software

RGB lighting
No8Reviewchip.pl/2025/06/asus-radeon-rx-9060-xt-prime-oc-16-gb-test-recenzja-opiniaRead 15 October 2026Review text (Polish): the card is all black with white lettering and has no lighting. ASUS names no lighting on the page.
Lighting sync
Not available
Software
ASUS GPU Tweak III1Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16gRead 15 October 2026GPU Tweak III is the ASUS tuning tool named on the page.2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Software: ASUS GPU Tweak III and drivers.

Measured performance

GPU clock while gaming (measured)
2,986MHz16Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/28Read 15 October 2026Page 28: average GPU clock over a 30 minute run of A Plague Tale: Requiem, GPU-Z log. Performance BIOS 2986 MHz, Quiet BIOS 2937 MHz. The Performance BIOS is stored. No source states which BIOS position the card ships in. Ryzen 7 9800X3D, MSI MPG X870E Carbon WiFi, 64 GB DDR5-6000, MSI MPG Gungnir 300R Airflow case, Windows 11 23H2, press driver 25.10.09.01. KitGuru says all cards were tested at reference specifications and that it undoes factory overclocks for its day-one reviews. It does not say whether that applies to this test, so the Prime may have run below its default clocks.
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
GameWidth (px)Height (px)PresetUpscalingRay tracingAverage FPS1 % low FPS
Cyberpunk 207725601440UltraOffNo66.855.4
Cyberpunk 207725601440Ultra, RT UltraOffYes2724.2
Alan Wake II25601440High, native resolutionNot availableNo42.335.3
Horizon Forbidden West25601440Very HighNot availableNo58.449
A Plague Tale: Requiem25601440UltraNot availableNo53.748.2
Source20Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/3Read 15 October 2026Per-game charts on pages 4, 6, 10, 12 and 20 at 2560x1440, FrameView, three runs per game, mean values. Red bar average fps and yellow bar 1 percent low. Cyberpunk 2077 (DX12): Ultra preset, FSR and DLSS disabled, 66.8 and 55.4. Cyberpunk 2077 (DXR): Ultra preset, RT Ultra, FSR and DLSS disabled, 27.0 and 24.2. Alan Wake II (DX12): High preset, native resolution, ray tracing not marked, 42.3 and 35.3. Horizon Forbidden West (DX12): Very High, 58.4 and 49.0. A Plague Tale: Requiem (DX12): Ultra, 53.7 and 48.2. Horizon and Plague Tale name no upscaling setting, so that key is left out. Ryzen 7 9800X3D system, press driver 25.10.09.01. KitGuru tested every card at reference clocks, so the Prime ran below its factory overclock in these charts.

Measured noise and temperature

Fan noise per load
ProfileLoadDistance (cm)Noise (dB(A))
Performance BIOSGaming30.4834
Quiet BIOSGaming30.4832
Source18Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/31Read 15 October 2026Page 31: total system noise pressure chart. Sound meter 1 foot (30.48 cm) from the card, noise floor 32 dBA, passive PSU, CPU and system fans disabled. Reading under load from 30 minutes of A Plague Tale: Requiem. Performance BIOS 34 dBA with the fans at 1350 rpm, Quiet BIOS 32 dBA, which is the noise floor, with the fans below 800 rpm. KitGuru says all cards were tested at reference specifications and that it undoes factory overclocks for its day-one reviews. It does not say whether that applies to this test, so the Prime may have run below its default clocks.
Fan noise while gaming
34dB(A)
GPU temperature while gaming
47°C17Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/29Read 15 October 2026Page 29: GPU temperature chart, steady state after 30 minutes of A Plague Tale: Requiem. Performance BIOS 47.0 C, Quiet BIOS 60.2 C. The Performance BIOS is stored. Room temperature is not stated. KitGuru says all cards were tested at reference specifications and that it undoes factory overclocks for its day-one reviews. It does not say whether that applies to this test, so the Prime may have run below its default clocks.
Hot spot temperature while gaming
66°C17Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/29Read 15 October 2026Page 29: hot spot in the same chart and run. Performance BIOS 66.0 C, Quiet BIOS 80.1 C. KitGuru's memory temperature chart is a peak reading and is not stored.
Memory temperature while gaming
Not available

Measured power

Card power at idle (measured)
Not available
GPU power while gaming (measured)
159.5W19Measurementkitguru.net/components/graphic-cards/dominic-moass/amd-rx-9060-xt-16gb-review-ft-asus/33Read 15 October 2026Page 33: graphics card-only power measured with NVIDIA PCAT, A Plague Tale: Requiem at 2560x1440, Ultra preset, 159.5 W on the chart. The 12-game average at 1440p is 159.1 W and is not stored. KitGuru names no BIOS position. KitGuru says all cards were tested at reference specifications and that it undoes factory overclocks for its day-one reviews. It does not say whether that applies to this test, so the Prime may have run below its default clocks.

In the box

In the box
1 x Thank you card, 1 x Speedsetup Manual2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026Accessories list on the spec page, verbatim.
Power adapter cable included
No2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026The accessories list has a thank you card and a manual only. The card takes one 8-pin cable directly.
Support bracket included
No2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspecRead 15 October 2026The accessories list has a thank you card and a manual only.

Warranty

Manufacturer warranty (source market)
3years4Maker product pageeshop.asus.com/us/90yv0lf1-mvaa00-asus-prime-radeontm-rx-9060-xt-16gb-gddr6-oc-edition.htmlRead 15 October 2026ASUS eShop USA: 3 year manufacturer warranty. The market is the United States.
