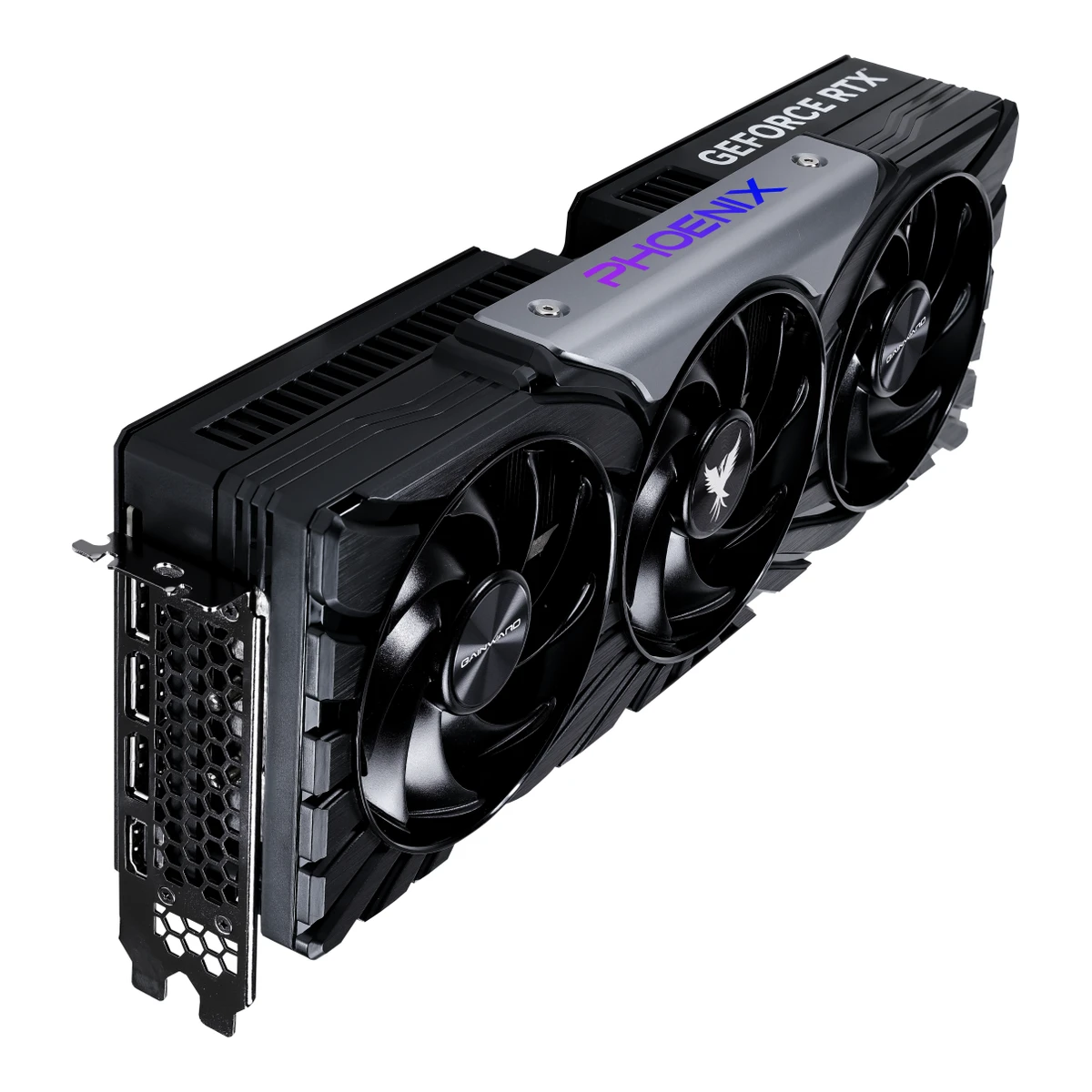

Gainward GeForce RTX 5070 Phoenix GS

GainwardGraphics card

GeForce RTX 5070 Phoenix GS

Released March 2025.8Press releasenvidia.com/en-us/geforce/news/rtx-5070-out-nowRead 15 October 2026Dated 2025-03-05: the GeForce RTX 5070 is out now, with stock-clocked and factory-overclocked models from partners including Gainward. This is the family availability date. Gainward's page does not date this card. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 5070
VRAM
12GB
Length
331.9mm
Board power
250W

70 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
Phoenix1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Product name Gainward GeForce RTX 5070 Phoenix GS, in the Phoenix series. GS is Gainward's factory-overclocked line.
Model numbers
NE75070T19K9-GB2050X1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row P/N NE75070T19K9-GB2050X.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026
GTIN / EAN
47105622450661Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Barcode 4710562245066. The datasheet prints the same number as BAR CODE 471056224-5066. Geeknetic lists 4710562245578 for this code, which is another Gainward card's barcode, so it is not used.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026
Announced
Not available
Status
Available1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Product page is live on 2026-10-15 with a datasheet dated 2025-09-24 and a manual dated 2025-10-03. OX.ee shows the card out of stock since 2026-03-21 and Geizhals shows no German offers on 2026-10-15, so retail stock varies by shop. The maker has not marked the card as discontinued.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black13Reviewkitguru.net/components/graphic-cards/matthew-wilson/ces-2025-palit-and-gainward-showcase-custom-rtx-50-graphics-cardsRead 15 October 2026CES 2025 article, 2025-01-08: the Gainward Phantom and Phoenix RTX 50 cards have a blackened shroud.
GPU
NVIDIA GeForce RTX 50701Maker product pagegainward.com/main/vgapro.phpRead 15 October 20264Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026RTX 5070 column of the spec table.
GPU brand
NVIDIA4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
Reference launch price (US)
$5497Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026Dated 2025-01-06: the GeForce RTX 5070 GPU is available starting in February at $549. The same release names Gainward as a board partner for stock-clocked and factory-overclocked models.

GPU

GPU architecture
Blackwell4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
GPU die
GB2055Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix C, Table 6, GPU codename GB205 for the GeForce RTX 5070.
Process
TSMC 4N5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: manufacturing process TSMC 4nm 4N, NVIDIA custom process.
Transistors
31.1billion5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: 31.1 billion transistors.
Die size
263mm²5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: die size 263 mm2.
Compute units
485Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: 48 SMs.
Shader cores
6,1442Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 20264Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026NVIDIA CUDA cores 6144.
Ray tracing cores
485Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: 48 RT cores, 4th gen.
AI cores
1925Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: 192 Tensor cores, 5th gen.
ROPs
805Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: 80 ROPs.
L2 cache
48MB5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: L2 cache 49152 KB, which is 48 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
30.9TFLOPS5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: peak FP32 30.9 TFLOPS at the GPU Boost Clock of 2512 MHz.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No493.9
FP4Yes987.8
FP8No246.9
FP8Yes493.9
FP16No123.5
FP16Yes246.9
INT8No246.9
INT8Yes493.9
Source5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6, dense and sparse pairs. FP4 with FP32 accumulate 493.9 and 987.8. FP8 with FP16 accumulate 246.9 and 493.9. FP16 with FP16 accumulate 123.5 and 246.9. INT8 246.9 and 493.9. Figures are for the reference GPU.

Clocks

Base clock
2,325MHz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Header table: Base Clock 2325 MHz.
Game clock
Not available
Boost clock
2,572MHz1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row GPU Clockspeed: 2572 MHz (Boost). The datasheet states the same.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Header table: Boost Clock 2572 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,512MHz5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 6: GPU Boost Clock 2512 MHz for the RTX 5070.

Memory

VRAM
12GB1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 20264Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
VRAM type
GDDR71Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Header table: DRAM Type 192 bits GDDR7. DRAM Clock 14000 MHz.
Memory bus width
192bits1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 20264Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
Memory speed
28Gbps1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Memory Clockspeed: 14000Mhz (28Gbps).
Memory bandwidth
672GB/s1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Bandwidth 672 GB/s.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026

Connectivity

PCIe generation
51Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Bus: PCI Express Gen 5.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Key features: PCI Express Gen 5.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
PCIe lanes
1610Spec databasehardwaredealz.com/hardware/gpu/nvidia-geforce-rtx-5070-12gb/gainward-phoenix-gs-12gb-gddr7-hdmi-3x-dp/technische-daten.25360Read 15 October 2026Spec row for the Gainward GeForce RTX 5070 Phoenix GS: interface PCIe 5.0 x16.11Spec databasegeizhals.de/gainward-geforce-rtx-5070-phoenix-gs-5066-ne75070t19k9-gb2050x-a3382676.htmlRead 15 October 2026Spec row: connection PCIe 5.0 x16.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Connectivity: DP 2.1b x 3 / HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate come from the datasheet.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Output: HDMI 2.1b x 1 at 7680 x 4320 @ 120 Hz and DP 2.1b x 3 at 7680 x 4320 @ 165 Hz. Key features: DisplayPort 2.1b with UHBR20. UHBR20 is 80 Gbps.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
44Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Multi monitor: up to 4. Chip-level figure, since Gainward states none.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Output: DP 2.1b x 3: 7680 x 4320 @ 165 Hz. The HDMI port is limited to 7680 x 4320 @ 120 Hz. The DisplayPort mode is stored.
HDCP version
2.32Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Key features: HDCP 2.3.

Video engine

Video encoders
14Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026NVENC: 1x ninth generation. Chip-level figure, since Gainward gives only the generation.
Video decoders
14Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026NVDEC: 1x sixth generation.
Hardware video encode
H.264, H.265 (HEVC), AV16Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 row of the NVENC table: ninth generation, 1 chip, with H.264, HEVC and AV1 encode marked YES.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV16Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 row of the NVDEC table: sixth generation, 1 chip, with H.264, HEVC, VP9 and AV1 decode marked YES.

Graphics features

DirectX
12 Ultimate2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Key features: Microsoft DirectX 12 Ultimate.
Vulkan
1.42Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.
OpenGL
4.62Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.
Upscaling technologies
DLSS 41Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Features: NVIDIA DLSS 4 with Multi Frame Generation.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction. The page also mentions DLSS 5 in its feature text, but the spec table row says DLSS 4.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
250W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Header table: TGP 250 W. NVIDIA's reference figure is also 250 W.
Reference board power
250W4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Total Graphics Power 250 W. NVIDIA says the table describes the Founders Edition or reference design. It is the chip figure and Gainward's own TGP is separate. Required System Power 650 W.
PSU wattage (card maker)
700W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Minimum system requirements: Recommend 700 W or greater system power supply in ATX 3.X specification. The same line allows one 16-pin PCIe 12VHPWR or two 8-pin supplementary power connectors from the power supply.
Power connector
16-pin (revision not stated)1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Power Connector: 16-pin x1. The page does not name 12V-2x6 or 12VHPWR. The datasheet's system requirement line says '16-pin PCIe 12VHPWR or two 8-pin', which is a power supply requirement and not a name for the card input, so the plain 16-pin option is stored.

Cooling

Cooler type
Open air1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Features: Cyclone Fan blades, diffuser fins and composite heat pipes. The fans blow onto the heatsink.
Fans
310Spec databasehardwaredealz.com/hardware/gpu/nvidia-geforce-rtx-5070-12gb/gainward-phoenix-gs-12gb-gddr7-hdmi-3x-dp/technische-daten.25360Read 15 October 2026Spec rows: cooling axial, 3 fans, 3 slots. The page gives an introduction date of 2025-03-04 for the RTX 5070 family.11Spec databasegeizhals.de/gainward-geforce-rtx-5070-phoenix-gs-5066-ne75070t19k9-gb2050x-a3382676.htmlRead 15 October 2026Spec row: 3x axial fans (100 mm) with a 0 dB zero fan mode. Geizhals writes the power input as 12V-2x6 via adapter, which is a retail wording and is not used. It shows no offers for this variant in Germany on 2026-10-15.12Retailer pageox.ee/en/product/3124914Read 15 October 2026Spec feed: Number of fans 3 fan(s). The item is out of stock there on 2026-10-15.13Reviewkitguru.net/components/graphic-cards/matthew-wilson/ces-2025-palit-and-gainward-showcase-custom-rtx-50-graphics-cardsRead 15 October 2026Same article: the Gainward Phoenix series has a triple-fan cooler. It says RTX 5070 cards were expected in February, which slipped to the 2025-03-05 launch.
Radiator size
Not available
Fan stop at low load
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ZERO RPM FAN: the fans stay idle during light tasks and run only when necessary. No temperature threshold is stated.
Dual BIOS
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Dual BIOS with P-Performance Mode and S-Silent Mode, switched on the back of the card.

Dimensions and weight

Length
331.9mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Product Size 331.9 x 133.1 x 60 mm. The page does not say whether the bracket or the power plug is included.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Dimensions, Board: 331.9 x 133.1 x 60 mm. The sheet does not say whether the bracket or the power plug is included.
Height
133.1mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Second value of 331.9 x 133.1 x 60 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Board: second value, 133.1 mm.
Thickness
60mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Third value of 331.9 x 133.1 x 60 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Board: third value, 60 mm.
Slot width
3slots1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Cooling: 3 Slot Fan Cooler.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026Dimensions: Cooler 3 slots, Bracket 3 slots. The cooler figure is stored.
Low profile
Not available
NVIDIA SFF-Ready
No9Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026The GeForce RTX 50 Series list covers the RTX 5070 class. It names the Gainward RTX 5070 Python III and Python III OC, but no Phoenix GS, so false is stored. The card is 331.9 mm long and 3 slots, above the list limits of 304 mm and 2.5 slots.
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ARGB Lighting: addressable RGB lets gamers customise each LED color. A touch of ARGB sits on the side logo. Auto Sync 2.0 uses a universal 5V ARGB connector to sync with the board's lighting.
Lighting sync
Not available
Software
Gainward EXPERTool1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026The ARGB text says lighting effects are set with the GAINWARD Expertool Utility. The download tab lists ExperTool 11.13 dated 2025-02-19.3Owner's manualgainward.com/support/4/91_M_GW22D.pdfRead 15 October 2026Software Installation step 2: install Gainward EXPERTool to adjust fan settings, lighting effects and performance tuning.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Power Cable2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026ACCESSORIES lists one item: Power Cable.
Power adapter cable included
Not available
Support bracket included
No2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01236/p01236_datasheet_170067a1dce271f9a.pdfRead 15 October 2026ACCESSORIES lists only a power cable, so no holder is listed. Geizhals names a card holder among the card's features.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
