PC parts / Graphics cards

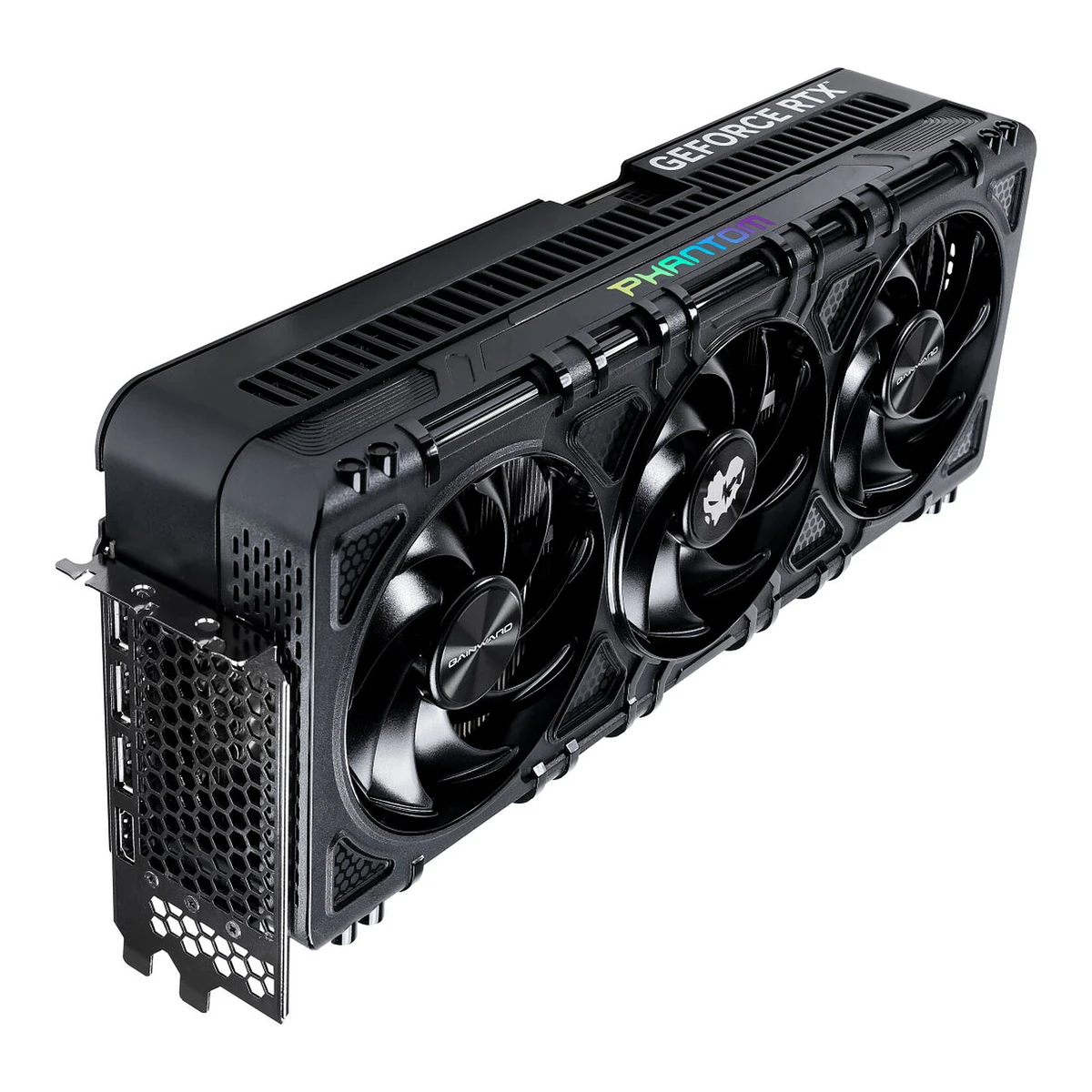

Gainward GeForce RTX 5090 Phantom

GainwardGraphics card

GeForce RTX 5090 Phantom

Released January 2025.7Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026The RTX 5090 and the partner cards built on it go on sale on 2025-01-30. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 5090
VRAM
32GB
Length
331.9mm
Board power
575W

70 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
Phantom1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Breadcrumb and Gainward Series menu: PHANTOM.
Model numbers
NE75090019R5-GB2020P1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026P/N NE75090019R5-GB2020P. The Phantom GS has its own code, NE75090S19R5-GB2020P, and a higher boost clock, so it is another card. Palit's NE75090019R5-GB2020G is a Palit card.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Header: GEFORCE RTX 5090 PHANTOM, P/N NE75090019R5-GB2020P.
GTIN / EAN
47105622448781Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Barcode 4710562244878. The datasheet prints the same number as BAR CODE 471056224-4878.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Header: BAR CODE 471056224-4878.
Announced
Not available
Status
Available10Retailer pageldlc.com/en/product/PB00662760.htmlRead 15 October 2026LDLC listing of the Gainward GeForce RTX 5090 Phantom: in stock on 2026-10-15.11Retailer pagealternate.de/html/search.htmlRead 15 October 2026ALTERNATE search for NE75090019R5-GB2020P on 2026-10-15: the Gainward GeForce RTX 5090 Phantom is listed as Sofort verfuegbar, with 13 ratings. The product page itself showed a bot check and was not opened.12Spec databasegeizhals.de/gainward-geforce-rtx-5090-phantom-4878-ne75090019r5-gb2020p-a3382613.htmlRead 15 October 2026Geizhals Germany lists the card with 2 offers from 8622 EUR on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026The overview text says the Phantom Series has an all-black design.
GPU
NVIDIA GeForce RTX 50901Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026
GPU brand
NVIDIA4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026The GeForce RTX 5090 is an NVIDIA GPU. Gainward is the card maker.
Reference launch price (US)
$1,9997Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026Dated 2025-01-06: the GeForce RTX 5090 is available on Jan. 30 at $1,999. No tax is included in the figure.

GPU

GPU architecture
Blackwell4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB2025Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A, Table 3: the RTX 5090 uses the GB202 GPU.
Process
TSMC 4N5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
92.2billion5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 92.2 billion, the full GB202 die.
Die size
750mm²5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 750 mm2.
Compute units
1705Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 170 SMs on the RTX 5090. The full GB202 has 192.
Shader cores
21,7602Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026CUDA Cores 21760.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA CUDA Cores 21760.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 21760 CUDA cores.
Ray tracing cores
1705Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 170 RT Cores (4th Gen).
AI cores
6805Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 680 Tensor Cores (5th Gen).
ROPs
1765Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 176 ROPs.
L2 cache
96MB5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 98304 KB, which is 96 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
104.8TFLOPS5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: peak FP32 104.8 TFLOPS, based on the 2407 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No1,676
FP4Yes3,352
FP8No838
FP8Yes1,676
FP16No419
FP16Yes838
INT8No838
INT8Yes1,676
Source5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3, dense and with sparsity. FP4 uses FP32 accumulate (1676 and 3352 AI TOPS). FP8 and FP16 use FP16 accumulate (838 and 1676, 419 and 838). FP8 and FP16 with FP32 accumulate are half as high. INT8 is 838 and 1676.

Clocks

Base clock
2,017MHz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Base Clock 2017 MHz, listed next to Boost Clock 2407 MHz on the Gainward sheet for this card. It is the reference base clock of the card at reference clocks. NVIDIA writes 2.01 GHz.
Game clock
Not available
Boost clock
2,407MHz1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026GPU Clockspeed 2407 MHz (Boost). This is also NVIDIA's reference boost clock, so the card runs at reference clocks.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Boost Clock 2407 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,407MHz5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: GPU Boost Clock 2407 MHz.

Memory

VRAM
32GB1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DRAM Amount 32 GB.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Standard Memory Config 32 GB GDDR7.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 32 GB GDDR7.
VRAM type
GDDR71Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DRAM Type 512 bits GDDR7.
Memory bus width
512bits1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DRAM Type row: 512 bits.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Memory Interface Width 512-bit.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 512-bit.
Memory speed
28Gbps1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Memory Clockspeed 14000Mhz (28Gbps).5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: memory clock (data rate) 28 Gbps.
Memory bandwidth
1,792GB/s1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Bandwidth 1792 GB/s.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DRAM Bandwidth 1792 GB/s.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 1792 GB/sec.

Connectivity

PCIe generation
51Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Key features: PCI Express Gen 5.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026PCI Express Gen 5: Yes.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: PCI Express Interface Gen 5.
PCIe lanes
162Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Minimum system requirements: one tri-width x16 graphics slot.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Connectivity: DP 2.1b x 3 / HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate are on the Gainward datasheet.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026OUTPUT: HDMI 2.1b x 1 and DP 2.1b x 3. Key features: DisplayPort 2.1b with UHBR20 (80 Gbps).4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Footnote 2: DisplayPort 2.1b with UHBR20. Footnote 3: HDMI 2.1b.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
44Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Multi Monitor: up to 4. This is a chip figure and the Gainward pages do not state one.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DP 2.1b x 3: 7680 x 4320 at 165 Hz. HDMI 2.1b x 1: 7680 x 4320 at 120 Hz. Key features: DisplayPort 2.1b with UHBR20 gives up to 4K 480 Hz or 8K 165 Hz with DSC. The DisplayPort mode is the highest and is stored.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Footnotes: DisplayPort 2.1b with UHBR20 gives up to 8K at 165 Hz with DSC.
HDCP version
2.32Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Key features: HDCP 2.3.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026HDCP 2.3.

Video engine

Video encoders
34Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Encoder (NVENC): 3x Ninth Generation.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 3 x NVENC (9th Gen).
Video decoders
24Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Decoder (NVDEC): 2x Sixth Generation.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 2 x NVDEC (6th Gen).
Hardware video encode
H.264, H.265 (HEVC), AV16Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 row: H.264, H.265 (HEVC) and AV1 encode are marked YES.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV16Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 row: H.264, H.265, VP9 and AV1 decode are marked YES. The table has no VVC column.

Graphics features

DirectX
12 Ultimate2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Key features: Microsoft DirectX 12 Ultimate.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Microsoft DirectX 12 Ultimate: Yes.
Vulkan
1.42Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Vulkan 1.4, OpenGL 4.6: Yes.
OpenGL
4.62Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Vulkan 1.4, OpenGL 4.6: Yes.
Upscaling technologies
DLSS 41Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026NVIDIA DLSS 4 with Multi Frame Generation.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA DLSS row: DLSS 4, Super Resolution, DLAA, Ray Reconstruction, Frame Generation and Multi Frame Generation.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026NVIDIA DLSS 4 with Multi Frame Generation.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026The same DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
575W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026TGP 575 W on the card's own datasheet.
Reference board power
575W4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Total Graphics Power 575 W.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: TGP 575 W.
PSU wattage (card maker)
1,000W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Minimum system requirements: recommend 1000 W or greater system power supply in ATX 3.X specification.
Power connector
16-pin (revision not stated)1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Power Connector: 16-pin x1. The page does not name 12V-2x6 or 12VHPWR. The datasheet's system requirements line says '16-pin PCIe 12VHPWR or four 8-pin', which is a power supply requirement and not a name for the card input, so the plain 16-pin option is stored.

Cooling

Cooler type
Open air1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Features: Cyclone Fan blades, vapor chamber, composite heat pipes and diffuser fins on a 3.5 slot fan cooler. The fans blow onto the heatsink.
Fans
312Spec databasegeizhals.de/gainward-geforce-rtx-5090-phantom-4878-ne75090019r5-gb2020p-a3382613.htmlRead 15 October 2026Cooling: 3x axial fans (100 mm) with a 0 dB zero fan mode.13Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/vga-gainward-rtx5090-32gb-phantom-1440574Read 15 October 2026Description: a triple fan design with vapor chamber technology and a Zero RPM fan. The shop was out of stock on 2026-10-15.
Radiator size
Not available
Fan stop at low load
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ZERO RPM FAN: the fans stay idle during light tasks and run only when necessary. No temperature threshold is stated.12Spec databasegeizhals.de/gainward-geforce-rtx-5090-phantom-4878-ne75090019r5-gb2020p-a3382613.htmlRead 15 October 2026Cooling: 0 dB zero fan mode.
Dual BIOS
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Dual BIOS: P-Performance Mode and S-Silent Mode, selected with a switch on the back side of the card.12Spec databasegeizhals.de/gainward-geforce-rtx-5090-phantom-4878-ne75090019r5-gb2020p-a3382613.htmlRead 15 October 2026Features: dual BIOS switch.

Dimensions and weight

Length
331.9mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Product Size 331.9 x 145.6 x 69.9 mm. The page does not say whether the bracket or the power plug is included.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DIMENSIONS Board: 331.9 x 145.6 x 69.9 mm. The sheet does not say whether the bracket or the power plug is included.
Height
145.6mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Second value of 331.9 x 145.6 x 69.9 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Board: second value, 145.6 mm.
Thickness
69.9mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Third value of 331.9 x 145.6 x 69.9 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026Board: third value, 69.9 mm.
Slot width
3.5slots1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Cooling: 3.5 Slot Fan Cooler.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026DIMENSIONS: Cooler 3.5 slots, Bracket 3 slots. The cooler figure is stored.
Low profile
Not available
NVIDIA SFF-Ready
No8Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026The Enthusiast GeForce list covers the RTX 5090 class. It names the Founders Edition and two ASUS ProArt RTX 5090 cards and lists Gainward only for RTX 50 and 40 Python III cards below the 90 class. No Gainward RTX 5090 is on it, so false is stored. The card is 331.9 mm long and 3.5 slots, above the list limits.
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ARGB Lighting: addressable RGB lets gamers customise each LED color. Auto Sync 2.0 uses a universal 5V ARGB connector to sync with the board's lighting.12Spec databasegeizhals.de/gainward-geforce-rtx-5090-phantom-4878-ne75090019r5-gb2020p-a3382613.htmlRead 15 October 2026Features: lighting (RGB).
Lighting sync
Not available
Software
Gainward EXPERTool1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026The ARGB text says lighting effects are set with the GAINWARD Expertool Utility. The download tab lists ExperTool.3Owner's manualgainward.com/support/4/91_M_GW22D.pdfRead 15 October 2026Software Installation step 2: install Gainward EXPERTool to adjust fan settings, lighting effects and performance tuning.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Power Cable, VGA Holder, Holder Extender2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026ACCESSORIES: Power Cable, VGA Holder, Holder Extender.
Power adapter cable included
Not available
Support bracket included
Yes2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01225/p01225_datasheet_129567a1dad803604.pdfRead 15 October 2026ACCESSORIES: VGA Holder and Holder Extender. Gainward's VGA Holder Installation Guide covers the holder.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
