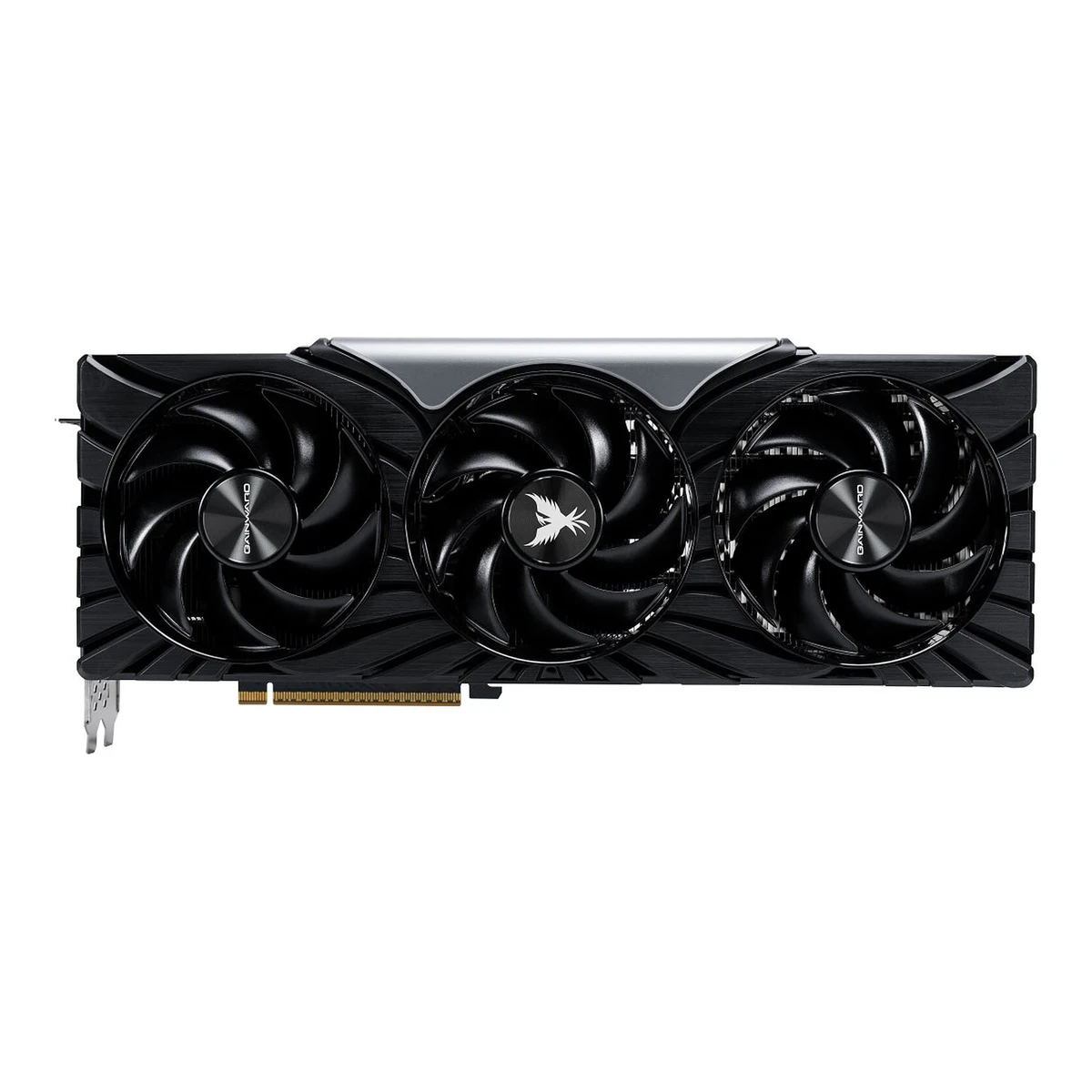

Gainward GeForce RTX 5080 Phoenix GS

GainwardGraphics card

GeForce RTX 5080 Phoenix GS

Released January 2025.4Spec databasehardwaredealz.com/hardware/gpu/nvidia-geforce-rtx-5080-16gb/gainward-phoenix-gs-16gb-gddr7-hdmi-3x-dp/technische-daten.28098Read 15 October 2026Introduction date 2025-01-30, the RTX 5080 launch day. This is the family date. No date for this card alone was found: the CE certificate for GB2031 is dated 2025-02-26, and LDLC lists the card as referenced on 2025-05-02. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 5080
VRAM
16GB
Length
331.9mm
Board power
360W

71 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
Phoenix1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Product name Gainward GeForce RTX 5080 Phoenix GS, in the Phoenix series. GS is Gainward's factory-overclocked line.
Model numbers
NE75080S19T2-GB2031X1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row P/N NE75080S19T2-GB2031X.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header line P/N NE75080S19T2-GB2031X.
GTIN / EAN
47105622449461Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Barcode 4710562244946. The datasheet prints the same number as BAR CODE 471056224-4946. The standard RTX 5080 Phoenix has another barcode (4710562244953 on LDLC).2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header line BAR CODE 471056224-4946.8Retailer pageldlc.com/en/product/PB00681282.htmlRead 15 October 2026The product photo block carries EAN 4710562244946 for the Phoenix GS. Enzure, Eltel and Multitronic list the same EAN with P/N NE75080S19T2-GB2031X.
Announced
Not available
Status
Available1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Product page is live on 2026-10-15 with a datasheet dated 2025-09-24 and a manual dated 2025-10-03. LDLC shows it available to order (10 pieces, not in stores), while Arvutitark and Paradigit show it as not available. The maker has not marked the card as discontinued.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black5Retailer pageparadigit.ie/gainward-geforce-rtx-5080-phoenix-gs/21757562/productRead 15 October 2026Spec feed: Colour of product Black, Silver. Stored as Black since KitGuru names the blackened shroud. Gainward names no colour.6Reviewkitguru.net/components/graphic-cards/matthew-wilson/ces-2025-palit-and-gainward-showcase-custom-rtx-50-graphics-cardsRead 15 October 2026CES 2025 article, 2025-01-08: the Gainward Phantom and Phoenix RTX 50 cards have a blackened shroud.
GPU
NVIDIA GeForce RTX 50801Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026
GPU brand
NVIDIA9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026GeForce RTX 5080 spec table.
Reference launch price (US)
$99912Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026The GeForce RTX 5080 will be available on Jan. 30 at $999. NVIDIA's price for the chip, not Gainward's price for this card. No Gainward launch price was found.

GPU

GPU architecture
Blackwell9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB20310Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4 in Appendix B: GPU codename GB203.
Process
TSMC 4N10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
45.6billion10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 45.6 billion.
Die size
378mm²10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 378 mm2.
Compute units
8410Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 84 SMs, which is the full GB203.
Shader cores
10,7522Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 20269Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026NVIDIA CUDA Cores 10752.
Ray tracing cores
8410Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 84 RT cores (4th generation).
AI cores
33610Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 336 Tensor cores (5th generation).
ROPs
11210Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 112 ROPs.
L2 cache
64MB10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 65536 KB, which is 64 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
56.3TFLOPS10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: Peak FP32 TFLOPS (non-Tensor) 56.3, based on the 2617 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No900.4
FP4Yes1,801
FP8No450.2
FP8Yes900.4
FP16No225.1
FP16Yes450.2
INT8No450.2
INT8Yes900.4
Source10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4, dense and effective with sparsity. FP4 uses FP32 accumulate (900.4 and 1801). FP8 and FP16 use FP16 accumulate (450.2 and 900.4, 225.1 and 450.2). INT8 is 450.2 and 900.4. FP8 with FP32 accumulate is half as high.

Clocks

Base clock
2,295MHz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header table: Base Clock 2295 MHz. NVIDIA's reference base clock is 2.30 GHz.
Game clock
Not available
Boost clock
2,700MHz1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row GPU Clockspeed: 2700 MHz (Boost). The datasheet states the same.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header table: Boost Clock 2700 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,617MHz10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: GPU Boost Clock 2617 MHz.

Memory

VRAM
16GB1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 20269Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Standard memory config 16 GB GDDR7.
VRAM type
GDDR71Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header table: DRAM Type 256 bits GDDR7. DRAM Clock 15000 MHz.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Standard memory config 16 GB GDDR7.
Memory bus width
256bits1Maker product pagegainward.com/main/vgapro.phpRead 15 October 20262Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 20269Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Memory interface width 256-bit.
Memory speed
30Gbps1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Memory Clockspeed: 15000Mhz (30Gbps).10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: memory clock (data rate) 30 Gbps.
Memory bandwidth
960GB/s1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Bandwidth 960 GB/s.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 202610Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 960 GB/sec.

Connectivity

PCIe generation
51Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Bus: PCI Express Gen 5.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Key features: PCI Express Gen 5.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026PCI Express Gen 5.
PCIe lanes
164Spec databasehardwaredealz.com/hardware/gpu/nvidia-geforce-rtx-5080-16gb/gainward-phoenix-gs-16gb-gddr7-hdmi-3x-dp/technische-daten.28098Read 15 October 2026Spec row for the Gainward GeForce RTX 5080 Phoenix GS: interface PCIe 5.0 x16.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Connectivity: DP 2.1b x 3 / HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate come from the datasheet.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Output: HDMI 2.1b x 1 at 7680 x 4320 @ 120 Hz and DP 2.1b x 3 at 7680 x 4320 @ 165 Hz. Key features: DisplayPort 2.1b with UHBR20. UHBR20 is 80 Gbps.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Standard Display Connectors: 3x DisplayPort and 1x HDMI. Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480Hz or 8K 165Hz with DSC. UHBR20 is 80 Gbps. HDMI 2.1b.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Multi Monitor: up to 4.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Output: DP 2.1b x 3: 7680 x 4320 @ 165 Hz. The HDMI port is limited to 7680 x 4320 @ 120 Hz. The DisplayPort mode is stored.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Footnote: DP 2.1b with DSC supports 8K 12-bit HDR at 165 Hz. HDMI 2.1b with DSC supports 8K 12-bit HDR at 120 Hz.
HDCP version
2.32Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Key features: HDCP 2.3.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026HDCP 2.3.

Video engine

Video encoders
29Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026NVENC 2x Ninth Generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 2 x NVENC (9th Gen).11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5080 row: 2 total NVENC.
Video decoders
29Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026NVDEC 2x Sixth Generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: 2 x NVDEC (6th Gen).11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5080 row: 2 total NVDEC.
Hardware video encode
H.264, H.265 (HEVC), AV111Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5080 row in the encode table: 9th generation, 2 NVENC in total, H.264, HEVC and AV1 marked YES.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV111Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5080 row in the decode table: 6th generation, 2 NVDEC in total, H.264, HEVC, VP9 and AV1 marked YES. The table has no H.266 column.

Graphics features

DirectX
12 Ultimate2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Key features: Microsoft DirectX 12 Ultimate.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Microsoft DirectX 12 Ultimate.
Vulkan
1.42Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Vulkan 1.4 / OpenGL 4.6.
OpenGL
4.62Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Key features: Vulkan 1.4, OpenGL 4.6.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Vulkan 1.4 / OpenGL 4.6.
Upscaling technologies
DLSS 41Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Features: NVIDIA DLSS 4 with Multi Frame Generation.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026The DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
360W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Header table: TGP 360 W. NVIDIA's reference figure is also 360 W, so the card has no factory power increase.
Reference board power
360W9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 15 October 2026Total Graphics Power 360 W for the reference design. This is the chip figure.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 4: TGP 360 W.
PSU wattage (card maker)
850W2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Minimum system requirements: Recommend 850 W or greater system power supply in ATX 3.X specification. The same line allows one 16-pin PCIe 12VHPWR or three 8-pin supplementary power connectors from the power supply.
Power connector
16-pin (revision not stated)1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Power Connector: 16-pin x1. The page does not name 12V-2x6 or 12VHPWR. The datasheet's system requirement line says '16-pin PCIe 12VHPWR or three 8-pin', which is a power supply requirement and not a name for the card input, so the plain 16-pin option is stored.

Cooling

Cooler type
Open air1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Features: Cyclone Fan with diffuser fins, a vapor chamber and composite heat pipes. The fans blow onto the heatsink.
Fans
34Spec databasehardwaredealz.com/hardware/gpu/nvidia-geforce-rtx-5080-16gb/gainward-phoenix-gs-16gb-gddr7-hdmi-3x-dp/technische-daten.28098Read 15 October 2026Spec rows: cooling axial, 3x axial fans, 3 slots.5Retailer pageparadigit.ie/gainward-geforce-rtx-5080-phoenix-gs/21757562/productRead 15 October 2026Spec feed: Number of fan(s) 3 fan(s).6Reviewkitguru.net/components/graphic-cards/matthew-wilson/ces-2025-palit-and-gainward-showcase-custom-rtx-50-graphics-cardsRead 15 October 2026Same article: the Gainward Phoenix series has a triple-fan cooler.
Radiator size
Not available
Fan stop at low load
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ZERO RPM FAN: the fans stay idle during light tasks and run only when necessary. No temperature threshold is stated.
Dual BIOS
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Dual BIOS with P-Performance Mode and S-Silent Mode, switched on the back of the card.

Dimensions and weight

Length
331.9mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Product Size 331.9 x 133.1 x 60 mm. The page does not say whether the bracket or the power plug is included. It is the same size as the Gainward RTX 5070 Phoenix GS.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Dimensions, Board: 331.9 x 133.1 x 60 mm. The sheet does not say whether the bracket or the power plug is included.
Height
133.1mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Second value of 331.9 x 133.1 x 60 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Board: second value, 133.1 mm.
Thickness
60mm1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Third value of 331.9 x 133.1 x 60 mm.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Board: third value, 60 mm.
Slot width
3slots1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026Spec row Cooling: 3 Slot Fan Cooler.2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026Dimensions: Cooler 3 slots, Bracket 3 slots. The cooler figure is stored.
Low profile
Not available
NVIDIA SFF-Ready
No13Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026NVIDIA's SFF-Ready Enthusiast GeForce list covers the RTX 5080 class. It names the Gainward RTX 5070 Python III and Python III OC, but no RTX 5080 Gainward card, so false is stored. The card is 331.9 mm long and 3 slots, above the list limits of 304 mm and 2.5 slots. The page was last updated on 2025-01-06.
Weight
1,595g(3.5 lb)7Reviewnoobfeed.com/hardware/best-rtx-5080-cards-valuesRead 15 October 2026Roundup dated 2025-10-13 of RTX 5080 cards: the Gainward GeForce RTX 5080 Phoenix GS is 33 x 13 cm and 1595 g. The article does not say who weighed the card or how, and it lists the Founders Edition at 1635 g. Maker publishes no weight. Treat as a lower-confidence value.
Package weight
Not available

Lighting and software

RGB lighting
Yes1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026ARGB Lighting: addressable RGB lets gamers customise each LED color. A touch of ARGB sits on the side logo. Auto Sync 2.0 uses a universal 5V ARGB connector to sync with the board's lighting. No named third-party sync standard is given.
Lighting sync
Not available
Software
Gainward EXPERTool1Maker product pagegainward.com/main/vgapro.phpRead 15 October 2026The ARGB text says lighting effects are set with the GAINWARD Expertool Utility. The download tab lists ExperTool 11.13 dated 2025-02-19.3Owner's manualgainward.com/support/4/91_M_GW22D.pdfRead 15 October 2026Software Installation step 2: install Gainward EXPERTool to adjust fan settings, lighting effects and performance tuning.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Power Cable2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026ACCESSORIES lists one item: Power Cable. The sheet does not say it is an 8-pin to 16-pin adapter, so the adapter flag is left empty.
Power adapter cable included
Not available
Support bracket included
No2Maker spec sheet (PDF)gainward.com/main/product/vga/pro/p01230/p01230_datasheet_101467a1db60141f7.pdfRead 15 October 2026ACCESSORIES lists only a power cable, so no holder is listed.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
