PC parts / Graphics cards

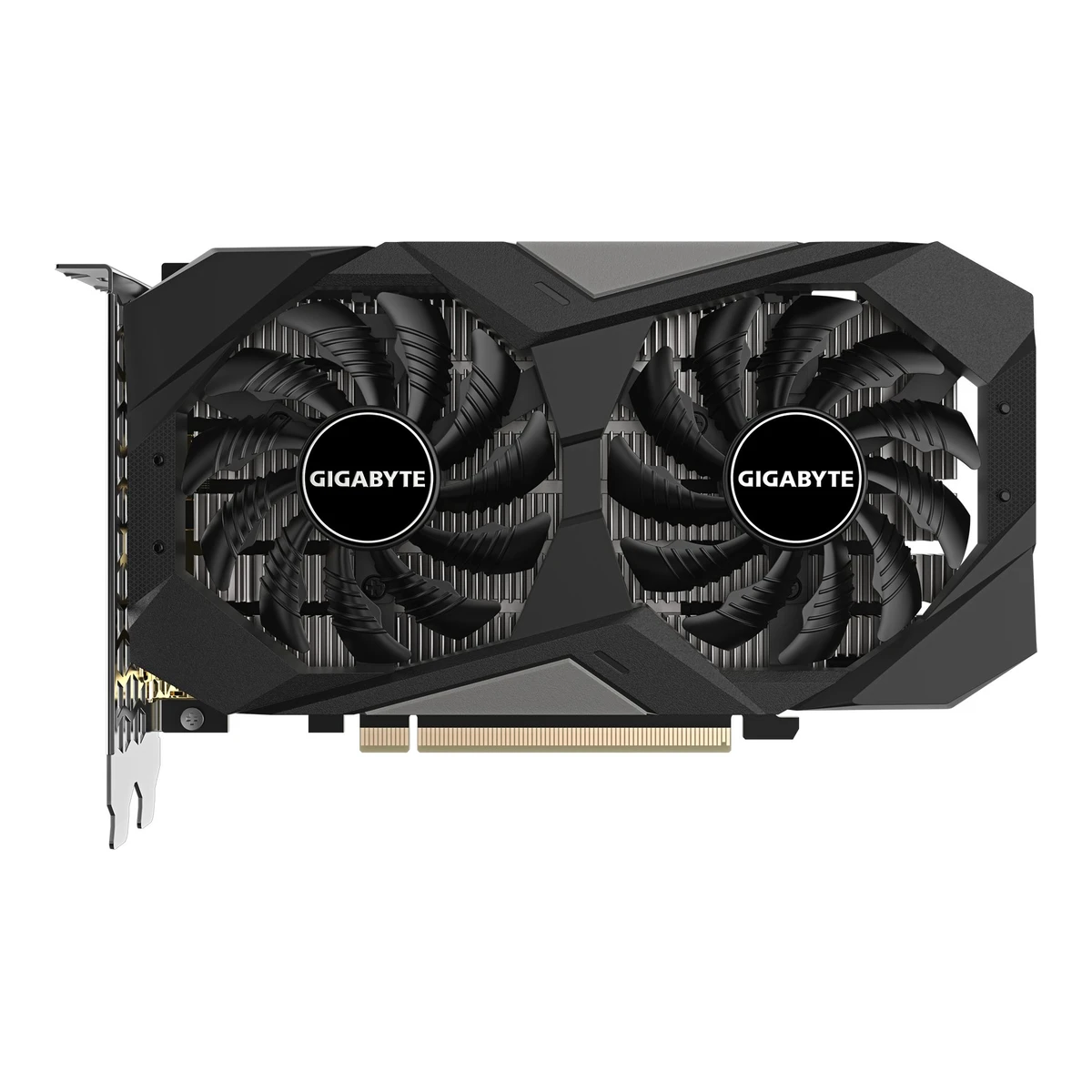

GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 6G

GIGABYTEGraphics card

GeForce RTX 3050 WINDFORCE OC V2 6G

Released February 2025.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Data sheet publication date 2025-02-11, the earliest document found for this product code. The non-V2 GV-N3050WF2OC-6GD is a different product code and came out around the 2024-02 chip launch. No launch news for the V2 revision was found, so the month is a best estimate. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 3050
VRAM
6GB
Length
191mm
Board power
70W

63 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 HDMI 2.1
  • 2 DisplayPort 1.4a

All specs

SourceCalculated

General

Series
WINDFORCE5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026Product name GeForce RTX 3050 WINDFORCE OC V2 6G with the WINDFORCE cooling system text.
Model numbers
GV-N3050WF2OCV2-6GD4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Distributor data sheet for product code GV-N3050WF2OCV2-6GD.5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026SKU GV-N3050WF2OCV2-6GD.6Retailer pagescan.co.uk/products/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-ray-tracing-graphics-card-dlss-4-2304-corRead 15 October 2026Manufacturer code GV-N3050WF2OCV2-6GD.10Retailer pageamazon.com/GIGABYTE-GeForce-WINDFORCE-Graphics-GV-N3050WF2OCV2-6GD/dp/B0DQK4XSC7Read 15 October 2026Model number GV-N3050WF2OCV2-6GD.
GTIN / EAN
4719331355081, 8895230458794Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026EAN 4719331355081 is printed on the data sheet. A second data sheet copy dated 2025-10-30 also prints UPC 889523045879 (EAN 0889523045879).5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026EAN 4719331355081.6Retailer pagescan.co.uk/products/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-ray-tracing-graphics-card-dlss-4-2304-corRead 15 October 2026GTIN 4719331355081.10Retailer pageamazon.com/GIGABYTE-GeForce-WINDFORCE-Graphics-GV-N3050WF2OCV2-6GD/dp/B0DQK4XSC7Read 15 October 2026UPC 889523045879, which matches the UPC on the distributor data sheet.
Announced
Not available
Status
Available7Retailer pagejib.co.th/web/product/readProduct/73713/2115/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--GIGABYTE-GEFORCE-RTX-3050-WINDFORCE-OC-V2-6G---6GB-GDDR6--GV-N3050WF2OCV2-6GD-Read 15 October 2026Thai retailer page offers the card with a buy now button on 2026-10-15.8Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-graphics-card-gv-n3050wf2ocv2-6gdRead 15 October 2026Philippine retailer lists the card as in stock on 2026-10-15.10Retailer pageamazon.com/GIGABYTE-GeForce-WINDFORCE-Graphics-GV-N3050WF2OCV2-6GD/dp/B0DQK4XSC7Read 15 October 2026Amazon US listing is live on 2026-10-15, shows In Stock, 316 global ratings at 4.6 stars and a best sellers rank of #40 in Computer Graphics Cards.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
NVIDIA GeForce RTX 30503Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Graphics Processing: GeForce RTX 3050. The chip maker is NVIDIA.
GPU brand
NVIDIA11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026GeForce RTX 3050 (6 GB) column of the RTX 3050 page.
Reference launch price (US)
$16914Press articlepcworld.com/article/2225893/at-169-the-6gb-rtx-3050-might-be-the-new-budget-gpu-king.htmlRead 15 October 2026PCWorld on the launch: the starting price is $169. NVIDIA's own news page names no price and sends buyers to its partners. Guru3D reported $179 early on, citing VideoCardz. No tax is included in a US starting price.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: launch MSRP 169 USD. PC Gamer and APH Networks also write 169 USD.

GPU

GPU architecture
Ampere11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026NVIDIA Architecture: Ampere.
GPU die
GA10715Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table, RTX 3050 6GB column: GA107-325.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: GA107.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026Desktop table, RTX 3050 6 GB row: die GA107-325.
Process
Samsung 8N15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 8N (Samsung). NVIDIA names no process for this card, so a trusted review table is used.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026NVIDIA names no node for GA107 on a page that was read. The Wikipedia table says Samsung 8 nm for the RTX 30 desktop GPUs.
Transistors
8.7billion15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 8.7 billion.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 8.7 billion transistors.
Die size
200mm²15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: chip size 200 mm2.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 200 mm2.
Compute units
1815Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 18 shader clusters (SMs).17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 18 SMs. Tom's Hardware prints the same 18.
Shader cores
2,30411Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026NVIDIA CUDA Cores: 2304 for the 6 GB model.
Ray tracing cores
1815Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 18 ray tracing units.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: 18 RT cores, 2nd generation.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 18 RT cores.
AI cores
7215Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 72 matrix units.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: 72 Tensor cores, 3rd generation.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 72 Tensor cores.
ROPs
3215Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 2304 ALUs, 72 TMUs and 32 ROPs.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 32 ROPs.
L2 cache
2MB15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: Level-2 cache 2 MiB.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 2 MB L2 cache. This is the only source for the figure.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
Not available
AI performance (claimed)
Not available

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
1,477MHz3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Specification table copied from GIGABYTE: Core Clock 1477 MHz (Reference Card: 1470 MHz). The reference card value equals NVIDIA's boost clock, so GIGABYTE's Core Clock is the boost clock. Pana Compu lists it as Core Clock (Boost) 1477 MHz.9Retailer pagepanacompu.com/peru/en/product-information/gigabyte-geforce-rtx-3050-windforce-oc-v2-graphics-card-6gb-gddr6-96-bit-1470mhz-2304-cuda-cores-2x-hdmi-2x-displayport-4-6-openglRead 15 October 2026Specifications: Core Clock 1470 MHz and Core Clock (Boost) 1477 MHz.
Boost clock in OC mode
Not available
Reference boost clock
1,470MHz16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table, RTX 3050 6 GB column: boost clock 1470 MHz. NVIDIA writes 1.47 GHz.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: boost 1470 MHz.

Memory

VRAM
6GB11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Standard Memory Config: 6 GB GDDR6.
VRAM type
GDDR611Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Standard Memory Config: 6 GB GDDR6.
Memory bus width
96bits11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Memory Interface Width: 96-bit.
Memory speed
14Gbps3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Memory Clock 14000 MHz, which is 14 Gbps effective.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: memory speed 14 Gbps.
Memory bandwidth
168GB/s15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: 168 GB/s.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: 168 GB/s on a 96-bit interface.17Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3050 6 GB row: 6 GB GDDR6, 96-bit, 14 GT/s, 168 GB/s.

Connectivity

PCIe generation
43Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Card Bus PCI-E 4.0.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026PCI Express Gen 4: Yes.
PCIe lanes
815Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: PCI Express 4.0 x8.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: PCIe 4.0 x8. A chip-level figure from a review of an MSI 6 GB card. ASUS states no lane count.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.12Not available
DisplayPort1.4a232.4
Source3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Output: DP1.4a*2 and HDMI 2.1*2. The distributor data sheet writes DisplayPort 1.4. Scan and JIB write 1.4a, which matches NVIDIA's footnote for the RTX 3050. The 32.4 Gbps link rate is the DisplayPort 1.4 HBR3 rate.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 20262 HDMI ports (HDMI 2.1) and 2 DisplayPorts (version 1.4).6Retailer pagescan.co.uk/products/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-ray-tracing-graphics-card-dlss-4-2304-corRead 15 October 2026Connectivity: 2 x DisplayPort 1.4a and 2 x HDMI 2.1.7Retailer pagejib.co.th/web/product/readProduct/73713/2115/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--GIGABYTE-GEFORCE-RTX-3050-WINDFORCE-OC-V2-6G---6GB-GDDR6--GV-N3050WF2OCV2-6GD-Read 15 October 20262 x HDMI 2.1 and 2 x DisplayPort 1.4a.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Standard Display Connectors: HDMI and 2x DisplayPort. Footnote 4: DisplayPort 1.4a. Footnote 3: HDMI as specified in HDMI 2.1.
Display outputs in total
4
HDMI ports
2
DisplayPort ports
2
Highest HDMI version
2.1
Highest DisplayPort version
1.4a
Fastest DisplayPort link
32.4Gbps
Max displays
43Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Multi-view: 4.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Maximum displays per video card: 4.
Max output resolution
Resolution7680 × 4320 pxRefresh rate60 Hz3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Digital max resolution 7680x4320. GIGABYTE gives no refresh rate. The 60 Hz is NVIDIA's figure for 8K with DisplayPort 1.4a and DSC or HDMI 2.1 and DSC.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Maximum Digital Resolution 7680x4320. Footnote 2: up to 8K 12-bit HDR at 60 Hz with DP 1.4a and DSC or HDMI 2.1 and DSC.
HDCP version
2.311Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026HDCP: 2.3.

Video engine

Video encoders
112Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 3050 desktop row: 7th Gen NVENC, 1 chip, 1 total.
Video decoders
112Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 3050 desktop row: 5th Gen NVDEC, 1 chip, 1 total.
Hardware video encode
H.264, H.265 (HEVC)12Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026Same row: H.264 and H.265 encode are marked YES and AV1 encode is NO. The row covers the RTX 3050 family, not only the 6 GB model.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV112Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026Same row: H.264, H.265, VP9 and AV1 decode are marked YES. The table has no VVC column.

Graphics features

DirectX
12 Ultimate3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026DirectX 12 Ultimate.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Microsoft DirectX 12 Ultimate: Yes.
Vulkan
1.413Maker product pagedeveloper.nvidia.com/vulkan-driverRead 15 October 2026NVIDIA lists the GeForce RTX 3050 among the GeForce RTX 30 Series GPUs with full Vulkan 1.4 support.
OpenGL
4.63Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026OpenGL 4.6.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Row: Vulkan RT API, OpenGL 4.6.
Upscaling technologies
DLSS11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026NVIDIA DLSS: Yes. The page gives no DLSS version and no frame generation, so the plain name is stored. The ASUS page also says NVIDIA DLSS without a version.
Frame generation
Not available

Power

Board power
Not available
Reference board power
70W11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Graphics Card Power 70 W for the 6 GB model. NVIDIA says the table describes the Founders Edition or reference design.15Reviewpcgameshardware.de/Geforce-RTX-3050-6GB-Grafikkarte-280241/Tests/6GB-vs-8GB-RTX-3050-vs-RX-6600-vs-A580-1444664Read 15 October 2026Spec table: board power 70 W.16Reviewcomputerbase.de/2024-02/geforce-rtx-3050-6-gb-testRead 15 October 2026Spec table: TDP 70 W.
PSU wattage (card maker)
300W3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Recommended PSU 300W. NVIDIA states 300 W required system power for the RTX 3050 6 GB.
Power connector
None3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Power Connectors: N/A. The card takes its power from the PCIe slot.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3050Read 15 October 2026Supplementary Power Connectors: none for the 6 GB model.

Cooling

Cooler type
Open air4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Cooling type: Active. Cooling technology: GIGABYTE WINDFORCE 2X.5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026WINDFORCE cooling: two blade fans with alternate spinning blow onto the heatsink.
Fans
24Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Number of fans: 2.5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026Two unique blade fans, number of fans 2.
Radiator size
Not available
Fan stop at low load
Yes5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 20263D Active Fan text copied from GIGABYTE: semi-passive cooling, the fans remain off in a low load or low power game. No temperature threshold is stated.
Dual BIOS
Not available

Dimensions and weight

Length
191mm3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Card size L=191 W=111 H=36 mm. GIGABYTE writes W as the card height and H as the thickness. The listing does not say whether the bracket is included.
Height
111mm3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Second value of L=191 W=111 H=36 mm.
Thickness
36mm3Retailer pageshop.screwlooseit.com.au/product/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6g-1477-mhz-cuda-2304-14000-mhz-gddr6-96-bit-pci-e-4-0-psu-300w-dp1-4a2-hdmi-2-12Read 15 October 2026Third value of L=191 W=111 H=36 mm.
Slot width
Not available
Low profile
No4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/922196f1/67abb0e3e98d37805e8c7bee/product-pdfRead 15 October 2026Form factor: Full-Height/Half-Length (FH/HL) in the data sheet copy dated 2025-10-30, so the card is not low profile.
NVIDIA SFF-Ready
Not available
Weight
399g(14.1 oz)10Retailer pageamazon.com/GIGABYTE-GeForce-WINDFORCE-Graphics-GV-N3050WF2OCV2-6GD/dp/B0DQK4XSC7Read 15 October 2026Item Weight 14.08 ounces, which is 399 g. Amazon UK gives 399 g for the same model number. Other listings give about 640 to 680 g, which look like shipping weights with the box. A 399 g box would be too light, so 399 g is read as the card.
Package weight
Not available

Lighting and software

RGB lighting
Not available
Lighting sync
Not available
Software
GIGABYTE Control Center5Retailer pageshop.sumillion.com/gigabyte-geforce-rtx-3050-windforce-oc-v2-6g-nvidia-6-gb-gddr6-gv-n3050wf2ocv2-6gd.htmlRead 15 October 2026GIGABYTE CONTROL CENTER (GCC) adjusts clock speed, voltage, fan mode and power target.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Quick Guide8Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-graphics-card-gv-n3050wf2ocv2-6gdRead 15 October 2026In the box: Quick Guide only.
Power adapter cable included
No8Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-graphics-card-gv-n3050wf2ocv2-6gdRead 15 October 2026The box holds only a quick guide, and the card needs no power cable.
Support bracket included
No8Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-graphics-card-gv-n3050wf2ocv2-6gdRead 15 October 2026The box holds only a quick guide.

Warranty

Manufacturer warranty (source market)
3years6Retailer pagescan.co.uk/products/gigabyte-nvidia-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-ray-tracing-graphics-card-dlss-4-2304-corRead 15 October 2026Scan UK warranty duration 36 months. The market is the United Kingdom. The listing is a pre-order awaiting an ETA.7Retailer pagejib.co.th/web/product/readProduct/73713/2115/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--GIGABYTE-GEFORCE-RTX-3050-WINDFORCE-OC-V2-6G---6GB-GDDR6--GV-N3050WF2OCV2-6GD-Read 15 October 2026Warranty 3 Years. The market is Thailand. Pana Compu in Peru and netcodex.ph in the Philippines also state 3 years.8Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3050-windforce-oc-v2-6gb-gddr6-graphics-card-gv-n3050wf2ocv2-6gdRead 15 October 20263 years. The market is the Philippines.9Retailer pagepanacompu.com/peru/en/product-information/gigabyte-geforce-rtx-3050-windforce-oc-v2-graphics-card-6gb-gddr6-96-bit-1470mhz-2304-cuda-cores-2x-hdmi-2x-displayport-4-6-openglRead 15 October 2026Gigabyte Standard Warranty, 3 Year Warranty. The market is Peru.10Retailer pageamazon.com/GIGABYTE-GeForce-WINDFORCE-Graphics-GV-N3050WF2OCV2-6GD/dp/B0DQK4XSC7Read 15 October 2026Warranty Description 3 Year Manufacturer. The market is the United States.

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 17 sources for this graphics card. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 1 field
  2. Read 15 October 2026Backs 1 field
  3. Read 15 October 2026Backs 14 fields
  4. Read 15 October 2026Backs 8 fields
  5. Read 15 October 2026Backs 7 fields
  6. Read 15 October 2026Backs 4 fields
  7. Read 15 October 2026Backs 3 fields
  8. Read 15 October 2026Backs 5 fields
  9. Read 15 October 2026Backs 2 fields
  10. Read 15 October 2026Backs 5 fields
  11. Read 15 October 2026Backs 15 fields
  12. Read 15 October 2026Backs 4 fields
  13. Read 15 October 2026Backs 1 field
  14. Read 15 October 2026Backs 1 field
  15. Read 15 October 2026Backs 12 fields
  16. Read 15 October 2026Backs 8 fields
  17. Read 15 October 2026Backs 12 fields

See a wrong value? Tell us and name the field.
