PC parts / Graphics cards

GIGABYTEGraphics card

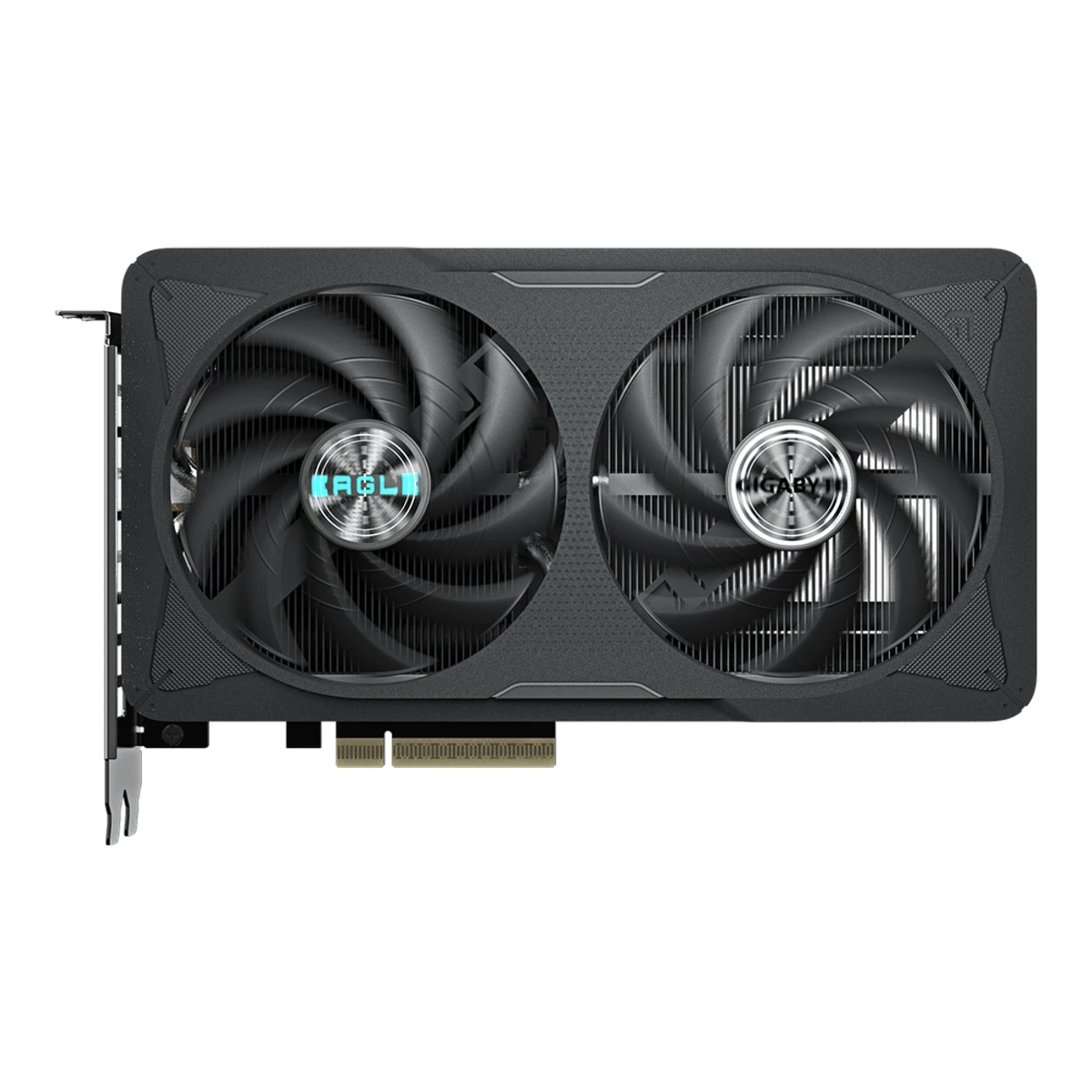

GeForce RTX 5060 EAGLE OC 8G

Released May 2025.1 Last checked 15 October 2026.

GPU: NVIDIA GeForce RTX 5060
VRAM: 8GB
Length: 208mm
Board power: 145W

66 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Thickness
40mm1 2 3
Lower than 84% of other graphics cards. Lower is better.
PSU wattage
550W1 4 6
Lower than 77% of other graphics cards. Lower is better.

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: EAGLE1
Model numbers: GV-N5060EAGLE OC-8GD1 2 3
GTIN / EAN: 47193313564392
Announced: Not available
Status: Available5
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Not available
GPU: NVIDIA GeForce RTX 50606
GPU brand: NVIDIA6
Reference launch price (US): $2999

GPU

GPU architecture: Blackwell6
GPU die: GB2069
Process: TSMC 4N10
Transistors: 21.9billion10
Die size: 181mm²10
Compute units: 309
Shader cores: 3,8401 6 9
Ray tracing cores: 309
AI cores: 1209
ROPs: 489
L2 cache: 32MB11 12
Infinity Cache (L3): Not available
FP32 compute (claimed): 19.2TFLOPS12
AI performance (claimed): Precision With sparsity Throughput (TOPS)
FP4 No 307
FP4 Yes 614
Source11

Precision	With sparsity	Throughput (TOPS)
FP4	No	307
FP4	Yes	614

Clocks

Base clock: Not available
Game clock: Not available
Boost clock: 2,550MHz1 2 4
Boost clock in OC mode: Not available
Reference boost clock: 2,497MHz1 4

Memory

VRAM: 8GB1 6
VRAM type: GDDR76
Memory bus width: 128bits1 6
Memory speed: 28Gbps1 9
Memory bandwidth: 448GB/s9

Connectivity

PCIe generation: 56
PCIe lanes: 810
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source1 2 3 6
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 41 2 6
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz6
HDCP version: 2.36

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1b UHBR20	3	80

Video engine

Video encoders: 16
Video decoders: 16
Hardware video encode: H.264, H.265 (HEVC), AV17
Hardware video decode: H.264, H.265 (HEVC), VP9, AV17

Graphics features

DirectX: 12 Ultimate6
Vulkan: 1.46
OpenGL: 4.66
Upscaling technologies: DLSS 46
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation6

Power

Board power: Not available
Reference board power: 145W6 9
PSU wattage (card maker): 550W1 4 6
Power connector: 1 x 8-pin PCIe1 2 3 6

Cooling

Cooler type: Open air1
Fans: 22 3
Radiator size: Not available
Fan stop at low load: Yes1
Dual BIOS: Not available

Dimensions and weight

Length: 208mm1 2 3 4
Height: 120mm1 2 3
Thickness: 40mm1 2 3
Slot width: Not available
Low profile: No2 3
NVIDIA SFF-Ready: Not available
Weight: 540g(1.2 lb)2 3
Package weight: 880g(1.9 lb)2

Lighting and software

We could not find any of these 3 fields. Show them

RGB lighting: Not available
Lighting sync: Not available
Software: Not available

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: Quick guide1 2 4
Power adapter cable included: No1
Support bracket included: No1

Warranty

We could not find any of these 1 fields. Show them

Manufacturer warranty (source market): Not available

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 12 sources for this graphics card. The numbers match the markers in the sheet.

Maker product pagegigabyte.com/Graphics-Card/GV-N5060EAGLE-OC-8GD/sp
Read 14 October 2026Backs 24 fields
Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-eagle-oc-8gb-gddr7-gv-n5060eagle-oc-8gd-41898
Read 14 October 2026Backs 14 fields
Retailer pageparadigit.ie/outlet-gigabyte-geforce-rtx-5060-eagle-oc-8g/80069985/product
Read 14 October 2026Backs 9 fields
Retailer pageavadirect.com/GeForce-RTX-5060-EAGLE-OC-8G-2497-2550MHz-8GB-GDDR7-Graphics-Card/Product/19008087
Read 14 October 2026Backs 5 fields
Retailer pageus.computerorbit.com/collections/graphics-cards/products/gigabyte-rtx-5060-eagle-oc-8gb-graphics-card
Read 14 October 2026Backs 1 field
Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-family
Read 14 October 2026Backs 22 fields
Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrix
Read 14 October 2026Backs 2 fields
Press releasenvidia.com/en-us/geforce/news/rtx-5060-out-now
Read 14 October 2026Backs 1 field
Reviewguru3d.com/review/geforce-rtx-5060-8gb-review
Read 14 October 2026Backs 11 fields
Reviewguru3d.com/review/geforce-rtx-5060-8gb-review/page-2
Read 14 October 2026Backs 4 fields
Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.html
Read 14 October 2026Backs 2 fields
Reviewmezha.ua/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350
Read 14 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
