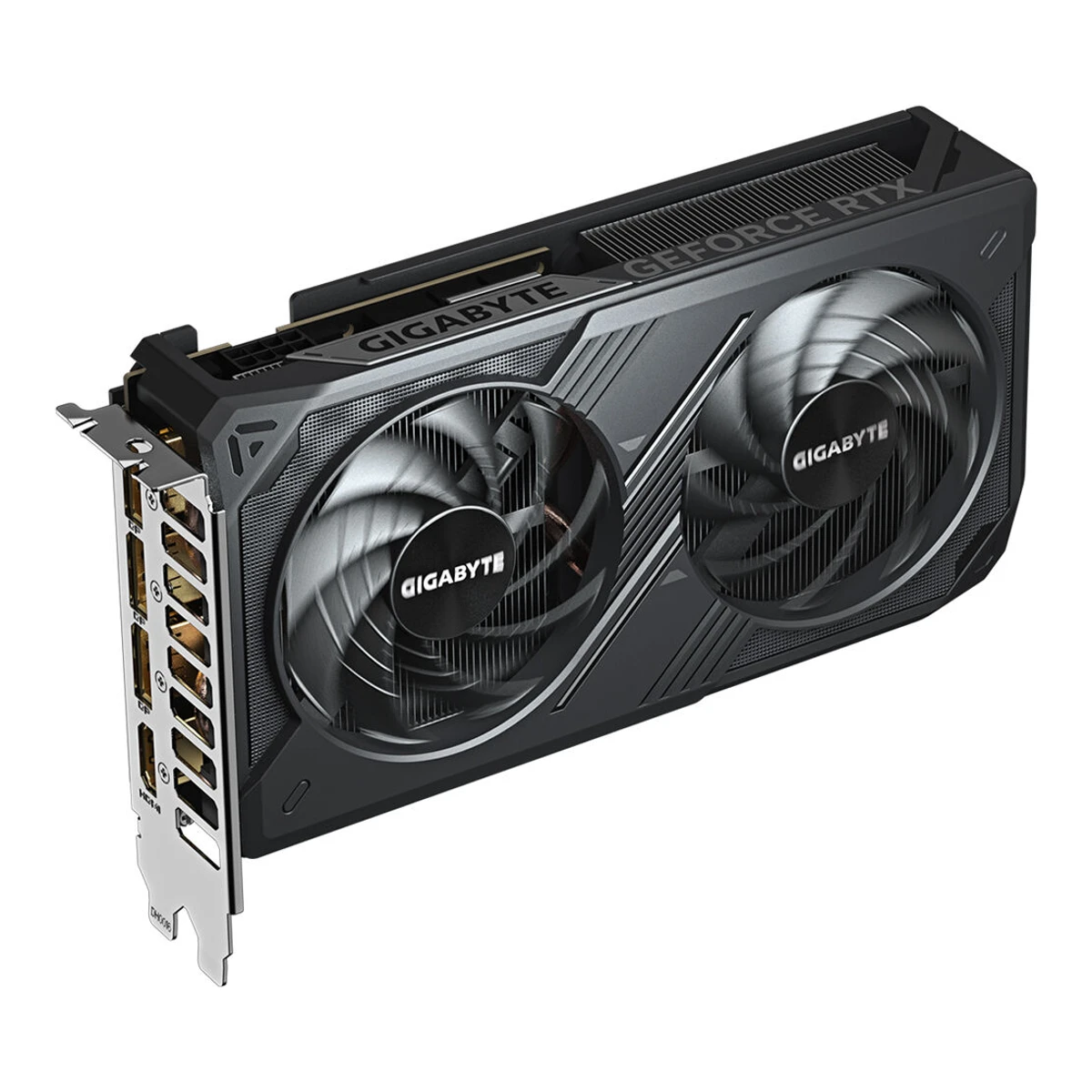

GIGABYTE GeForce RTX 5060 Windforce OC 8G

GIGABYTEGraphics card

GeForce RTX 5060 Windforce OC 8G

Released May 2025.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Review dated 2025-05-30 of this exact card. It states the RTX 5060 launched on 2025-05-19. Last checked 16 October 2026.

GPU
NVIDIA GeForce RTX 5060
VRAM
8GB
Length
199mm
Board power
145W

64 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
WINDFORCE1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Product name GeForce RTX 5060 WINDFORCE OC 8G.
Model numbers
GV-N5060WF2OC-8GD1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Spec page of GV-N5060WF2OC-8GD.
GTIN / EAN
47193313563234Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026Barcode 4719331356323 for GV-N5060WF2OC-8GD.
Announced
Not available
Status
Available5Retailer pagevideocardprices.com/card/nvidia-rtx-5060Read 14 October 2026Listed as in stock at Amazon as of 2026-10-13.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
NVIDIA GeForce RTX 50609Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
GPU brand
NVIDIA9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
Reference launch price (US)
$2997Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: starting price of 299 USD.

GPU

GPU architecture
Blackwell9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB2067Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: GB206-250. The text says the RTX 5060 uses the same GB206 silicon as the RTX 5060 Ti.8Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Review of the RTX 5060 Ti, which uses the full GB206 die. Guru3D states the RTX 5060 uses the same die.
Process
TSMC 4N8Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: TSMC N4 (4nm). NVIDIA names its Blackwell node 4N, so the value is written as TSMC 4N like the RTX 5070 cards.
Transistors
21.9billion8Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: 21.9bn transistors. A cut-down GPU keeps the full count of its die.
Die size
181mm²8Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: 181 mm2.
Compute units
307Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: the RTX 5060 disables six of the 36 streaming multiprocessors of GB206, which leaves 30.
Shader cores
3,8401Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 20267Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 3840 CUDA cores.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 column: NVIDIA CUDA cores 3840.
Ray tracing cores
307Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 30 RT cores.
AI cores
1207Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 120 Tensor cores.
ROPs
487Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 48 ROPs.
L2 cache
Not available
Infinity Cache (L3)
Not available
FP32 compute (claimed)
Not available
AI performance (claimed)
Not available

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,512MHz1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Core Clock 2512 MHz, with the reference card at 2497 MHz. gigabyte.com blocks agents, so the page was read only through web search excerpts of its spec tab. The values match the retailer copy at netcodex.ph.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Core Clock row: 2512 MHz (Reference: 2497 MHz).
Boost clock in OC mode
Not available
Reference boost clock
2,497MHz1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Core Clock: Reference card 2497 MHz. NVIDIA rounds it to 2.50 GHz.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Core Clock row: Reference 2497 MHz.

Memory

VRAM
8GB1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 20267Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 20269Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 column: 8 GB GDDR7.
VRAM type
GDDR79Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
Memory bus width
128bits1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 20267Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 20269Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 column: memory interface width 128-bit.
Memory speed
28Gbps1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 20267Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 20268 GB of GDDR7 at 28 Gbps on a 128-bit bus.
Memory bandwidth
448GB/s7Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 448 GB/s.

Connectivity

PCIe generation
59Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026PCI Express Gen 5.
PCIe lanes
82Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Card Bus row: PCI-Express 5.0 x8.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Shortened PCB with a PCIe 5.0 x8 connector.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026DisplayPort 2.1b x 3 and HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5060 page.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Outputs: 3x DisplayPort 2.1b and 1x HDMI 2.1b.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. Three DisplayPort and one HDMI.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
41Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Multi-view 4.4Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026Maximum displays per videocard: 4.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Up to 4 independent displays at 4K 165 Hz.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Maximum digital resolution: 4K at 480 Hz or 8K at 165 Hz with DSC. Gigabyte states 7680 x 4320 as the digital maximum.
HDCP version
2.39Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026HDCP 2.3.

Video engine

Video encoders
19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 20261 x ninth-generation NVENC.
Video decoders
19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 20261 x sixth-generation NVDEC.
Hardware video encode
H.264, H.265 (HEVC), AV110Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 row: H.264, HEVC and AV1 encode.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV110Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 row: decode for H.264, HEVC, VP9 and AV1 among others.

Graphics features

DirectX
12 Ultimate9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Microsoft DirectX 12 Ultimate.
Vulkan
1.49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 202611Maker product pagedeveloper.nvidia.com/vulkan-driverRead 14 October 2026NVIDIA lists the GeForce RTX 5060 under full Vulkan 1.4 support.
OpenGL
4.69Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Vulkan 1.4, OpenGL 4.6.
Upscaling technologies
DLSS 49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Spec table lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.

Power

Board power
Not available
Reference board power
145W7Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026145 W total graphics power.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Total Graphics Power 145 W for the RTX 5060.
PSU wattage (card maker)
550W1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Recommended PSU 550W. Some retailer feeds list 450 W for this card. NVIDIA states 550 W required system power for the chip.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Recommended PSU 550W.
Power connector
1 x 8-pin PCIe1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Power Connectors: 8 pin x 1.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Power Connectors: 1x 8-pin.

Cooling

Cooler type
Open air1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026WINDFORCE cooling with Hawk fans on a heatsink with composite copper heat pipes and a copper plate.
Fans
22Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Cooling row: WINDFORCE dual fan with Hawk fans, alternate spinning.3Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5060-windforce-oc-graphics-cardRead 14 October 2026Cooler listed as an open fansink with two fans.4Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026Number of fans: 2.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Dual-fan WINDFORCE cooler with two alternate-spinning Hawk fans.
Radiator size
Not available
Fan stop at low load
Yes1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Cooling text: the 3D Active Fan provides semi-passive cooling, and the fans remain off in a low load or low power game. No temperature threshold is stated.3Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5060-windforce-oc-graphics-cardRead 14 October 2026Page text: with the 3D Active Fan design, the fans stop spinning during low loads.
Dual BIOS
Not available

Dimensions and weight

Length
199mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Card Size L=199 W=116 H=40 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Card Size row: 199 x 116 x 40 mm.3Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5060-windforce-oc-graphics-cardRead 14 October 2026Length 199 mm and height 116 mm.4Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026Length 199 mm, depth 40 mm, height 116 mm.
Height
116mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Second value of L=199 W=116 H=40 mm.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 20263Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5060-windforce-oc-graphics-cardRead 14 October 20264Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026
Thickness
40mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Third value of L=199 W=116 H=40 mm.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 20264Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026
Slot width
Not available
Low profile
No4Retailer pagecomputerg.shop/shop/gigabyte-rtx-5060-windforce-oc-8gb-gddr7-gv-n5060wf2oc-8gd-35438Read 14 October 2026Form factor: Full-Height/Half-Length (FH/HL). The card has a full-height bracket.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Described as a full-height card.
NVIDIA SFF-Ready
Not available
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
No2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Lighting row: none, RGB-free aesthetic.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Described as RGB-free.
Lighting sync
Not available
Software
Not available

Measured performance

GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
GameWidth (px)Height (px)PresetUpscalingRay tracingAverage FPS
Cyberpunk 207725601440Ray Tracing LowOffYes58.62
Cyberpunk 207719201080Ray Tracing LowOffYes94.42
F1 2325601440Ultra High, TAA, 16x AFOffNo46
F1 2319201080Ultra High, TAA, 16x AFOffNo67
Far Cry 625601440Ultra, DXR reflections and shadows onOffYes55
Far Cry 619201080Ultra, DXR reflections and shadows onOffYes71
Shadow of the Tomb Raider25601440Maxed, RT Shadow Quality UltraOffYes54
Shadow of the Tomb Raider19201080Maxed, RT Shadow Quality UltraOffYes92
Black Myth: Wukong25601440High, Super Resolution 100 (TSR)OffNo44
Black Myth: Wukong19201080High, Super Resolution 100 (TSR)OffNo65
Source6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Each game benchmark ran with upscaling and frame generation off at the default fan curve, on the Ryzen 7 7800X3D system with GeForce driver 576.52. The review gives average, minimum and maximum fps and no 1 percent lows. Black Myth: Wukong ran with Super Resolution at 100 (TSR). The review gives no run length. Assassin Creed Mirage is not stored because the review ran it with an adaptive quality target of 60 fps. The temperatures of the F1 23 run (GPU average 70.0 C) are not stored because it was a three-lap run of a few minutes.

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

Card power at idle (measured)
Not available
GPU power while gaming (measured)
144.2W6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026HWiNFO64 GPU Power average of 144.2 W (minimum 80.2 W, maximum 145.9 W) in the F1 23 built-in benchmark, 1440p Ultra High, Singapore Circuit, three laps, default fan curve, open-air bench at about 28 C. A software reading, not a hardware capture. Test system: Ryzen 7 7800X3D at stock, Gigabyte X670E AORUS MASTER, 32 GB DDR5-6000 CL28, GeForce driver 576.52, Windows 11 24H2.

In the box

In the box
Quick guide1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026Accessories: quick guide only.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5060-windforce-oc-8gb-gddr7-graphics-card-gv-n5060wf2oc-8gdRead 14 October 2026Accessories row: quick guide.6Reviewalktech.co/articles/review-gigabyte-geforce-rtx-5060-windforce-oc-8gRead 14 October 2026Only a quick start guide comes with the card.
Power adapter cable included
No1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026The accessories list is the quick guide only. The card takes one PCIe 8-pin cable directly.
Support bracket included
No1Maker product pagegigabyte.com/Graphics-Card/GV-N5060WF2OC-8GD/spRead 14 October 2026The accessories list is the quick guide only.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
