PC parts / Graphics cards

GIGABYTEGraphics card

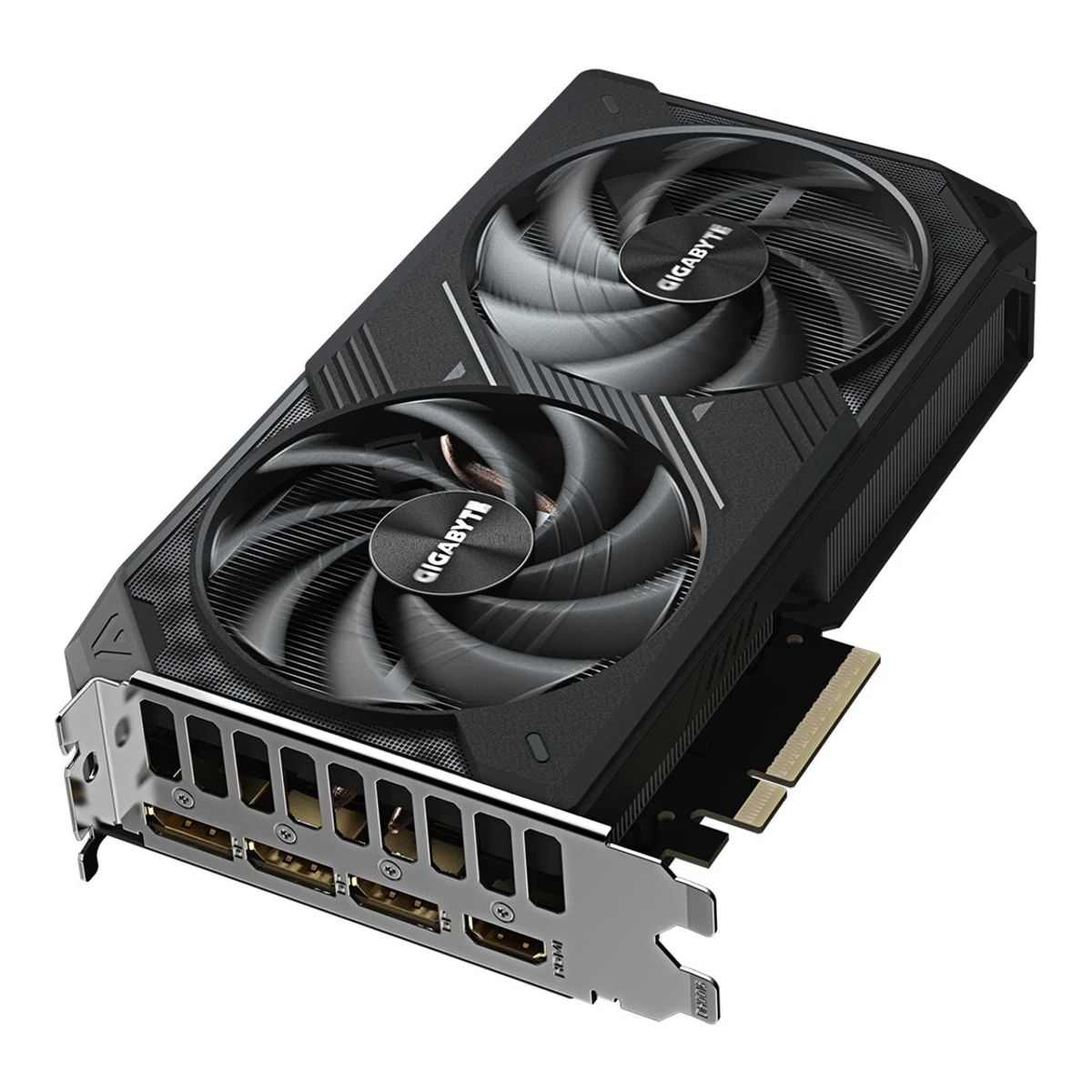

GeForce RTX 5060 Ti WINDFORCE OC 8G

Released April 2025.7 Last checked 14 October 2026.

GPU: NVIDIA GeForce RTX 5060 Ti
VRAM: 8GB
Length: 208mm
Board power: 180W

65 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Thickness
40mm2 3 4
Lower than 84% of other graphics cards. Lower is better.

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: WINDFORCE3
Model numbers: GV-N506TWF2OC-8GD3
GTIN / EAN: 47193313560573
Announced: Not available
Status: Available3 4
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black3 4
GPU: NVIDIA GeForce RTX 5060 Ti6
GPU brand: NVIDIA6
Reference launch price (US): $3797

GPU

GPU architecture: Blackwell6
GPU die: GB2068
Process: TSMC 4N9
Transistors: 21.9billion8
Die size: 181mm²8
Compute units: 368
Shader cores: 4,6086
Ray tracing cores: 368
AI cores: 1448
ROPs: 488
L2 cache: 32MB9
Infinity Cache (L3): Not available
FP32 compute (claimed): 23.7TFLOPS8
AI performance (claimed): Not available

Clocks

Base clock: Not available
Game clock: Not available
Boost clock: 2,587MHz2 3 5
Boost clock in OC mode: Not available
Reference boost clock: 2,572MHz2 5 8

Memory

VRAM: 8GB2 6
VRAM type: GDDR72 6
Memory bus width: 128bits2 6
Memory speed: 28Gbps2 8
Memory bandwidth: 448GB/s8

Connectivity

PCIe generation: 52 3 6
PCIe lanes: 83 9
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source2 3 6
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 42 3 5 6
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz6
HDCP version: 2.36

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1b UHBR20	3	80

Video engine

Video encoders: 16
Video decoders: 16
Hardware video encode: H.264, H.265 (HEVC), AV110
Hardware video decode: H.264, H.265 (HEVC), VP9, AV110

Graphics features

DirectX: 12 Ultimate6
Vulkan: 1.46 11
OpenGL: 4.62 3 6
Upscaling technologies: DLSS 46
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation6

Power

Board power: Not available
Reference board power: 180W6
PSU wattage (card maker): 650W2 3 4
Power connector: 1 x 8-pin PCIe2 3 4

Cooling

Cooler type: Open air3
Fans: 23 4 5
Radiator size: Not available
Fan stop at low load: Yes2
Dual BIOS: Not available

Dimensions and weight

Length: 208mm2 3 4
Height: 120mm2 3 4
Thickness: 40mm2 3 4
Slot width: Not available
Low profile: No3 4
NVIDIA SFF-Ready: Not available
Weight: 580g(1.3 lb)3 4
Package weight: 850g(1.9 lb)3

Lighting and software

We could not find any of these 3 fields. Show them

RGB lighting: Not available
Lighting sync: Not available
Software: Not available

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: Quick guide2
Power adapter cable included: No2
Support bracket included: No2

Warranty

Manufacturer warranty (source market): 3years2 3 5
