PC parts / Graphics cards
XFXGraphics card

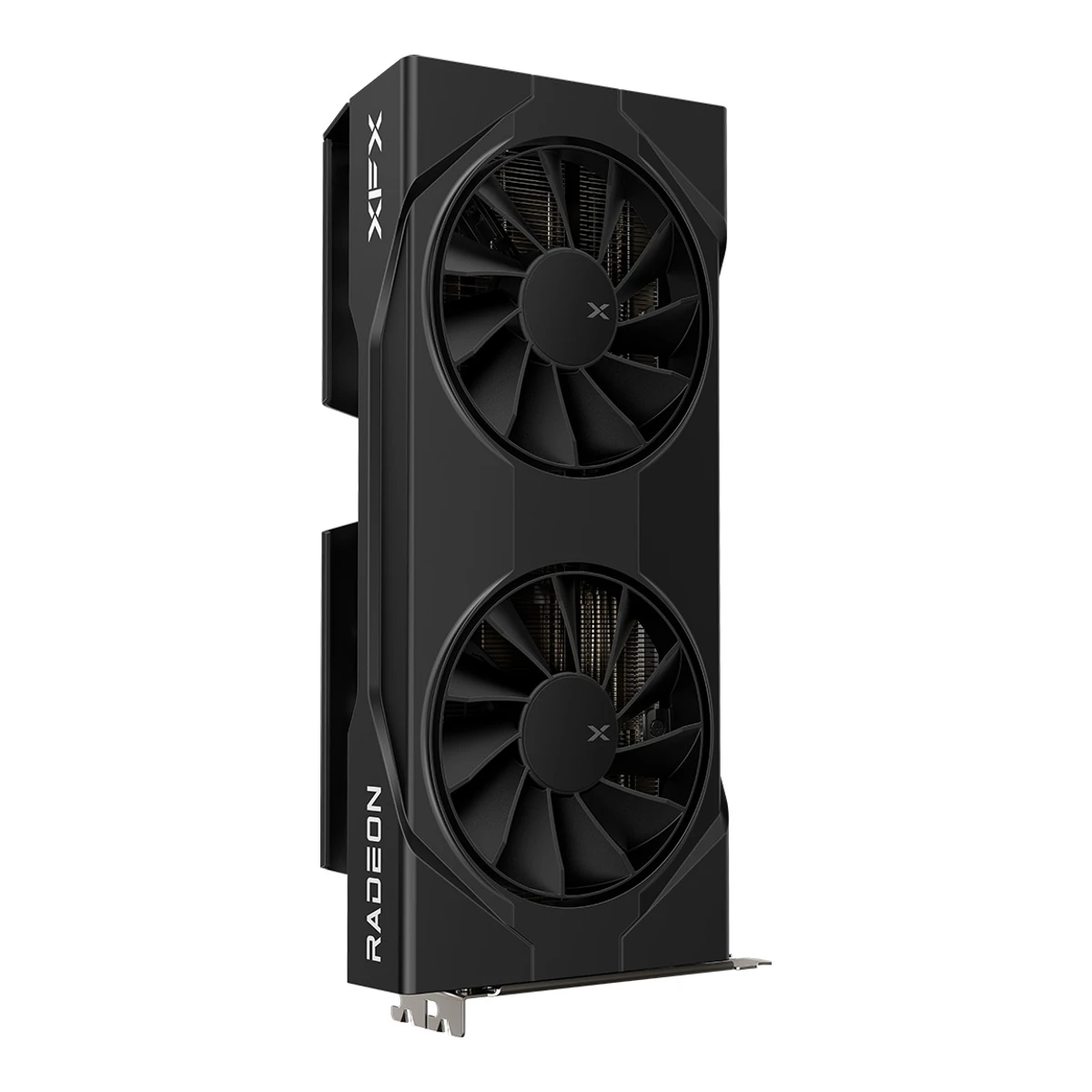

Swift Radeon RX 9060 XT OC Gaming Edition 16GB
Released June 2025.1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Launch Date: June, 2025. Last checked 16 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 270mm
- Board power
- 182W
70 of 100 fields known.
At a glance
Boost clock
Higher than 97% of other graphics cards.
PSU wattage
450W1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Minimum Power Supply Requirement 450 watt.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Minimum PSU Recommendation 450 W for the chip. XFX states the same 450 W.
Lower than 94% of other graphics cards. Lower is better.
Reference boost clock
Higher than 92% of other graphics cards.
Game clock
Higher than 90% of other graphics cards.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- RX-96TSW16BQ, RX-96TSW16WQ1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Model Number RX-96TSW16BQ. The White card RX-96TSW16WQ has its own XFX page with the same text.2Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-white-gaming-edition-16gbRead 14 October 2026Model Number RX-96TSW16WQ.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026The reviewed card is XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB (RX-96TSW16BQ), a dual-fan card.
- GTIN / EAN
- 840191503214, 8401915032211Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026UPC Number 840191503214 for the black card. The White page prints 840191503221.2Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-white-gaming-edition-16gbRead 14 October 2026UPC Number 840191503221.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $349.9910Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Review of RX-96TSW16BQ dated 2025-06-04: the card has an MSRP of $349 at launch. PC Perspective writes that the dual-fan Swift is at AMD's $349.99 MSRP. The stored $349.99 is a US price and the reviews name no tax.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Review of the triple-fan card dated 2025-06-05: XFX will offer the dual-fan Swift with the same clock speeds and specs at AMD's $349.99 USD MSRP.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, White1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Features: Black Fanshroud. The White page lists a White Fanshroud and the same specs, so the White card is a colour variant.2Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-white-gaming-edition-16gbRead 14 October 2026Features: White Fanshroud. Every other row matches the black page.
- GPU
- AMD Radeon RX 9060 XT1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
GPU
- GPU architecture
- RDNA 46Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- GPU die
- Navi 4410Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: the chip is Navi 44.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026The basis of the 9060 XT is the chip Navi 44.
- Process
- TSMC N4P10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: TSMC N4P.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Produced on TSMC's N4P node.
- Transistors
- 29.7billion5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Transistor Count 29.7 B.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: 29.7 billion transistors.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 202629.7 billion transistors.
- Die size
- 199mm²10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: die size 199 mm2.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Approximately 199 mm2.
- Compute units
- 321Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Compute Units 32.
- Shader cores
- 2,0481Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Stream Processors 2048.
- Ray tracing cores
- 325Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Ray Accelerators 32.
- Infinity Cache (L3)
- 32MB5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026AMD Infinity Cache Technology 32 MB.
- FP32 compute (claimed)
- 25.6TFLOPS5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- 1,900MHz1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Primary Clock Speeds: Base Clock Up To 1900 MHz.
- Game clock
- 2,780MHz1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Game Clock Up To 2780 MHz.
- Boost clock
- 3,320MHz1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Boost Clock Up to 3320 MHz.
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 16GB1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Max Memory Size 16 GB, GDDR6, 128-bit.
- VRAM type
- GDDR61Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- Memory bus width
- 128bits1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
Connectivity
- PCIe generation
- 51Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Bus Type PCI-E 5.0.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.
- PCIe lanes
- 165Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 6: AMD provides a full PCIe 5.0 x16 interface.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1a UHBR13.5 2 54 Source1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Outputs: DisplayPort 2.1 x2 and HDMI 2.1 x1. The version letters and the UHBR13.5 class come from AMD and Igor's Lab.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Connectivity: DisplayPort 2.1a and HDMI 2.1b.9Reviewigorslab.de/en/xfx-swift-radeon-rx-9060-xt-und-sapphire-nitro-rx-9060-xt-im-test-amds-antwort-auf-die-geforce-rtx-5060-tiRead 14 October 2026Page 1: the Radeon RX 9060 XT is fully compatible with DisplayPort 2.1a at UHBR13.5 and HDMI 2.1b. UHBR13.5 is 54 Gbps. The review covers the triple-fan Swift, and the display engine is the same on the chip.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- Not available
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz7Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026Dated 2025-02-28. The AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b with up to 8K 144 Hz and 12-bit HDR. This is a family figure for RDNA 4. Neither XFX nor the RX 9060 XT product page states a maximum output mode.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV11Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Other Features: 4K H264 and H265/HEVC and AV1 encode.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), AV11Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Other Features: 4K H264, H265/HEVC and AV1 decode. The page does not list VP9.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026H264, H265/HEVC and AV1 decode: Yes. The page does not list VP9.
Graphics features
Power
- Reference board power
- 160W5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Typical Board Power (Desktop) 160 W.
- PSU wattage (card maker)
- 450W1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Minimum Power Supply Requirement 450 watt.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Minimum PSU Recommendation 450 W for the chip. XFX states the same 450 W.
- Power connector
- 1 x 8-pin PCIe1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026External Power: 1x PCI-E 8 pin connections.5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Additional Power Connector 1x8-Pin.
Cooling
- Cooler type
- Open air1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Dual Fan Design with a nickel-plated copper cold plate and 6 mm heatpipes. The fans blow onto the heatsink, and The FPS Review describes a vented air pass-through.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: shroud and full backplate with vented air pass-through. The remaining length is heatsink and air passes through.
- Fans
- 21Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Thermal Solution: 2 Fan.3Maker product pagexfxforce.com/gpu/amd-radeon-rx-9060Read 14 October 2026The 9060 XT series comes as a triple-fan and a dual-fan edition. The dual-fan card is the one listed as RX-96TSW16BQ.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: a dual-fan video card.12Press articlepcgameshardware.de/Radeon-RX-9060-XT-16GB-Grafikkarte-281275/News/Custom-Designs-von-XFX-1474174Read 14 October 2026XFX offers the Swift models also in compact variants with only two fans.
- Radiator size
- Not available
Dimensions and weight
- Length
- 270mm1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Estimated Dimensions: Card Dimension 27 x 12.4 x 4.8 cm (10.63 x 4.88 x 1.89 in). XFX does not say whether the bracket is included.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: 10.63 in long, 4.88 in wide and 1.89 in high, which matches XFX.13Retailer pageek.ua/ua/XFX-RADEON-RX-9060-XT-RX-96TSW16BQ.htmRead 14 October 2026Text: compact 270 mm design.
- Height
- 124mm1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Second value of 27 x 12.4 x 4.8 cm.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: 4.88 in.
- Thickness
- 48mm1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026Third value of 27 x 12.4 x 4.8 cm.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: 1.89 in.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- Not available
Lighting and software
- RGB lighting
- No3Maker product pagexfxforce.com/gpu/amd-radeon-rx-9060Read 14 October 2026XFX writes that the LED logo on the shroud is only on select Mercury and select triple-fan Swift models. The dual-fan Swift is not one of them.10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 1: the card does not have any RGB, not even a hint of an LED.12Press articlepcgameshardware.de/Radeon-RX-9060-XT-16GB-Grafikkarte-281275/News/Custom-Designs-von-XFX-1474174Read 14 October 2026XFX Swift models with only two fans have no RGB lighting at all and a restrained look.
- Lighting sync
- Not available
- Software
- Not available
Measured performance
- GPU clock while gaming (measured)
- 3,156MHz10Reviewthefpsreview.com/2025/06/04/xfx-swift-amd-radeon-rx-9060-xt-oc-gaming-edition-16gb-video-card-reviewRead 14 October 2026Page 5, default settings: the exact average clock of the gaming run was 3156 MHz. The text does not name the game or the resolution, and the reviewer used an AMD press driver. Both BIOS positions gave the same clock.
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Cyberpunk 2077 2560 1440 Ultra Off No 75 Indiana Jones and the Great Circle 2560 1440 Supreme Not available Yes 85 Black Myth: Wukong 1920 1080 High Off No 75
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
Links
- Product page
- xfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gb1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026
- Spec sheet
- Not available
- Manual
- cdn.prod.website-files.com/5cfd6904982a74dce7f1d35c/67dd4fc644c9d343104940ed_quickinstallguide_2025.pdf4Owner's manualcdn.prod.website-files.com/5cfd6904982a74dce7f1d35c/67dd4fc644c9d343104940ed_quickinstallguide_2025.pdfRead 14 October 2026XFX Quick Install Guide 2025, linked from the product page. It is a general guide for XFX Radeon cards and names no model.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years1Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gbRead 14 October 2026XFX 3 Year Warranty for this series. The page names no market.
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
XFX Swift Radeon RX 9060 XT OC Triple Fan Gaming Edition 16GB
XFX Swift Radeon RX 9070 OC Triple Fan Gaming Edition 16GB
XFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition
ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC Edition
PowerColor Hellhound AMD Radeon RX 9060 XT 16GB GDDR6
ASRock Radeon RX 9060 XT Steel Legend 16GB OCVariants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Launch price (US) | Markets | Colours |
|---|---|---|---|---|
| RX-96TSW16BQ | 840191503214 | $349.99 | US | Black |
| RX-96TSW16WQ | 840191503221 | Not available | Not available | White |
Sources
We read 13 sources for this graphics card. The numbers match the markers in the sheet.
- Maker product pagexfxforce.com/shop/xfx-swift-amd-radeon-rx-9060xt-oc-gaming-edition-16gb
- Maker product pagexfxforce.com/gpu/amd-radeon-rx-9060
- Certification listkhronos.org/conformance/adopters/conformant-products/vulkan
- Retailer pageek.ua/ua/XFX-RADEON-RX-9060-XT-RX-96TSW16BQ.htm
See a wrong value? Tell us and name the field.
