PC parts / Graphics cards
ZOTACGraphics card

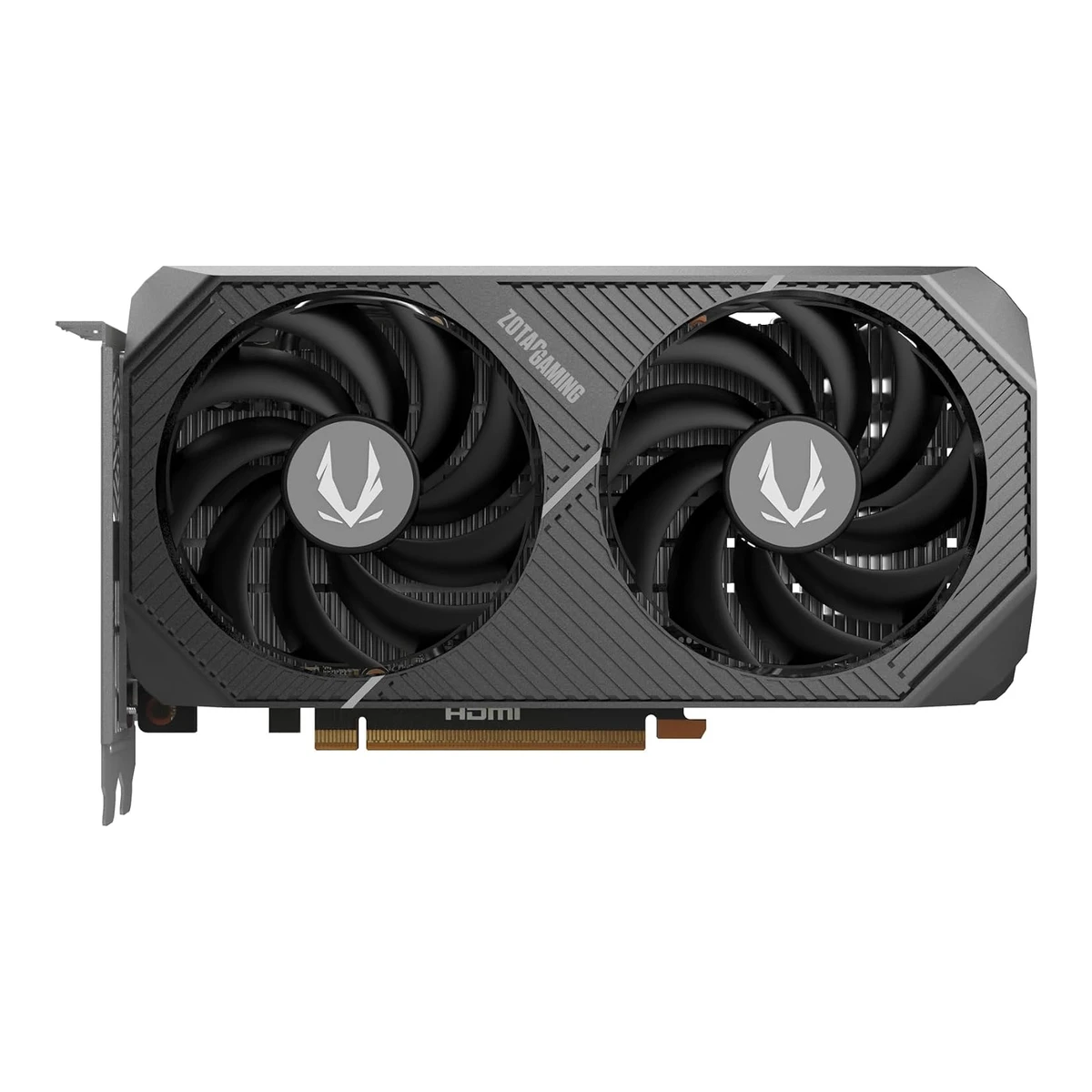

GAMING GeForce RTX 5060 Twin Edge OC
Released May 2025.8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: RTX 5060 released May 2025. Family availability, not a ZOTAC-specific date. Last checked 16 October 2026.
- GPU
- NVIDIA GeForce RTX 5060
- VRAM
- 8GB
- Length
- 220.5mm
- Board power
- 145W
66 of 100 fields known.
At a glance
PSU wattage
550W2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Recommended Power Supply 550 W. The feature text on the same page says a 650 W minimum, which does not fit the spec table and NVIDIA's 550 W. The table value is stored.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Recommended PSU 550W.
Lower than 77% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- ZT-B50600H-10M2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Model Number ZT-B50600H-10M.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026MPN ZT-B50600H-10M.4Retailer pageamazon.com/ZOTAC-GeForce-Graphics-SFF-Ready-ZT-B50600H-10M/dp/B0F8T73MZPRead 15 October 2026Model Number and Mfr Part Number ZT-B50600H-10M. A second US listing carries the code ZT-B50600H-10A and a weight of 1.12 kg, which was not used.5Spec databasebuildcores.com/products/GPU/3g03cn09e/ZOTAC-GAMING-GeForce-RTX-5060-Twin-Edge-OC-8GB-GDDR7Read 15 October 2026Part number list includes ZT-B50600H-10M and ZT-B50610H-10M. The second code is not used, since it looks like the RTX 5060 Ti 8GB card.
- GTIN / EAN
- 8100120858304Retailer pageamazon.com/ZOTAC-GeForce-Graphics-SFF-Ready-ZT-B50600H-10M/dp/B0F8T73MZPRead 15 October 2026UPC 810012085830. BuildCores also lists UPC 810012085717 and several EANs for two part numbers, so no EAN is stored.5Spec databasebuildcores.com/products/GPU/3g03cn09e/ZOTAC-GAMING-GeForce-RTX-5060-Twin-Edge-OC-8GB-GDDR7Read 15 October 2026UPC list includes 810012085830.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- GPU
- NVIDIA GeForce RTX 50606Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026GeForce RTX 5060 column of the spec table.
GPU
- GPU architecture
- Blackwell6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026
- GPU die
- GB2068Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: GB206. Guru3D names GB206-250. No source for this ZOTAC SKU names its die. Some later RTX 5060 cards are reported with a GB205 die, and none of the sources for this card says that it is one of them.9Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 15 October 2026Spec table: GB206-250. The text says the RTX 5060 uses the same GB206 silicon as the RTX 5060 Ti.
- Process
- TSMC 4N8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: TSMC 4N (4nm).
- Transistors
- 21.9billion8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 21.9bn for the whole GB206 die.
- Die size
- 181mm²8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 181mm2.
- Compute units
- 308Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: SM count 30 of 36.9Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 15 October 2026Text: six of the 36 streaming multiprocessors are disabled, which leaves 30.
- Shader cores
- 3,8406Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026NVIDIA CUDA Cores 3840.
- Ray tracing cores
- 308Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 30 RT cores (4th Gen).9Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 15 October 2026Text: 30 RT cores.
- AI cores
- 1208Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 120 Tensor cores (5th Gen).9Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 15 October 2026Text: 120 Tensor cores.
- ROPs
- 488Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 48 ROPs.9Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 15 October 2026Text: 48 ROPs.
- L2 cache
- Not available
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 19.2TFLOPS8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: FP32 Boost TFLOPS 19.2 at the 2,497MHz reference boost. NVIDIA's public page prints no FP32 figure for this GPU.
- AI performance (claimed)
- Not available
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock
- 2,527MHz2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Copy of the ZOTAC spec table: Engine Clock 2527 MHz. The summary line on the page calls it the 2527 MHz boost clock, and the text calls it a factory OC.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Copy of the ZOTAC table: Engine Clock 2527 MHz.
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 8GB2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Standard Memory Config 8 GB GDDR7.
- VRAM type
- GDDR72Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026
- Memory bus width
- 128bits2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Memory Interface Width 128-bit.
- Memory speed
- 28Gbps2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Memory Clock 28 Gbps.
- Memory bandwidth
- 448GB/s8Reviewclub386.com/nvidia-geforce-rtx-5060-reviewRead 15 October 2026Spec table: 448GB/s.
Connectivity
- PCIe generation
- 52Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026PCI Express Gen 5.
- PCIe lanes
- 82Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026PCI Express 5.0 x 8.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026PCI Express 5.0 x8.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 20263 x DisplayPort 2.1b with UHBR20 and 1 x HDMI connector as specified in HDMI 2.1b. UHBR20 is 80 Gbps.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 20263 x DisplayPort 2.1b with UHBR20 and 1 x HDMI. The description writes HDMI 2.1b.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Standard Display Connectors: 3x DisplayPort and 1x HDMI. Footnote 2: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 42Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Multi Display Capability: Quad Display.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Multi Monitor: up to 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026DisplayPort 2.1b: up to 4K 480 Hz or 8K 165 Hz with DSC. The 7680 x 4320 size matches Amazon's Display Maximum Resolution. The 8K 120 Hz mode of the HDMI port is lower.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Resolution: up to 4K 480Hz or 8K 165Hz with DSC.4Retailer pageamazon.com/ZOTAC-GeForce-Graphics-SFF-Ready-ZT-B50600H-10M/dp/B0F8T73MZPRead 15 October 2026Display Maximum Resolution 7680x4320.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC.
- HDCP version
- 2.32Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026HDCP Support 2.3.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026HDCP 2.3.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026HDCP 2.3.
Video engine
- Video encoders
- 16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026NVENC: 1x Ninth Generation.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20261 NVENC chip in total.
- Video decoders
- 16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026NVDEC: 1x Sixth Generation.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20261 NVDEC in total.
- Hardware video encode
- H.264, H.265 (HEVC), AV16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026AV1 Encode: Yes. H.264 and HEVC are from the NVIDIA codec matrix.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026NVENC table, GeForce RTX 5060, 9th Gen: H.264, H.265 and AV1 encode are YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV16Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026AV1 Decode: Yes. H.264, HEVC and VP9 are from the NVIDIA codec matrix.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026NVDEC table, GeForce RTX 5060, 6th Gen: VP9, H.264, H.265 and AV1 decode are YES.
Graphics features
- DirectX
- 12 Ultimate2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Microsoft DirectX 12 Ultimate.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Microsoft DirectX 12 Ultimate.
- OpenGL
- 4.62Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026OpenGL 4.6.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Vulkan 1.4, OpenGL 4.6.
- Upscaling technologies
- DLSS 46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026The DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.
Power
- Board power
- 145W2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Power Consumption 145 W. ZOTAC states one figure and it equals NVIDIA's Total Graphics Power for the chip.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Consumption 145W.
- Reference board power
- 145W6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 15 October 2026Total Graphics Power 145 W. Required System Power 550 W.
- PSU wattage (card maker)
- 550W2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Recommended Power Supply 550 W. The feature text on the same page says a 650 W minimum, which does not fit the spec table and NVIDIA's 550 W. The table value is stored.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Recommended PSU 550W.
Cooling
- Cooler type
- Open air2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Cooling: Air Cooled. Features: pass-through structural housing and full-length heatsink with BladeLink fans.4Retailer pageamazon.com/ZOTAC-GeForce-Graphics-SFF-Ready-ZT-B50600H-10M/dp/B0F8T73MZPRead 15 October 2026Bullets: 2x 90mm BladeLink fans, composite heatpipes, pass-thru airflow design, metal backplate.
- Radiator size
- Not available
- Fan stop at low load
- Yes2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Features: Freeze Fan Stop, fans remain frozen when idle. No temperature threshold is stated.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026FREEZE Fan Stop is in the feature list.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 220.5mm2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Card Length 220.5 mm x 120.25 mm x 41.6 mm. ZOTAC writes L x W x H, so the second value is the height and the third the thickness. The table does not say whether the bracket is included.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Dimensions 220.5mm x 120.25mm x 41.6mm.
- Slot width
- 2slots2Retailer pagepccaus.com/products/zotac-gaming-geforce-rtx-5060-twin-edge-oc-gddr7-8gb-video-card-zt-b50600h-10mRead 15 October 2026Slot Size 2.3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Slot Size: 2 slots.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Package weight
- Not available
Lighting and software
- Lighting sync
- Not available
Measured performance
We could not find any of these 6 fields. Show them
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
Links
- Product page
- www.zotac.com/us/product/graphics_card/zotac-gaming-geforce-rtx-5060-twin-edge-oc1Maker product pagezotac.com/us/product/graphics_card/zotac-gaming-geforce-rtx-5060-twin-edge-ocRead 15 October 2026zotac.com blocks agents, so the page was not opened. The link is the expected maker page address and was not checked. Its spec table was read in the copy on pccaus.com and in the Star Tech copy.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years3Retailer pagestartech.com.bd/zotac-gaming-geforce-rtx-5060-twin-edge-oc-graphics-cardRead 15 October 2026Total warranty 5 years in Bangladesh: 3-year standard warranty plus 2 years after online registration within 28 days. Amazon US lists 2 + 1 years. The 3-year term is stored, which is the standard term here and the US total.4Retailer pageamazon.com/ZOTAC-GeForce-Graphics-SFF-Ready-ZT-B50600H-10M/dp/B0F8T73MZPRead 15 October 2026Warranty Description: 2 + 1 Years on the US listing.
