Gaming / Keyboards

ASUSGaming keyboard

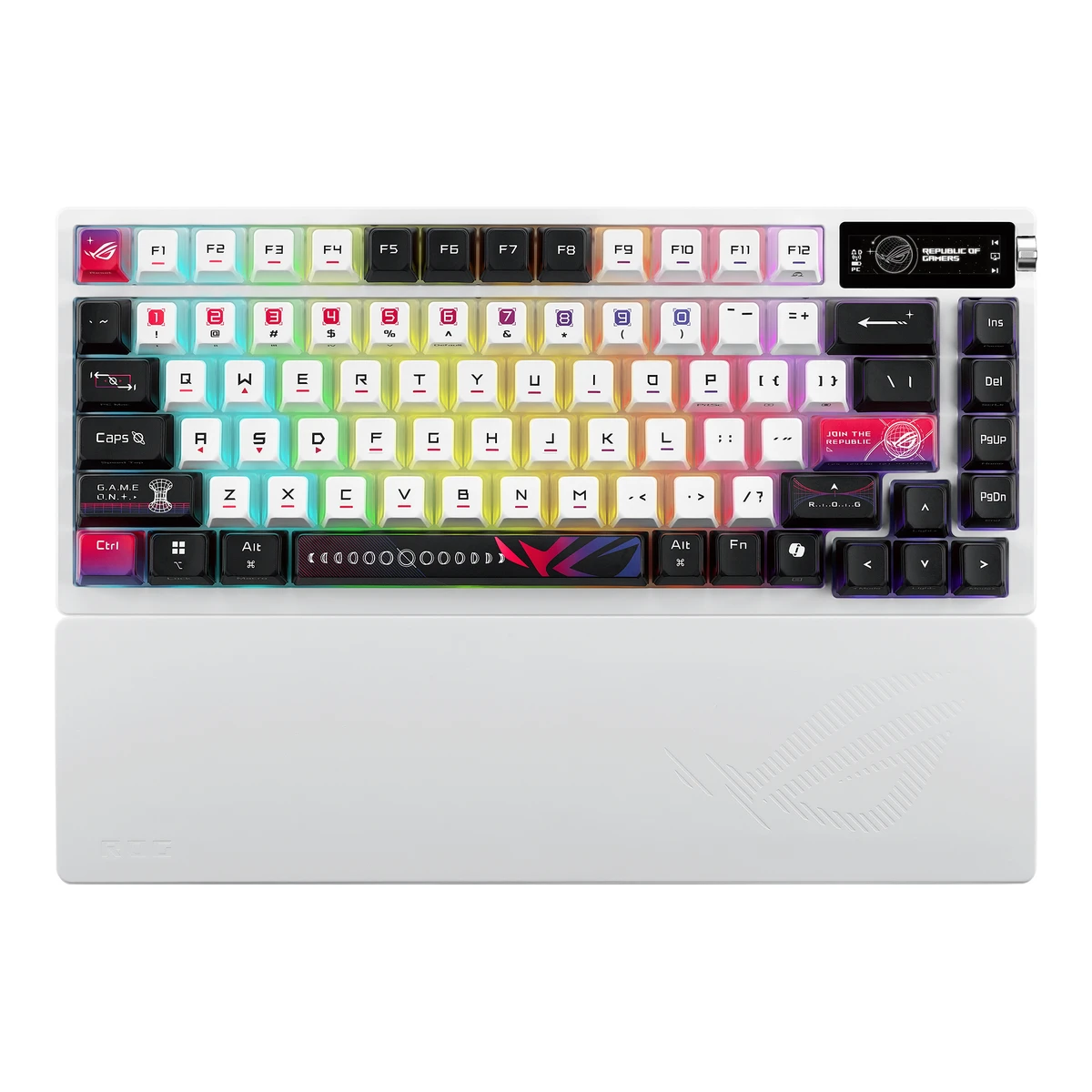

ROG Azoth X

Released April 2025.10 Last checked 16 October 2026.

Form factor: 75 %
Switch sensing technology: Mechanical
Connections: USB (wired), 2.4 GHz, Bluetooth
Max polling rate: 8,000Hz

86 of 164 fields known.

Compare with another keyboard Download JSON Download CSV Get it from the API

At a glance

Battery life, lighting off
1,600h
Higher than 97% of other keyboards.

All specs

SourceCalculatedHide missing

General

Series: Not available
Model numbers: M704, 90MP044F-BKAA30, 90MP044F-BKAA32, 90MP044F-BKUA30, 90MP044F-BKEA30, 90MP044F-BKDA30, 90MP044F-BKWA30, 90MP044F-BKNA30, 90MP044F-BKTA30, 90MP044G-BKAA30, 90MP044G-BKAA32, 90MP044G-BKUA302 3 4 5 6 7 8 16
GTIN / EAN: Not available
Announced: April 20259
Status: Available6 10
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: White2
Segment: Gaming1
Sold as: Complete1

Layout

Form factor: 75 %1
Layout standard: Not available
Regional layouts: Not available
Keys in regional layout: Not available
Key legends for: Not available
Numpad: No11
Function row: Yes11
Dedicated arrow keys: Yes11
Navigation keys: Compact11
Key stagger: Not available
Bottom row: Not available
Low profile: Not available

Switches

Switch sensing technology: Mechanical1
Switch feel: Linear, Clicky1
Switch maker: ASUS1
Switch models: ROG NX Snow V2, ROG NX Storm V21
Switch stem: Not available
Actuation force: 45 to 55gf1 3 4 5 6 7 14 15 16
Bottom-out force: Not available
Tactile bump force: Not available
Actuation point: 1.8mm1
Total travel: Not available
Rated keystrokes: 100million1 3 4 5 6 7 14 15 16
Factory-lubed switches: Yes1
Adjustable actuation: Not available
Actuation range: Not available
Actuation step: Not available
Per-key actuation: Not available
Rapid trigger: Not available
Minimum rapid trigger movement: Not available
Multi-action keys: Not available
SOCD handling: Yes1
Analog input: Not available
Hot-swap sockets: 5-pin1 17
Compatible switches: 5-pin mechanical switches17
Stabilizers: Not available
Factory-lubed stabilizers: Yes1

Keycaps

Keycap material: PBT1 11
Legend method: Dye-sub1
Keycap profile: Not available
Keycap thickness: Not available
Shine-through legends: No12

Performance

Polling rate per connection: Connection Polling rate (Hz) Receiver or adapter
USB (wired) 1,000 Not available
USB (wired) 8,000 ROG Polling Rate Booster (sold separately)
2.4 GHz 8,000 ROG Polling Rate Booster (sold separately)
Source1 2
Max polling rate: 8,000Hz
Polling rate (wired): 8,000Hz
Polling rate (2.4 GHz): 8,000Hz
Polling rate (Bluetooth): Not available
Scan rate: Not available
Input latency (claimed): Not available
Key rollover per connection: Rollover
NKRO
Source2
Anti-ghosting: Yes2
Adjustable debounce: Not available
Minimum debounce: Not available

Connection	Polling rate (Hz)	Receiver or adapter
USB (wired)	1,000	Not available
USB (wired)	8,000	ROG Polling Rate Booster (sold separately)
2.4 GHz	8,000	ROG Polling Rate Booster (sold separately)

Rollover
NKRO

Measured

We could not find any of these 7 fields. Show them

Latency per connection (measured): Not available
Actuation point (measured): Not available
Total travel (measured): Not available
Operating force (measured): Not available
Typing noise (measured): Not available
Battery life (measured): Not available
Weight (measured): Not available

Connectivity

Connections: USB (wired), 2.4 GHz, Bluetooth1
Wireless technology: ROG SpeedNova1
Bluetooth: 5.12
Bluetooth device slots: 31
Devices it can switch between: Not available
Device switching: Knob8
Receiver connector: Not available
Receiver storage in keyboard: Yes8
Receiver shared with other devices: Yes1 13
Wireless range: Not available
Detachable cable: Yes2
Port on keyboard: USB-C8
Cable plug: USB-A2
Cable: Braided2
Cable length: 2m2
USB passthrough: Not available
Works with: Windows, macOS2
Consoles: Not available

Battery

Battery type: Not available
Number of batteries: Not available
Battery capacity: Not available
User-replaceable battery: Not available
Battery life per mode (claimed): Connection Lighting Hours (h)
2.4 GHz Off 1,600
Source1
Longest battery life (claimed): 1,600h
Battery life, lighting off: 1,600h
Battery life, lighting on: Not available
Battery life, backlight on (claimed): Not available
Battery life, backlight off (claimed): Not available
Charging port: USB-C8
Full charge time: Not available
Quick charge: Not available
Use while charging: Yes1
Solar charging: Not available
Battery indicator: Built-in display8

Connection	Lighting	Hours (h)
2.4 GHz	Off	1,600

Build

Case material: CNC-machined aluminum top cover with plastic bottom case11
Plate material: FR41
Mount style: Gasket1
Flex cuts in PCB: Not available
Sound dampening: Plate foam, Switch pads, Case foam, Silicone bottom1
Typing angles: Not available
Spill resistant: Not available
IP rating: Not available

Lighting

Backlight: RGB per key2
LED position: South-facing1
Lighting zones: Not available
Brightness levels: Not available
Side or underglow lighting: Not available
Lighting sensors: Not available
Lighting sync: AURA Sync2

Controls

Media keys: Multifunction control8
Separate media buttons: 08
Volume control: Knob1
Knobs: 18
Programmable knob: Yes8
Knob press: Yes8
Separate macro keys: 08
Built-in screen: OLED1
Touchpad: Not available
Fingerprint reader: Not available
OS mode switch: Key combination8
Windows key lock: Not available

Software

Software: Armoury Crate and Gear Link2 11
Software runs on: Windows, Web11
Open firmware: Not available
Onboard memory: Yes1
Onboard profiles: 61
Macros: Yes1
Macros stored onboard: Yes1
Key remapping: Yes2
Layers: Not available
User firmware updates: Yes8

Ergonomics

Wrist rest: Detachable11
Wrist rest material: silicone1
Tenting: Not available
Tenting angles: Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions: Width325.4Depth136.2Height40mm(12.8 × 5.4 × 1.6 in)2
Dimensions with wrist rest: Not available
Keyboard weight: Not available
Weight including wrist rest: 1,600g(3.5 lb)2
Box dimensions: Not available
Box weight: Not available

Certifications

We could not find any of these 2 fields. Show them

Platform certifications: Not available
Other certifications: Not available

In the box

In the box: ROG Azoth X, Wrist rest, ROG keycap puller, ROG switch puller, Ctrl keycap, ROG NX switches * 3, USB dongle, USB extender, USB C to USB A cable (2m), ROG sticker, Quick start guide, Warranty booklet, ROG thank you card2
Cables included: Type Count
USB C to USB A cable (2m), braided 1
Source2
Spare switches: 32

Type	Count
USB C to USB A cable (2m), braided	1

Warranty

Manufacturer warranty (source market): 1year6

Compare with

Pick a keyboard to see both side by side. Differences are marked yellow.

More keyboard comparisons

Variants

Each variant lists only what differs from the specs above.

Model number	Markets	Switch feel	Switch models	Actuation force	Bottom-out force	Tactile bump force	Rated keystrokes
90MP044F-BKAA30	Not available	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKAA32	Not available	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKUA30	Not available	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKEA30	GB	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKDA30	DE	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKWA30	DE	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKNA30	Not available	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044F-BKTA30	TW	Linear	ROG NX Snow V2	45 gf	53 gf	Not available	100 million
90MP044G-BKAA30	Not available	Clicky	ROG NX Storm V2	55 gf	Not available	65 gf	100 million
90MP044G-BKAA32	Not available	Clicky	ROG NX Storm V2	55 gf	Not available	65 gf	100 million
90MP044G-BKUA30	Not available	Clicky	ROG NX Storm V2	55 gf	Not available	65 gf	100 million
