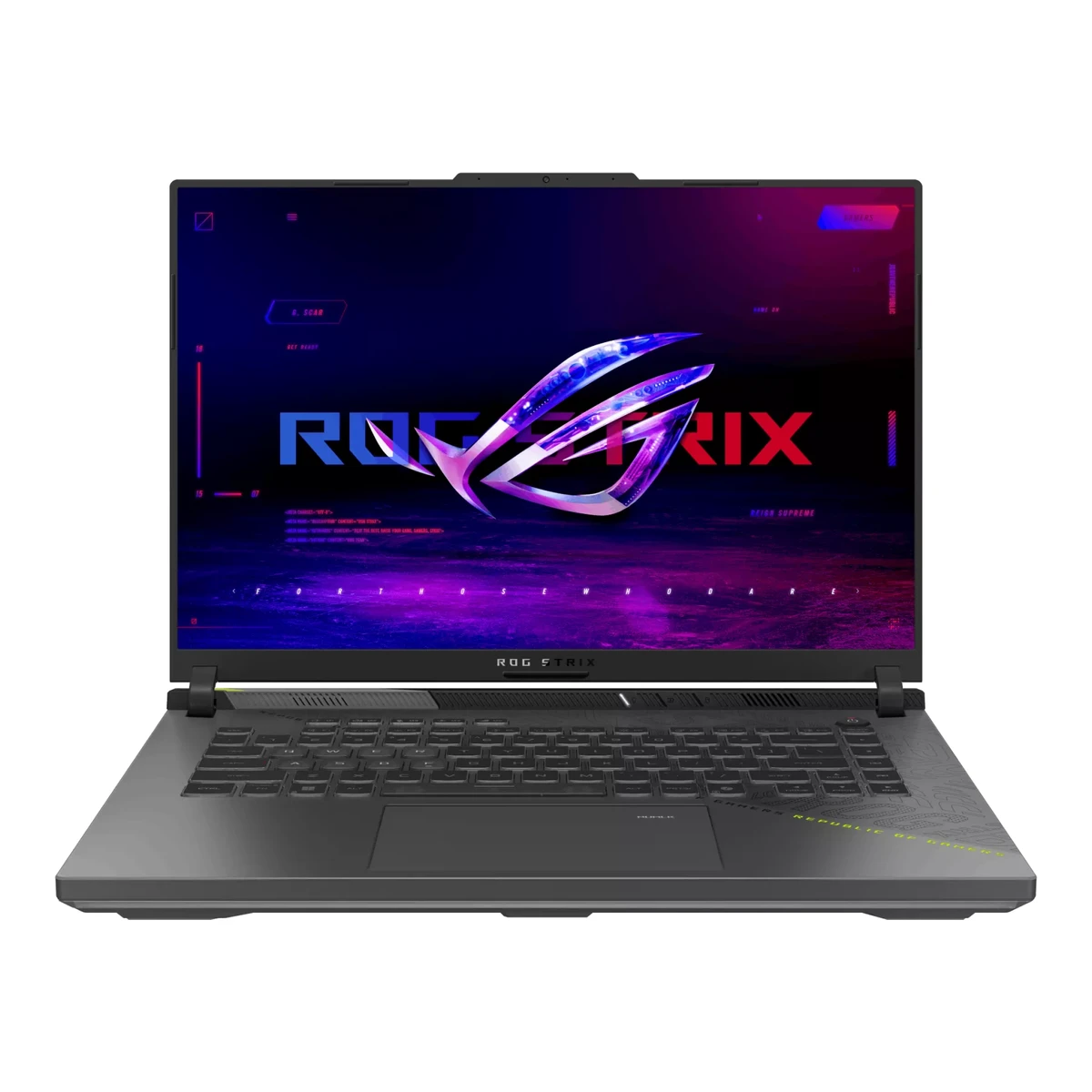

ROG Strix G16 (2025) G614FR-DS96

Released June 2025.5 Last checked 11 October 2026.

Screen size: 16in
Processor: AMD Ryzen 9 9955HX3D
GPU: NVIDIA GeForce RTX 5070 Ti Laptop GPU
Weight (published): 2.5kg

97 of 179 fields known.

Compare with another laptop Download JSON Download CSV Get it from the API

At a glance

Battery
90Wh1
Higher than 80% of other laptops.

Ports

2 USB-C USB4
HDMI 2.1
Ethernet (RJ45)
3.5 mm audio
DC in
2 USB-A USB 3.2 Gen 2

All specs

SourceCalculatedHide missing

General

Series: ROG Strix1
Model numbers: G614FR-DS961 3
GTIN / EAN: 1971059198393
Announced: Not available
Status: Available3
Predecessor: Not available
Successor: Not available
Launch price (US): $2,499.994 5
Launch price (EU): Not available
Markets: US3
Colours: Eclipse Gray3
Segment: Gaming1
Form factor: Clamshell4

Chassis

Front and side, drawn to scale.

Dimensions: Width354Depth264Thickness (min)22.6Thickness (max)30.4mm(13.9 × 10.4 × 0.9 to 1.2 in)1
Weight (published): 2.5kg(5.5 lb)1
Lid material: Aluminium4
Bottom material: Plastic4
Max hinge angle: Not available
MIL-STD-810 testing (claimed): Not available

Display

Screen size: 16in(40.6 cm)1
Native resolution: 2560 × 1600px1
Pixel density: 188.7ppi
Panel type: IPS-level1
Backlight: Not available
Dimming zones: Not available
Panel part number: Not available
Screen surface: Matte1
Touchscreen: Not available
Stylus: Not available
Refresh rate modes: Width (px) Height (px) Maximum operating refresh (Hz) VRR
2560 1600 240 Yes
Source3 4 5
Max refresh rate: 240Hz
Adaptive sync: G-SYNC, VESA Adaptive-Sync2
Gray-to-gray response time (claimed): Not available
Native panel colour depth: Not available
Brightness (SDR, claimed): Not available
Peak brightness (SDR outdoors, claimed): Not available
Sustained brightness (HDR, claimed): Not available
Peak brightness (HDR, claimed): Not available
sRGB coverage (claimed): Not available
DCI-P3 coverage (claimed): 100%1
Adobe RGB coverage (claimed): Not available
HDR certification: Not available
Factory calibrated: Not available
Second display: Not available

Width (px)	Height (px)	Maximum operating refresh (Hz)	VRR
2560	1600	240	Yes

Processor

Processor: AMD Ryzen 9 9955HX3D1
Processor brand: AMD1
Core configuration: Core type Count Core Base clock (GHz) Max clock (GHz)
Zen 5 16 Zen 5 2.5 5.4
Source1 6
CPU cores: 16
Cores labelled performance: 0
Cores labelled efficiency: 0
Threads: 321
Max boost clock: 5.4GHz
L3 cache: 128MB6
Process: 4nm6
Sustained CPU power (configured): 65W2
Peak CPU power (configured): Not available
Combined CPU and GPU power: Not available
NPU performance: Not available

Core type	Count	Core	Base clock (GHz)	Max clock (GHz)
Zen 5	16	Zen 5	2.5	5.4

Graphics

Discrete GPU: Yes1
GPU: NVIDIA GeForce RTX 5070 Ti Laptop GPU1
GPU brand: NVIDIA1
VRAM: 12GB1
Max GPU power (TGP): 140W1
Dynamic Boost: 25W1
GPU boost clock: 1,565MHz1
GPU switching: MUX switch, Advanced Optimus2 3
Integrated GPU: Not available

Memory

Installed RAM: 32GB1
RAM type: DDR51
RAM speed: 5,600MT/s1
Memory channels: 21
RAM upgrade: Slots1
Memory slots: Slot Count Occupied Module size (GB)
SO-DIMM 2 Yes 16
Source1
RAM slots: 2
Free RAM slots: 0
Maximum supported RAM: 64GB1

Slot	Count	Occupied	Module size (GB)
SO-DIMM	2	Yes	16

Storage

Installed storage: 1TB1
Storage type: NVMe SSD1
Installed drive PCIe generation: 41
Storage slots: Form factor Interface PCIe generation Count Occupied
M.2 2280 PCIe NVMe 4 1 Yes
M.2 2280 PCIe NVMe 4 1 No
Source1
M.2 slots: 2
Free storage slots: 1
Maximum slot PCIe generation: 4

Form factor	Interface	PCIe generation	Count	Occupied
M.2 2280	PCIe NVMe	4	1	Yes
M.2 2280	PCIe NVMe	4	1	No

Ports

Ports: Type Version Count Side Maximum data rate (Gbps) Thunderbolt or USB4 DP Alt Mode
USB-C USB4 1 Left 40 USB4 Yes
USB-C USB4 1 Left 40 USB4 Yes
HDMI HDMI 2.1 1 Left Not available Not available Not available
Ethernet (RJ45) Not available 1 Left 1 Not available Not available
3.5 mm audio Not available 1 Left Not available Not available Not available
DC in Not available 1 Left Not available Not available Not available
USB-A USB 3.2 Gen 2 2 Right 10 Not available Not available
Source1 4
USB-C ports: 2
Thunderbolt: No
Highest HDMI version: HDMI 2.1
Card reader: No
Ethernet speed: 1Gbps
Maximum USB-C charging input: Not available

Type	Version	Count	Side	Maximum data rate (Gbps)	Thunderbolt or USB4	DP Alt Mode
USB-C	USB4	1	Left	40	USB4	Yes
USB-C	USB4	1	Left	40	USB4	Yes
HDMI	HDMI 2.1	1	Left	Not available	Not available	Not available
Ethernet (RJ45)	Not available	1	Left	1	Not available	Not available
3.5 mm audio	Not available	1	Left	Not available	Not available	Not available
DC in	Not available	1	Left	Not available	Not available	Not available
USB-A	USB 3.2 Gen 2	2	Right	10	Not available	Not available

Wireless

Wi-Fi: Wi-Fi 6E1
Wi-Fi bands: 2.4 GHz, 5 GHz, 6 GHz1
Wi-Fi module: MediaTek MT79224
Bluetooth: 5.21
Cellular: Not available

Keyboard and touchpad

Keyboard layouts: QWERTY3
Key switches: Not available
Keyboard backlight: RGB per key1 4
Numpad: No4
Key travel: 1.9mm4
Pointing stick: Not available
Touchpad size: Not available
Touchpad mechanism: Mechanical4

Camera and audio

Webcam: 1080p1
IR face login: No1
Webcam privacy: Not available
Built-in speaker drivers: 21
Total speaker power: Not available
Audio features: Dolby Atmos, Smart Amp Technology, Hi-Res certification (for headphone), AI noise-canceling technology1
Microphones: Not available

Battery and power

Battery energy: 90Wh1
Claimed battery life: Not available
Adapter rated output: 280W1
Laptop charging connector: Proprietary4
Charge 0 to 50 % (claimed): Not available

Cooling

Fans: 32 4
Vapor chamber: Not available
Liquid metal: Not available
Power modes: Name CPU power (W) GPU power (W)
Silent Not available Not available
Performance Not available Not available
Turbo 65 140
Manual 75 140
Source2

Name	CPU power (W)	GPU power (W)
Silent	Not available	Not available
Performance	Not available	Not available
Turbo	65	140
Manual	75	140

Security

Fingerprint: None5
TPM: Not available
Remote management: Not available
Security lock slot: Not available

Software

Operating system: Windows 11 Home1
OS family: Windows1
Security updates until: Not available

Measured display

Brightness (measured, centre): Not available
Brightness (measured, average): Not available
Contrast ratio (measured): 1,400:15
HDR peak brightness (measured): Not available
sRGB coverage (measured): Not available
DCI-P3 coverage (measured): Not available
Colour accuracy (measured Delta E): Not available
PWM flicker found: Not available
PWM frequency (measured): Not available
PWM at or below brightness: Not available
Response black to white (measured): Not available
Response grey to grey (measured): Not available

Measured performance

We could not find any of these 8 fields. Show them

Cinebench 2024 single-core: Not available
Cinebench 2024 multi-core: Not available
Geekbench 6 single-core: Not available
Geekbench 6 multi-core: Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
SSD sequential read (measured): Not available
Game frame rates: Not available

Measured noise and temperature

Fan noise per mode: Not available
Max fan noise: Not available
Fan noise while gaming: Not available
Top surface under load: 52.8°C4
Bottom surface under load: Not available
Palm rest under load: Not available
CPU temperature in stress test: 73.8°C4
CPU clock in stress test: 3.02GHz4
GPU temperature while gaming: 78.7°C4

Measured battery and power

Battery runtime per test: Test Brightness (nits) Hours (h)
Mixed use 150 5.35
Source4
Wi-Fi browsing runtime: Not available
Video runtime: Not available
Full charge time (measured): Not available
Power draw idle: Not available
Power draw gaming: Not available
Power draw max: Not available
Sustained CPU power (measured): Not available
GPU power while gaming (measured): Not available
Weight (measured): Not available
