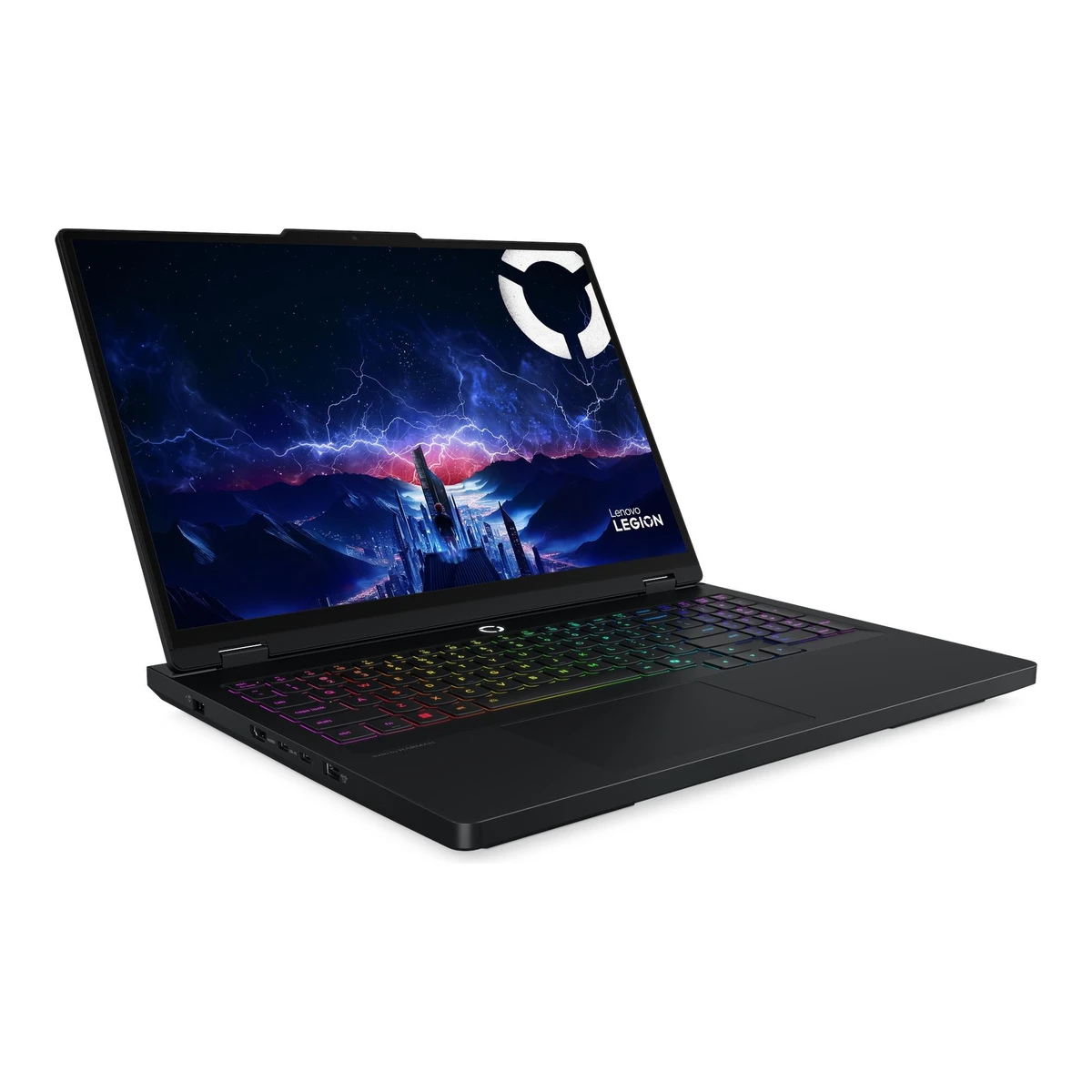

Lenovo Legion Pro 5i (16", Gen 10) 16IAX10

LenovoGaming laptop

Legion Pro 5i (16", Gen 10) 16IAX10

Released May 2025.5Press releasegaming.lenovo.com/new-releases/post/legion-pro-5i-gen-10-launch-is-here-ereSvbJWCsqhwdWRead 5 October 2026Official maker community launch post dated May 16, 2025 in article:published_time metadata states Legion Pro 5i Gen 10 is now available to purchase in Europe and Asia. Month precision for first marketed-family retail. Exact Hong Kong SKU is announced May 17. This source does not independently date Hong Kong SKU first sale. Last checked 5 October 2026.

Screen size
16in
Processor
Intel Core Ultra 7 255HX
GPU
NVIDIA GeForce RTX 5070 Laptop GPU
Weight (published)
2.43kg

97 of 179 fields known.

Compare with another laptopDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • USB-C USB 3.2 Gen 2
  • USB-C Thunderbolt 4 / USB4
  • USB-A USB 3.2 Gen 2
  • 2 USB-A USB 3.2 Gen 1
  • 3.5 mm audio
  • Ethernet (RJ45)
  • HDMI 2.1
  • DC in

All specs

SourceCalculated

General

Series
Legion Pro 54Maker product pagelenovo.com/hk/en/p/laptops/legion-laptops/legion-pro-series/legion-pro-5i-gen-10-16-inch-intel/83f3002vhhRead 5 October 2026
Model numbers
83F3002VHH1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Live exact Model Configurations table, rendered in a browser. This file represents only Hong Kong SKU 83F3002VHH. Other CPU, GPU memory, installed RAM, panels and regional bundles are excluded.
GTIN / EAN
1981585247041Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Announced
Not available
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
HK1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Colours
Eclipse Black1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Case Color row: Eclipse Black with 24-Zone RGB Backlit Keyboard. Keyboard description is not part of the colour name.
Segment
Gaming4Maker product pagelenovo.com/hk/en/p/laptops/legion-laptops/legion-pro-series/legion-pro-5i-gen-10-16-inch-intel/83f3002vhhRead 5 October 2026Maker presents this as an esports gaming laptop.
Form factor
Clamshell3Owner's manualimg.enaa.com/oddelki/racunalnistvo/assets/product_images/datoteke/lenovo_legion_pro_5_prenosnik_intel_core_ultra_9_275hx_16_palcni_wqxga_oled_32_gb_ram_1_tb_rtx_5070_ti_windows_11_home_eclipse_bla_2348178923_3.pdfRead 5 October 2026Pages 1-9 front, base and hinged display views show a clamshell laptop.

Chassis

Front and side, drawn to scale.

Dimensions
Width364.38Depth268.06Thickness (min)21.69Thickness (max)25.95mm(14.3 × 10.6 × 0.9 to 1 in)1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Exact millimetre values from Dimensions (WxDxH). Manual page 10 gives consistent rounded values.
Weight (published)
2.43kg(5.4 lb)1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Around 2.43 kg. Approximate Lenovo laboratory weight, not an independent measurement.
Lid material
Aluminium1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Bottom material
Plastic1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Max hinge angle
Not available
MIL-STD-810 testing (claimed)
Not available

Display

Screen size
16in(40.6 cm)1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Native resolution
2560 × 1600px1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Pixel density
188.7ppi
Panel type
OLED1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Backlight
None (self-emissive)2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Pages 4-5 identify the installed panel as OLED, a self-emissive display.
Dimming zones
Not available
Panel part number
Not available
Screen surface
Glossy1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Touchscreen
No1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Stylus
None1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Refresh rate modes
Width (px)Height (px)Maximum operating refresh (Hz)
25601600165
Source1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Max refresh rate
165Hz
Adaptive sync
G-SYNC1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Gray-to-gray response time (claimed)
Not available
Native panel colour depth
Not available
Brightness (SDR, claimed)
500nits1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026500 nits typical for exact 165 Hz OLED. Family table explicitly identifies SDR typical.
Peak brightness (SDR outdoors, claimed)
Not available
Sustained brightness (HDR, claimed)
Not available
Peak brightness (HDR, claimed)
1,100nits2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Pages 4-5 exact 165 Hz OLED row: 1100 nits HDR peak and 500 nits SDR typical. Window size and duration unstated.
sRGB coverage (claimed)
Not available
DCI-P3 coverage (claimed)
100%1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Display row specifies 100% DCI-P3. The maker does not state a measurement method.
Adobe RGB coverage (claimed)
Not available
HDR certification
DisplayHDR True Black 10001Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Factory calibrated
Yes1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Exact Color Calibration row: Factory Color Calibration.
Second display
Not available

Processor

Processor
Intel Core Ultra 7 255HX1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Processor brand
Intel1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Core configuration
Core typeCountBase clock (GHz)Max clock (GHz)
Performance82.45.2
Efficiency121.84.5
Source2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Page 2 exact Core Ultra 7 255HX row: eight P cores and twelve E cores with separate base and maximum frequencies.
CPU cores
20
Cores labelled performance
8
Cores labelled efficiency
12
Threads
201Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Max boost clock
5.2GHz
L3 cache
30MB1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 202630 MB Intel Smart Cache in exact processor row, not a combined L2 and L3 total.
Process
Not available
Sustained CPU power (configured)
Not available
Peak CPU power (configured)
Not available
Combined CPU and GPU power
Not available
NPU performance
13TOPS1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Integrated Intel AI Boost, up to 13 TOPS. NPU-only, distinct from total platform AI throughput.

Graphics

Discrete GPU
Yes1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
GPU
NVIDIA GeForce RTX 5070 Laptop GPU1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
GPU brand
NVIDIA1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
VRAM
8GB1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Max GPU power (TGP)
115W1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Graphics row specifies 115 W TGP for the installed RTX 5070 8 GB. Unspecified Dynamic Boost allocation is omitted.
Dynamic Boost
Not available
GPU boost clock
2,347MHz1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
GPU switching
Advanced Optimus2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Pages 4-5 exact 2560 x 1600 165 Hz OLED row lists Advanced Optimus. The 240 Hz IPS and OLED options are excluded.
Integrated GPU
Intel Graphics2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Page 2 Core Ultra 7 255HX processor graphics: Intel Graphics.

Memory

Installed RAM
16GB1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
RAM type
DDR51Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
RAM speed
5,600MT/s1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Memory channels
Not available
RAM upgrade
Slots1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Memory slots
SlotCountOccupiedModule size (GB)
SO-DIMM1Yes16
SO-DIMM1NoNot available
Source1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026One installed 16 GB SODIMM and two physical SODIMM slots. The second slot is empty. Dual-channel capable does not establish active channels for this single-module configuration.
RAM slots
2
Free RAM slots
1
Maximum supported RAM
32GB1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Exact SKU Max Memory: up to 32 GB DDR5-5600 offering, based on Lenovo tested offerings.

Storage

Installed storage
1TB1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Installed 1 TB SSD converted to decimal 1000 GB.
Storage type
NVMe SSD1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Installed drive PCIe generation
41Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Storage slots
Form factorInterfacePCIe generationPCIe lanesCountOccupied
M.2 2280PCIe NVMe441Yes
M.2 2280PCIe NVMe441No
Source1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Two physical M.2 2280 PCIe 4.0 x4 slots, with one installed M.2 2242 drive. Supported connector size is distinct from the installed drive length.
M.2 slots
2
Free storage slots
1
Maximum slot PCIe generation
4

Ports

Ports
TypeVersionCountSideMaximum data rate (Gbps)Thunderbolt or USB4DP Alt ModeMaximum charging input (W)Maximum peripheral power (W)
USB-CUSB 3.2 Gen 21Left10Not availableYes14015
USB-CThunderbolt 4 / USB41Left40Thunderbolt 4YesNot available15
USB-AUSB 3.2 Gen 21Left10Not availableNot availableNot available10
USB-AUSB 3.2 Gen 12Right5Not availableNot availableNot available4.5
3.5 mm audioNot available1RightNot availableNot availableNot availableNot availableNot available
Ethernet (RJ45)Not available1Right1Not availableNot availableNot availableNot available
HDMIHDMI 2.11LeftNot availableNot availableNot availableNot availableNot available
DC inNot available1LeftNot availableNot availableNot availableNot availableNot available
Source2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Page 6 USB-C 10 Gbps charging footnote: standard USB PD 65-100 W, with 140 W accepted using Lenovo proprietary protocol and its unique compatible adapter. The supplied 245 W adapter connects through Slim Tip. Thunderbolt port has no documented charging input.3Owner's manualimg.enaa.com/oddelki/racunalnistvo/assets/product_images/datoteke/lenovo_legion_pro_5_prenosnik_intel_core_ultra_9_275hx_16_palcni_wqxga_oled_32_gb_ram_1_tb_rtx_5070_ti_windows_11_home_eclipse_bla_2348178923_3.pdfRead 5 October 2026Pages 5-7 exact 16IAX10 views establish left/right locations. Page 12 gives USB-A 5 V x 0.9 A output, Always On 5 V x 2 A and both USB-C 5 V x 3 A output. Exact PSREF confirms USB-C standard PD 65-100 W input, with manufacturer platform footnote proving 140 W proprietary Lenovo input and TB4/USB4 40 Gbps. Manual 41.25 Gbps Thunderbolt signalling is not used as symmetric USB data rate.
USB-C ports
2
Thunderbolt
Yes
Highest HDMI version
HDMI 2.1
Card reader
No
Ethernet speed
1Gbps
Maximum USB-C charging input
140W

Wireless

Wi-Fi
Wi-Fi 71Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Wi-Fi bands
Not available
Wi-Fi module
Not available
Bluetooth
5.41Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Hardware design Bluetooth 5.4. Actual operation can depend on operating system and driver.
Cellular
No1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026

Keyboard and touchpad

Keyboard layouts
English1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Key switches
Not available
Keyboard backlight
RGB zones1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Numpad
Yes2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Page 5 Input Device explicitly lists numeric keypad.
Key travel
1.6mm2Maker spec sheet (PDF)psref.lenovo.com/syspool/Sys/PDF/Legion/Legion_Pro_5_16IAX10/Legion_Pro_5_16IAX10_Spec.pdfRead 5 October 2026Page 5 Input Device: key travel 1.6 mm.
Pointing stick
Not available
Touchpad size
Width120Height75mm(4.7 × 3 in)1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Touchpad mechanism
Not available

Camera and audio

Webcam
5.0MP1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
IR face login
Not available
Webcam privacy
Electronic kill switch3Owner's manualimg.enaa.com/oddelki/racunalnistvo/assets/product_images/datoteke/lenovo_legion_pro_5_prenosnik_intel_core_ultra_9_275hx_16_palcni_wqxga_oled_32_gb_ram_1_tb_rtx_5070_ti_windows_11_home_eclipse_bla_2348178923_3.pdfRead 5 October 2026Page 7 camera switch disables/enables the built-in camera. It is an electronic kill switch, not a lens-cover shutter.
Built-in speaker drivers
21Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Total speaker power
4W1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Audio features
Audio by HARMAN, Nahimic Audio1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Microphones
21Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026

Battery and power

Battery energy
80Wh1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Claimed battery life
Not available
Adapter rated output
245W1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Laptop charging connector
Proprietary1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Charge 0 to 50 % (claimed)
Not available

Cooling

We could not find any of these 4 fields. Show them
Fans
Not available
Vapor chamber
Not available
Liquid metal
Not available
Power modes
Not available

Security

Fingerprint
None1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
TPM
2.01Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Remote management
Not available
Security lock slot
Not available

Software

Operating system
Windows 11 Home1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
OS family
Windows1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
Security updates until
Not available

Measured display

We could not find any of these 12 fields. Show them
Brightness (measured, centre)
Not available
Brightness (measured, average)
Not available
Contrast ratio (measured)
Not available
HDR peak brightness (measured)
Not available
sRGB coverage (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
Not available
PWM flicker found
Not available
PWM frequency (measured)
Not available
PWM at or below brightness
Not available
Response black to white (measured)
Not available
Response grey to grey (measured)
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them
Fan noise per mode
Not available
Max fan noise
Not available
Fan noise while gaming
Not available
Top surface under load
Not available
Bottom surface under load
Not available
Palm rest under load
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured battery and power

We could not find any of these 10 fields. Show them
Battery runtime per test
Not available
Wi-Fi browsing runtime
Not available
Video runtime
Not available
Full charge time (measured)
Not available
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available
Weight (measured)
Not available

Certifications

Intel Evo
Not available
Copilot+ PC
Not available
Colour certifications
Pantone Validated, Pantone SkinTone Validated1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026
ENERGY STAR
Not available
EPEAT
Not available
Other certifications
ErP Lot 6/26, RoHS compliant, TÜV Rheinland Flicker Free, TÜV Rheinland High Gaming Performance, TÜV Rheinland Low Blue Light (Hardware Solution)1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026

In the box

In the box
245 W Slim Tip power adapter1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Exact Power Adapter row confirms 245 W Slim Tip (3-pin). Bundled Accessories row says None, so no sleeve, mouse or other optional accessory is included.
Power adapter included
Yes3Owner's manualimg.enaa.com/oddelki/racunalnistvo/assets/product_images/datoteke/lenovo_legion_pro_5_prenosnik_intel_core_ultra_9_275hx_16_palcni_wqxga_oled_32_gb_ram_1_tb_rtx_5070_ti_windows_11_home_eclipse_bla_2348178923_3.pdfRead 5 October 2026Page 5 power connector instructions explicitly refer to the included AC adapter. Exact SKU Power Adapter row confirms 245 W Slim Tip.

Warranty

Manufacturer warranty (source market)
1year1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Hong Kong exact SKU Base Warranty: one year courier or carry-in. Included 3Y Legion Ultimate Support is identified separately and is not added to the base term.
Warranty service
Collect and return, Carry-in1Maker product pagepsref.lenovo.com/Detail/Legion_Pro_5_16IAX10Read 5 October 2026Exact SKU Base Warranty: courier or carry-in. Included upgrade is 3Y Legion Ultimate Support -IPMAIN (ESS).

Compare with

Pick a laptop to see both side by side. Differences are marked yellow.

More laptop comparisons

Sources

We read 5 sources for this laptop. The numbers match the markers in the sheet.

  1. Read 5 October 2026Backs 64 fields
  2. Read 5 October 2026Backs 9 fields
  3. Read 5 October 2026Backs 5 fields
  4. Read 5 October 2026Backs 3 fields
  5. Read 5 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
