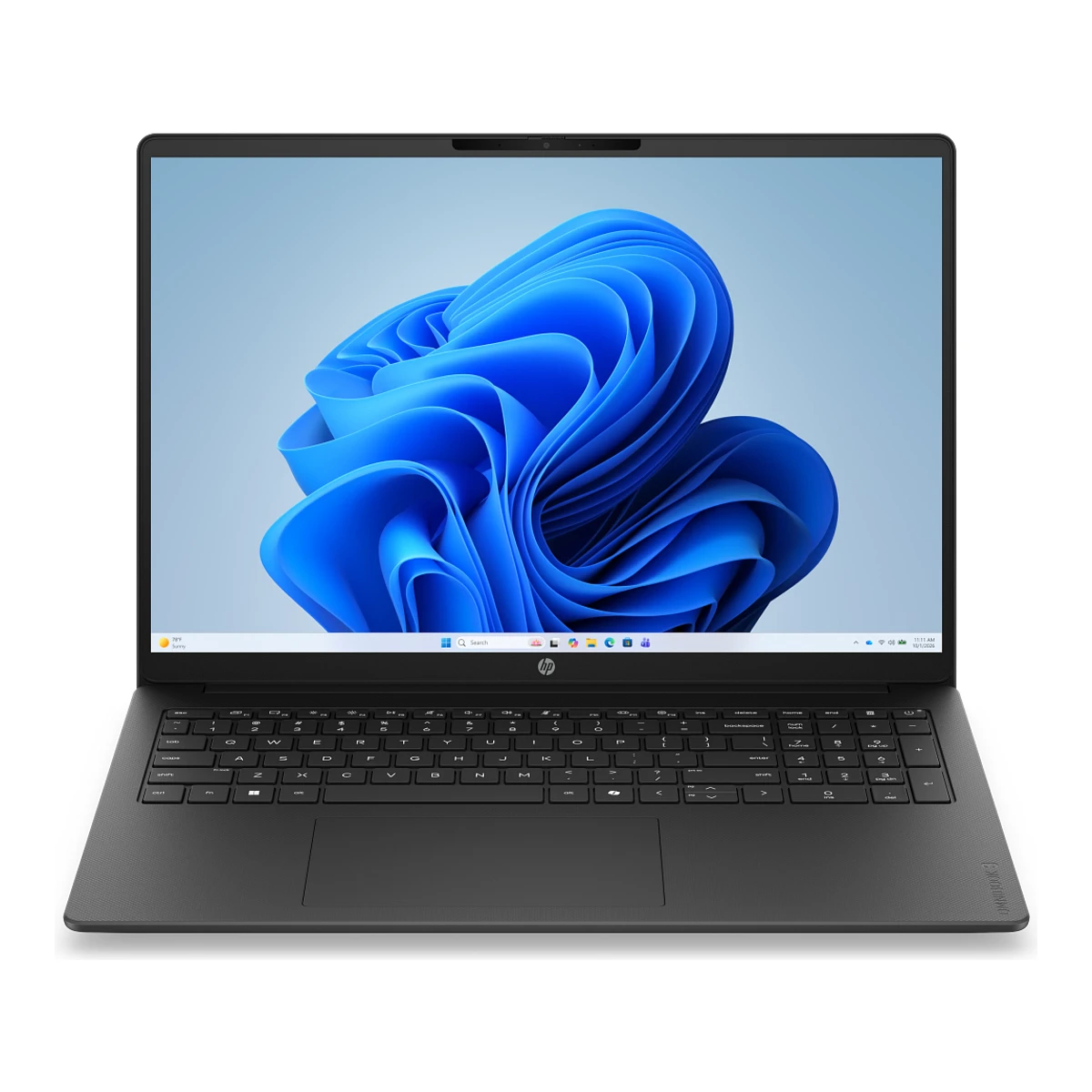

HP OmniBook 3 Laptop 16-by0142nr

HPMainstream laptop

OmniBook 3 Laptop 16-by0142nr

Released May 2026.1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The datasheet for 16-by0142nr is dated May 2026 in its footer and is the earliest dated maker document found. AMD launched the Athlon Silver 10 on 2025-10-01. HP's store page says it ships on 2026-10-22. May 2026 is an approximate month. Last checked 23 October 2026.

Screen size
16in
Processor
AMD Athlon Silver 10
GPU
AMD Radeon 610M Graphics
Weight (published)
1.64kg

70 of 179 fields known.

Compare with another laptopDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1
  • 2 USB-A 5Gbps signaling rate
  • 2 USB-C 10Gbps signaling rate, USB Power Delivery 3.1, DisplayPort 1.4, HP Sleep and Charge
  • 3.5 mm audio

All specs

SourceCalculated

General

Series
OmniBook 31Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026HP OmniBook 3 Laptop 16-by0142nr.
Model numbers
16-by0142nr, DH8A9UA#ABA1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Datasheet title 16-by0142nr and P/N DH8A9UA. The store page gives the product number DH8A9UA#ABA.2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Product # DH8A9UA#ABA and page name HP OmniBook 3 Laptop 16-by0142nr.
GTIN / EAN
8265811189541Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026UPC/EAN code 826581118954 in the datasheet. The store page data shows GTIN 0826581118954.2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Page data lists the UPC 826581118954.
Announced
Not available
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026US store page, nr model.
Colours
Jet black1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Product color: Jet black cover and base, black keyboard frame.2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Jet black in the page title and the Color row.
Segment
Mainstream2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Page data lists the home usage label and the categories School and hobbies and Entertainment.
Form factor
Clamshell2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Page facet form factor is Standard laptop, read as clamshell.

Chassis

Front and side, drawn to scale.

Dimensions
Width358.6Depth251.8Thickness (max)14.7mm(14.1 × 9.9 × 0.6 in)1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 202635.86 x 25.18 x 1.47 cm, converted exactly to mm. One thickness is published, so it is thickness_max_mm. The store page says 14.12 x 9.91 x 0.58 in.
Weight (published)
1.64kg(3.6 lb)1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Weight 1.64 kg. Packed weight is 2.39 kg. The store page says 3.61 lb. Charger not included.
Lid material
Not available
Bottom material
Not available
Max hinge angle
Not available
MIL-STD-810 testing (claimed)
Not available

Display

Screen size
16in(40.6 cm)1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 202640.6 cm (16 in) diagonal, 2K (1920 x 1200), IPS, micro-edge, anti-glare, 300 nits, 62.5% sRGB. 16:10 aspect ratio.
Native resolution
1920 × 1200px1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20261920 x 1200 as published, called 2K by HP.
Pixel density
141.5ppi
Panel type
IPS1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026IPS in the display line.
Backlight
Not available
Dimming zones
Not available
Panel part number
Not available
Screen surface
Matte1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The display line says anti-glare and the feature text calls it a non-reflective, low gloss anti-glare panel. The words matte finish in the datasheet describe the cover and keyboard frame.
Touchscreen
No1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Neither the datasheet display line nor the store page title for this SKU mentions touch. Stored as false on that basis.
Stylus
Not available
Refresh rate modes
Width (px)Height (px)Maximum operating refresh (Hz)
1920120060
Source3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Table 1-1, Display: WUXGA (1920 x 1200), LED, antiglare, sRGB 62.5%, 8 bit, eDP 1.2 without PSR, 300 nits, 60 Hz. That row matches this SKU's resolution, gamut and brightness. 60 Hz is a fixed rate, with no VRR claim.
Max refresh rate
60Hz
Adaptive sync
Not available
Gray-to-gray response time (claimed)
Not available
Native panel colour depth
8bits3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Same Table 1-1 display row: 8 bit. This is the panel colour depth for the 62.5% sRGB, 300 nits panel.
Brightness (SDR, claimed)
300nits1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026300 nits as published, with no typical or peak qualifier.
Peak brightness (SDR outdoors, claimed)
Not available
Sustained brightness (HDR, claimed)
Not available
Peak brightness (HDR, claimed)
Not available
sRGB coverage (claimed)
62.5%1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 202662.5% sRGB as published. The datasheet does not say coverage or volume, so this is an unspecified maker gamut claim.
DCI-P3 coverage (claimed)
Not available
Adobe RGB coverage (claimed)
Not available
HDR certification
Not available
Factory calibrated
Not available
Second display
Not available

Processor

Processor
AMD Athlon Silver 101Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026AMD Athlon Silver 10 (up to 3.5 GHz max boost clock, 2 MB L3 cache, 2 cores, 2 threads).
Processor brand
AMD1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Processor family AMD Athlon Silver processor.
Core configuration
Core typeCountCoreBase clock (GHz)Max clock (GHz)
Zen 22Zen 22.43.5
Source1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20262 cores and a 3.5 GHz max boost clock as published. Zen 2 and the 2.4 GHz base clock come from AMD's page for the Athlon Silver 10.4Maker product pageamd.com/en/products/processors/laptop/athlon/10-series/amd-athlon-silver-10.htmlRead 23 October 2026Athlon Silver 10, former codename Mendocino, Zen 2, base clock 2.4 GHz, max boost clock up to 3.5 GHz, no SMT.
CPU cores
2
Cores labelled performance
0
Cores labelled efficiency
0
Threads
21Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20262 threads.
Max boost clock
3.5GHz
L3 cache
2MB1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20262 MB L3 cache.4Maker product pageamd.com/en/products/processors/laptop/athlon/10-series/amd-athlon-silver-10.htmlRead 23 October 2026L3 cache 2 MB.
Process
6nm4Maker product pageamd.com/en/products/processors/laptop/athlon/10-series/amd-athlon-silver-10.htmlRead 23 October 2026Processor technology for CPU cores: TSMC 6nm FinFET. Stored as 6. Launch date 10/1/2025.
Sustained CPU power (configured)
Not available
Peak CPU power (configured)
Not available
Combined CPU and GPU power
Not available
NPU performance
Not available

Graphics

Discrete GPU
No1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Graphics: Integrated.
GPU
Not available
GPU brand
Not available
VRAM
Not available
Max GPU power (TGP)
Not available
Dynamic Boost
Not available
GPU boost clock
Not available
GPU switching
Not available
Integrated GPU
AMD Radeon 610M Graphics1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Integrated: AMD Radeon 610M Graphics.

Memory

Installed RAM
4GB1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20264 GB.
RAM type
LPDDR51Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20264 GB LPDDR5-6400 MT/s (onboard), transfer rates up to 6400 MT/s.
RAM speed
Not available
Memory channels
Not available
RAM upgrade
Soldered1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The datasheet says onboard memory and the service guide says memory is not accessible or upgradeable. The speed is not stored because 6400 MT/s is above the processor's LPDDR5 limit and HP calls it a transfer rate up to that value.3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Table 1-1, Memory: memory is not accessible or upgradeable.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Maximum supported RAM
Not available

Storage

Installed storage
256GB1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026256 GB PCIe NVMe M.2 SSD.
Storage type
NVMe SSD1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026PCIe NVMe M.2 SSD. The PCIe generation is not stated for the 256 GB drive.
Installed drive PCIe generation
Not available
Storage slots
Form factorInterfaceCountOccupied
M.2 2280PCIe NVMe1Yes
Source3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Table 1-1: PCIe NVMe M.2 2280 solid-state drives. The SSD removal procedure shows one SSD socket.
M.2 slots
1
Free storage slots
0
Maximum slot PCIe generation
Not available

Ports

Ports
TypeVersionCountSideMaximum data rate (Gbps)DP Alt Mode
HDMIHDMI 2.11LeftNot availableNot available
USB-A5Gbps signaling rate1Left5Not available
USB-C10Gbps signaling rate, USB Power Delivery 3.1, DisplayPort 1.4, HP Sleep and Charge2Left10Yes
3.5 mm audioNot available1RightNot availableNot available
USB-A5Gbps signaling rate1Right5Not available
Source1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20262 USB Type-A 5Gbps signaling rate, 1 HDMI-out 2.1, 1 headphone/microphone combo, 2 USB Type-C 10Gbps signaling rate (USB Power Delivery 3.1, DisplayPort 1.4, HP Sleep and Charge). Sides come from the service guide. HP lists no card reader and no separate DC jack. The maximum USB-C charging input is not stated.3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Chapter 2, pages 7 and 8, with the side drawings. Right side: headphone/microphone combo jack and one USB 5 Gbps port. Left side: HDMI port, one USB 5 Gbps port, two USB Type-C 10 Gbps power connectors and ports, and the AC adapter and battery light. HP's store images of this SKU show the same side views.
USB-C ports
2
Thunderbolt
Not available
Highest HDMI version
HDMI 2.1
Card reader
No
Ethernet speed
Not available
Maximum USB-C charging input
Not available

Wireless

Wi-Fi
Wi-Fi 61Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026MediaTek Wi-Fi 6 MT7920 (2x2) and Bluetooth 5.4 wireless card.
Wi-Fi bands
Not available
Wi-Fi module
MediaTek Wi-Fi 6 MT7920 (2x2)1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026MediaTek Wi-Fi 6 MT7920 (2x2) as published.
Bluetooth
5.41Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Bluetooth 5.4. HP's footnote says it works as Bluetooth 5.3 or lower until Microsoft OS support is available.
Cellular
Not available

Keyboard and touchpad

Keyboard layouts
Not available
Key switches
Scissor1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The sustainability line names keyboard keycaps, scissors and keyboard plate, which names a scissor mechanism.
Keyboard backlight
Not available
Numpad
Yes1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Full-size keyboard with integrated numeric pad.
Key travel
1.5mm1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The feature text states 1.5mm key travel.
Pointing stick
Not available
Touchpad size
Not available
Touchpad mechanism
Not available

Camera and audio

Webcam
1080p FHD1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20261080p FHD IR camera with HDR auto switch, temporal noise reduction and integrated dual array digital microphones.
IR face login
Yes1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026HP True Vision FHD IR camera, log in through Windows Hello with the infrared sensor.
Webcam privacy
Physical shutter1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Camera Shutter feature: a visible, physical shutter that turns off the camera when not in use.
Built-in speaker drivers
21Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Dual speakers.
Total speaker power
Not available
Audio features
Not available
Microphones
21Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Integrated dual array digital microphones, read as 2 microphones.

Battery and power

Battery energy
41Wh1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20263-cell, 41 Wh Li-ion polymer.
Claimed battery life
Use caseHours (h)
MobileMark 259.25
Video playback14.25
Source2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 2026Specs tab: Battery life up to 9 hours and 15 minutes, with footnote 3 naming MobileMark 25. Video Playback Battery Life up to 14 hours and 15 minutes, with footnote 10: tested by HP using continuous FHD video playback, 1080p, 150 nits brightness, system audio level 17%, player audio level 100%, full-screen from local storage, headphone attached or through speaker, wireless on and connected. Brightness for MobileMark 25 is not stated.
Adapter rated output
45W1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 202645 W USB Type-C GaN power adapter.
Laptop charging connector
USB-C1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026USB Type-C adapter. The service guide shows the two left-side USB-C ports as the power connectors, and there is no separate DC jack.3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Left-side Table 2-2 item 3: USB Type-C 10 Gbps power connectors and ports (2), which charge the device even when the computer is off.
Charge 0 to 50 % (claimed)
45min1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Supports battery fast charge, approximately 50% in 45 minutes. HP's footnote: system off using shut down, with the HP adapter provided or the recommended adapter, and charging time may vary by 10%.

Cooling

We could not find any of these 4 fields. Show them
Fans
Not available
Vapor chamber
Not available
Liquid metal
Not available
Power modes
Not available

Security

Fingerprint
Not available
TPM
2.01Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The datasheet says Trusted Platform Module (Firmware TPM) support. The service guide says firmware-based TPM 2.0.3Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_13159558_en-US-1.pdfRead 23 October 2026Table 1-1, Security: supports firmware-based Trusted Platform Module (TPM) 2.0.
Remote management
Not available
Security lock slot
Not available

Software

Operating system
Windows 11 Home1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Windows 11 Home.
OS family
Windows1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026Windows.
Security updates until
Not available

Measured display

We could not find any of these 12 fields. Show them
Brightness (measured, centre)
Not available
Brightness (measured, average)
Not available
Contrast ratio (measured)
Not available
HDR peak brightness (measured)
Not available
sRGB coverage (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
Not available
PWM flicker found
Not available
PWM frequency (measured)
Not available
PWM at or below brightness
Not available
Response black to white (measured)
Not available
Response grey to grey (measured)
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them
Fan noise per mode
Not available
Max fan noise
Not available
Fan noise while gaming
Not available
Top surface under load
Not available
Bottom surface under load
Not available
Palm rest under load
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured battery and power

We could not find any of these 10 fields. Show them
Battery runtime per test
Not available
Wi-Fi browsing runtime
Not available
Video runtime
Not available
Full charge time (measured)
Not available
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available
Weight (measured)
Not available

Certifications

Intel Evo
Not available
Copilot+ PC
Not available
Colour certifications
Not available
ENERGY STAR
Yes1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026ENERGY STAR certified in the Ecolabels row. Registry not independently checked.
EPEAT
Silver1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026EPEAT Silver with Climate+. Registration region is not named beyond the US datasheet.
Other certifications
Not available

In the box

In the box
Not available
Power adapter included
Yes1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 2026The Power row lists the 45 W adapter for this SKU and the charging footnote refers to the HP adapter provided with the notebook. The page has no separate in-the-box list.

Warranty

Manufacturer warranty (source market)
1year1Maker spec sheet (PDF)www8.hp.com/h20195/v2/GetDocument.aspxRead 23 October 20261-year limited hardware warranty and 1-year limited technical support for software and initial setup. Service type is not stated.2Maker product pagehp.com/us-en/shop/pdp/hp-omnibook-3-laptop-16-by0142nrRead 23 October 20261-Year Standard Warranty, included. Care Packs are extra.
Warranty service
Not available

Compare with

Pick a laptop to see both side by side. Differences are marked yellow.

More laptop comparisons

Sources

We read 4 sources for this laptop. The numbers match the markers in the sheet.

  1. Read 23 October 2026Backs 50 fields
  2. Read 23 October 2026Backs 9 fields
  3. Read 23 October 2026Backs 8 fields
  4. Read 23 October 2026Backs 3 fields

See a wrong value? Tell us and name the field.
