Computers / Laptops

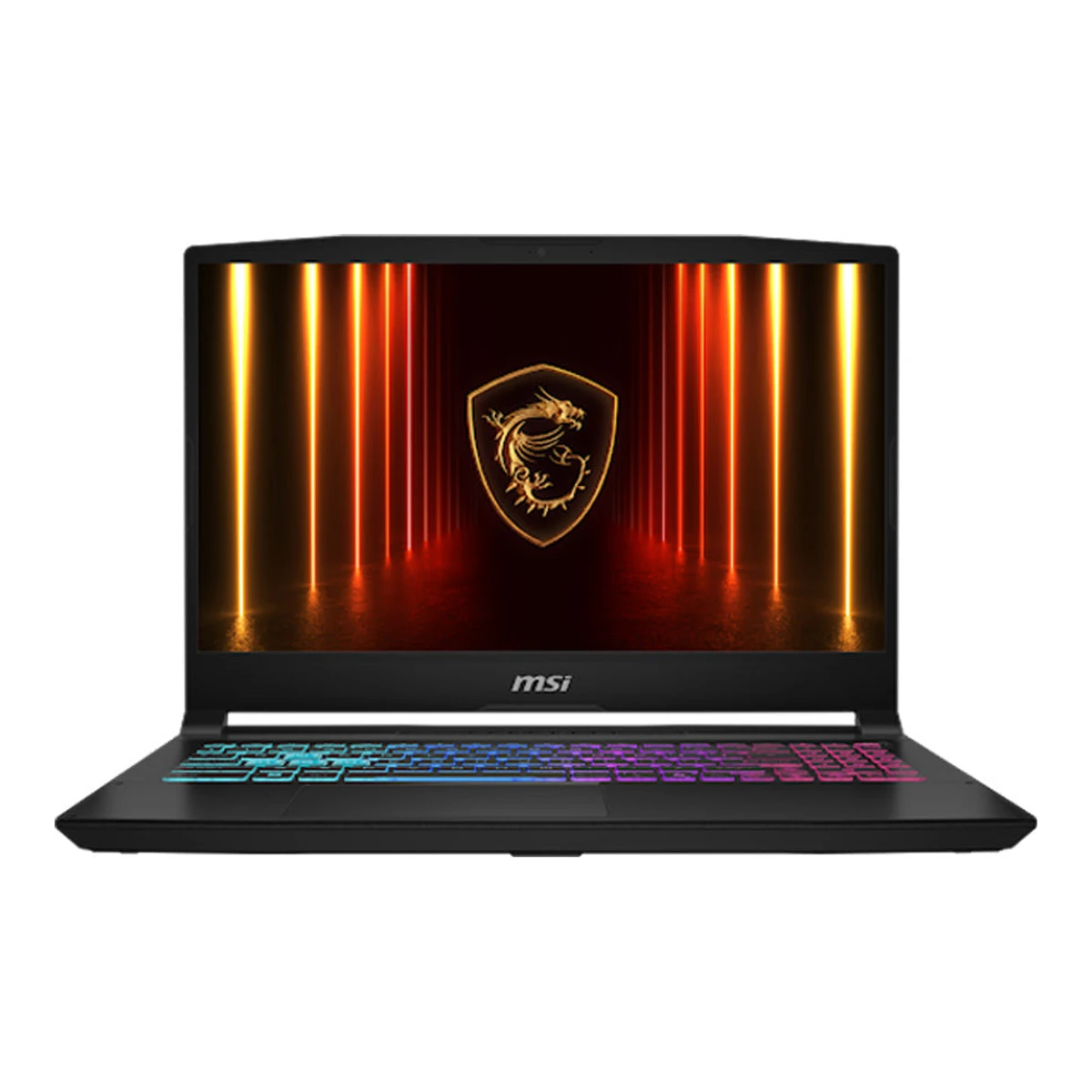

MSIGaming laptop
Katana 15 HX B14WFK
Released May 2025.7Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026The page says last updated 22 September 2025. The MSI sheet for the Vietnam model is dated 2025-05-30. The month is approximate. Last checked 15 October 2026.
- Screen size
- 15.6in
- Processor
- Intel Core i7-14650HX
- GPU
- NVIDIA GeForce RTX 5060 Laptop GPU
- Weight (published)
- 2.4kg
84 of 179 fields known.
At a glance
Ports
- 3 USB-A USB 3.2 Gen 2
- DC in
- USB-C USB 3.2 Gen 2
- HDMI 2.1
- Ethernet (RJ45)
- 3.5 mm audio
General
- GTIN / EAN
- Not available
- Announced
- Not available
- Status
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
Chassis
Front and side, drawn to scale.
- Dimensions
- Width359Depth262Thickness (max)25.5mm(14.1 × 10.3 × 1 in)1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026359 x 262 x 25.5 mm (W x D x H). The height is stored as the single published thickness.
- Weight (published)
- 2.4kg(5.3 lb)1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20262.4 kg, listed as Weight (W/ Battery).
- Bottom material
- Plastic6Reviewcgmagonline.com/review/hardware/msi-katana-15-hx-b14wfk-gaming-laptopRead 15 October 2026Review of the B14WFK: hard plastic chassis. Lid and base are not named separately.
- Max hinge angle
- Not available
- MIL-STD-810 testing (claimed)
- Not available
Display
- Screen size
- 15.6in(39.6 cm)1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Native resolution
- 2560 × 1440px1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Pixel density
- 188.3ppi
- Panel type
- IPS-level1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026IPS-Level.
- Backlight
- Not available
- Dimming zones
- Not available
- Panel part number
- Not available
- Screen surface
- Not available
- Touchscreen
- Not available
- Stylus
- Not available
- Refresh rate modes
Width (px) Height (px) Maximum operating refresh (Hz) 2560 1440 165 - Max refresh rate
- 165Hz
- Adaptive sync
- Not available
- Gray-to-gray response time (claimed)
- Not available
- Native panel colour depth
- Not available
- Brightness (SDR, claimed)
- Not available
- Peak brightness (SDR outdoors, claimed)
- Not available
- Sustained brightness (HDR, claimed)
- Not available
- Peak brightness (HDR, claimed)
- Not available
- sRGB coverage (claimed)
- Not available
- DCI-P3 coverage (claimed)
- 100%1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026100% DCI-P3 (Typical).
- Adobe RGB coverage (claimed)
- Not available
- HDR certification
- Not available
- Factory calibrated
- Not available
- Second display
- Not available
Processor
- Processor
- Intel Core i7-14650HX1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Processor brand
- Intel1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Core configuration
Core type Count Base clock (GHz) Max clock (GHz) Performance 8 2.2 5.2 Efficiency 8 1.6 3.7 - CPU cores
- 16
- Cores labelled performance
- 8
- Cores labelled efficiency
- 8
- Max boost clock
- 5.2GHz
- Sustained CPU power (configured)
- Not available
- Peak CPU power (configured)
- Not available
- Combined CPU and GPU power
- Not available
- NPU performance
- Not available
Graphics
- Discrete GPU
- Yes1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- GPU
- NVIDIA GeForce RTX 5060 Laptop GPU1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- GPU brand
- NVIDIA1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Max GPU power (TGP)
- 115W1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026115W Maximum Graphics Power with Dynamic Boost. May vary by scenario.
- Dynamic Boost
- Not available
Memory
- Installed RAM
- 16GB1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20268GB*2 DDR5. Two modules of 8 GB.
- RAM speed
- 5,600MT/s2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 2026Product line 8GB*2, DDR5-5600 for this SKU.
- RAM upgrade
- Slots1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Memory slots
Slot Count Occupied Module size (GB) SO-DIMM 2 Yes 8 - RAM slots
- 2
- Free RAM slots
- 0
Storage
- Installed storage
- 512GB1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026512GB*1 NVMe SSD PCIe Gen4.
- Storage type
- NVMe SSD1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Installed drive PCIe generation
- 41Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Storage slots
Interface PCIe generation PCIe lanes Count Occupied PCIe NVMe 4 4 1 Yes Source1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20261x M.2 SSD slot (NVMe PCIe Gen4). The installed drive uses it. Slot length is not stated, so the form factor is left out. The x4 lane count comes from the MSI Germany page.3Maker product pagede-store.msi.com/collections/bsp-update-check/products/katana-15-hx-b14wfk-487de-bb71465x16gxxdx11maRead 15 October 2026B14WFK-487DE page lists 1x M.2 PCIe 4.0 x4 as the total slot count with a 512 GB SSD installed.- M.2 slots
- Not available
- Free storage slots
- 0
- Maximum slot PCIe generation
- 4
Ports
- Ports
Type Version Count Side Maximum data rate (Gbps) DP Alt Mode Maximum charging input (W) USB-A USB 3.2 Gen 2 2 Left 10 Not available Not available DC in Not available 1 Left Not available Not available Not available USB-C USB 3.2 Gen 2 1 Right 10 Yes 100 USB-A USB 3.2 Gen 2 1 Right 10 Not available Not available HDMI HDMI 2.1 1 Right Not available Not available Not available Ethernet (RJ45) Not available 1 Right 1 Not available Not available 3.5 mm audio Not available 1 Right Not available Not available Not available Source1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20263x Type-A USB3.2 Gen2, 1x Type-C (USB3.2 Gen2 / DisplayPort / Power Delivery 3.0), 1x HDMI 2.1 (8K at 60Hz / 4K at 120Hz), Gigabit Ethernet, 1x Mic-in/Headphone-out combo jack. The MSI Malaysia store spec table lists the Type-A ports as USB3.2 Gen1 while its own connectivity section and this sheet say Gen2. The sheet is stored. Sides come from the CGMagazine and PC Guide reviews.2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 2026Footnote: USB Type-C PD charging supports 100W (20V@5A) while the system runs (S0) and in Modern Standby. At hibernate and off it takes 45W (20V@2.25A) up to 100W. 100 W is stored as the highest accepted input. The 240W barrel adapter is the main charger.6Reviewcgmagonline.com/review/hardware/msi-katana-15-hx-b14wfk-gaming-laptopRead 15 October 2026Right side: audio combo jack, RJ45, USB 3.2 Gen2 Type-C with DisplayPort and Power Delivery 3.0, USB 3.2 Gen2 Type-A, HDMI 2.1. Left side: two USB 3.2 Gen2 Type-A and the barrel-plug adapter port.7Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026Left: one vent, barrel jack, two USB 3.2 Gen 2 Type-A. Right: Gigabit LAN, one USB Type-A, USB Type-C (USB 3.2 Gen 2), 3.5mm jack, HDMI 2.1. Agrees with CGMagazine.- USB-C ports
- 1
- Thunderbolt
- Not available
- Highest HDMI version
- HDMI 2.1
- Card reader
- No
- Ethernet speed
- 1Gbps
- Maximum USB-C charging input
- 100W
Wireless
- Wi-Fi
- Wi-Fi 6E1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz5Maker product pageintel.com/content/www/us/en/products/sku/204837/intel-wifi-6e-ax211-gig.htmlRead 15 October 2026Intel ARK for the AX211 lists the 2.4, 5 and 6 GHz bands.
- Wi-Fi module
- Intel Wi-Fi 6E AX2111Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026Intel Wi-Fi 6E AX211.
- Bluetooth
- 5.41Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026Bluetooth v5.4 on the 289MY sheet. The MSI Malaysia store page and the 285PH sheet say v5.3. Intel lists Bluetooth 5.4 for the AX211. The sheet for this model number is stored.2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 2026Store spec table says Bluetooth v5.3. The sheet says v5.4.
- Cellular
- Not available
Keyboard and touchpad
- Keyboard layouts
- Not available
- Key switches
- Not available
- Keyboard backlight
- RGB zones1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20264-Zone RGB Gaming Keyboard with Copilot Key.
- Key travel
- 1.7mm2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 20261.7mm Key Travel.
- Pointing stick
- Not available
- Touchpad size
- Width120Height75mm(4.7 × 3 in)3Maker product pagede-store.msi.com/collections/bsp-update-check/products/katana-15-hx-b14wfk-487de-bb71465x16gxxdx11maRead 15 October 2026MSI Germany page of the B14WFK-487DE: Precision Multi-Touch (120 x 75 mm). That SKU has a Full HD 144 Hz display and German layout. The chassis is the same 359 x 262 x 25.5 mm.
- Touchpad mechanism
- Not available
Camera and audio
- Webcam
- 720p at 30 fps1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026HD type (30fps@720p).
- Webcam privacy
- Not available
- Built-in speaker drivers
- 21Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20262x 2W Audio Speaker.
- Total speaker power
- 4W1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20262x 2W. The total is the sum of the two stated speakers.
- Audio features
- Hi-Res Audio Ready, Nahimic 3 Audio Enhancer1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Microphones
- Not available
Battery and power
- Battery energy
- 75Wh1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20264-Cell, 75 Whrs.
- Claimed battery life
- Not available
- Adapter rated output
- 240W1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026Adapter 240W.
- Laptop charging connector
- Barrel6Reviewcgmagonline.com/review/hardware/msi-katana-15-hx-b14wfk-gaming-laptopRead 15 October 2026Left side holds a barrel-plug AC/DC adapter port.
- Charge 0 to 50 % (claimed)
- Not available
Cooling
- Vapor chamber
- Not available
- Liquid metal
- Not available
- Power modes
- Not available
Security
- Fingerprint
- Not available
- Remote management
- Not available
- Security lock slot
- Not available
Software
- Operating system
- Windows 11 Home1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- OS family
- Windows1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Security updates until
- Not available
Measured display
- Brightness (measured, centre)
- Not available
- Brightness (measured, average)
- Not available
- Contrast ratio (measured)
- 1,130:17Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026Datacolor SpyderX Elite. 1130:1 with 308 cd/m2 white at 100% brightness and 0.27 cd/m2 black. Review unit: i7-14650HX, RTX 5060, 16GB (2x8GB) DDR5-5600, 512GB SSD, 2560x1440 165 Hz.
- HDR peak brightness (measured)
- Not available
- sRGB coverage (measured)
- 100%7Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026Datacolor SpyderX Elite. Reported as 100% sRGB coverage.
- DCI-P3 coverage (measured)
- 99%7Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026Datacolor SpyderX Elite. Reported as 99% DCI-P3 coverage. The review also lists 89% AdobeRGB.
- Colour accuracy (measured Delta E)
- Not available
- PWM flicker found
- Not available
- PWM frequency (measured)
- Not available
- PWM at or below brightness
- Not available
- Response black to white (measured)
- Not available
- Response grey to grey (measured)
- Not available
Measured performance
We could not find any of these 8 fields. Show them
- Cinebench 2024 single-core
- Not available
- Cinebench 2024 multi-core
- Not available
- Geekbench 6 single-core
- Not available
- Geekbench 6 multi-core
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- SSD sequential read (measured)
- Not available
- Game frame rates
- Not available
Measured noise and temperature
- Fan noise per mode
- Not available
- Max fan noise
- Not available
- Fan noise while gaming
- Not available
- Top surface under load
- Not available
- Bottom surface under load
- Not available
- Palm rest under load
- Not available
- CPU temperature in stress test
- 80°C7Reviewpcguide.com/laptop/review/msi-katana-15-hx-b14wfkRead 15 October 2026FurMark 2 CPU and GPU stress test with HWiNFO logging, 5 minutes idle, 20 minutes load. Peak CPU temperature 80 C and GPU 85 C. The power mode is not stated.
- CPU clock in stress test
- Not available
- GPU temperature while gaming
- Not available
Measured battery and power
- Battery runtime per test
Test Brightness (nits) Power mode Hours (h) Mixed use 120 Eco mode, Windows energy saver on, integrated graphics only 6.17 - Wi-Fi browsing runtime
- Not available
- Video runtime
- Not available
- Full charge time (measured)
- Not available
- Power draw idle
- Not available
- Power draw gaming
- Not available
- Power draw max
- Not available
- Sustained CPU power (measured)
- Not available
- GPU power while gaming (measured)
- Not available
- Weight (measured)
- Not available
Certifications
We could not find any of these 6 fields. Show them
- Intel Evo
- Not available
- Copilot+ PC
- Not available
- Colour certifications
- Not available
- ENERGY STAR
- Not available
- EPEAT
- Not available
- Other certifications
- Not available
In the box
We could not find any of these 2 fields. Show them
- In the box
- Not available
- Power adapter included
- Not available
Warranty
- Manufacturer warranty (source market)
- 2years1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 20262 years limited warranty. Malaysia.2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 20262 years limited warranty.
- Warranty service
- Not available
Links
- Product page
- my-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptop2Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptopRead 15 October 2026
- Spec sheet
- storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdf1Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdfRead 15 October 2026
- Manual
- Not available
- EPREL registration number
- Not available
Compare with
Pick a laptop to see both side by side. Differences are marked yellow.
Sources
We read 9 sources for this laptop. The numbers match the markers in the sheet.
- Maker spec sheet (PDF)storage-asset.msi.com/specSheet/my/nb/Katana%2015%20HX%20B14WFK-289MY.pdf
- Maker product pagemy-store.msi.com/products/msi-katana-15-hx-b14wfk-289-gaming-laptop
- Maker spec sheet (PDF)storage-asset.msi.com/excelSku/vn/nb/Katana%2015%20HX%20B14WFK%20%28025VN%29.pdf
See a wrong value? Tell us and name the field.
