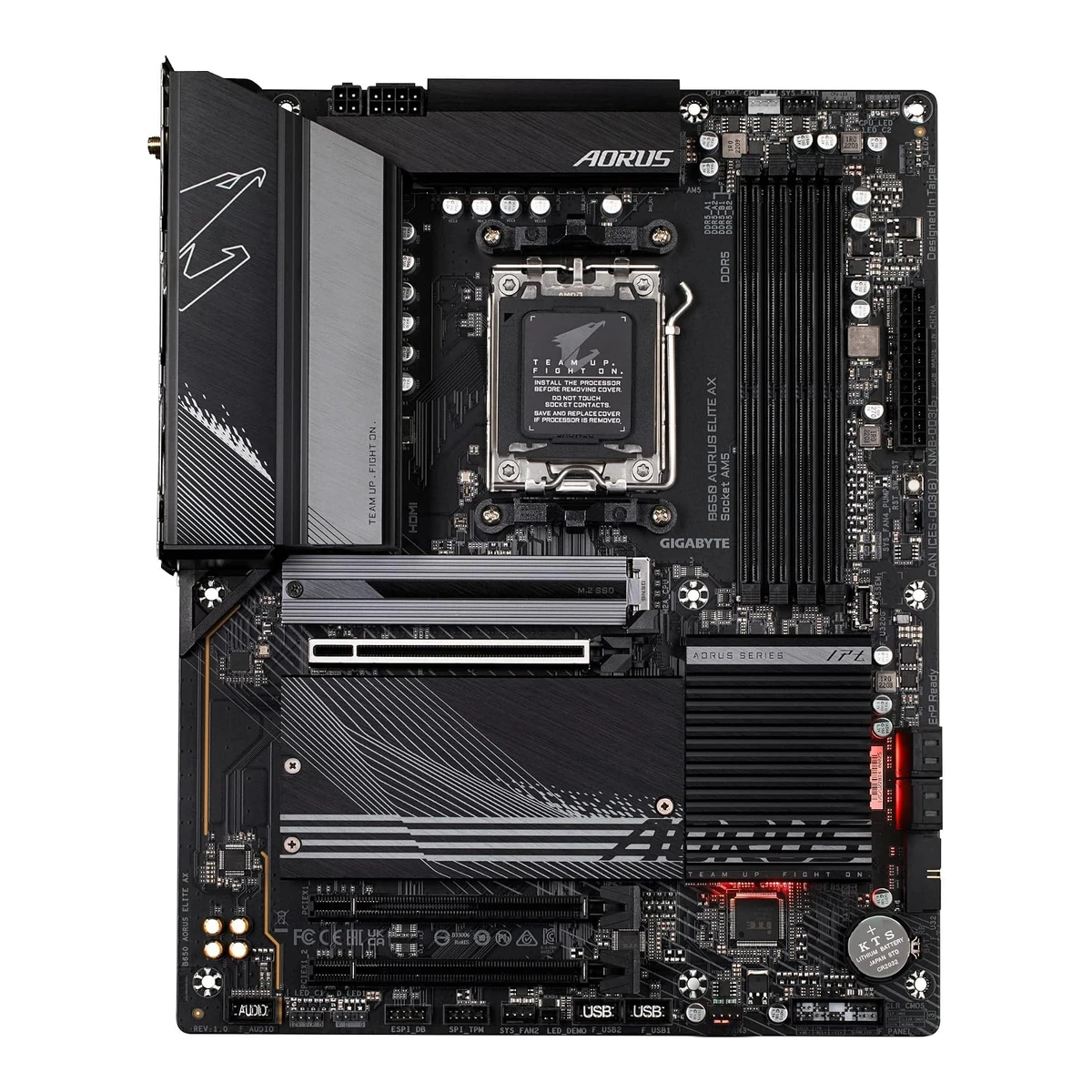

GIGABYTE B650 AORUS ELITE AX

GIGABYTEGaming motherboard

B650 AORUS ELITE AX

Released October 2022.2Press releaseaap.com.au/aapreleases/cision20221010ae89280Read 15 October 2026GIGABYTE press release of 2022-10-10: the B650 AORUS ELITE AX is one of 14 B650 and B650E boards on sale starting October 10th. Last checked 15 October 2026.

CPU socket
AM5
Chipset
AMD B650
Form factor
ATX
M.2 slots
3

64 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • USB-C USB 3.2 Gen 2
  • 2 USB-A USB 3.2 Gen 2
  • 5 USB-A USB 3.2 Gen 1
  • 4 USB-A USB 2.0
  • HDMI 2.1
  • DisplayPort 1.4
  • Ethernet (RJ45)
  • 3 3.5 mm audio
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
AORUS1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Manual cover: B650 AORUS ELITE AX. AORUS is the GIGABYTE brand line in the name.
Model numbers
B650 AORUS ELITE AX1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Manual cover: B650 AORUS ELITE AX (rev. 1.0 and 1.1 in section 2-2). B650 AORUS ELITE AX V2 and B650 AORUS ELITE AX ICE are separate GIGABYTE models and are not stored here.
GTIN / EAN
4719331849375, 8895230336234Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026Item details list UPC 889523033623 for the B650 AORUS ELITE AX (ASIN B0BH7GTY9C).8Retailer pageebay.de/p/12057269341Read 15 October 2026Product identifiers: EAN 4719331849375, manufacturer number B650 AORUS ELITE AX, listing item titled rev. 1.0. Single source for the EAN.
Announced
Not available
Status
Available4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026Listed and in stock at 172.99 USD on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming2Press releaseaap.com.au/aapreleases/cision20221010ae89280Read 15 October 2026The release calls the AORUS B650E and B650 boards gaming motherboards.
Board revision
rev. 1.01Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 names PCB rev. 1.0 and PCB rev. 1.1. The maker's site adds rev. 1.2 as a separate page. Rev. 1.0 is the base row.

Platform

CPU socket
AM51Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: AMD Socket AM5.
Chipset
AMD B6501Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: AMD B650.
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026About this item and the compatible processors row: AMD Ryzen 9000, 8000 and 7000 Series.10Maker product pagegigabyte.com/Motherboard/B650-AORUS-ELITE-AX-rev-1xRead 15 October 2026Search excerpt of the maker's page: AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series. Read on 2026-10-15. BIOS updates can add series later.
CPU overclocking
Yes9Press articletomshardware.com/features/x670-motherboard-overviewRead 15 October 2026AMD X670/B650 launch overview: B650E and B650 chipsets both support overclocking the processor and memory. Its chipset table lists Overclocking: Yes for the B650. This is the chipset maker's feature, not a board spec.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: ATX Form Factor.
Board dimensions
Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: ATX Form Factor, 30.5cm x 24.4cm.
PCB layers
84Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026About this item: 8-Layer 2X Copper PCB. SHI's reseller page, seen in search results, adds 2oz copper.
Back-connect design
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026The section 1-1 layout and section 2-8 list show the usual front-side power, fan and front-panel connectors.
RGB lighting on the board
Yes3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026The chipset cover integrates RGB elements. The review calls this the only area on the board with RGB lighting. The maker's manual does not describe onboard lighting, and the product photo shows lit LEDs near the chipset.

Power delivery

Power stage layout
14+2+13Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Box back lists 14+2+1 Power Phases. Gigabyte writes it as Twin 14+2+1 Phases Digital VRM (a 7+7 parallel design).4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026About this item: Twin 14+2+1 Phases.6Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-amd-b650-sam5-atxb650-aorus-elite-ax-gigabyte-1150579Read 15 October 2026Copy of GIGABYTE's feature text: Twin 14+2+1 Phases Digital VRM Solution.
CPU core (Vcore) power stages
143Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026The review counts 14 phases in parallel (not direct) for the VCore, which it calls a doubler design, with Infineon TDA21472 stages. Gigabyte's 7+7 parallel design means 14 power stages on the Vcore rail. The 2 SoC stages are ON NCP303160 60A and the 1 MISC stage is Renesas ISL99390 30A.
Vcore power stage rating
70A4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026About this item (GIGABYTE's text): Twin 14+2+1 Phases with 70A Power Stage Digital VRM Solution. A Gigabyte footnote ties the 70A to the VCORE phases.
VRM controller
Infineon XDPE192C3B3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026The review names the Infineon VRM controller XDPE192C3B for all three MOSFET types. It is the only review that names a controller.
CPU power connectors
8+4 pin1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: 1 x 8-pin ATX 12V and 1 x 4-pin ATX 12V power connector, plus the 24-pin ATX connector.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026The review says Gigabyte provides 1x 8-pin and 1x 4-pin EPS connectors.
Extra slot power connector
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026The section 2-2 internal connector list has no extra slot power connector.

Memory

Memory type
DDR51Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: DDR5 DIMM sockets.
Memory slots
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: 4 x DDR5 DIMM sockets.
Max memory
256GB7Spec databasemaxmybuild.com/motherboards/gigabyte-b650-aorus-elite-axRead 15 October 2026Memory row: max capacity 256 GB. This agrees with the 256 GB (64 GB per DIMM) in the search excerpt of GIGABYTE's rev. 1.0/1.1 and rev. 1.2 pages. The 2022 manual says 128 GB and a later retailer copy also says 128 GB. A BIOS update raised it, so the maker's product page is used.10Maker product pagegigabyte.com/Motherboard/B650-AORUS-ELITE-AX-rev-1xRead 15 October 2026Search excerpt: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity).
Max memory speed (overclocked)
6,666MT/s5Retailer pagestartech.com.bd/gigabyte-b650-aorus-elite-ax-motherboardRead 15 October 2026Copy of GIGABYTE's specification: Supported Memory 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s. The copy is from the Ryzen 8000 and 7000 era. The 6666 value is the highest listed overclock.
ECC memory
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16164CPU1
PCIe x1613Chipset2
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 and the section 1-1 layout: PCIEX16 is from the CPU, PCIe 4.0 running at x16. PCIEX1_1 and PCIEX1_2 are full-length slots on the chipset, PCIe 3.0 running at x1. The M2_WIFI socket for the Wi-Fi module is not listed. The lane figures are for a CPU with the full x16 link, such as Ryzen 7000. The manual lists no slower links for other CPU families.
Full-length PCIe slots
3
Fastest PCIe x16 slot generation
4

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2A_CPU54CPUM.2 22110NoYes
M2B_CPU44CPUM.2 22110NoYes
M2C_SB44ChipsetM.2 22110NoYes
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: M2A_CPU is PCIe 5.0 x4/x2 (the note says actual support may vary by CPU), M2B_CPU is PCIe 4.0 x4/x2 and M2C_SB is on the chipset at PCIe 4.0 x4/x2. All three take 25110/2280 modules. Section 2-8 says the board supports M.2 PCIe SSDs only, and its table marks M.2 SATA SSD as not supported for every slot. No lane sharing is stated. The heatsink flags come from Tech4Gamers and the Amazon listing.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026The top M.2 slot has its own heatsink with a thermal pad. The lower two slots have covers with pre-applied thermal pads. All three are covered. The review says the top slot runs PCIe 5.0 and the lower two PCIe 4.0 x4.4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026About this item: M.2 Thermal Guard and 1 PCIe 5.0 NVMe x4 M.2 connector.6Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-amd-b650-sam5-atxb650-aorus-elite-ax-gigabyte-1150579Read 15 October 2026Fully covered heatpipe and M.2 Thermal Guard. 1 PCIe 5.0 x4 and 2 PCIe 4.0 x4 M.2 connectors.7Spec databasemaxmybuild.com/motherboards/gigabyte-b650-aorus-elite-axRead 15 October 2026M.2 heatsinks: all slots.
M.2 slots
3
PCIe 5.0 M.2 slots
1
SATA ports
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: 4 x SATA 6Gb/s connectors.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)
USB-CUSB 3.2 Gen 2110
USB-AUSB 3.2 Gen 2210
USB-AUSB 3.2 Gen 155
USB-AUSB 2.040.48
HDMIHDMI 2.11Not available
DisplayPortDisplayPort 1.41Not available
Ethernet (RJ45)Not available12.5
3.5 mm audioNot available3Not available
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 back panel list: DisplayPort, HDMI, 1 USB Type-C Gen 2, 2 USB 3.2 Gen 2 Type-A, 5 USB 3.2 Gen 1, 4 USB 2.0/1.1, 1 RJ-45, 3 audio jacks, 1 Q-Flash Plus button and 2 SMA antenna connectors. The RJ-45 port is 2.5 Gbps. The manual states no DisplayPort mode and no power output for the USB-C port, so those columns are left out. The manual writes HDMI 2.0. The later GIGABYTE text in the Startech copy says HDMI 2.1 with TMDS-compatible ports, which is stored.5Retailer pagestartech.com.bd/gigabyte-b650-aorus-elite-ax-motherboardRead 15 October 2026Copy of GIGABYTE's graphics row: Support for HDMI 2.1 version and HDCP 2.3, native HDMI 2.1 TMDS compatible ports, and DisplayPort 1.4 with HDR.
Rear USB ports
12
Rear USB-C ports
1
Fastest rear USB port
10Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header2011
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4824
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 and 2-8: 1 USB Type-C header with USB 3.2 Gen 2x2 (one port), 1 USB 3.2 Gen 1 header (two ports) and 2 USB 2.0/1.1 headers (four ports). No Power Delivery output is stated.
Front USB-C header speed
20Gbps
Fan headers
61Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 and 2-8: 1 CPU fan header, 1 water cooling CPU fan header (CPU_OPT), 3 system fan headers and 1 system fan/water cooling pump header make 6.
ARGB headers
21Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-8: D_LED1 and D_LED2 are addressable LED strip headers.
RGB headers
31Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-8: CPU_LED is a 12V CPU cooler or RGB LED strip header, and LED_C1 and LED_C2 are 12V RGB LED strip headers. All three are 4-pin 12V headers.

Networking

Ethernet controllers
Realtek RTL81257Spec databasemaxmybuild.com/motherboards/gigabyte-b650-aorus-elite-axRead 15 October 2026Ethernet row: Realtek RTL8125BG, 2.5 GbE. The maker writes only a Realtek 2.5GbE LAN chip. Stored as the chip family RTL8125, suffix BG left out. Single source for the chip name.
Ethernet ports
1
Ethernet speed
2.5Gbps
Wi-Fi included
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: the wireless module is marked Only for B650 AORUS ELITE AX, and the box contents list an antenna.
Wi-Fi standard
Wi-Fi 6E1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: Wi-Fi 6E, 802.11a, b, g, n, ac, ax.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: 2.4/5/6 GHz carrier frequency bands.
Max Wi-Fi channel width
160MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: support for the 11ax 160MHz wireless standard, on both the rev. 1.0 and the rev. 1.1 module.
Wi-Fi module
MediaTek MT79221Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: AMD Wi-Fi 6E RZ616 (MT7922A22M) for PCB rev. 1.0 and Intel Wi-Fi 6E AX210 for PCB rev. 1.1. Tech4Gamers also names MediaTek MT7922 (RZ616). The MediaTek chip is the base value, stored as MT7922.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Networking page: an Intel-branded module using the MediaTek MT7922 (RZ616) for Wi-Fi 6E. The review says Bluetooth 5.3, the manual says 5.2 for rev. 1.0, and the manual is used.
Bluetooth
5.21Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2: Bluetooth 5.2 for PCB rev. 1.0 and Bluetooth 5.3 for PCB rev. 1.1.

Audio

Audio codec
Realtek ALC8973Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Audio page text and chip photo: Realtek ALC897-VB. The review's spec table writes ALC1220-VB, but that table also lists an X570 chipset and DDR4, so it is a copied template and is not used. The maker's manual names only a Realtek Audio CODEC and links GIGABYTE's realtek897 audio software page. MaxMyBuild also lists ALC897.7Spec databasemaxmybuild.com/motherboards/gigabyte-b650-aorus-elite-axRead 15 October 2026Audio codec row: ALC897.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Back panel list and section 2-6: Q-Flash Plus button updates the BIOS with the system off.6Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-amd-b650-sam5-atxb650-aorus-elite-ax-gigabyte-1150579Read 15 October 2026Q-Flash Plus: update the BIOS without installing the CPU, memory and graphics card.
Clear CMOS button (rear)
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026The back panel list has no clear CMOS button. Section 2-8 lists a Clear CMOS jumper (CLR_CMOS).
POST code display
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-7 lists only status LEDs for CPU, DRAM, VGA and BOOT. There is no two-digit code display.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Cons list: No Debug LED. The board has only CPU, DRAM, VGA and BOOT status LEDs.
Power button on the board
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-7: the Quick Button (RST_SW) is a reset button that lets users quickly turn the computer on or off in an open-case environment.
Dual BIOS
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-2 BIOS row: 1 x 256 Mbit flash. No second BIOS is listed.
Pre-installed I/O shield
Not available
Tool-free features
Tool-free M.2 latch, PCIe slot release1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 2-8 item 12 describes the M.2 EZ-Latch clip. The PCIe EZ-Latch comes from Tech4Gamers and the Amazon listing. The M.2 heatsinks are held by screws, so no tool-free heatsink option is set.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Pros list EZ-Latch on the PCIe slot and EZ-Latch on the M.2 ports.4Retailer pageamazon.com/dp/B0BH7GTY9CRead 15 October 2026The title lists EZ-Latch. About this item lists PCIe Ultra Durable Armor.6Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-amd-b650-sam5-atxb650-aorus-elite-ax-gigabyte-1150579Read 15 October 2026EZ-Latch: PCIe x16 slot and M.2 connectors with quick release and screwless design.

Measured

VRM temperature under CPU load
42.2°C3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Thermal imaging page: Hti HT18 thermal camera on the VRM area during the Cinebench R23 System Stability test (30 minutes). The MOSFETs ran at 42.2 C at 31 C ambient. The onboard sensor read 41 C. Test system: Ryzen 7 7700X at stock settings (package power 123.187 W), DeepCool LS720 with fans and pump at full speed, 32GB DDR5-4800, RTX 3090, a 120 mm fan blowing at the socket, UEFI on auto. BIOS version not stated.
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
Antenna, 2 x SATA cables, M.2 screw and standoff, G Connector1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_aorus_elite_ax.pdfRead 15 October 2026Section 1-3: antenna (only for the AX), two SATA cables, M.2 screw/standoff and one G Connector. The manual also lists a User's Manual, but Tech4Gamers says there is no printed manual in the box, so it is left out. The list is for reference and actual items can differ.3Reviewtech4gamers.com/gigabyte-b650-aorus-motherboard-reviewRead 15 October 2026Contents section: no user manual is provided in the box.

Warranty

Manufacturer warranty (source market)
3years2Press releaseaap.com.au/aapreleases/cision20221010ae89280Read 15 October 2026The release states a leading 3-year warranty. North America adds an automatic 2 years for AORUS AM5 boards, a total of 5 years. The base term of 3 years is stored.5Retailer pagestartech.com.bd/gigabyte-b650-aorus-elite-ax-motherboardRead 15 October 2026Manufacturing Warranty: 3 Years. Arvutitark's Estonian listing says 36 months.6Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-amd-b650-sam5-atxb650-aorus-elite-ax-gigabyte-1150579Read 15 October 2026Warranty (months): 36.
