PC parts / Motherboards
ASUSGaming motherboard

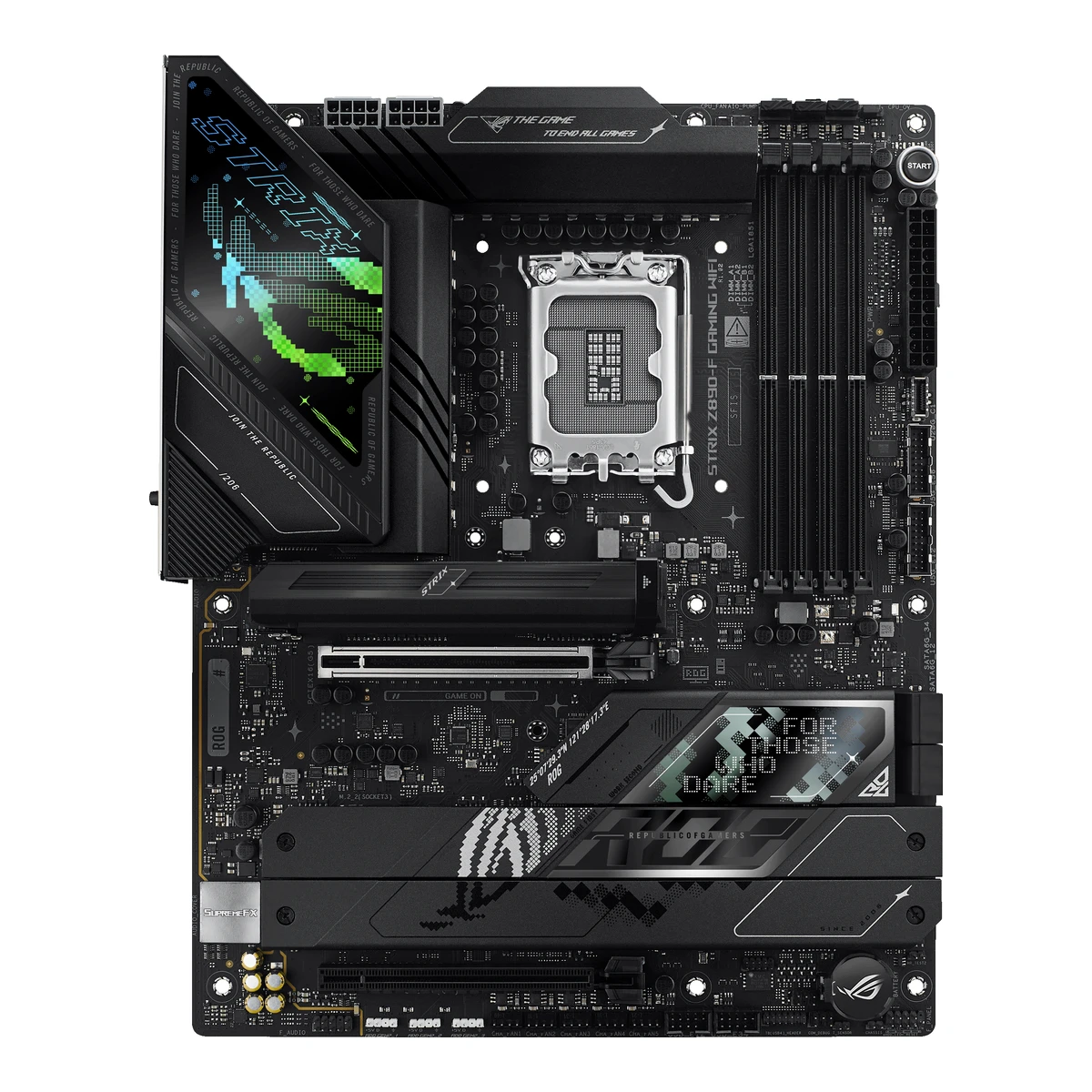

ROG STRIX Z890-F GAMING WIFI
Released October 2024.4Maker product pageasus.com/support/api/product.asmx/GetPDDriversRead 14 October 2026The first LAN, Bluetooth, audio and chipset drivers on the ASUS support page for this model are dated 2024/10/16, before the Core Ultra 200S launch on 2024-10-24. Last checked 16 October 2026.
- CPU socket
- LGA1851
- Chipset
- Intel Z890
- Form factor
- ATX
- M.2 slots
- 5
67 of 78 fields known.
At a glance
Rear USB ports
14
Higher than 95% of other motherboards.
Rear USB-C ports
4
Higher than 88% of other motherboards.
Max memory speed (overclocked)
9,066MT/s1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM), with Intel Core Ultra Processors (Series 2), the only CPU family of the board. Supported speeds and module counts vary with the CPU and memory configuration. Club386 printed 8600+ MT/s at launch.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Specifications summary: supports up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM).
Higher than 76% of other motherboards.
Ports
- 2 USB-C USB4
- 2 USB-C USB 3.2 Gen 2
- 4 USB-A USB 3.2 Gen 2
- 4 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- HDMI 2.1
- DisplayPort 1.4
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- ROG STRIX Z890-F GAMING WIFI, 90MB1I40-M0EAY01Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026The page lists the model ROG STRIX Z890-F GAMING WIFI. The part number 90MB1I40-M0EAY0 comes from Scan and the ASUS webshop.6Retailer pagescan.co.uk/products/asus-rog-strix-z890-f-gaming-wifi-intel-z890-s-1851-ddr5-pcie-50-5x-m2-25gbe-wifi7-tb4-aRead 14 October 2026Manufacturer code and model number 90MB1I40-M0EAY0.
- GTIN / EAN
- 4711387755921, 1971057559256Retailer pagescan.co.uk/products/asus-rog-strix-z890-f-gaming-wifi-intel-z890-s-1851-ddr5-pcie-50-5x-m2-25gbe-wifi7-tb4-aRead 14 October 2026GTIN 4711387755921 for part 90MB1I40-M0EAY0.7Spec databasebuildcores.com/products/Motherboard/1slmbfrq3/Asus-ROG-STRIX-Z890-F-GAMING-WIFI-DDR5-ATXRead 14 October 2026BuildCores lists UPC 197105755925 and EAN 4711387755921 for the board. The UPC is for the US market. It also lists a third EAN, 8691988401785, which is not stored.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- LGA18511Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026
- Chipset
- Intel Z8901Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026
- Supported processors
- Intel Core Ultra (Series 2)1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2). The page refers to the ASUS download center for the CPU support list. A News and Updates box also names Intel Core Ultra 200S Plus Series, which needs Windows 11 25H2 and is not stored. Read on 2026-10-14.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Specifications summary: Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2).
Board
Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 202630.5 cm x 24.4 cm, stored as 244 mm wide and 305 mm high. Scan UK lists 305 x 244 mm.6Retailer pagescan.co.uk/products/asus-rog-strix-z890-f-gaming-wifi-intel-z890-s-1851-ddr5-pcie-50-5x-m2-25gbe-wifi7-tb4-aRead 14 October 2026Board Dimensions 305 x 244 mm.
- Back-connect design
- No2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 2026The manual's layout shows the CPU power, SATA and fan connectors on the front side of the board. It is not an ASUS BTF model.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout figure shows the usual front-side connectors.
Power delivery
- Power stage layout
- 16+1+2+22Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 202616(110A)+1(90A)+2(90A)+2(80A) power stages: 16 VCCCORE, 1 VCCGT, 2 VCCSA and 2 VNNAON. Club386 gives the same stage ratings.
- CPU core (Vcore) power stages
- 162Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 2026The VRM features 16+1+2+2 power stages. VCCCORE is 16 stages at 110A.
- Vcore power stage rating
- 110A2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 2026VCCCORE Power 110A, SPS.
- VRM controller
- Not available
- CPU power connectors
- 8+8 pin1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Internal connectors: 2 x 8-pin +12V CPU Power connectors and the 24-pin main power connector.
- Extra slot power connector
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026The internal connector list and the manual's power connector section name only the 24-pin and the two 8-pin CPU connectors. No extra slot power connector.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Power connectors section: ATX_PWR, CPU_12V_1 and CPU_12V_2.
Memory
- Memory type
- DDR51Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026
- Memory slots
- 41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026
- Max memory
- 256GB1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Memory: 4 x DIMM slots, max. 256GB, DDR5. Club386's launch review and ASUS's first manual print said 192GB. The current page and the V2 manual say 256GB.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Specifications summary: 4 x DIMM slots, max. 256GB, DDR5.
- Max memory speed (overclocked)
- 9,066MT/s1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM), with Intel Core Ultra Processors (Series 2), the only CPU family of the board. Supported speeds and module counts vary with the CPU and memory configuration. Club386 printed 8600+ MT/s at launch.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Specifications summary: supports up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM).
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 1 - Full-length PCIe slots
- 2
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M.2_1 5 4 CPU M.2 22110 No Yes M.2_2 4 4 CPU M.2 2280 No Yes M.2_3 4 4 Chipset M.2 2280 No Yes M.2_4 4 4 Chipset M.2 22110 No Yes M.2_5 4 4 Chipset M.2 2280 Yes Yes Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Core Ultra Series 2: M.2_1 type 2242/2260/2280/22110 at PCIe 5.0 x4 and M.2_2 type 2280 at PCIe 4.0 x4. Z890 chipset: M.2_3 type 2280, M.2_4 type 2280/22110 and M.2_5 type 2242/2260/2280, all PCIe 4.0 x4, and M.2_5 also takes SATA drives. The page lists no SATA mode for the other slots, so their sata cell is false. The page names no lane sharing. Heatsinks: the Special Features list names M.2 heatsinks and a backplate, the overview lists 4 x M.2 Heatsinks and says heatsinks cover every slot. M.2 slots from the CPU support RAID 0/1/5 only.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 2026Overview page: 5 x M.2 slots, 1 x M.2 22110 at PCIe 5.0 x4, 1 x M.2 22110 and 2 x M.2 2280 at PCIe 4.0 x4 and 1 x M.2 2280 at PCIe 4.0 x4 and SATA. 4 x M.2 Heatsinks.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Specifications summary and layout: M.2_1 to M.2_5 as on the specification page. M.2 slots from the CPU only support RAID 0/1/5.- M.2 slots
- 5
- PCIe 5.0 M.2 slots
- 1
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 Power out (W) DP Alt Mode USB-C USB4 2 40 Thunderbolt 4 Not available Yes USB-C USB 3.2 Gen 2 1 10 Not available 15 Not available USB-C USB 3.2 Gen 2 1 10 Not available 30 Not available USB-A USB 3.2 Gen 2 4 10 Not available Not available Not available USB-A USB 3.2 Gen 1 4 5 Not available Not available Not available USB-A USB 2.0 2 0.48 Not available Not available Not available HDMI HDMI 2.1 1 Not available Not available Not available Not available DisplayPort DisplayPort 1.4 1 Not available Not available Not available Not available Ethernet (RJ45) Not available 1 2.5 Not available Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Not available - Rear USB ports
- 14
- Rear USB-C ports
- 4
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- Yes
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 2 4 USB 2.0 header (9-pin) 0.48 2 4 Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Front USB: 1 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers for 4 additional ports and 2 x USB 2.0 headers for 4 additional ports. The page states no power output for the Type-C connector. The Thunderbolt (USB4) header is for an add-in card and is not counted.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout contents 8 to 10: U20G_C1 for the USB 20Gbps Type-C front panel connector, U5G_E12 and U5G_E56 for the USB 5Gbps headers and USB_E12 and USB_E34 for the USB 2.0 headers. The manual states no power output for the Type-C connector.- Front USB-C header speed
- 20Gbps
- Fan headers
- 81Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 20261 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump and 5 x 4-pin Chassis Fan headers.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Fan header table: CPU_FAN, CPU_OPT, CHA_FAN1 to CHA_FAN5 and AIO_PUMP.
- ARGB headers
- 31Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Miscellaneous: 3 x Addressable Gen2 headers.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout contents 11: Addressable Gen2 header, three of them (ADD GEN2_1 to ADD GEN2_3).
- RGB headers
- 01Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026The internal connector list and the manual's layout contents name only Addressable Gen2 headers. No 12 V RGB header.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout contents list the Addressable Gen2 header and no 12 V RGB header.
Networking
- Ethernet controllers
- Intel I2264Maker product pageasus.com/support/api/product.asmx/GetPDDriversRead 14 October 2026The ASUS support page lists an Intel I226 LAN driver, and the spec page says Intel 2.5Gb Ethernet. Stored as the chip family I226 without the suffix letters.
- Ethernet ports
- 1
- Ethernet speed
- 2.5Gbps
- Wi-Fi included
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 20262x2 Wi-Fi 7 (802.11be) is part of the board.
- Wi-Fi standard
- Wi-Fi 71Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Wi-Fi 7 (802.11be).
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Supports 2.4/5/6GHz frequency band. 6 GHz and its bandwidth vary by country.
Audio
- DAC chip
- Not available
Features
- Clear CMOS button (rear)
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Back Panel I/O Ports: 1 x Clear CMOS button.
- POST code display
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026The Special Features list names Q-LED (CPU, DRAM, VGA, Boot Device) and no Q-Code. The manual's layout contents list Q-LEDs and a Start button and no code display. Club386 lists no Q-Code display as a con. The overview page has a generic Q-CODE text block that is not part of the spec list.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout contents 19: Q-LEDs. No code display is listed.5Reviewclub386.com/asus-rog-strix-z890-f-gaming-wifi-reviewRead 14 October 2026Cons: No Q-Code display. The review says it would prefer a Q-Code display in place of the Start button.
- Power button on the board
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Internal I/O Connectors: 1 x Start button. The manual says it powers up the system.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Layout contents 16: Start button. Press the Start button to power up the system, or put the system into sleep or soft-off mode.5Reviewclub386.com/asus-rog-strix-z890-f-gaming-wifi-reviewRead 14 October 2026Towards the top of the board lies the Q-LED array next to a dedicated Start (power) button.
- Dual BIOS
- Not available
- Pre-installed I/O shield
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026ASUS EZ DIY: Pre-mounted I/O shield.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot) and Q-Antenna. The overview says Q-Antenna fasteners snap into place.5Reviewclub386.com/asus-rog-strix-z890-f-gaming-wifi-reviewRead 14 October 2026The review praises the Q-Release M.2 heatsink lock, Q-Slide, Q-Release Slim and the plug and play Wi-Fi antenna connector.
Measured
In the box
- In the box
- 1 x ROG STRIX Z890-F GAMING WIFI motherboard, 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS Wi-Fi Q-Antenna, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 3 x M.2 rubber packages, 1 x Quick Start Guide1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026Accessories list on the specification page, the same as the manual's package contents.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026Package contents list.
Links
- Product page
- rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifiRead 14 October 2026
- Spec sheet
- rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/spec1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/specRead 14 October 2026ASUS Tech Specs page for the ROG STRIX Z890-F GAMING WIFI.
- Manual
- dlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdf3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-F_GAMING_WIFI/E26408_ROG_STRIX_Z890-F_GAMING_WIFI_EM_V2_WEB.pdfRead 14 October 2026ROG STRIX Z890-F GAMING WIFI User's Manual, English edition, V2, listed with the date 2025/06/16 on the ASUS support page.
- EPREL registration number
- Not available
