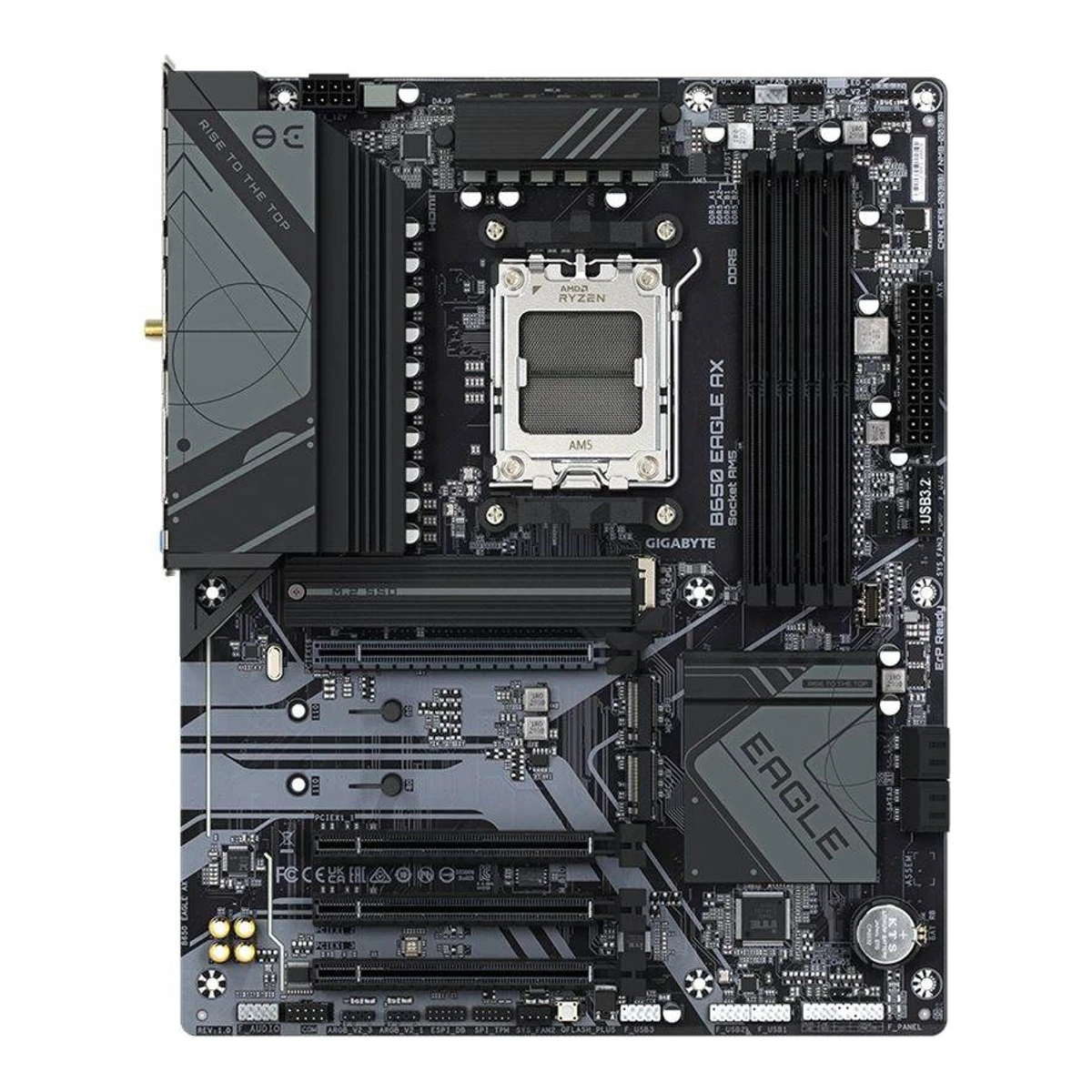

GIGABYTE B650 EAGLE AX

GIGABYTEGaming motherboard

B650 EAGLE AX

Released January 2024.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Geizhals lists the board since 2024-01-23, which is the first retail listing. The month is approximate. Last checked 15 October 2026.

CPU socket
AM5
Chipset
AMD B650
Form factor
ATX
M.2 slots
3

62 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • DisplayPort 1.4
  • HDMI 2.1
  • PS/2
  • 2 USB-A USB 3.2 Gen 2
  • USB-C USB 3.2 Gen 1
  • 6 USB-A USB 2.0
  • Ethernet (RJ45)
  • 3 3.5 mm audio
  • USB-C header
  • USB 3 header (19-pin)
  • 3 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
EAGLE1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026The product name carries the EAGLE line name. The manual cover reads B650 EAGLE AX.
Model numbers
B650 EAGLE AX1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Manual cover and section 2-2 title list B650 EAGLE AX.
GTIN / EAN
4719331860158, 8895230417034Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing SKU is the UPC 889523041703.5Retailer pageeshop.comfeel.cz/gigabyte-mb-sc-am5-b650-eagle-ax-amd-b650-4xddr5-1xdp-1xhdmi-atxRead 15 October 2026The listing gives EAN 4719331860158 and the manufacturer code B650 EAGLE AX.12Retailer pagebuildcores.com/products/Motherboard/si4j384s1/Gigabyte-B650-EAGLE-AX-AM5-DDR5-ATXRead 15 October 2026The page's product data gives UPC 889523041703 (EAN 0889523041703) for the part number B650 EAGLE AX.
Announced
Not available
Status
Available9Spec databasemaxmybuild.com/motherboards/gigabyte-b650-eagle-axRead 15 October 2026Amazon and Newegg list the board in stock on 2026-10-14.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming4Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing photo shows the retail box marked B650 EAGLE AX GAMING MOTHERBOARD.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Geizhals puts the board in its own Mainstream class. The maker's own category is taken from the retail box in the Alfrensia photo, which reads GAMING MOTHERBOARD.
Board revision
Not available

Platform

CPU socket
AM51Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: AMD Socket AM5.
Chipset
AMD B6501Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: AMD B650.
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series2Maker product pagegigabyte.com/Motherboard/B650-EAGLE-AX-rev-10-11/spRead 15 October 2026The excerpt lists Ryzen 7000, 8000 and 9000 Series Processors. The retailer copies on Alfrensia and Silicon.Computer say the same.4Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing copies the maker's spec: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors. It was read on 2026-10-15.10Retailer pagevoelkner.de/products/9029766/Gigabyte-B650-EAGLE-AX-B650-AM5-ATX-DDR5.htmlRead 15 October 2026The title lists AMD Ryzen 7000, 8000 and 9000 Series.
CPU overclocking
Yes13Press articletomshardware.com/features/x670-motherboard-overviewRead 15 October 2026AMD X670/B650 launch overview: B650E and B650 chipsets both support overclocking the processor and memory. This is the chipset maker's feature and not a board spec.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: ATX Form Factor, 30.5cm x 24.4cm.
Board dimensions
Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 30.5cm x 24.4cm, stored as 244 mm wide and 305 mm high.
PCB layers
66Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026The overview copies the maker's feature block: 12+2+2 Digital VRM Design, 6-Layer PCB, PCIe 5.0 Ready Mid-Loss PCB. SHI's listing also says 6 Layer PCB.
Back-connect design
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026The section 1-1 layout shows the usual front-side power, fan and USB connectors.
RGB lighting on the board
No6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026The maker's feature copy lists RGB FUSION for the LED headers only and names no lighting on the board.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026The Beleuchtung (lighting) row says N/A and the maker's feature list names no lighting on the board.

Power delivery

Power stage layout
12+2+24Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing copies the maker's feature: 12+2+2 Phases Digital VRM Solution.5Retailer pageeshop.comfeel.cz/gigabyte-mb-sc-am5-b650-eagle-ax-amd-b650-4xddr5-1xdp-1xhdmi-atxRead 15 October 2026The listing copies the maker's feature: 12+2+2 Phases Digital VRM Solution.6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026The overview feature block reads 12+2+2 Digital VRM Design.10Retailer pagevoelkner.de/products/9029766/Gigabyte-B650-EAGLE-AX-B650-AM5-ATX-DDR5.htmlRead 15 October 2026The product title says 12+2+2 Phasen VRM and up to 7600 MHz DDR5 (OC).
CPU core (Vcore) power stages
124Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The maker's feature line says 12+2+2 Phases Digital VRM Solution. Geizhals and MaxMyBuild read the Vcore rail as 6 phases doubled, which is 12 power stages.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026The VRM row lists 12 Vcore MOSFET high-side parts, which is 6 doubled phases. It matches the maker's 12 in 12+2+2.9Spec databasemaxmybuild.com/motherboards/gigabyte-b650-eagle-axRead 15 October 2026Phase config 2x6+2+2, which is 12 stages on the Vcore rail.
Vcore power stage rating
Not available
VRM controller
Richtek RT3678BE8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026VRM design row: PWM controller RT3678BE (max. 10 phases). The row also reads the layout as 12+4 with 16 virtual CPU phases (2x6+2x2) and 8 real CPU phases (6+2). The Richtek maker name is added from the RT part prefix. The MOSFET rating on this page is a reading of chip markings and is not stored.
CPU power connectors
8 pin1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 1 x 8-pin ATX 12V power connector (ATX_12V, 2x4).
Extra slot power connector
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026The section 2-2 internal connector list has no extra slot power connector.

Memory

Memory type
DDR51Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: DDR5 memory modules and DDR5 DIMM sockets.
Memory slots
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 4 x DDR5 DIMM sockets.
Max memory
256GB1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: up to 256 GB (64 GB single DIMM capacity). Older retailer copies of the maker's page say 192 GB (48 GB single DIMM). The 2024 manual and the current retailer copies say 256 GB.2Maker product pagegigabyte.com/Motherboard/B650-EAGLE-AX-rev-10-11/spRead 15 October 2026The same excerpt lists 4 DIMM sockets with up to 256 GB (64 GB single DIMM capacity).4Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing copies the maker's spec: up to 256 GB (64 GB single DIMM capacity). Its memory list tops out at 7600(OC).10Retailer pagevoelkner.de/products/9029766/Gigabyte-B650-EAGLE-AX-B650-AM5-ATX-DDR5.htmlRead 15 October 2026The spec text lists 256 GB maximum and 64 GB per slot.
Max memory speed (overclocked)
8,000MT/s2Maker product pagegigabyte.com/Motherboard/B650-EAGLE-AX-rev-10-11/spRead 15 October 2026A web search result excerpt of this page lists DDR5 8000(OC) down to 4800 MT/s. The Australian retailer copy on Qamba shows the same 8000(OC) list. Retailer copies from the Ryzen 7000 and 8000 era list 7600(OC) as the top speed. The excerpt does not name the CPU family. The Ryzen 9000 line is assumed from the page's own Ryzen 9000 support and the newest-family rule.7Retailer pagestore.qamba.com.au/products/gigabyte-b650-eagle-ax-1614907Read 15 October 2026The listing's CPU row reads DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC) down to 4800 MT/s. Its memory row still has the older list that tops out at 7600(OC) and 192 GB, so the page mixes two versions of the maker's text.
ECC memory
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16164CPU1
PCIe x1613CPU2
PCIe x1613Chipset1
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2 with the Ryzen 7000 and 9000 values: PCIEX16 is in the CPU at PCIe 4.0 x16 (x8 with Ryzen 8000 Phoenix 1, x4 with Phoenix 2). PCIEX1_1 and PCIEX1_2 are in the CPU at PCIe 3.0 x1. They are unavailable with Ryzen 8000 Phoenix 2. PCIEX1_3 is in the chipset at PCIe 3.0 x1. The manual calls all three x1 slots PCI Express x16 slots. The product photo shows four full-length slots.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Slot row: 1x PCIe 4.0 x16 and 3x PCIe 3.0 x16 (x1).
Full-length PCIe slots
4
Fastest PCIe x16 slot generation
4

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2A_CPU54CPUM.2 22110NoYes
M2P_CPU42CPUM.2 22110NoNo
M2C_SB44ChipsetM.2 22110NoNo
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2 with the Ryzen 7000 values: M2A_CPU takes 25110/22110/2580/2280 at PCIe 5.0 x4 (PCIe 4.0 x4 with Ryzen 8000). M2P_CPU takes 22110/2280 at PCIe 4.0 x2. M2C_SB is in the chipset and takes 22110/2280 at PCIe 4.0 x4. Section 2-8 item 10: the board supports M.2 PCIe SSDs only and the type table marks M.2 SATA as not supported for all three slots. Heatsink: only M2A_CPU has a motherboard heatsink. M2P_CPU and M2C_SB use a clip.5Retailer pageeshop.comfeel.cz/gigabyte-mb-sc-am5-b650-eagle-ax-amd-b650-4xddr5-1xdp-1xhdmi-atxRead 15 October 2026The listing copies the maker's feature line: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors, with the M.2 Thermal Guard.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026M.2 row: PCIe 5.0 x4 (25110/2580/22110/2280), PCIe 4.0 x2 (22110/2280) and PCIe 4.0 x4 (22110/2280), plus an E-key slot for the Wi-Fi module. The page lists 1x M.2 passive cooler.9Spec databasemaxmybuild.com/motherboards/gigabyte-b650-eagle-axRead 15 October 2026M.2 layout: 1 PCIe 5.0 x4, 1 PCIe 4.0 x4 and 1 PCIe 4.0 x2, with a heatsink on slot 1 only.
M.2 slots
3
PCIe 5.0 M.2 slots
1
SATA ports
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 4 x SATA 6Gb/s connectors.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)DP Alt Mode
DisplayPortDisplayPort 1.41Not availableNot available
HDMIHDMI 2.11Not availableNot available
PS/2Not available1Not availableNot available
USB-AUSB 3.2 Gen 2210Not available
USB-CUSB 3.2 Gen 115No
USB-AUSB 2.060.48Not available
Ethernet (RJ45)Not available11Not available
3.5 mm audioNot available3Not availableNot available
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2 and 2-6 back panel: 1 DisplayPort (up to 3840x2160 at 144 Hz, DisplayPort 1.4), 1 HDMI (HDMI 2.1, 4096x2160 at 60 Hz), 1 PS/2 keyboard/mouse, 2 SMA antenna connectors, 1 USB Type-C with USB 3.2 Gen 1, 2 USB 3.2 Gen 2 Type-A (red), 6 USB 2.0/1.1, 1 RJ-45 (up to 1 Gbps) and 3 audio jacks. The antenna connectors are not ports. The integrated graphics section names only the DisplayPort and the HDMI port as video outputs, so the Type-C port has no DisplayPort alternate mode.
Rear USB ports
9
Rear USB-C ports
1
Fastest rear USB port
10Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header511
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4836
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 1 USB Type-C header with USB 3.2 Gen 1, 1 USB 3.2 Gen 1 header for 2 ports and 3 USB 2.0/1.1 headers. The USB list gives 2 USB 2.0 ports on one header and 4 on the hub, so the three headers serve 6 ports. The manual states no power output for the Type-C header.
Front USB-C header speed
5Gbps
Fan headers
51Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 1 CPU fan header, 1 CPU fan/water cooling pump header, 2 system fan headers and 1 system fan/water cooling pump header.6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026Smart Fan 6 block: 5*PWM/DC Fan Headers.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Cooling row: 1 CPU fan, 1 CPU fan/pump, 2 fan and 1 fan/pump header.
ARGB headers
31Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 3 x addressable RGB Gen2 LED strip headers, marked for the B650 EAGLE AX and the B650 EAGLE.6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026RGB FUSION block: 3*Addressable LED Header.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Lighting row: 3x 3-pin ARGB.
RGB headers
11Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: 1 x RGB LED strip header.6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026RGB FUSION block: 1*RGB LED Header.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Lighting row: 1x 4-pin RGB.

Networking

Ethernet controllers
Realtek RTL81118Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026The network row says only Realtek (1 Gb/s). The chip name comes from the Voelkner listing.9Spec databasemaxmybuild.com/motherboards/gigabyte-b650-eagle-axRead 15 October 2026Lists Realtek RTL8111H, 1 GbE.10Retailer pagevoelkner.de/products/9029766/Gigabyte-B650-EAGLE-AX-B650-AM5-ATX-DDR5.htmlRead 15 October 2026The spec text lists LAN-Controller: Realtek RTL8111H. The suffix letter is left out.
Ethernet ports
1
Ethernet speed
1Gbps
Wi-Fi included
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: the wireless communication module is marked for the B650 EAGLE AX. Section 1-2: the box holds two antennas.
Wi-Fi standard
Wi-Fi 6E1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: Wi-Fi 6E, WIFI a, b, g, n, ac, ax, for both modules.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: supporting 2.4/5/6 GHz carrier frequency bands.
Max Wi-Fi channel width
160MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: support for 11ax 160MHz wireless standard, for both modules.
Wi-Fi module
Realtek RTL8852CE1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: Realtek Wi-Fi 6E RTL8852CE on PCB rev. 1.0 and Intel Wi-Fi 6E AX210 on PCB rev. 1.1. The rev. 1.0 chip is the base value.
Bluetooth
5.31Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: BLUETOOTH 5.3 for both modules.

Audio

Audio codec
Realtek ALC8978Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Audio row and the rear jack line: Realtek ALC897.9Spec databasemaxmybuild.com/motherboards/gigabyte-b650-eagle-axRead 15 October 2026Audio codec row: ALC897 with 3 audio jacks. The manual names only a Realtek audio CODEC and links GIGABYTE's realtek897 audio software page.11Retailer pageparadigit.ie/outlet-gigabyte-b650-eagle-ax/80071884/productRead 15 October 2026The spec table (an Icecat copy) lists Audio chip: Realtek ALC897 and 7.1 channels.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-7: the Q-Flash Plus button on the board updates the BIOS with the system off from a USB drive in the marked rear port.
Clear CMOS button (rear)
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026The back panel list has no button. Clear CMOS is a jumper (CLR_CMOS, section 2-8 item 19).
POST code display
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-7 lists four status LEDs (CPU, DRAM, VGA, BOOT) and no two-digit display.
Power button on the board
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-7 lists only the Q-Flash Plus button and the status LEDs. The board has no power or quick button.
Dual BIOS
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-2: BIOS is 1 x 256 Mbit flash. Dual BIOS is not stated.
Pre-installed I/O shield
Yes6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026The overview copies the maker's Advanced Thermal Design block: Fully Covered MOSFET Heatsinks, 5 W/mk Thermal Conductivity Pad and Integrated I/O Shield.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026The Besonderheiten row lists I/O-Blende integriert (I/O shield integrated). The manual's box contents list no loose I/O shield for this model.
Tool-free features
Tool-free M.2 latch, PCIe slot release1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 2-8 item 10: M2P_CPU and M2C_SB use a clip whose tab is pressed into the mounting hole, with no screw. The PCIe slot release comes from the maker's feature list in the retailer copies. The antennas are screwed to SMA connectors, so there is no push-on antenna connector.4Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing copies the maker's feature: EZ-Latch, PCIe x16 Slot with Quick Release Design.5Retailer pageeshop.comfeel.cz/gigabyte-mb-sc-am5-b650-eagle-ax-amd-b650-4xddr5-1xdp-1xhdmi-atxRead 15 October 2026The listing copies the maker's feature: EZ-Latch, PCIe x16 Slot with Quick Release Design.6Retailer pagemwave.com.au/products/gigabyte-b650-eagle-ax-ddr5-am5-atx-motherboard-ac74025Read 15 October 2026The overview copies the maker's feature: PCIe EZ-Latch, unlock the latch of the PCIe slot easily when removing the graphics card.

Measured

We could not find any of these 3 fields. Show them
VRM temperature under CPU load
Not available
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
User's Manual, Two antennas, Two SATA cables, M.2 screw1Owner's manualtrovaprezzi.it/manuali/gigabyte_b650_eagle.pdfRead 15 October 2026Section 1-2 box contents for the B650 EAGLE AX: user's manual, two antennas, two SATA cables and an M.2 screw. The manual says the actual items depend on the package. The I/O shield line is marked for other models.

Warranty

Manufacturer warranty (source market)
3years4Retailer pagealfrensia.com/en/product/gigabyte-b650-eagle-ax-motherboardRead 15 October 2026The listing says Warranty 3 Years. The market is Egypt.5Retailer pageeshop.comfeel.cz/gigabyte-mb-sc-am5-b650-eagle-ax-amd-b650-4xddr5-1xdp-1xhdmi-atxRead 15 October 2026The listing gives a warranty of 36 months in the Czech Republic.8Spec databasegeizhals.at/gigabyte-b650-eagle-ax-a3108584.htmlRead 15 October 2026Garantie row: 3 years.

Compare with

Pick a motherboard to see both side by side. Differences are marked yellow.

More motherboard comparisons

Variants

Each variant lists only what differs from the specs above.

Board revisionWi-Fi module
rev. 1.0Realtek RTL8852CE
rev. 1.1Intel AX210
rev. 1.2Intel AX210
