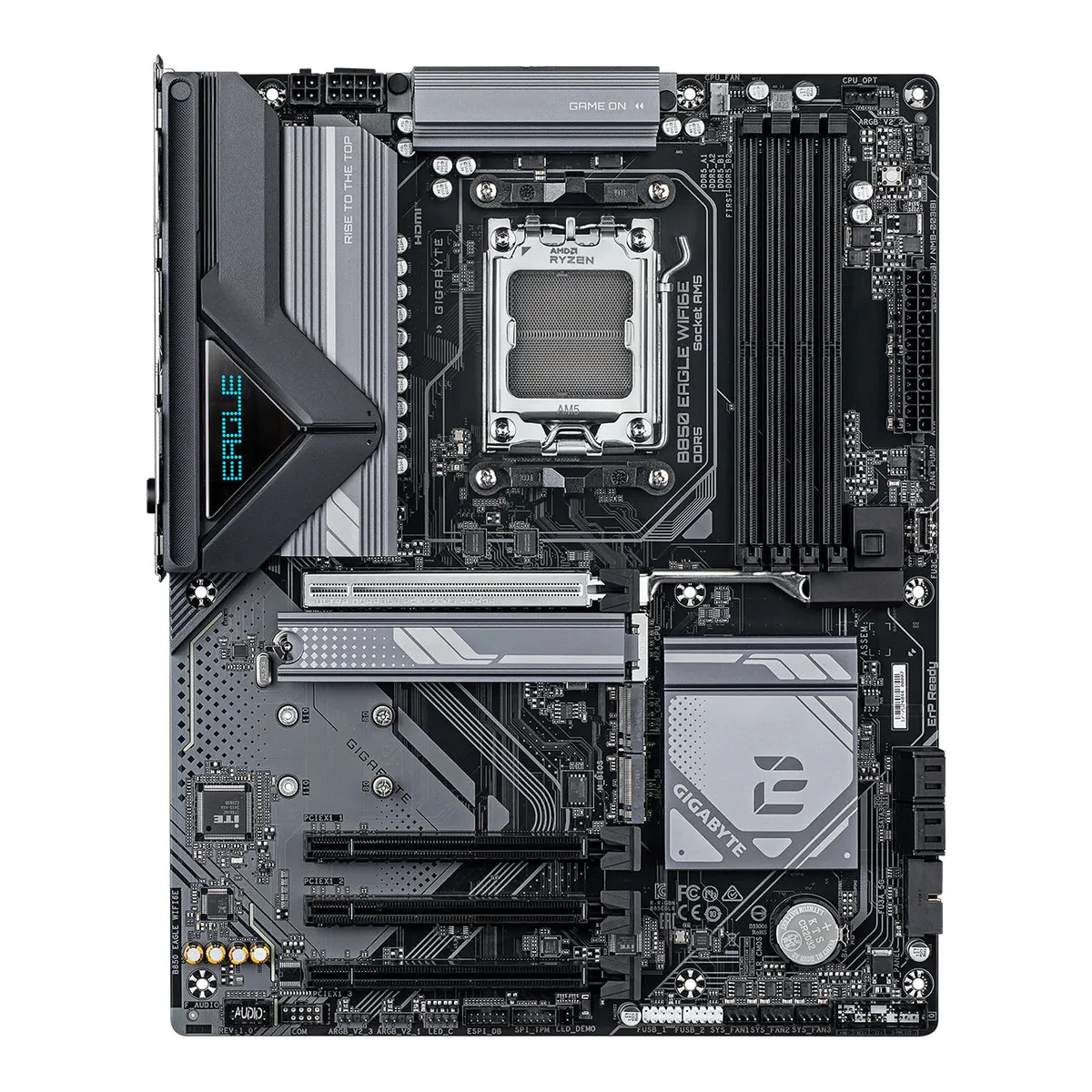

GIGABYTE B850 EAGLE WIFI6E

GIGABYTEGaming motherboard

B850 EAGLE WIFI6E

Released January 2025.2Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026The DataBlitz Philippines listing was created and published on 2025-01-08, when the B850 chipset launched. The month is approximate. Last checked 14 October 2026.

CPU socket
AM5
Chipset
AMD B850
Form factor
ATX
M.2 slots
3

58 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • DisplayPort 1.4
  • HDMI 2.1
  • PS/2
  • 2 USB-A USB 3.2 Gen 2
  • USB-C USB 3.2 Gen 1
  • 2 USB-A USB 3.2 Gen 1
  • 4 USB-A USB 2.0
  • Ethernet (RJ45)
  • 3 3.5 mm audio
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
EAGLE6Maker product pagegigabyte.com/Motherboard/B850-EAGLE-WIFI6E-rev-1xRead 14 October 2026The product name carries the EAGLE line name. The manual cover and the box in the product photo read B850 EAGLE WIFI6E.
Model numbers
B850 EAGLE WIFI6E1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Manual cover: B850 EAGLE WIFI6E. The manual says Identifying Your Motherboard Revision on its first page.
GTIN / EAN
4719331866587, 8895230463023Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Icecat datasheet of 2025-10-30 lists EAN 4719331866587 and UPC 889523046302 (also printed as 0889523046302). The UPC is for the US market.
Announced
Not available
Status
Available3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026The board is listed for sale on this datasheet, on MaxMyBuild and on DataBlitz.4Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Amazon and Newegg list the board in stock on 2026-10-14.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming2Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026The listing name says Gaming Motherboard, and the box in the product photo reads GIGABYTE GAMING MOTHERBOARD.
Board revision
Not available

Platform

CPU socket
AM51Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: AMD Socket AM5.
Chipset
AMD B8501Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: AMD B850.
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: AMD Ryzen 9000, 8000 and 7000 Series Processors. The manual refers to the maker's website for the latest CPU support list. Read on 2026-10-14.
CPU overclocking
Yes5Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 14 October 2026AMD's chipset comparison lists Ryzen processor overclocking enabled: Yes for the B850. This is the chip maker's page and not the board maker's.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: ATX Form Factor, 30.5cm x 24.4cm.
Board dimensions
Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 30.5cm x 24.4cm, stored as 244 mm wide and 305 mm high. The Icecat datasheet lists 305 x 244 mm.3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Width 305 mm and depth 244 mm.
PCB layers
Not available
Back-connect design
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026The section 1-1 layout shows the usual front-side power, fan and USB connectors. The board is not a back-connect design.
RGB lighting on the board
Not available

Power delivery

Power stage layout
8+2+22Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026Features copied from GIGABYTE: Digital twin 8+2+2 phases VRM solution.3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Product title: 8+2+2 Phases Digital VRM, with DrMOS in the feature line.
CPU core (Vcore) power stages
82Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 20268+2+2 phases with DrMOS (Icecat datasheet title). MaxMyBuild reads the layout as 2x4+2+2 power stages, which is 8 on the Vcore rail. No document states the stage count in words.3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Feature line: 8+2+2 phase digital VRM with DrMOS.4Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Phase config 2x4+2+2, which is 8 stages on the Vcore rail. The 55A DrMOS rating on the page is MaxMyBuild's own reading, so no stage rating is stored.
Vcore power stage rating
Not available
VRM controller
Not available
CPU power connectors
8+4 pin1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 1 x 8-pin ATX 12V power connector and 1 x 4-pin ATX 12V power connector (12V_2X4 and 12V_2X2).
Extra slot power connector
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026The section 2-2 internal connector list has no extra slot power connector.

Memory

Memory type
DDR51Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: DDR5 memory modules and DDR5 DIMM sockets.
Memory slots
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 4 x DDR5 DIMM sockets.
Max memory
256GB1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: up to 256 GB (64 GB single DIMM capacity).
Max memory speed (overclocked)
8,200MT/s2Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026The listing copies GIGABYTE's speed list: DDR5 8200(O.C) / 8000(O.C) down to 5200 / 4800 / 4400 MT/s, and the headline says DDR5 OC up to 8200MT/s. The list names no CPU family. The Icecat title pairs 8200 MHz DDR5 (OC) with Ryzen 9000. The manual lists only 5200/4800/4400.3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Product title: AMD Ryzen 9000 Series CPUs, up to 8200MHz DDR5 (OC). Maximum supported memory clock speed 8200 MHz.
ECC memory
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1613Chipset3
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: PCIEX16 is in the CPU, PCIe 5.0 x16 with Ryzen 9000 and 7000, PCIe 4.0 x8 with Ryzen 8000 Phoenix 1 and PCIe 4.0 x4 with Phoenix 2. The chipset has 3 x PCI Express x16 slots that support PCIe 3.0 and run at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3). The product photo shows three full-length slots. The PCIEX16 slot takes only a graphics card or an NVMe SSD. The M2_WIFI socket for the Wi-Fi module is not stored.
Full-length PCIe slots
4
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2A_CPU54CPUM.2 22110NoYes
M2B_CPU44CPUM.2 22110NoNo
M2C_SB42ChipsetM.2 22110NoNo
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: M2A_CPU takes M key 22110/2280 at PCIe 5.0 x4/x2 with Ryzen 9000 and 7000 (PCIe 4.0 with Ryzen 8000). M2B_CPU takes 22110/2280 at PCIe 4.0 x4/x2 with Ryzen 9000 and 7000, and x2 only with Ryzen 8000 Phoenix 2. Both are in the CPU. M2C_SB is in the chipset, 22110/2280, PCIe 4.0 x2. Section 2-8 item 10: the board supports M.2 PCIe SSDs only and the type table marks M.2 SATA as not supported for all three slots. Heatsink: the install steps for M2A_CPU remove and refit the motherboard heatsink and the M2B_CPU and M2C_SB steps use only a screw. MaxMyBuild also lists a heatsink on slot 1 only.2Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026Features copied from GIGABYTE: 3 x M.2 slots including PCIe 5.0 x4, VRM Thermal Armor Advanced and M.2 Thermal Guard.4Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Lists 3 M.2 slots, 1 PCIe 5.0 x4, 1 PCIe 4.0 x4 and 1 PCIe 4.0 x2, with a heatsink on slot 1 only.
M.2 slots
3
PCIe 5.0 M.2 slots
1
SATA ports
41Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 4 x SATA 6Gb/s connectors.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)
DisplayPortDisplayPort 1.41Not available
HDMIHDMI 2.11Not available
PS/2Not available1Not available
USB-AUSB 3.2 Gen 2210
USB-CUSB 3.2 Gen 115
USB-AUSB 3.2 Gen 125
USB-AUSB 2.040.48
Ethernet (RJ45)Not available11
3.5 mm audioNot available3Not available
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2 and 2-6 back panel: 1 DisplayPort (DisplayPort 1.4, up to 3840x2160 at 144 Hz), 1 HDMI (HDMI 2.1, 4096x2160 at 60 Hz), 1 PS/2 keyboard/mouse, 2 USB 3.2 Gen 2 Type-A (red), 1 USB Type-C with USB 3.2 Gen 1, 2 USB 3.2 Gen 1, 4 USB 2.0/1.1, 1 RJ-45 (up to 1 Gbps), 3 audio jacks and 2 antenna connectors. The Q-Flash Plus button and the antenna connectors are not ports. The Icecat datasheet lists the Type-C as Gen 2. The manual says Gen 1, and MaxMyBuild says 5 Gbps. The manual is used.
Rear USB ports
9
Rear USB-C ports
1
Fastest rear USB port
10Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header511
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4824
Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 1 x USB Type-C header with USB 3.2 Gen 1 (FU3C_5G), 1 x USB 3.2 Gen 1 header (FU3A_5G) for 2 ports and 2 x USB 2.0/1.1 headers (FUSB_1 and FUSB_2) for 4 ports. The manual states no power output for the Type-C header.
Front USB-C header speed
5Gbps
Fan headers
61Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 1 CPU fan header, 1 CPU fan/pump header, 3 system fan headers and 1 system fan/pump header. The layout names CPU_FAN, CPU_OPT, SYS_FAN1 to SYS_FAN3 and FAN4_PUMP. MaxMyBuild lists 6 fan headers.4Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Lists 6 fan headers.
ARGB headers
31Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 3 x addressable RGB Gen2 LED strip headers (ARGB_V2_1 to ARGB_V2_3).
RGB headers
11Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: 1 x RGB LED strip header (LED_C).

Networking

Ethernet controllers
Realtek RTL81113Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026The datasheet names the LAN chip Realtek RTL8111H, Gigabit Ethernet. The suffix letter is left out. MaxMyBuild lists the same chip.4Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Lists Realtek RTL8111H, 1 GbE.
Ethernet ports
1
Ethernet speed
1Gbps
Wi-Fi included
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: the wireless communication module is listed for the B850 EAGLE WIFI6E and the box has one antenna.
Wi-Fi standard
Wi-Fi 6E1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: Intel Wi-Fi 6E AX210 and Realtek Wi-Fi 6E RTL8852CE, WIFI a, b, g, n, ac, ax.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: supporting 2.4/5/6 GHz carrier frequency bands.
Max Wi-Fi channel width
160MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: support for 11ax 160MHz wireless standard.
Wi-Fi module
Intel AX2101Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: Intel Wi-Fi 6E AX210 on PCB rev. 1.0 and Realtek Wi-Fi 6E RTL8852CE on PCB rev. 1.1. The rev. 1.0 chip is the base value.
Bluetooth
5.31Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: BLUETOOTH 5.3 for both modules.

Audio

Audio codec
Realtek ALC8974Spec databasemaxmybuild.com/motherboards/gigabyte-b850-eagle-wifi6eRead 14 October 2026Lists the audio codec ALC897 with 3 audio jacks. The manual names only a Realtek audio CODEC and links to a Realtek 897 audio software page. Single source for the model.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-6: Q-Flash Plus button on the back panel.
Clear CMOS button (rear)
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026The back panel list has only the Q-Flash Plus button. Clear CMOS is a jumper (CLR_CMOS in the section 2-8 list). The Icecat datasheet ticks a Clear CMOS button, which the maker's manual does not list.
POST code display
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-7: four status LEDs (CPU, DRAM, VGA, BOOT). No two-digit display.
Power button on the board
Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-7: the Quick Button (RESET) on the board allows users to quickly turn on/off the computer in an open-case environment. It can be remapped in the BIOS under RST (MULTIKEY). The item is marked for the B850 EAGLE WIFI6E only.
Dual BIOS
No1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 2-2: BIOS is 1 x 256 Mbit flash. Dual BIOS is not stated.
Pre-installed I/O shield
Not available
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Sections 2-5 and 2-8: PCIe EZ-Latch Plus (slot release), M.2 EZ-Latch Plus (screwless M.2 drive clip on M2A_CPU) and M.2 EZ-Latch Click (turn the clip to remove the M2A_CPU heatsink). The manual only says to connect the antenna securely, so antenna_connector comes from the retailer copy of the maker's feature list, WIFI EZ-Plug.2Retailer pageecommerce.datablitz.com.ph/products/gigabyte-b850-eagle-wifi6e-amd-am5-ddr5-gaming-motherboardRead 14 October 2026Features copied from GIGABYTE: WIFI EZ-Plug (quick and easy design for Wi-Fi antenna installation), EZ-Latch Plus (PCIe and M.2 slots with quick release and screwless design) and EZ-Latch Click (M.2 heatsinks with screwless design).3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Product title: Wi-Fi 6E with WIFI EZ-Plug. Feature lines name PCIe UD Slot with EZ-Latch Plus and M.2 Gen5 with EZ-Latch Plus.

Measured

We could not find any of these 3 fields. Show them
VRM temperature under CPU load
Not available
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
User's Manual, Quick Installation Guide, One antenna, Two SATA cables, One G Connector, M.2 screws, One pack of M.2 thick/thin rubber pad1Owner's manualtrovaprezzi.it/manuali/gigabyte_b850_eagle_wifi6e.pdfRead 14 October 2026Section 1-2 box contents. The manual says the actual items depend on the package.

Warranty

Manufacturer warranty (source market)
3years3Spec databaseshop.aodatacloud.es/medias/datasheet_b850_eagle_wifi6e.pdfRead 14 October 2026Warranty period 3 years on this datasheet, sold in the EU.

Compare with

Pick a motherboard to see both side by side. Differences are marked yellow.

More motherboard comparisons

Variants

Each variant lists only what differs from the specs above.

Board revisionWi-Fi module
rev. 1.0Intel AX210
rev. 1.1Realtek RTL8852CE
