PC parts / Motherboards
GIGABYTEGaming motherboard
Z890 AORUS ELITE WIFI7 PLUS
Released April 2026.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Review of 2026-06-06 for a board on sale at $259.99 to $269.99 retail. The Core Ultra 7 270K Plus and 250K Plus launched earlier in 2026 and the board runs them natively. The month is approximate. Last checked 23 October 2026.
- CPU socket
- LGA1851
- Chipset
- Intel Z890
- Form factor
- ATX
- M.2 slots
- 4
70 of 78 fields known.
At a glance
Max memory speed (overclocked)
9,466MT/s1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Support up to DDR5 9466+ MT/s (OC). The copy names no CPU family. The CPU and memory configuration may affect the supported speed. Tom's text writes 9,666 once, which is a typo against 9466 on every other page.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026The motherboard lists support up to DDR5-9466 MT/s.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The speed list ends at 9466 (OC).
Higher than 95% of other motherboards.
Ports
- USB-C USB4
- 2 USB-A USB 3.2 Gen 2
- 3 USB-A USB 3.2 Gen 1
- 4 USB-A USB 2.0
- DisplayPort 2.1
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- USB 3 header (19-pin)
- USB 2.0 header (9-pin)
General
- Model numbers
- Z890 AORUS ELITE WIFI7 PLUS, Z890 A ELITE WIFI7 P9Retailer pagekomputronik.pl/product/1013368/plyta-glowna-gigabyte-z890-aorus-elite-wifi7-p.htmlRead 15 October 2026Manufacturer code Z890 A ELITE WIFI7 P.10Retailer pagecomparateur-gamer.fr/prix/gigabyte-z890-aorus-elite-wifi7-plus-4719331880798Read 15 October 2026Reference Z890 A ELITE WIFI7 P.12Retailer pageparadigit.ie/gigabyte-z890-aorus-elite-wifi7-plus/21986014/productRead 15 October 2026Product number manufacturer: Z890 A ELITE WIFI7 P.
- GTIN / EAN
- 47193318807989Retailer pagekomputronik.pl/product/1013368/plyta-glowna-gigabyte-z890-aorus-elite-wifi7-p.htmlRead 15 October 2026Lists EAN 4719331880798 for manufacturer code Z890 A ELITE WIFI7 P.10Retailer pagecomparateur-gamer.fr/prix/gigabyte-z890-aorus-elite-wifi7-plus-4719331880798Read 15 October 2026Lists EAN 4719331880798.11Retailer pageawd-it.co.uk/gigabyte-z890-aorus-elite-wifi7-plus-lga-1851-z890-atx-motherboard-ddr5-wifi-7.htmlRead 15 October 2026Lists EAN 4719331880798.
- Announced
- 9 March 20266Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026Article of 2026-03-09 on GIGABYTE introducing the Z890 AORUS Elite WiFi7 Plus and Z890 Eagle WiFi7 Plus that weekend. GIGABYTE's own press release was not readable.7Press articleoverclocking.com/gigabyte-annonce-ses-z890-aorus-elite-wifi-7-plus-et-z890-eagle-wifi7-plusRead 15 October 2026Article of 2026-03-09: GIGABYTE announces two new motherboards.
- Status
- Available3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The review's price table lists the board at Newegg, Walmart, Amazon and Best Buy.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The listing shows a price of 8,490 THB on 2026-10-15.
- Predecessor
- GIGABYTE Z890 AORUS ELITE WIFI72Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Review of 2026-05-25: the Z890 AORUS ELITE WIFI7 PLUS is a revision of the non-PLUS board that improves the network controller and adds an Ultra Turbo mode. The non-PLUS board is the catalog's Z890 AORUS ELITE WIFI7.7Press articleoverclocking.com/gigabyte-annonce-ses-z890-aorus-elite-wifi-7-plus-et-z890-eagle-wifi7-plusRead 15 October 2026They are refreshes of existing models, built to take the Core Ultra 5 250K Plus and Core Ultra 7 270K Plus.
- Successor
- Not available
- Launch price (US)
- $269.993Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The review calls the board a mid-range offering at $269.99 and shows $289.99 struck out next to $269.99 in its price table. CGMagazine labels $269.99 as the MSRP. US price, excl. sales tax.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026Review of 2026-08-08. The header says MSRP $269.99.
- Launch price (EU)
- Not available
- Markets
- Not available
Platform
- Chipset
- Intel Z8901Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Intel Z890 Express Chipset.
- Supported processors
- Intel Core Ultra (Series 2)1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Spec copy: support for Intel Core Ultra Processors. The retailers Paradigit and JIB write Intel Core Ultra Series 2. Tom's Hardware says the board runs the Core Ultra 7 270K Plus and 250K Plus without a BIOS update. Read on 2026-10-15.
- CPU overclocking
- Yes3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The review says you can overclock the CPU on the board and describes the Ultra Turbo modes in the BIOS.6Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026Ultra Turbo Mode is an automated overclocking system that applies frequency and voltage settings on top of Intel 200S Boost, for unlocked K and KF processors.
Board

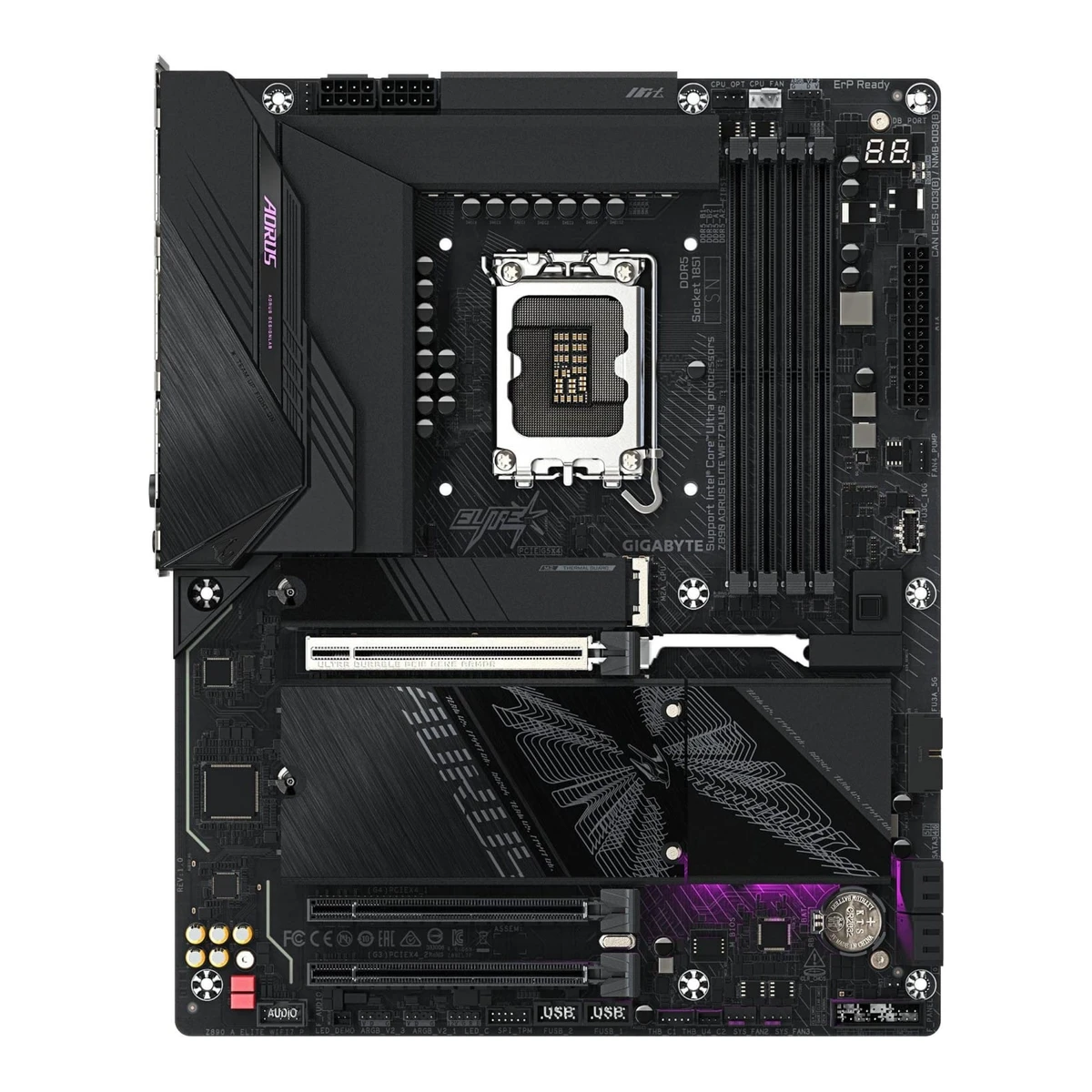

Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026ATX Form Factor, 30.5cm x 24.4cm.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026An ATX model at 305 x 244 mm.
- PCB layers
- Not available
- RGB lighting on the board
- Yes2Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The VRM heatsink name now has lighting.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Aorus branding on the top left VRM heatsink is RGB backlit and a couple of RGB LEDs sit under the chipset heatsink. Controlled by Gigabyte Control Center and RGB Fusion.7Press articleoverclocking.com/gigabyte-annonce-ses-z890-aorus-elite-wifi-7-plus-et-z890-eagle-wifi7-plusRead 15 October 2026The card has a small touch of RGB under the chipset heatsink.
Power delivery
- Power stage layout
- 16+1+22Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The box highlights 16 digital phases with 8+8 in parallel, a slight cut against the non-PLUS board.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026A total of 19 phases with 16 dedicated to Vcore, which fits the maker's 16+1+2.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026GIGABYTE pairs the platform with a 16+1+2 twin digital power design.6Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026The AORUS Elite has a 16+1+2 phase VRM.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The shop copies GIGABYTE's feature text: Twin 16+1+2 phase digital VRM.
- CPU core (Vcore) power stages
- 163Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 202616 x OnSemi NCP302155 60A SPS MOSFETs for Vcore.
- Vcore power stage rating
- 60A3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The review reads 16 OnSemi NCP302155 60A SPS stages and writes 960 A in total. The maker's 60A DrMOS figure is in the Profesional Review launch article.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026The review writes 60A DrMOS stages for the VRM section.6Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026The 16+1+2 phase VRM has 60 A DrMOS.
Memory
- Memory type
- DDR51Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 20264 x DDR5 DIMM slots, dual channel.
- Max memory
- 256GB1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Max. capacity 256 GB.
- Max memory speed (overclocked)
- 9,466MT/s1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Support up to DDR5 9466+ MT/s (OC). The copy names no CPU family. The CPU and memory configuration may affect the supported speed. Tom's text writes 9,666 once, which is a typo against 9466 on every other page.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026The motherboard lists support up to DDR5-9466 MT/s.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The speed list ends at 9466 (OC).
- ECC memory
- No1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM). Paradigit lists ECC compatibility as non-ECC.12Retailer pageparadigit.ie/gigabyte-z890-aorus-elite-wifi7-plus/21986014/productRead 15 October 2026ECC compatibility: non-ECC.
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 2 - Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M2A_CPU 5 4 CPU M.2 22110 No Yes M2B_CPU 4 4 CPU M.2 22110 No Yes M2Q_SB 4 4 Chipset M.2 22110 No Yes M2M_SB 4 4 Chipset M.2 22110 Yes Yes Source1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026CPU: M2A_CPU (Socket 3, M key, type 25110/22110/2280, PCIe 5.0 x4/x2) and M2B_CPU (type 22110/2280, PCIe 4.0 x4/x2). Chipset: M2Q_SB (type 22110/2280, PCIe 4.0 x4/x2) and M2M_SB (type 22110/2280, SATA and PCIe 4.0 x4/x2). 25110 is stored as 22110. Only M2M_SB lists SATA. Tom's Hardware's text says the three lower sockets all run through the chipset, which the spec copy contradicts for M2B_CPU. The spec copy is stored. Tom's and CGMagazine say the board has no lane sharing, so shares_lanes_with is empty.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The top socket has its own small heatsink and the three below share one heatsink. The bottom socket M2M_SB also supports SATA SSDs.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The shop copies the same four M.2 lines as the spec page, with M2A_CPU listed for 25110/22110/2580/2280 and the others for 22110/2280.- M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 1
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 DP Alt Mode USB-C USB4 1 40 USB4 Yes USB-A USB 3.2 Gen 2 2 10 Not available Not available USB-A USB 3.2 Gen 1 3 5 Not available Not available USB-A USB 2.0 4 0.48 Not available Not available DisplayPort DisplayPort 2.1 1 Not available Not available Not available Ethernet (RJ45) Not available 1 5 Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Source1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Back panel connectors: 1 x USB4 Type-C port (DisplayPort), 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1, 1 x DisplayPort, 1 x RJ-45, 2 x audio jacks, 1 x optical S/PDIF out, 2 antenna connectors. The Type-C port shows DisplayPort video from the CPU's graphics, up to 3840x2160 at 144 Hz, with DisplayPort 2.1. The USB4 rate of 40 Gbps comes from Tom's Hardware. The 5 Gbps LAN rate comes from the LAN row (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps). No USB power output is stated. The buttons are not ports.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Rear I/O: one USB4 (40 Gbps) Type-C port that the review says is USB4 and not Thunderbolt 4, two USB 3.2 Gen 2 (10 Gbps), three USB 3.2 Gen 1 (5 Gbps) and four USB 2.0 ports, a DisplayPort 2.1 output, the Realtek 5 GbE port and an audio stack with two 3.5 mm jacks and S/PDIF out.- Rear USB ports
- 10
- Rear USB-C ports
- 1
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- No
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 10 1 1 USB 3 header (19-pin) 5 1 2 USB 2.0 header (9-pin) 0.48 Not available 4 Source1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Internal list: 1 x USB Type-C header with USB 3.2 Gen 2 support (10 Gbps), 1 x USB 3.2 Gen 1 header and USB 2.0/1.1 headers. The USB list says 5 x USB 3.2 Gen 1 ports (3 on the back panel, 2 through the internal header) and 8 x USB 2.0 ports (4 on the back panel, 4 through headers), so the USB 2.0 headers serve 4 ports. The copy writes one USB 2.0 header and Tom's writes two, so the header count is left out. Tom's spec table prints the Type-C header as 20 Gbps, while its text, Noticias3D and the maker's list say Gen 2 at 10 Gbps.2Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The internal USB Type-C header is 3.2 Gen 2 at 10 Gbps.- Front USB-C header speed
- 10Gbps
- Fan headers
- 62Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026A total of 6 fan connectors.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Six 4-pin fan or pump headers, three above the DRAM slots, one on the right edge and two at the bottom.
Networking
- Ethernet controllers
- Realtek RTL81262Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The LAN controller is a Realtek RTL8126, which doubles the bandwidth to 5GbE.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Spec table: Ethernet controller Realtek RTL8126 (5 GbE).
- Ethernet ports
- 1
- Ethernet speed
- 5Gbps
- Wi-Fi included
- Yes1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Wireless communication module: Intel Wi-Fi 7 BE200NGW.
- Wi-Fi standard
- Wi-Fi 71Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026802.11a, b, g, n, ac, ax, be.
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Supports 2.4/5/6 GHz carrier frequency bands. The 6 GHz band depends on each country's regulations.
- Max Wi-Fi channel width
- 320MHz1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Support for the 11be 320 MHz wireless standard.6Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026320 MHz module on the AORUS Elite. The Eagle has a 160 MHz Intel BE202.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Intel Wi-Fi 7 BE200NGW with 11be 320MHz.
- Wi-Fi module
- Intel BE2001Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Intel Wi-Fi 7 BE200NGW. The NGW suffix is the form factor. Stored as Intel BE200, as for other boards.2Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The Wi-Fi 7 controller with Bluetooth 5.4 is an Intel BE200.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Spec table: Intel Wi-Fi 7 (BE200NGW), 320 MHz, 6 GHz, 5.8 GHz, BT 5.4.6Press articleprofesionalreview.com/2026/03/09/gigabyte-presenta-sus-nuevas-placas-base-z890-aorus-elite-wifi7-plus-y-z890-eagle-wifi7-plus/ampRead 15 October 2026The AORUS Elite has an Intel WiFi 7 module of 320 MHz (Intel BE200NGW).8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Intel Wi-Fi 7 BE200NGW.
Audio
- Audio codec
- Realtek ALC12201Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Realtek ALC1220 codec, 2/4/5.1/7.1 channel, S/PDIF out. The line out supports DSD audio.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Realtek ALC1220, with WIMA capacitors. The review calls it the previous-generation flagship codec.12Retailer pageparadigit.ie/gigabyte-z890-aorus-elite-wifi7-plus/21986014/productRead 15 October 2026Audio chip: Realtek ALC1220-VB. The maker's spec writes Realtek ALC1220, which is stored.
- DAC chip
- Not available
Features
- BIOS flashback
- Yes1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Back panel: 1 x Q-Flash Plus button. Unique features: support for Q-Flash Plus.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The rear I/O has Clear CMOS and Q-Flash Plus buttons. The review says the board has flashback capability.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026Rear-mounted Q-Flash Plus button.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Back panel: 1 x Q-Flash Plus button.
- Clear CMOS button (rear)
- Yes1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Back panel: 1 x Clear CMOS button. The internal list also has a Clear CMOS jumper.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The rear I/O has power, reset, Clear CMOS and Q-Flash Plus buttons.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026Rear-mounted power, reset, Clear CMOS and Q-Flash Plus buttons.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Back panel: 1 x Clear CMOS button.
- Power button on the board
- Yes1Reviewnoticias3d.com/articulo/4056/p2/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026Back panel: 1 x power button and 1 x reset button. A button on the rear panel counts.2Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026The power and reset buttons moved to the rear panel on this PLUS model.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The rear I/O has power and reset buttons.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026Rear-mounted power and reset buttons.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Back panel: 1 x power button and 1 x reset button.
- Pre-installed I/O shield
- Not available
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector2Reviewnoticias3d.com/articulo/4056/z890-aorus-elite-wifi7-plus-review.htmlRead 15 October 2026EZ-Latch systems mount the M.2 drives and heatsinks without tools and release the graphics card with a button on the side of the board. The Wi-Fi 7 antenna has an EZ-Plug fixing that is pushed in.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026The top PCIe slot has the PCIe EZ-Latch Plus button for releasing the graphics card. The quick-connect Wi-Fi 7 antenna ships in the box.5Reviewcgmagonline.com/review/hardware/z890-aorus-elite-wifi7-plus-motherboardRead 15 October 2026The primary x16 slot has GIGABYTE's EZ-Latch Plus release mechanism and the board uses the Wi-Fi EZ-Plug antenna design.7Press articleoverclocking.com/gigabyte-annonce-ses-z890-aorus-elite-wifi-7-plus-et-z890-eagle-wifi7-plusRead 15 October 2026The graphics card has a simplified release button, the Wi-Fi antennas mount without screw terminals and the SSDs mount without tools.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026The shop copies GIGABYTE's feature text: WIFI EZ-Plug for quick Wi-Fi antenna install, EZ-Latch Plus for PCIe and M.2 slots with quick release and no screws, and EZ-Latch Click for screwless M.2 heatsinks.
Measured
In the box
- In the box
- Manuals, Wi-Fi 7 quick-connect antenna, Q-Connector, 2 x SATA cables, M.2 drive pads, AORUS sticker3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Inside the retail packaging: manuals, a quick-connect Wi-Fi 7 antenna, a Q-connector, two SATA cables, some pads for M.2 drives and an Aorus sticker. No maker list was readable, so the review's wording is stored.
Links
- Product page
- www.gigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUS13Maker product pagegigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUSRead 15 October 2026The link is GIGABYTE's product page from the picked list. gigabyte.com is blocked for agents, so the page was not opened and its content is not used for any value.
- Spec sheet
- www.gigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUS/sp14Maker product pagegigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUS/spRead 15 October 2026The link is GIGABYTE's specification page, listed in search results. gigabyte.com is blocked for agents, so the page was not opened and its content is not used for any value.
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-elite-wifi7-plus-motherboard-reviewRead 15 October 2026Spec table: Warranty 3 Years. The review is US based.8Retailer pagejib.co.th/web/product/readProduct/87423/46/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--GIGABYTE-Z890-AORUS-ELITE-WIFI7-PLUS--REV-1-0----INTEL-SOCKET-1851-DDR5-ATXRead 15 October 2026Warranty 3 Years. The market is Thailand.
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Sources
We read 14 sources for this motherboard. The numbers match the markers in the sheet.
- Maker product pagegigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUS
- Maker product pagegigabyte.com/Motherboard/Z890-AORUS-ELITE-WIFI7-PLUS/sp
See a wrong value? Tell us and name the field.
PredecessorGIGABYTE Z890 AORUS ELITE WIFI7
