PC parts / Motherboards
MSIGaming motherboard

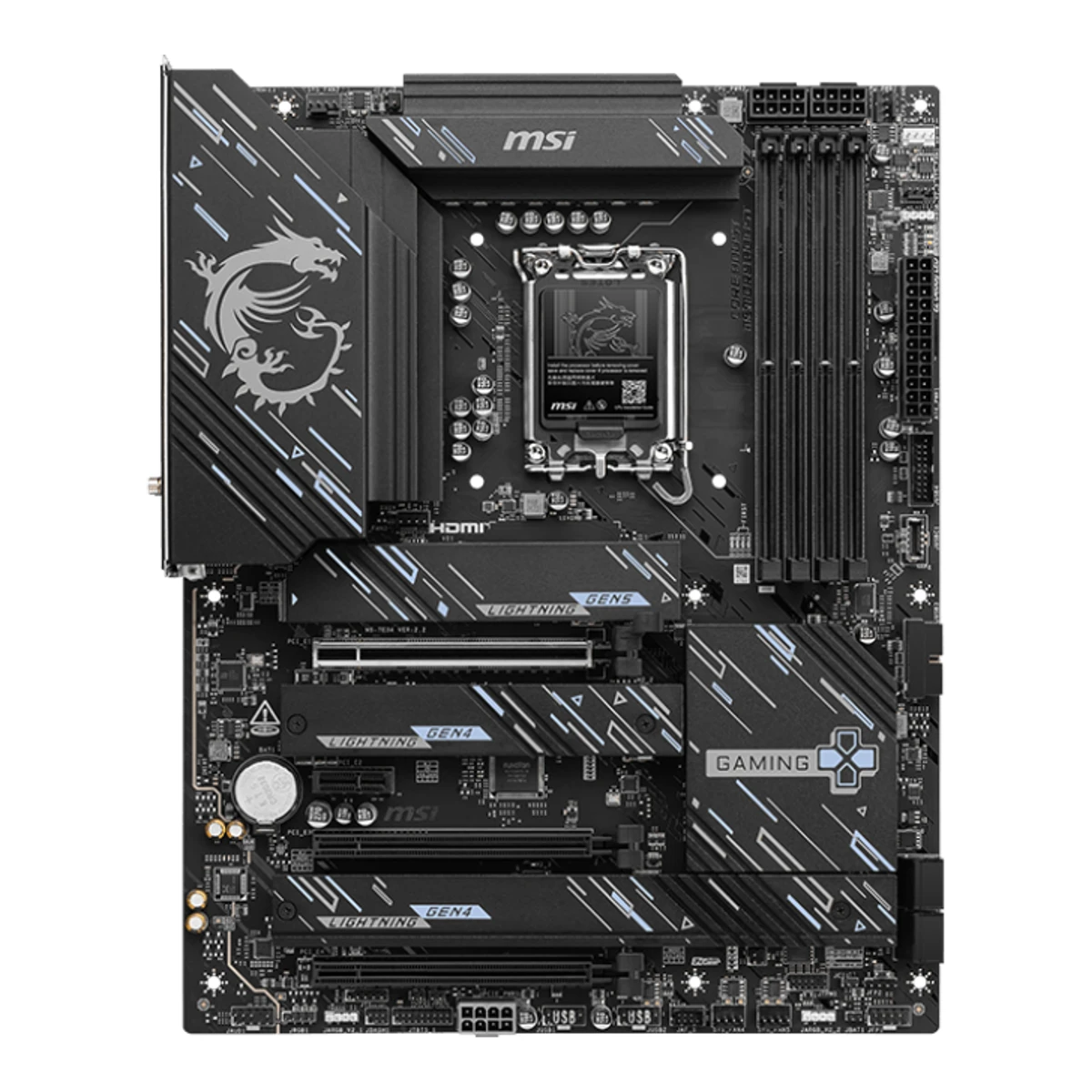

Z890 GAMING PLUS WIFI6E
Released April 2026.1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Revision history: Version 1.0, 2026/03, first release. Last checked 16 October 2026.
- CPU socket
- LGA1851
- Chipset
- Intel Z890
- Form factor
- ATX
- M.2 slots
- 4
63 of 78 fields known.
At a glance
Max memory speed (overclocked)
9,200MT/s2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026Memory Support: 4 DIMMs, Dual Channel DDR5-9200+ MT/s (OC). MSI's Spanish store lists 1DPC 1R up to 9200+, 1DPC 2R up to 7200+, 2DPC 1R up to 6400+ and 2DPC 2R up to 5600+ for Core Ultra (Series 2).3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Memory table: DDR5 9200 to 6400 (OC) MT/s. Max overclocking: 1DPC 1R up to 9200+, 1DPC 2R up to 7200+, 2DPC 1R up to 6400+, 2DPC 2R up to 5600+ MT/s, for Core Ultra (Series 2).8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: overclocked speeds reaching DDR5-9200, depending on the CPU memory controller, the DIMMs, the BIOS and the module count.
Higher than 83% of other motherboards.
Ports
- USB-C USB 3.2 Gen 2
- USB-A USB 3.2 Gen 2
- 2 USB-A USB 3.2 Gen 1
- 4 USB-A USB 2.0
- HDMI 2.1
- DisplayPort 1.4
- Ethernet (RJ45)
- 3 3.5 mm audio
- PS/2
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- Z890 GAMING PLUS WIFI6E, 911-7E34-0203Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026MSI Spanish store order code 911-7E34-020 (SKU in the store feed) for Z890 GAMING PLUS WIFI6E. The French store has the same code.4Maker product pagefr-store.msi.com/products/z890-gaming-plus-wifi6e-motherboardRead 15 October 2026MSI French store lists SKU 911-7E34-020.
- GTIN / EAN
- 4711377431118, 8241424565389Spec databasebuildcores.com/products/Motherboard/fp1jaofrr/MSI-Z890-GAMING-PLUS-WIFI6ERead 15 October 2026UPC 824142456538 and EAN 4711377431118 (also shown as 0824142456538). The EAN matches the barcode in MSI-related retailer URLs.
- Announced
- Not available
- Status
- Available3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026The product is listed and available at 264.90 EUR on 2026-10-15. The store page was created on 2026-06-01.4Maker product pagefr-store.msi.com/products/z890-gaming-plus-wifi6e-motherboardRead 15 October 2026Listed and available at 292.90 EUR on 2026-10-15. The store page was created on 2026-06-23.9Spec databasebuildcores.com/products/Motherboard/fp1jaofrr/MSI-Z890-GAMING-PLUS-WIFI6ERead 15 October 2026Shows Amazon at 189.99 USD in stock on 2026-10-15. The page's release year 2024 is wrong and is not used.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- LGA18511Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, CPU: processor socket LGA1851.
- Chipset
- Intel Z8901Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: Intel Z890 Chipset.
- Supported processors
- Intel Core Ultra (Series 2)1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, CPU: Intel Core Ultra Processors (Series 2). The manual points to msi.com for the newest support status. Read on 2026-10-15. The FPS Review says Core Ultra 200S Plus parts work without a BIOS update.
- CPU overclocking
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Page 28 (CPU socket chapter): this motherboard is designed to support overclocking. The Special Features list names Core Boost. Intel's Z890 chipset page lists Supports Overclocking: IA, BCLK, Memory.11Maker product pageintel.com/content/www/us/en/products/sku/237777/intel-z890-chipset/specifications.htmlRead 15 October 2026Intel's Z890 chipset page lists Supports Overclocking: IA, BCLK, Memory. This is the chip maker's page, not the board maker's.
Board
Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: 244 mm x 305 mm. MSI's Spanish store gives PCB info ATX 243.84mm x 304.8mm, the exact conversion of 9.6 x 12 in. The maker's whole-millimetre figure is stored.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026PCB Info: ATX 243.84mmx304.8mm.
- PCB layers
- 63Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Features: 6-layer PCB made with 2 oz thick copper and server-grade materials.4Maker product pagefr-store.msi.com/products/z890-gaming-plus-wifi6e-motherboardRead 15 October 2026Key features: server-grade PCB with 6 layers of 2 oz copper.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: the PCB is 6-layered with inlaid copper.8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: a six-layer server-grade PCB with two-ounce copper.
- RGB lighting on the board
- No1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, LED Features: 1x 4-pin RGB LED connector, 3x ARGB connectors and 4x EZ Debug LEDs. No lighting on the board is listed. The FPS Review says there are no RGBs on the board, and BuildCores shows Lighting: None.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: there are no RGBs, but plenty of ARGB headers.9Spec databasebuildcores.com/products/Motherboard/fp1jaofrr/MSI-Z890-GAMING-PLUS-WIFI6ERead 15 October 2026Lighting: None.
Power delivery
- Power stage layout
- 14+1+1+13Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Features: Duet Rail power system of 14+1+1+1 phases with 55 A DrMOS and dual 8-pin CPU power connectors.5Press releasetechno-edge.net/release/prtimes2/20260925/24691.htmlRead 15 October 2026Features: a 14-phase, 55A Dr.MOS power circuit.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: MSI states the board has 14+1+1+1 power phase support.8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story of 2026-09-25 (source GDM): a 14+1+1+1-phase Duet Rail power design based on 55A DrMOS components.10Spec databasemaxmybuild.com/motherboards/msi-z890-gaming-plus-wifi6eRead 15 October 2026Power and VRM: phase config 2x7+1+1+1, which is 14 Vcore stages in the Duet Rail layout.
- CPU core (Vcore) power stages
- 143Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Features: 14+1+1+1 phases with 55 A DrMOS. The first number is the Vcore rail.
- Vcore power stage rating
- 55A3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Features: 55 A DrMOS.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: VCore power is 55Amps DrMOS.8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: 55A DrMOS components.10Spec databasemaxmybuild.com/motherboards/msi-z890-gaming-plus-wifi6eRead 15 October 2026Power and VRM: 55A DrMOS.
- VRM controller
- Not available
Memory
- Max memory speed (overclocked)
- 9,200MT/s2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026Memory Support: 4 DIMMs, Dual Channel DDR5-9200+ MT/s (OC). MSI's Spanish store lists 1DPC 1R up to 9200+, 1DPC 2R up to 7200+, 2DPC 1R up to 6400+ and 2DPC 2R up to 5600+ for Core Ultra (Series 2).3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Memory table: DDR5 9200 to 6400 (OC) MT/s. Max overclocking: 1DPC 1R up to 9200+, 1DPC 2R up to 7200+, 2DPC 1R up to 6400+, 2DPC 2R up to 5600+ MT/s, for Core Ultra (Series 2).8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: overclocked speeds reaching DDR5-9200, depending on the CPU memory controller, the DIMMs, the BIOS and the module count.
- CUDIMM support
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, Memory: supports CUDIMM, with no bypass-mode limit. The FPS Review says the board supports CU-DIMMs and ran Kingston CU-DIMMs at 8400 MT/s.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Memory: supports CUDIMM, with no bypass-mode limit.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2 and conclusion: the board supports DDR5 CU-DIMMs, and the Kingston CU-DIMMs ran at 8400 MT/s without an issue.
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 2 PCIe x1 1 4 Chipset 1 Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: 3x PCIe x16 slots and 1x PCIe x1 slot. PCI_E1 is PCIe 5.0 x16 from the CPU, with BIOS adjustment to x8+x8 or x8+x4+x4. PCI_E3 and PCI_E4 are full-length slots at PCIe 4.0 x4 from the Z890 chipset. PCI_E2 is the x1 slot, PCIe 4.0 x1 from the chipset. The MSI datasheets say the x1 slot is PCIe 3.0 x1, which conflicts with the manual, MSI's store page, Guru3D and the FPS Review. The manual is used.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Slots: 3x PCI-E x16 and 1x PCI-E x1. PCI_E1 PCIe 5.0 up to x16 from the CPU, PCI_E2 PCIe 4.0 up to x1, PCI_E3 and PCI_E4 PCIe 4.0 up to x4, all from the chipset.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: one reinforced PCIe Gen5 x16, two full-sized PCIe Gen4 x4 slots and one half-size Gen4 x1 slot, all but the first from the chipset.8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: one PCIe 5.0 x16 slot, two full-length PCIe 4.0 x4 slots and one PCIe 4.0 x1 slot.- Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M2_1 5 4 CPU M.2 2280 No Yes M2_2 4 4 CPU M.2 22110 No Yes M2_3 4 4 Chipset M.2 2280 No Yes M2_4 4 4 Chipset M.2 2280 Yes Yes Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications and pages 32 to 37. M2_1 is from the CPU, up to PCIe 5.0 x4, 2260/2280. M2_2 is from the CPU, up to PCIe 4.0 x4, 2260/2280/22110. M2_3 is from the Z890 chipset, up to PCIe 4.0 x4, 2242/2260/2280. M2_4 is from the chipset, up to PCIe 4.0 x4, also up to SATA 6Gb/s, 2242/2260/2280. MSI's store page and the FPS Review call M2_2 a chipset slot, which conflicts with the manual. The manual is used. The install steps show an M.2 Shield Frozr heatsink on each slot (M2_1 screwless, M2_2 to M2_4 screwed) and the FPS Review says M2_3 and M2_4 sit under one long heatsink. The Wi-Fi module sits in a separate M.2 Key-E slot. No lane sharing is stated.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Storage table: M.2_1 from the CPU, PCIe 5.0 x4, 2280/2260. M.2_2 listed as from the chipset (the manual says CPU), PCIe 4.0 x4, 22110/2280/2260. M.2_3 PCIe 4.0 x4, 2280/2260/2242. M.2_4 PCIe 4.0 x4 or SATA mode, 2280/2260/2242.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: the primary M.2 is Gen5 x4 from the CPU. M.2_2, 3 and 4 are Gen4 x4, which the reviewer says come from the chipset (the manual says M2_2 is from the CPU). All native heatsinks have thermal pads. Slot 2 has its own heatsink and slots 3 and 4 share one long heatsink.10Spec databasemaxmybuild.com/motherboards/msi-z890-gaming-plus-wifi6eRead 15 October 2026M.2 heatsinks: all slots. Layout 1x PCIe 5.0 x4 and 3x PCIe 4.0 x4.- M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 1
- SATA ports
- 41Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: 4x SATA 6Gb/s ports from the Z890 chipset.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026Storage: 4x SATA 6Gbps ports.
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) USB-C USB 3.2 Gen 2 1 10 USB-A USB 3.2 Gen 2 1 10 USB-A USB 3.2 Gen 1 2 5 USB-A USB 2.0 4 0.48 HDMI HDMI 2.1 1 Not available DisplayPort DisplayPort 1.4 1 Not available Ethernet (RJ45) Not available 1 5 3.5 mm audio Not available 3 Not available PS/2 Not available 1 Not available Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, Back Panel Connectors and page 22: 1x DisplayPort 1.4, 1x HDMI 2.1, 1x PS/2, 1x 5G LAN (RJ45), 4x USB 2.0 Type-A, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x Wi-Fi antenna connectors, 3x audio jacks (line-in, line-out, mic-in) and the Flash BIOS button. The display ports work only with a processor that has integrated graphics, 4K 60Hz. MSI's speed names are stored as USB-IF names: 5Gbps as Gen 1 and 10Gbps as Gen 2. The manual gives no USB power output or DisplayPort alt mode.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: 4 USB-A 2.0, 2 USB-A 5Gb/s, 1 USB-A 10Gb/s, 1 USB-C 10Gb/s, a PS/2 port, a 5G RJ-45, DisplayPort, HDMI and three 3.5 mm analog audio jacks.- Rear USB ports
- 8
- Rear USB-C ports
- 1
- Fastest rear USB port
- 10Gbps
- Thunderbolt
- Not available
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 2 4 USB 2.0 header (9-pin) 0.48 2 4 - Front USB-C header speed
- 20Gbps
Networking
- Ethernet controllers
- Intel Killer E50001Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, LAN: 1x Intel Killer E5000B 5Gbps LAN controller. The suffix B is left out. MSI's store page writes Intel Killer E5000, and BuildCores lists a Realtek 8125D 2.5 Gb/s entry that conflicts with every maker source.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026LAN: Intel Killer E5000 5Gbps LAN.
- Ethernet ports
- 1
- Ethernet speed
- 5Gbps
- Wi-Fi standard
- Wi-Fi 6E1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: Wi-Fi 6E, 802.11 a/b/g/n/ac/ax.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026Wireless/BT: Wi-Fi 6E solution, Bluetooth 5.3.
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps. 6GHz band support may depend on each country's rules.
- Max Wi-Fi channel width
- 160MHz1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: 160MHz, MU-MIMO TX/RX.
- Wi-Fi module
- Not available
- Bluetooth
- 5.31Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: Bluetooth 5.3, FIPS, FISMA. MSI says the version may be updated by the Wi-Fi chip vendor.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026Wireless/BT: Wi-Fi 6E solution, Bluetooth 5.3.
Audio
- Audio codec
- Realtek ALC8971Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: Realtek ALC897 codec, 7.1-channel High Definition Audio.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: Audio is Realtek ALC897 and 7.1 capable.
- DAC chip
- Not available
Features
- Clear CMOS button (rear)
- No1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications: the only reset listed is 1x Clear CMOS jumper. The back panel list has a Flash BIOS button and no Clear CMOS button. BuildCores shows Clear CMOS Button: No.9Spec databasebuildcores.com/products/Motherboard/fp1jaofrr/MSI-Z890-GAMING-PLUS-WIFI6ERead 15 October 2026Clear CMOS Button: No.
- POST code display
- No1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Specifications, LED Features: 4x EZ Debug LEDs. They are single status LEDs and no two-digit display is listed. The FPS Review says there is no digital debug LED on board.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: no power button or debug digital LED on board.
- Power button on the board
- No1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026The specifications and the overview list no power or start button on the board. The FPS Review says there is no power button on board.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2: no power button or debug digital LED on board.
- Pre-installed I/O shield
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Special Features, EZ DIY: Pre-installed I/O Shield.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Special Features, EZ DIY: EZ M.2 Shield Frozr II (screwless on M2_1, pages 33 to 34), EZ PCIe Clip II and EZ Antenna. The M.2 install steps (pages 34 and 36) say to rotate the EZ M.2 Clip to secure the SSD. The heatsinks on M2_2 to M2_4 use screws. The manual says to connect the antenna cables tight, and the MSI Japan press release says the EZ Wi-Fi antenna mounts by simply plugging it in, and Guru3D calls it push-on.3Maker product pagees-store.msi.com/products/z890-gaming-plus-wifi6e-placas-baseRead 15 October 2026Key features: EZ DIY with EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna.5Press releasetechno-edge.net/release/prtimes2/20260925/24691.htmlRead 15 October 2026Features: the EZ Wi-Fi antenna attaches by plugging it in, EZ M.2 CLIP II and EZ M.2 Shield Frozr II let a finger remove an M.2 SSD, and the PCIe clip is 21 mm taller than the previous generation for easy graphics card removal.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 2 and 5: the primary M.2 heatsink is tool-free, the others use screws, all slots use a rotary clasp, and the EZ PCIe Clip II has an enlarged clasp that makes the GPU easier to release.8Press articleguru3d.com/story/msi-z890-gaming-plus-wifi-6e-supports-ddr59200-and-5gb-ethernetRead 15 October 2026Story: EZ M.2 Clip II and EZ M.2 Shield Frozr II, and an EZ Wi-Fi antenna with a push-on attachment.
Measured
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- Quick installation guide, European Union Regulatory Notices, 2 x SATA cables, 1 to 2 EZ Conn-Cable (V1), EZ Wi-Fi Antenna, 2 x M.2 Screw and Standoff Sets1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026Package Contents, page 21: motherboard, quick installation guide, EU regulatory notices, 2 SATA cables, 1 to 2 EZ Conn-Cable (V1), EZ Wi-Fi antenna and 2 M.2 screw and standoff sets. The FPS Review lists two SATA cables, an EZ-Conn cable, two NVMe hold-down screws, stickers and two booklets.
Links
- Product page
- www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E12Maker product pagemsi.com/Motherboard/Z890-GAMING-PLUS-WIFI6ERead 15 October 2026The URL comes from the job evidence and web search results. msi.com blocks agents, so the page was not opened and no value comes from it.
- Spec sheet
- storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdf2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/Z890-GAMING-PLUS-WIFI6E.pdfRead 15 October 2026One-page MSI datasheet for Z890 GAMING PLUS WIFI6E, US version, generated 2026-05-22, on MSI's datasheet server. Its first generation date in the other regional versions is 2026-04-16 (India).
- Manual
- download-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdf1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/Z890GAMINGPLUSWIFI6E_English.pdfRead 15 October 2026MSI User Guide for Z890 GAMING PLUS WIFI6E (68 pages), on MSI's download server. Revision history: Version 1.0, 2026/03, first release. Version 1.1, 2026/07, Regulatory Notices update. A copy hosted by buildcores.com is the same file.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years5Press releasetechno-edge.net/release/prtimes2/20260925/24691.htmlRead 15 October 2026MSI Japan press release of 2026-09-25 (copy on techno-edge.net): a long 3-year warranty. Sales in Japan start 2026-10-02 at 45,980 JPY including tax, a regional date later than the global launch.6Reviewthefpsreview.com/2026/06/22/msi-z890-gaming-plus-wifi6e-motherboard-review/2Read 15 October 2026Page 1: offered on the MSI US store for $199 and carries a three-year warranty.
