PC parts / Motherboards

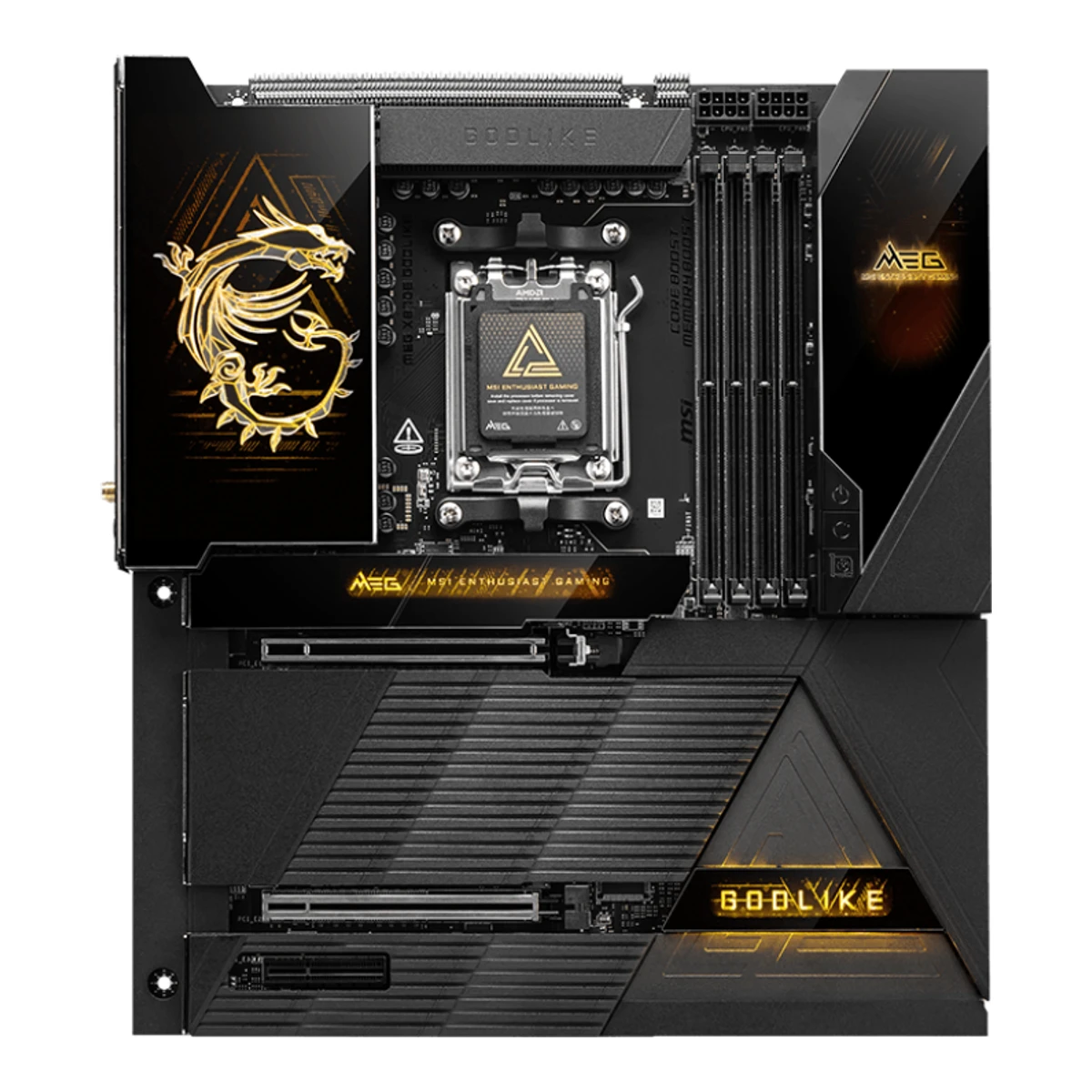

MSI MEG X870E GODLIKE

MSIGaming motherboard

MEG X870E GODLIKE

Released November 2024.8Press articleguru3d.com/story/flagship-msi-meg-x870e-godlike-amd-motherboard-becomes-available-pricing-in-usdRead 15 October 2026Guru3D, 2024-11-15: MSI has released the MEG X870E GODLIKE. The same article gives about 1,279 USD, which differs from the 1,099 dollars that Tom's Hardware reports, so no launch price is stored. Last checked 15 October 2026.

CPU socket
AM5
Chipset
AMD X870E
Form factor
E-ATX
M.2 slots
5

68 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB4
  • 5 USB-C USB 3.2 Gen 2
  • 8 USB-A USB 3.2 Gen 2
  • 2 Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • 2 USB-C header
  • 2 USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
MEG1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026The manual cover reads MEG Series Motherboard.
Model numbers
MEG X870E GODLIKE, 7E48-001R, 911-7E48-0061Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026The manual cover names the model MEG X870E GODLIKE. The codes 7E48-001R and 911-7E48-006 are from the retailer and MSI shop sources below.2Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026MSI France e-shop, SKU 911-7E48-006.10Retailer pageebay.de/p/3074116473Read 15 October 2026Listing titles carry the code 7E48-001R. Arvutitark and Digitec list the same manufacturer code.11Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-msi-amd-am5-meg-x870e-godlike-1409775Read 15 October 2026Product code 7E48-001R.
GTIN / EAN
4711377276221, 8241423887473Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026Item details: UPC 824142388747.10Retailer pageebay.de/p/3074116473Read 15 October 2026The eBay product page lists GTIN 4711377276221. Aspen Solutions lists the same EAN.
Announced
Not available
Status
Available3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026The page showed the board In Stock on 2026-10-15, Best Sellers Rank 6 in Computer Motherboards.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026MSI's own text on the page calls the board the MEG X870E GODLIKE gaming motherboard. MEG is MSI's top gaming line.
Board revision
Not available

Platform

CPU socket
AM51Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: Processor socket AM5.
Chipset
AMD X870E1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: AMD X870E Chipset.
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors. The manual says to go to msi.com for the newest support status. Read on 2026-10-15.
CPU overclocking
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026The CPU socket section says the board is designed to support overclocking, and the special features list Core Boost under Performance. AMD's chipset page lists Ryzen processor overclocking for X870E.7Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 15 October 2026AMD's AM5 chipset specifications table lists Ryzen processor overclocking enabled for X870E, and the page names the MEG X870E GODLIKE among its X870E boards. This is the chip maker's page, not the board maker's.

Board

Front and side, drawn to scale.

Form factor
E-ATX1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: E-ATX Form Factor.
Board dimensions
Width277Height305mm(10.9 × 12 in)1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 10.9 in. x 12 in. (277mm x 305 mm). Tom's Hardware news gives about 288 x 304.8 mm, and the manual is used.
PCB layers
102Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026Frozr Guard text: a server-grade 10-layer PCB with 2 oz of thickened copper.3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026From the manufacturer: a 10-layer server-grade PCB with 2oz of thickened copper.11Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-msi-amd-am5-meg-x870e-godlike-1409775Read 15 October 2026The shop copies MSI's feature text: 10-layer PCB made by 2oz thickened copper and server-grade level material.
Back-connect design
No1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026The overview shows the usual front-side power, fan and USB connectors. The EZ Bridge and EZ Control Hub gather connectors on the front, so this is not a back-connect design.
RGB lighting on the board
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026LED Features list a 3-pin ARGB connector and a LED demo connector. The back panel section says the Smart button can turn on and off all the onboard LEDs with Mystic Light, and the overview names the LED_SW1 EZ LED Control switch.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1: three tastefully implemented RGB zones, a static RGB display on the primary M.2 heatsink and a chipset that glows with the model name.

Power delivery

Power stage layout
24+2+12Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026Ultra Power text: digital PWM IC, 24 phase Duet Rail power (110A SPS), 2 phase SOC power and 1 phase MISC power. Written 24+2+1 as MSI's feature text and Club386 write it.6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026Specs table: VRM 24+2+1, 110A.11Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-msi-amd-am5-meg-x870e-godlike-1409775Read 15 October 2026The shop copies MSI's feature text: 24+2+1 Duet Rail Power System, 110A SPS, dual 8-pin CPU power connectors.
CPU core (Vcore) power stages
242Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026The Vcore rail is 24 Duet Rail phases with 110A smart power stages. Tom's Hardware reads this as 24 power stages for Vcore.3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026The bullets say the board employs a 24 DRPS (110A, SPS), which is 24 Duet Rail power stages.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: 27 Phase (24x 110A SPS MOSFETs for Vcore). The text says 27 phases with 24 dedicated to Vcore.
Vcore power stage rating
110A2Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026Smart Power Stage 110A.3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 202624 DRPS (110A, SPS).6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026Specs table: 24+2+1, 110A.
VRM controller
Renesas RAA2296284Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1, design text: power comes from the 8-pin EPS connectors onto a Renesas RAA229628 controller, and from there to the 110A SPS MOSFETs. Single reviewer, MSI names only a digital PWM IC.
CPU power connectors
8+8 pin1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Power Connectors: 2 x 8-pin +12V power connectors, written as the dual 8-pin CPU power of the Dual CPU Power feature.
Extra slot power connector
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Power Connectors: 1 x 8-pin PCIe power connector (PCIE_PWR1). A second 8-pin connector, PD_PWR1, only feeds USB PD 60W charging on the front USB-C port and is not counted.

Memory

Memory type
DDR51Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 4 x DDR5 memory slots.
Memory slots
41Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 4 x DDR5 memory slots, with single-sided latches.
Max memory
256GB1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: supporting up to 256GB. Amazon US and Tom's Hardware say the same.3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026Ram Memory Maximum Size 256 GB.
Max memory speed (overclocked)
9,200MT/s3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026The MSI-branded listing says 4 x DDR5 DIMM SMT slots (1DPC 1R, 9200+ MT/s OC) and has DDR5 Memory (9200+ MT/s OC) in the title, with Ryzen 9000, 8000 and 7000 support. It is the newest maker statement. Tom's Hardware copied MSI's page in January 2025 as DDR5-9000(OC) with 1DPC 1R up to 8400+ MT/s, and 1DPC 2R and 2DPC 1R up to 6400+ and 2DPC 2R up to 4800+. A BIOS update can raise the value, so 9200 is stored.
ECC memory
No1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Memory: supports non-ECC, un-buffered memory.
CUDIMM support
No1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Memory: supports CUDIMM, clock driver bypass mode only. CUDIMM support and POR boot frequency vary by CPU series.

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1685CPU1
PCIe x444Chipset1
Source1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications and the PCI_E1~3 section with Ryzen 9000 and 7000: PCI_E1 is a PCIe 5.0 x16 slot from the CPU and PCI_E2 is a PCIe 5.0 x8 slot from the CPU. The two CPU slots run x16/x0 or x8/x8, so PCI_E1 drops to x8 when PCI_E2 is used. PCI_E3 is a PCIe 4.0 x4 slot from the chipset. It runs at x2 when a drive is in M2_4. With Ryzen 8700, 8600 and 8400 the CPU slots are PCIe 4.0 x8.
Full-length PCIe slots
2
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsinkShares lanes with
M2_154CPUM.2 2280NoYesNot available
M2_254CPUM.2 2280NoYesThe rear USB 40Gbps Type-C ports. Both run at PCIe 5.0 x2 when a drive is in M2_2. Setting M2_2 to x4 in the BIOS turns the USB 40Gbps ports off
M2_344ChipsetM.2 22110NoYesNot available
M2_442ChipsetM.2 2280NoYesPCI_E3 runs at x2 when a drive is in M2_4
M2_544ChipsetM.2 2280NoYesNot available
Source1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications and the M2_1~5 section with Ryzen 9000 and 7000. M2_1 and M2_2 are from the CPU at PCIe 5.0 x4, types 2260 and 2280. M2_3 is from the chipset at PCIe 4.0 x4, types 2280 and 22110. M2_4 is from the chipset at PCIe 4.0 x2, types 2260 and 2280. M2_5 is from the chipset at PCIe 4.0 x4, types 2260 and 2280. No slot lists a SATA mode, so sata is false. Each slot is installed with a Screwless M.2 Shield Frozr heatsink. M2_2 is not available with Ryzen 8500 and 8300. The box also holds the M.2 XPANDER-Z SLIDER GEN5 card with 2 more PCIe 5.0 x4 slots for 2280 drives, which are not listed here.
M.2 slots
5
PCIe 5.0 M.2 slots
2
SATA ports
41Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 4 x SATA 6Gb/s ports from the X870E chipset.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)Thunderbolt or USB4DP Alt Mode
USB-CUSB4240USB4Yes
USB-CUSB 3.2 Gen 2510Not availableNot available
USB-AUSB 3.2 Gen 2810Not availableNot available
Ethernet (RJ45)Not available110Not availableNot available
Ethernet (RJ45)Not available15Not availableNot available
3.5 mm audioNot available2Not availableNot availableNot available
Optical S/PDIFNot available1Not availableNot availableNot available
Source1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Back Panel Connectors and the connector diagram: 2 x USB 40Gbps Type-C from the ASM4242 with DisplayPort over USB Type-C, 3 x USB 10Gbps Type-C from the CPU, 2 x USB 10Gbps Type-C from the chipset, 2 + 4 + 2 USB 10Gbps Type-A, 1 x 10G LAN jack, 1 x 5G LAN jack, 2 x audio jacks and 1 x optical S/PDIF out. The Flash BIOS button, Clear CMOS button, Smart button and 2 Wi-Fi antenna connectors are not ports. The USB4 ports pass display signals only on processors with integrated graphics (DisplayPort 1.4 with HBR3, up to 4K at 60 Hz).
Rear USB ports
15
Rear USB-C ports
7
Fastest rear USB port
40Gbps
Thunderbolt
No

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports servedPower out (W)
USB-C header201160
USB-C header1011Not available
USB 3 header (19-pin)524Not available
USB 2.0 header (9-pin)0.4824Not available
Source1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Internal USB Connectors: 1 x USB 20Gbps Type-C front panel port with USB PD 60W (JUSBC2), 1 x USB 10Gbps Type-C front panel port (JUSBC1), 2 x USB 5Gbps connectors for 4 more ports (JUSB2 and JUSB3) and USB 2.0 connectors for 4 more ports (JUSB1 and JUSB_BRG_1 on the EZ Bridge). The 60 W output needs the PD_PWR1 connector wired to the power supply.
Front USB-C header speed
20Gbps
Fan headers
101Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, Fan Connectors: 1 x CPU fan, 2 x water-pump or system fan, and on the EZ CONTROL HUB 7 x 4-pin system fan connectors. That makes 3 on the board and 7 on the hub that ships in the box and links through the board's EZ Link header. Tom's Hardware also counts 10. The EZ Conn-Header V2 (JAF_2) is a combination connector and is not counted. The water flow connector is not a fan header.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1: 3 fan and pump headers on the board and 7 more on the EZ Control Hub, for a total of 10.
ARGB headers
31Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026LED Features: 1 x 3-pin A-RAINBOW V2 (ARGB Gen2) connector on the board and 2 more on the EZ CONTROL HUB. The EZ Conn-Header V2 is not counted.
RGB headers
11Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026EZ CONTROL HUB: 1 x 4-pin RGB LED connector (JRGB1, 5050 12V). The board has none of its own.

Networking

Ethernet controllers
Marvell AQC113, Realtek RTL81261Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications, LAN: 1 x Realtek 8126 5Gbps LAN controller and 1 x Marvell AQC113CS 10Gbps LAN controller. The suffix CS is left out.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: Marvell AQC113CS (10 GbE) and Realtek 8126 (5 GbE).6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026Specs table: Marvell 10Gb/s and Realtek 5Gb/s.
Ethernet ports
2
Ethernet speed
10Gbps
Wi-Fi included
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: the wireless module is pre-installed in the M.2 (Key-E) slot.
Wi-Fi standard
Wi-Fi 71Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: Wi-Fi 7, 802.11 a/b/g/n/ac/ax/be, with MLO and 4KQAM.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps. 6 GHz may depend on each country's regulations.
Max Wi-Fi channel width
320MHz1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 2.4GHz/5GHz/6GHz (320MHz).
Wi-Fi module
Qualcomm FastConnect 78004Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: Qualcomm Fast Connect 7800 Wi-Fi 7, 320 MHz, 6 GHz, 5.8 Gbps, BT 5.4. No source gives the module part number, so the platform name is stored.
Bluetooth
5.41Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: Bluetooth 5.4. The manual says the version may be updated and refers to the Wi-Fi chip vendor.

Audio

Audio codec
Realtek ALC40821Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: Realtek ALC4082 Codec + ES9219Q, 7.1-channel USB high performance audio.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: Realtek ALC4082 + ESS9219Q combo DAC/HPA.6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026Specs table: Realtek ALC4082.
DAC chip
ESS ES9219Q1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: Realtek ALC4082 Codec + ES9219Q. Tom's Hardware writes ESS 9219Q combo DAC/HPA and Arvutitark copies MSI's text ESS audio DAC and amplifier, so the maker is ESS.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: ESS9219Q combo DAC/HPA, which is the ES9219Q part.

Features

BIOS flashback
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Back Panel: 1 x Flash BIOS button.
Clear CMOS button (rear)
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Back Panel: 1 x Clear CMOS button.
POST code display
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026The Dynamic Dashboard III LCD shows progress and error codes during booting and POST, and the manual's Debug Code LED table lists the two-character codes. MSI's French shop page names an EZ Digi-Debug LED on the dashboard. Tom's Hardware lists a 2-character debug LED.2Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026The Dynamic Dashboard works as a relay with start, reset and EZ PCIe release buttons and an EZ Digi-Debug LED.4Reviewtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-reviewRead 15 October 2026Page 1 spec table: 1 two-character debug LED. The manual is the main source.6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026The review says the Dynamic Dashboard III can provide debug codes.
Power button on the board
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 1 x Power button and 1 x Reset button on the EZ BRIDGE module attached to the board. The rear Smart button can also reset the system.
Dual BIOS
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Specifications: 2 x 256 Mb flash. The BIOS_SW1 section says the board has two built-in BIOS ROMs and a Multi-BIOS switch.
Pre-installed I/O shield
Yes1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Special Features, EZ DIY: Pre-installed I/O Shield.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026EZ DIY: EZ M.2 Clip II (M.2 latch), Screwless M.2 Shield Frozr heatsinks that lift off with a button (M.2 heatsink), EZ PCIe Release (button on the EZ Bridge) and EZ Antenna. The Installing Antenna section says to plug the two antenna cables onto the antenna connectors.6Reviewclub386.com/msi-meg-x870e-godlike-reviewRead 15 October 2026The EZ section says SSD installs are toolless with EZ M.2 Clip II and magnetic M.2 Shield Frozr II heatsinks, the PCIe 5.0 x16 slot has EZ PCIe Release, and the EZ Wi-Fi Antenna has a plug and play connector.

Measured

VRM temperature under CPU load
47°C5Measurementtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-review/3Read 15 October 2026Page 3: AIDA64 stress test on all threads for 30 minutes, CPU at stock, about 21 C ambient by the chart. The Ryzen 9 9900X drew about 156 W and the review uses an Arctic Liquid Freezer II 420 cooler (page 2). The text says the VRM peaked at 47 C. The chart shows the three thermocouples between about 44 and 47 C and the HWiNFO MOS sensor near 50 C. The 47 C reading is stored.
Power draw idle
97W5Measurementtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-review/3Read 15 October 2026Page 3 Power Consumption chart, MSI X870E Godlike: idle 97 W. Whole PC at the wall with a Kill-A-Watt meter, monitor excluded, Windows Balanced power plan, XMP enabled. Test system: Ryzen 9 9900X, Asus TUF RTX 4080, Crucial T705.
Power draw CPU stress
270W5Measurementtomshardware.com/pc-components/motherboards/msi-meg-x870e-godlike-motherboard-review/3Read 15 October 2026Page 3 Power Consumption chart: load 270 W peak (average 184 W) in the AIDA64 System Stability Test with Stress CPU, FPU, Cache and Memory enabled. Whole PC at the wall with a Kill-A-Watt meter, graphics card not stressed, stock settings. The page text calls the CPU a Ryzen 9 9990X, which reads as a typo for the 9900X listed on page 2.

In the box

In the box
Quick installation guide, European Union Regulatory Notices, USB drive, 4 x SATA 6Gb/s cables, 1 x 1 to 2 RGB extension cable, 1 x ARGB extension cable, 1 x 1 to 3 ARGB extension cable, 2 x Thermistor cables, 1 x EZ Front Panel cable, 1 x 1 to 3 EZ Conn-Cable (V2), 1 x EZ Link cable, 1 x 1 to 2 SATA power cable, 1 x M.2 Xpander fan control cable, 1 x EZ CONTROL HUB, 1 x M.2 XPANDER-Z SLIDER GEN5 card, 1 x EZ Wi-Fi Antenna, 1 x Gaming cable sticker, 1 x Hub screw set, 1 x EZ M.2 Clip II Remover, 1 x 0.5mm thermal pad (for the Xpander-Z Slider Gen 5 card), 1 x 1.25mm thermal pad (for the Xpander-Z Slider Gen 5 card)1Owner's manualtrovaprezzi.it/manuali/msi_meg_x870e_godlike.pdfRead 15 October 2026Package Contents as listed in the manual. The EZ Control Hub and the M.2 XPANDER-Z SLIDER GEN5 card are in the box.

Warranty

Manufacturer warranty (source market)
3years2Maker product pagefr-store.msi.com/products/meg-x870e-godlikeRead 15 October 2026Garantie de 3 ans. The shop is the French MSI e-shop run from Germany.3Retailer pageamazon.com/dp/B0DM4HD873Read 15 October 2026Warranty Description: 3 Years Manufacturer, on the US page.11Retailer pagearvutitark.ee/en/pc-components/motherboards/mb-msi-amd-am5-meg-x870e-godlike-1409775Read 15 October 2026Warranty (months) 36. The shop is in Estonia.
