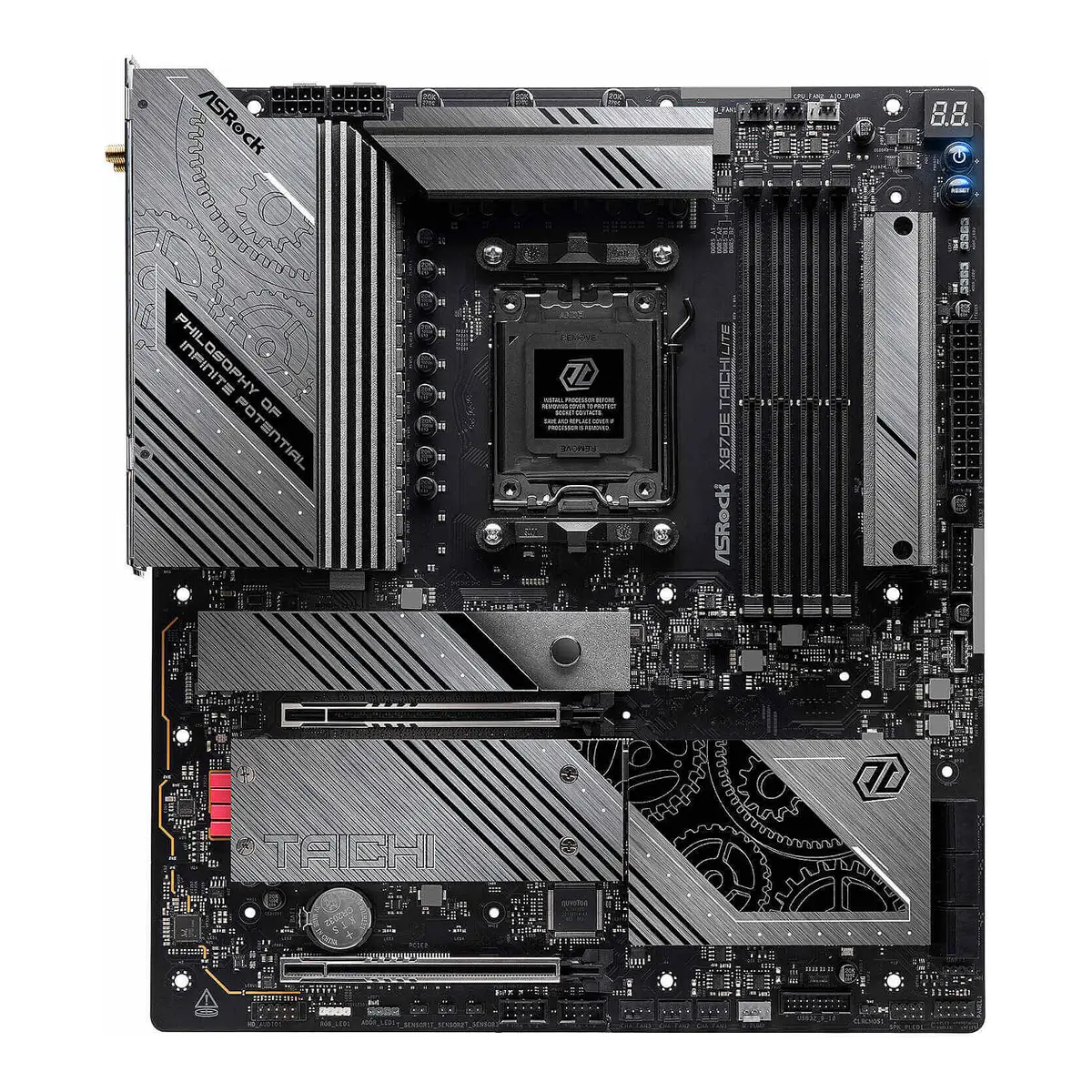

ASRock X870E Taichi Lite

ASRockMotherboard

X870E Taichi Lite

Released September 2024.3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Review dated 2024-10-04 with a retail sample. It fits the launch month. Last checked 15 October 2026.

CPU socket
AM5
Chipset
AMD X870E
Form factor
E-ATX
M.2 slots
4

65 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB4
  • 5 USB-A USB 3.2 Gen 2
  • 3 USB-A USB 3.2 Gen 1
  • 2 USB-A USB 2.0
  • HDMI 2.1
  • Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • USB-C header
  • 2 USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
Taichi8Press articlefunkykit.com/news/asrock-unveils-x870e-x870-series-motherboards-ready-for-amd-ryzen-9000-series-processorsRead 15 October 2026The release names the Taichi family.
Model numbers
X870E Taichi Lite, 90-MXBPA0-A0UAYZ5Retailer pagescan.co.uk/products/asrock-x870e-taichi-lite-amd-x870e-am5-ddr5-pcie-50-4x-m2-usb-40-5g-wifi-7-amd-expo-e-atxRead 15 October 2026Scan UK lists manufacturer code 90-MXBPA0-A0UAYZ.7Retailer pageamazon.com/dp/B0DFNPK2MXRead 15 October 2026Mfr Part Number 90-MXBPA0-A0UAYZ.
GTIN / EAN
47104839474455Retailer pagescan.co.uk/products/asrock-x870e-taichi-lite-amd-x870e-am5-ddr5-pcie-50-4x-m2-usb-40-5g-wifi-7-amd-expo-e-atxRead 15 October 2026Scan UK lists GTIN 4710483947445.7Retailer pageamazon.com/dp/B0DFNPK2MXRead 15 October 2026The Amazon US listing for ASIN B0DFNPK2MX gives GTIN 04710483947445.
Announced
30 September 20248Press articlefunkykit.com/news/asrock-unveils-x870e-x870-series-motherboards-ready-for-amd-ryzen-9000-series-processorsRead 15 October 2026Funky Kit's copy of ASRock's press release of 30 September 2024 calls the X870E Taichi and Taichi Lite the flagship series. ASRock showed both boards at Computex 2024 before that, and the release date is stored.
Status
Available7Retailer pageamazon.com/dp/B0DFNPK2MXRead 15 October 2026The listing is in stock on 2026-10-15 at best sellers rank 27 in Computer Motherboards.
Predecessor
Not available
Successor
Not available
Launch price (US)
$3993Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review of 2024-10-04 says the board is priced at $399. Club386 gives the same $399 on 2024-10-02. A US price excludes tax.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review header gives £395 / $399.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Not available
Board revision
Not available

Platform

CPU socket
AM51Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026
Chipset
AMD X870E1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026AM5 Ryzen 9000, 8000 and 7000 Series. The manual refers to ASRock's CPU support list, which was not read. Read on 2026-10-15.
CPU overclocking
Yes10Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 15 October 2026AMD's chipset table lists Ryzen processor overclocking enabled for X870E, and the X870E text names robust overclocking capabilities. This is the chip maker's page and not the board maker's.

Board

Front and side, drawn to scale.

Form factor
E-ATX1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026The package contents and the platform list say EATX Form Factor. Stored as e_atx.
Board dimensions
Width267Height305mm(10.5 × 12 in)3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review's specification list says EATX Form Factor: 30.5 cm x 26.7cm. A retailer copy of ASRock's list gives 12.0-in x 10.5-in, 30.5 cm x 26.7 cm. The 26.7 cm side is the width and the 30.5 cm side is the height at the I/O edge. Scan lists 305 x 244 mm for this board, which is the ATX width and is not used.6Retailer pagecomputerassistance.co.uk/product/asrock-x870e-taichi-lite-amd-am5-socket-motherboard-e-atx-4x-ddr5-slots-4x-m-2-sockets-fitted-i-o-shield-5gbe-lan-wi-fi-7-1x-hdmi-port-2x-usb-c-usb4Read 15 October 2026The page copies ASRock's list: EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm.
PCB layers
81Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Specifications, platform: 8 Layer PCB and 2oz Copper PCB.3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The board is built on an 8-layered PCB with 2oz copper.
Back-connect design
No1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026The layout in chapter 1 shows the usual front-side power, fan and USB connectors. The board is not a back-connect design.
RGB lighting on the board
No3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review says the board has no RGB and is a good match if you do not need RGB. It has 3 addressable headers and one standard header. Club386 says the Lite lacks the flashy RGB of the full Taichi.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review says that saving $50 on the Lite means you miss out the flashy RGB of the X870E Taichi.

Power delivery

Power stage layout
24+2+13Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 202624+2+1 (VCore+GT+Aux) power design with 110A phases for the CPU and memory.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026VRM design 24+2+1, 110A SPS in the review's specification table.5Retailer pagescan.co.uk/products/asrock-x870e-taichi-lite-amd-x870e-am5-ddr5-pcie-50-4x-m2-usb-40-5g-wifi-7-amd-expo-e-atxRead 15 October 202624+2+1 phases (24 Vcore, 2 SoC, 1 VDD_MISC) with Dr.MOS power stages.
CPU core (Vcore) power stages
243Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 202624 Vcore stages in the 24+2+1 design.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 202624+2+1-phase VRM design.
Vcore power stage rating
110A3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026110A SPS for VCore and SoC, listed in the spec table and text. Club386 and Scan give the same figure. Maker figure copied by the reviewer.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026110A Smart Power Stage (SPS).
VRM controller
Renesas RAA2296283Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The review names Renesas RAA229628 as the PWM controller for R2209004 power stages. ASRock does not document the part and no other review names the controller. The same controller is stored for the X870E Nova WiFi from a different single review.
CPU power connectors
8+8 pin1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Connector list: 1 x 24 pin ATX power and 2 x 8 pin 12V power connectors, both Hi-Density.
Extra slot power connector
No1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026The connector list has no extra slot power connector. The manual never states that one is absent.

Memory

Memory type
DDR51Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026
Memory slots
41Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026
Max memory
256GB1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Max. capacity of system memory: 256GB.
Max memory speed (overclocked)
8,200MT/s1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC). The manual names no CPU family or module setup. Club386 writes 8,400+ MT/s from the chipset specification, and the maker's figure is stored.
ECC memory
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026The manual says DDR5 ECC/non-ECC, un-buffered memory. It does not say whether ECC is active with each CPU.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1685CPU1
Source1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026CPU: 2 x PCIe 5.0 x16 slots (PCIE1 and PCIE2), support x16 or x8/x8 modes. PCIE1 runs Gen5x16 with Ryzen 9000 and 7000, Gen4x8 with Ryzen 8000 (Phoenix 1) and Gen4x4 with Ryzen 8000 (Phoenix 2). The block diagram in section 1.5 shows PCIE2 as x0/x8, so its most lanes are 8. The chipset has no PCIe slot. The vertical Key E socket for the Wi-Fi module is not listed.
Full-length PCIe slots
2
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2_154CPUM.2 2280NoYes
M2_244ChipsetM.2 2280NoYes
M2_344ChipsetM.2 2280NoYes
M2_444ChipsetM.2 2280NoYes
Source1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026CPU: M2_1 (Key M) type 2280 PCIe Gen5x4. M2_1 runs Gen5x4 with Ryzen 9000 and 7000 and Gen4x4 with Ryzen 8000. Chipset: M2_2, M2_3 and M2_4 type 2280 PCIe Gen4x4, as in the block diagram. No slot lists a SATA mode, so sata is false. The install guides in chapters 2.15 to 2.17 show a heatsink on every slot. The manual lists no lane sharing between the M.2 slots and other connectors.3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Four M.2 slots, one PCIe 5.0 x4 and three PCIe 4.0 x4. The slots are cooled by dedicated heatsinks.
M.2 slots
4
PCIe 5.0 M.2 slots
1
SATA ports
61Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20266 x SATA3 6.0 Gb/s connectors, SATA3_1 to SATA3_6, from the chipsets.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)Thunderbolt or USB4Power out (W)DP Alt Mode
USB-CUSB4240USB415Yes
USB-AUSB 3.2 Gen 2510Not availableNot availableNot available
USB-AUSB 3.2 Gen 135Not availableNot availableNot available
USB-AUSB 2.020.48Not availableNot availableNot available
HDMIHDMI 2.11Not availableNot availableNot availableNot available
Ethernet (RJ45)Not available15Not availableNot availableNot available
3.5 mm audioNot available2Not availableNot availableNot availableNot available
Optical S/PDIFNot available1Not availableNot availableNot availableNot available
Source1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Rear panel: 2 x USB4 Type-C (40 Gb/s, USB PD 3.0 up to 5V@3A (15W) charging), 5 x USB 3.2 Gen2 Type-A (10 Gb/s), 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x HDMI (HDMI 2.1 TMDS/FRL 8G compatible, up to 4K 120Hz), 1 x RJ-45 5G LAN, 1 x optical SPDIF out, line out and microphone in jacks, 2 antenna ports, 1 x Clear CMOS button and 1 x BIOS Flashback button. ASRock uses the USB 3.2 names. The USB4 ports show only the CPU's embedded graphics output, up to 8K 30Hz, and Club386 says both support DP Alt Mode.
Rear USB ports
12
Rear USB-C ports
2
Fastest rear USB port
40Gbps
Thunderbolt
No

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header2011
USB 3 header (19-pin)524
USB 2.0 header (9-pin)0.4824
Source1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Connector list: 1 x front panel Type C USB 3.2 Gen2x2 header (20 Gb/s), 2 x USB 3.2 Gen1 headers for 4 ports and 2 x USB 2.0 headers for 4 ports.
Front USB-C header speed
20Gbps
Fan headers
81Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20262 x CPU fan, 4 x chassis fan, 1 x AIO pump and 1 x water pump fan connectors, all 4-pin.
ARGB headers
31Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20263 x Addressable LED headers (up to 5V/3A, 15W in total).
RGB headers
11Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20261 x RGB LED header (up to 12V/3A, 36W in total).

Networking

Ethernet controllers
Realtek RTL81261Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20265 Gigabit LAN 10/100/1000/2500/5000 Mb/s, Realtek RTL8126. The block diagram labels the chip 8126CG.
Ethernet ports
1
Ethernet speed
5Gbps
Wi-Fi included
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026802.11be 2x2 Wi-Fi 7 module in a vertical M.2 Key E socket (2230).
Wi-Fi standard
Wi-Fi 71Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026802.11be 2x2 Wi-Fi 7.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Supports 2.4GHz/5GHz/6GHz frequency band. The 6 GHz band depends on each country's regulation.
Max Wi-Fi channel width
160MHz1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Supports 160MHz channel bandwidth with 6GHz frequency band.
Wi-Fi module
Not available
Bluetooth
5.41Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Supports Bluetooth 5.4.

Audio

Audio codec
Realtek ALC40821Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20265.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec).
DAC chip
ESS ES92191Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR). SABRE9219 is ESS part ES9219, so ESS ES9219 is stored. The Vortez review writes ES9219.3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026For DAC, the board uses ESS SABRE9219 with a 130dB signal-to-noise ratio.

Features

BIOS flashback
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20261 x BIOS Flashback Button on the rear panel.
Clear CMOS button (rear)
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20261 x Clear CMOS Button on the rear panel. The board also has a Clear CMOS jumper.
POST code display
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20261 x Dr. Debug with LED. Chapter 2.14 lists the Dr. Debug codes.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026There is a debug code display at the top right of the board, next to the power and reset buttons.
Power button on the board
Yes1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 20261 x Power Button with LED and 1 x Reset Button with LED. Chapter 2.13 describes the buttons.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Power and reset buttons sit at the top right of the board.
Dual BIOS
Not available
Pre-installed I/O shield
Yes5Retailer pagescan.co.uk/products/asrock-x870e-taichi-lite-amd-x870e-am5-ddr5-pcie-50-4x-m2-usb-40-5g-wifi-7-amd-expo-e-atxRead 15 October 2026Scan UK lists a flexible, adjustable I/O shield. The Scan warranty of 24 months return to base and Amazon's 1 year are retailer terms and are not stored.6Retailer pagecomputerassistance.co.uk/product/asrock-x870e-taichi-lite-amd-am5-socket-motherboard-e-atx-4x-ddr5-slots-4x-m-2-sockets-fitted-i-o-shield-5gbe-lan-wi-fi-7-1x-hdmi-port-2x-usb-c-usb4Read 15 October 2026The page lists a Flexible Integrated I/O Shield under unique features and calls it a fitted I/O shield in the title.7Retailer pageamazon.com/dp/B0DFNPK2MXRead 15 October 2026The listing's feature image labels a Flexible Integrated I/O Shield.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Chapters 2.15 to 2.17 show every SSD held by a hand-turned nut lock, stored as m2_latch. The M2_1 heatsink comes off with a button (chapter 2.15). The manual shows a button on the M2_2 heatsink too, but Club386 and Tech4Gamers say only the M2_1 heatsink is tool-free. The manual has no EZ Release latch for the graphics card, and Club386 says the Lite does not have it.3Reviewtech4gamers.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The M2_1 heatsink has a tool-less mechanism. The Gen4 slots need a screwdriver for the heatsinks.4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026The heatsink atop the PCIe 5.0 x4 slot is toolless. The other three need a screwdriver. The EZ Release for graphics cards is missing on the Lite.

Measured

VRM temperature under CPU load
44.7°C4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Club386 performance table: VRM temperature 44.7 C at stock. Test system: Ryzen 9 9900X, Noctua NH-D15 chromax.black, Kingston Fury Renegade DDR5-6400 32GB, Crucial T700, Radeon RX 7800 XT, be quiet! Dark Power 13 1000W. The review's How we test page says temperatures are read with an infrared thermometer. The stress test, its duration, the sensor position and the ambient temperature are not stated.
Power draw idle
121W4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Club386 performance table: power consumption idle 121 W. The meter is not named and the whole-system reading is assumed from the table title. Same test system as the VRM result.
Power draw CPU stress
297W4Reviewclub386.com/asrock-x870e-taichi-lite-reviewRead 15 October 2026Club386 performance table: power consumption load 297 W. The load test is not named. The graphics card is not stated as loaded. Tech4Gamers reports a 396 W peak in Cinebench 2024 multi-core with a Ryzen 9 9950X and an RTX 4090, which is a different system and is not stored.

In the box

In the box
4 x Serial ATA (SATA) data cables, 1 x ASRock WiFi 2.4/5/6 GHz antenna, 1 x ARGB splitter cable, 3 x Thermistor cables1Owner's manualdownload.asrock.com/Manual/X870E%20Taichi%20Lite.pdfRead 15 October 2026Package contents: 4 x Serial ATA (SATA) data cables (Optional), 1 x ASRock WiFi 2.4/5/6 GHz antenna (Optional), 1 x ARGB splitter cable (Optional) and 3 x Thermistor cables (Optional). Club386 also mentions a keycap, which the manual does not list.
