PC parts / Motherboards
MSIGaming motherboard

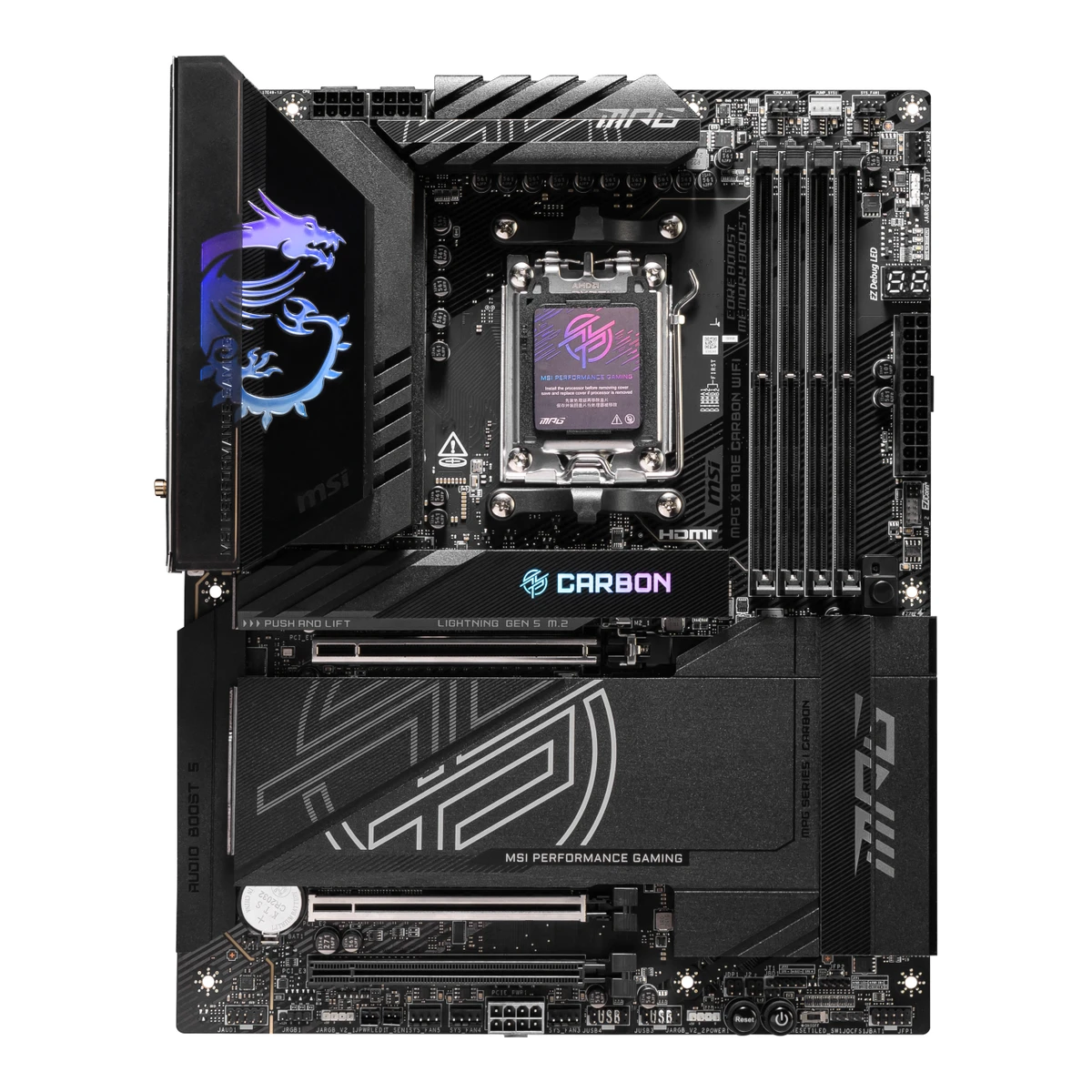

MPG X870E CARBON WIFI
Released September 2024.4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Review of 2024-11-07 for a board on sale. Last checked 23 October 2026.
- CPU socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- M.2 slots
- 4
66 of 78 fields known.
At a glance
Rear USB ports
13
Higher than 87% of other motherboards.
CPU core power stages
184Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5: Vcore is a virtual 18 phase design of 9 x 2 power stages. This matches the maker's 18+2+1.9Retailer pagearvutitark.ee/en/pc-components/motherboards/msi-mpg-x870e-carbon-wifi-x870eam5atxddr5-1401808Read 14 October 202618 Duet Rail Power System (110A / SPS).
Higher than 78% of other motherboards.
Ports
- 2 USB-C USB4
- 2 USB-C USB 3.2 Gen 2
- 9 USB-A USB 3.2 Gen 2
- HDMI 2.1
- 2 Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- MPG X870E CARBON WIFI, 7E49-001R, 911-7E49-08S1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Manual cover: MPG X870E CARBON WIFI. The codes 7E49-001R and 911-7E49-08S are from BuildCores.10Spec databasebuildcores.com/products/Motherboard/oi4brme21/MSI-MPG-X870E-CARBON-WIFIRead 14 October 2026Part numbers listed: MPG X870E CARBON WIFI, 7E49-001R and 911-7E49-08S.
- GTIN / EAN
- 4711377253536, 8241423822198Retailer pageeshop.comfeel.cz/msi-mb-sc-am5-mpg-x870e-carbon-wifi-amd-x870-4xddr5-1xhdmi-2xthunderbolt-wi-fiRead 14 October 2026Comfeel lists EAN 4711377253536 for MPG X870E CARBON WIFI.10Spec databasebuildcores.com/products/Motherboard/oi4brme21/MSI-MPG-X870E-CARBON-WIFIRead 14 October 2026BuildCores lists UPC 824142382219 and EAN 4711377253536.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- MSI MPG X870E CARBON MAX WIFI15Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 23 October 2026Tom's Hardware calls the MPG X870E Carbon Max Wifi a refresh of the original X870E Carbon Wifi and names the original as its predecessor.
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Segment
- Gaming1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026The MPG line is MSI's gaming motherboard line. Retailer title: Gaming Motherboard.11Retailer pagenetcodex.ph/product/msi-mpg-x870e-carbon-wifi-gaming-motherboard-amd-x870e-am5-ddr5-8400mt-s-pcie-5-0-wi-fi-7Read 14 October 2026Product title: MSI MPG X870E CARBON WIFI Gaming Motherboard.
- Board revision
- Not available
Platform
- CPU socket
- AM51Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026
- Chipset
- AMD X870E1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026
- Supported processors
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Specifications: Ryzen 9000, 8000 and 7000 Series Desktop Processors. The manual says to go to msi.com for the newest support status. Read on 2026-10-14.
- CPU overclocking
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Manual: this motherboard is designed to support overclocking. Core Boost is listed under Performance. AMD's chipset page lists CPU overclocking for X870E.14Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 14 October 2026AMD's chipset page describes the X870E platform for high-performance overclocking and lists Ryzen processor overclocking enabled. This is the chip maker's page, not the board maker's.
Board
Front and side, drawn to scale.
- Form factor
- ATX1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Form factor: ATX, 9.6 in. x 12 in. (244 mm x 305 mm).
- PCB layers
- 84Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5: 8-layer PCB design with upgraded 2oz copper, described as server grade.7Reviewguru3d.com/review/msi-mag-x870e-carbon-wifi-reviewRead 14 October 2026Page 3: 18+2+1 VRM paired with a durable 8-layer PCB.8Retailer pageeshop.comfeel.cz/msi-mb-sc-am5-mpg-x870e-carbon-wifi-amd-x870-4xddr5-1xhdmi-2xthunderbolt-wi-fiRead 14 October 2026Copy of MSI's feature text: 8-layer PCB made by 2oz thickened copper and server-grade level material.
- Back-connect design
- No1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026The component overview shows the usual front-side connectors. The board is not a back-connect design.
- RGB lighting on the board
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026LED Features list the EZ Debug LEDs and EZ Digi-Debug LED. LED_SW1 EZ LED Control switches all LEDs on the motherboard on or off and the Smart button can toggle Mystic Light on the onboard LEDs. ALKtech and Guru3D describe the lit dragon accent on the I/O cover and the Carbon logo on the M.2 heatsink.4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5: RGB dragon logo on the VRM heatsink.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Integrated I/O shield cover with a Mystic Light RGB LED accent in the shape of a dragon, and an RGB accent on the primary PCIe 5.0 M.2 heatsink.7Reviewguru3d.com/review/msi-mag-x870e-carbon-wifi-reviewRead 14 October 2026Page 17: Dragon logo on the VRM heatsink and an RGB Carbon logo on the M.2 heatsink. The page title says MSI MPG X870E Carbon WiFi although the URL says MAG.
Power delivery
- Power stage layout
- 18+2+15Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 202618+2+1 power stages with 110A power phases.6Reviewkitguru.net/components/motherboard/leo-waldock/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Spec list: 18+2+1 x 110A Smart Power Stages.8Retailer pageeshop.comfeel.cz/msi-mb-sc-am5-mpg-x870e-carbon-wifi-amd-x870-4xddr5-1xhdmi-2xthunderbolt-wi-fiRead 14 October 2026Copy of MSI's feature text: 18+2+1 Duet Rail Power System.
- CPU core (Vcore) power stages
- 184Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5: Vcore is a virtual 18 phase design of 9 x 2 power stages. This matches the maker's 18+2+1.9Retailer pagearvutitark.ee/en/pc-components/motherboards/msi-mpg-x870e-carbon-wifi-x870eam5atxddr5-1401808Read 14 October 202618 Duet Rail Power System (110A / SPS).
- Vcore power stage rating
- 110A5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026110A power stages.6Reviewkitguru.net/components/motherboard/leo-waldock/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026110A Smart Power Stages in the spec list.9Retailer pagearvutitark.ee/en/pc-components/motherboards/msi-mpg-x870e-carbon-wifi-x870eam5atxddr5-1401808Read 14 October 2026Copy of MSI's text: 18 Duet Rail Power System (110A / SPS), 2 phase SOC power and 1 phase MISC power.
- CPU power connectors
- 8+8 pin1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Power Connectors: 2 x 8-pin +12V power connectors (CPU_PWR1~2) and the 24-pin ATX connector.
- Extra slot power connector
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Power Connectors: 1 x 8-pin PCIe power connector (PCIE_PWR1). Supplemental PCIe Power Connector is also listed under Special Features.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 20268-pin supplemental PCIe power connector for up to 252 W.
Memory
- Memory type
- DDR51Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026
- Memory slots
- 41Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026
- Max memory
- 256GB1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 20264 x DDR5 memory slots, supporting up to 256GB.
- Max memory speed (overclocked)
- 8,400MT/s4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5, quoting MSI's table: 1DPC 1R up to DDR5-8400, 1DPC 2R and 2DPC 1R up to 6400 and 2DPC 2R up to 4800. The CPU family is not named in this text. The board supports Ryzen 9000, the newest family.8Retailer pageeshop.comfeel.cz/msi-mb-sc-am5-mpg-x870e-carbon-wifi-amd-x870-4xddr5-1xhdmi-2xthunderbolt-wi-fiRead 14 October 2026Copy of MSI's feature text: dual channel DDR5 8400+ MT/s (OC).
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 5 CPU 1 PCIe x16 4 4 Chipset 1 - Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink Shares lanes with M2_1 5 4 CPU M.2 2280 No Yes Not available M2_2 5 4 CPU M.2 2280 No Yes PCI_E1 runs at PCIe 5.0 x8 when M2_2 or PCI_E2 is used. With PCI_E1 at x16, PCI_E2 and M2_2 are unavailable. Not available with Ryzen 8000 processors M2_3 4 4 Chipset M.2 22110 No Yes Not available M2_4 4 4 Chipset M.2 2280 No Yes Not available - M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 2
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 DP Alt Mode USB-C USB4 2 40 USB4 Yes USB-C USB 3.2 Gen 2 2 10 Not available Not available USB-A USB 3.2 Gen 2 9 10 Not available Not available HDMI HDMI 2.1 1 Not available Not available Not available Ethernet (RJ45) Not available 1 5 Not available Not available Ethernet (RJ45) Not available 1 2.5 Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Source1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Back panel: 2 USB 40Gbps Type-C (from ASM4242, supports DisplayPort over USB Type-C), 2 USB 10Gbps Type-C (one from the CPU, one from the chipset), 9 USB 10Gbps Type-A (2 + 2 from the X870E chipset, 4 from an RTS5420 hub and 1 from the CPU), 1 HDMI 2.1 with FRL, 1 5G LAN and 1 2.5G LAN (RJ45), line-out and mic-in jacks, 1 optical S/PDIF out, 2 Wi-Fi antenna connectors and the Clear CMOS, Flash BIOS and Smart buttons. KitGuru lists 9 USB 10Gbps Type-A. USB4 is stored as 40 Gbps with tb_usb4 usb4. The USB-C 10Gbps ports have no stated DP Alt Mode.6Reviewkitguru.net/components/motherboard/leo-waldock/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Spec list: 2 USB 40Gbps Type-C, 2 USB 10Gbps Type-C and 9 USB 10Gbps Type-A on the rear.- Rear USB ports
- 13
- Rear USB-C ports
- 4
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- No
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served Power out (W) USB-C header 20 1 1 27 USB 3 header (19-pin) 5 2 4 Not available USB 2.0 header (9-pin) 0.48 2 4 Not available - Front USB-C header speed
- 20Gbps
- Fan headers
- 71Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Fan connectors: 1 CPU fan, 1 water-pump/system fan and 5 system fans, all 4-pin. The EZ Conn-Header V2 (JAF_2) is a combination connector and is not counted.4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 5 counts eight 4-pin headers including one through the JAF2 combination header, so seven without it.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Seven fan headers, plus the EZ Conn header.
Networking
- Ethernet controllers
- Realtek RTL8126, Realtek RTL81251Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026LAN: 1 x Realtek 8126 5Gbps LAN controller and 1 x Realtek 8125 2.5Gbps LAN controller. Real Hardware Reviews and ALKtech give RTL8126 and RTL8125 (ALKtech: RTL8125BG).4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 7: Realtek RTL8125 (2.5GbE) and RTL8126 (5GbE).5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Realtek RTL8126 (5GbE) and Realtek RTL8125BG (2.5GbE).
- Ethernet ports
- 2
- Ethernet speed
- 5Gbps
- Wi-Fi included
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Wi-Fi 7 wireless module is pre-installed in the M.2 (Key-E) slot.
- Wi-Fi standard
- Wi-Fi 71Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Supports 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7).
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Supports 2.4GHz/5GHz/6GHz (320MHz). 6 GHz depends on each country's regulations.
- Max Wi-Fi channel width
- 320MHz1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Wi-Fi & Bluetooth: 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps.
- Wi-Fi module
- Qualcomm QCNCM8654Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 7: the Wi-Fi 7 and Bluetooth 5.4 module is a Qualcomm NCM865, which has 320 MHz and 4096-QAM support.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Qualcomm QCNCM865 Wi-Fi 7 module with built-in Bluetooth 5.4 and 320 MHz channels. Stored as Qualcomm QCNCM865.
Audio
- Audio codec
- Realtek ALC40801Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Audio: Realtek ALC4080 codec, 7.1-channel USB high performance audio.4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 6: an ALC4080 based design, not ALC4082.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Realtek ALC4080.
- DAC chip
- Not available
Features
- BIOS flashback
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Flash BIOS button on the back panel (item 4).
- Clear CMOS button (rear)
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Back panel item 5: Clear CMOS button. The manual also lists a Clear CMOS jumper.
- Power button on the board
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Internal Buttons: 1 x Power button and 1 x Reset button.
- Pre-installed I/O shield
- Yes1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Special Features, EZ DIY: Pre-installed I/O Shield.5Reviewalktech.co/articles/review-msi-mpg-x870e-carbon-wifi-am5-motherboardRead 14 October 2026Integrated I/O shield design.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026EZ DIY: EZ M.2 Clip II, Magnetic M.2 Shield Frozr (screwless heatsink with a button), EZ PCIe Release and EZ Antenna.4Reviewrealhardwarereviews.com/msi-mpg-x870e-carbon-wifi-reviewRead 14 October 2026Page 6: all four M.2 slots have screwless EZ removal heatsink mechanisms.
Measured
We could not find any of these 3 fields. Show them
- VRM temperature under CPU load
- Not available
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- Quick installation guide, European Union Regulatory Notices, USB drive, 2 x SATA cables, 1 x 1 to 2 RGB extension cable, 1 x ARGB extension cable, 1 x 1 to 3 EZ Conn-Cable (V2), 1 x EZ Front panel cable, 1 x EZ Wi-Fi Antenna, 1 x Cable sticker, 1 x EZ M.2 Clip II, 1 x EZ M.2 Clip II Remover1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026Package Contents list on page 23.
Links
- Product page
- www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI2Maker product pagemsi.com/Motherboard/MPG-X870E-CARBON-WIFIRead 14 October 2026The link appears in web search results for this model. msi.com blocks agents, so the page was not read and its content is not used for any value.
- Spec sheet
- www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI/Specification3Maker product pagemsi.com/Motherboard/MPG-X870E-CARBON-WIFI/SpecificationRead 14 October 2026Specification tab of the same page. Not read for the same reason.
- Manual
- www.trovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdf1Owner's manualtrovaprezzi.it/manuali/msi_mpg_x870e_carbon_wifi.pdfRead 14 October 2026MSI MPG X870E CARBON WIFI User Guide, hosted by trovaprezzi.it. msi.com blocks agents, so the maker's own download page was not read.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years8Retailer pageeshop.comfeel.cz/msi-mb-sc-am5-mpg-x870e-carbon-wifi-amd-x870-4xddr5-1xhdmi-2xthunderbolt-wi-fiRead 14 October 2026Comfeel is a Czech shop and lists a warranty of 36 months. It is the shop's stated warranty and not an MSI page.9Retailer pagearvutitark.ee/en/pc-components/motherboards/msi-mpg-x870e-carbon-wifi-x870eam5atxddr5-1401808Read 14 October 2026Arvutitark is an Estonian shop and lists a warranty of 36 months.
