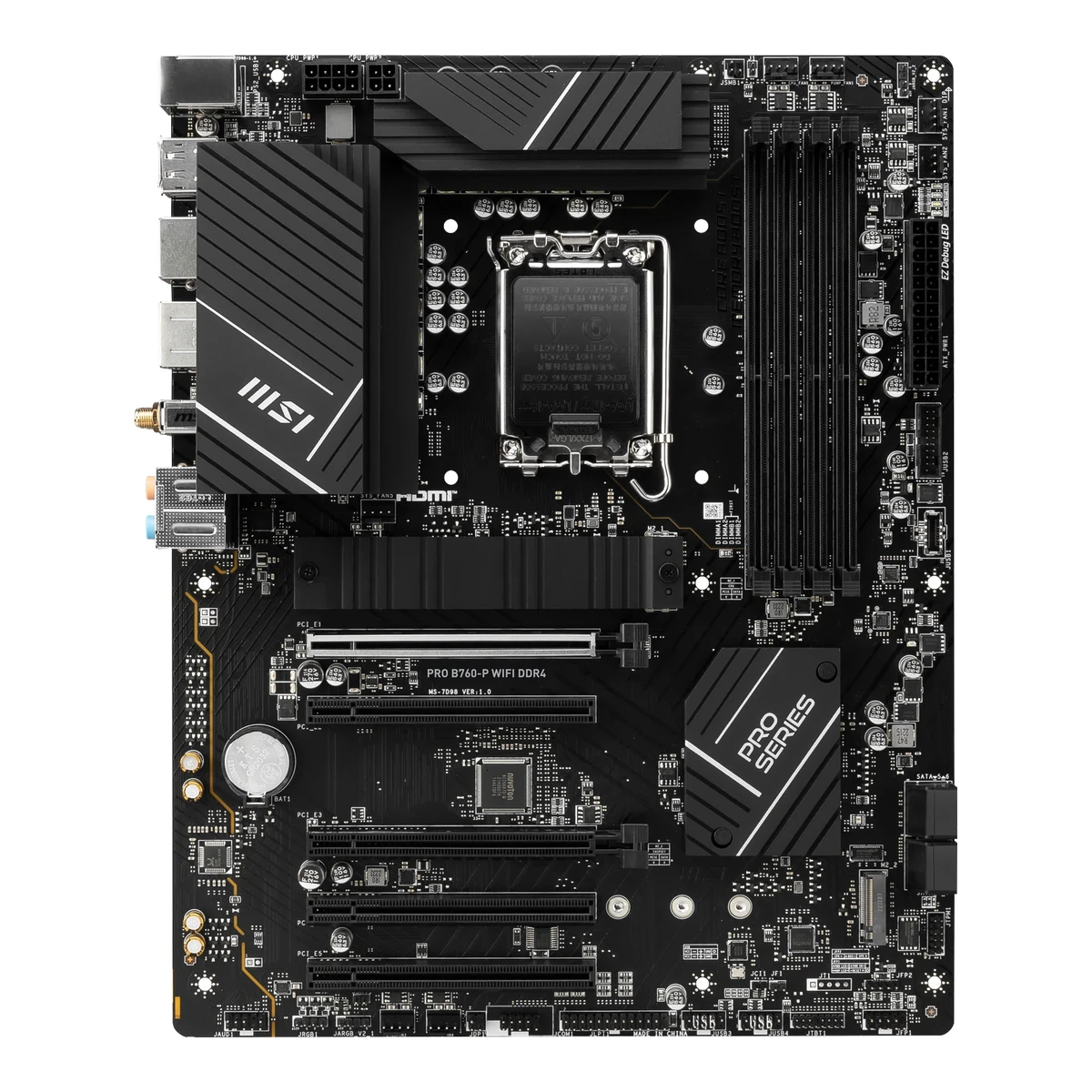

MSI PRO B760-P WIFI DDR4

MSIMainstream motherboard

PRO B760-P WIFI DDR4

Released January 2023.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals lists the board since 2023-01-07. Last checked 16 October 2026.

CPU socket
LGA1700
Chipset
Intel B760
Form factor
ATX
M.2 slots
2

59 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • USB-C USB 3.2 Gen 2
  • 2 USB-A USB 3.2 Gen 2
  • 4 USB-A USB 2.0
  • HDMI 2.1
  • DisplayPort 1.4
  • Ethernet (RJ45)
  • 5 3.5 mm audio
  • Optical S/PDIF
  • PS/2
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
PRO1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The MSI PRO series is in the product name, and the shop's series list has MEG, MPG, MAG and PRO.
Model numbers
PRO B760-P WIFI DDR4, 7D98-001R, 911-7D98-044, 911-7D98-0151Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Shop SKUs 911-7D98-044 and 911-7D98-015, both with the same barcode. 7D98-001R is the MSI model code listed by Geizhals.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals article 7D98-001R.
GTIN / EAN
47113770283631Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Variant barcode 4711377028363 for both SKUs.
Announced
Not available
Status
Available1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026In stock at 139 EUR on 2026-10-15 (the page shows one variant out of stock and one in stock).
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Mainstream1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026MSI PRO is not a gaming, creator or workstation line, so the board is mainstream under the field rule.
Board revision
Not available

Platform

CPU socket
LGA17001Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: LGA 1700.
Chipset
Intel B7601Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026
Supported processors
Intel Core (14th Gen), Intel Core (13th Gen), Intel Core (12th Gen), Intel Pentium Gold, Intel Celeron1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: Intel Core 14th/13th/12th Gen processors, Intel Pentium Gold and Celeron processors. The shop's feature text lists only 12th, 13th and 14th Gen Core, Pentium Gold and Celeron. Read on 2026-10-15.
CPU overclocking
No6Maker product pageintel.com/content/www/us/en/products/sku/229719/intel-b760-chipset/specifications.htmlRead 15 October 2026Intel B760 chipset page: Supports Overclocking is Memory in the memory specifications. The chip maker lists no processor overclocking for this chipset.

Board

Front and side, drawn to scale.

Form factor
ATX1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026
Board dimensions
Width244Height305mm(9.6 × 12 in)1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, PCB info: ATX 243.84 mm x 304.8 mm. This is the exact conversion of 9.6 in x 12 in and rounds to the stored 244 mm x 305 mm.
PCB layers
61Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Feature text: 6-layer PCB made of 2 oz thick copper. MSI's Spanish shop says the same.2Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026Feature text: 6-layer PCB with 2 oz copper.
Back-connect design
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The internal I/O list shows the usual connectors (JFP, JAUD, USB, fan headers). The board is not a back-connect design.
RGB lighting on the board
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The LED feature list names only the 4 EZ Debug LEDs. No lighting on the board is named.

Power delivery

Power stage layout
12+1 Duet Rail2Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026MSI Spain e-shop: Duet Rail 12+1 power system with P-PAK, split as a digital PWM IC, 12-phase Duet Rail CPU power, 1-phase GT power and 1-phase AUX power. LDLC copies it as 12+1. MSI's German shop writes 14+1 DRPS and a retail spec sheet writes 12+1+1.4Retailer pageldlc.com/en/product/PB00541762.htmlRead 15 October 2026LDLC text: 12+1 dual-rail power supply with P-PAK.
CPU core (Vcore) power stages
122Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026Feature text: 12-phase Duet Rail CPU power (P-PAK). Geizhals counts 12 Vcore MOSFET pairs.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals: 12 x 53 A AONS36308/AONS36303 MOSFET pairs for Vcore, 2 for SoC and GT.
Vcore power stage rating
Not available
VRM controller
Richtek RT3628AE3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals VRM section: PWM controller RT3628AE (max 9 phases), 7 real CPU phases (6+1) and 14 virtual phases. Richtek is the maker of the RT3628 family. One source only.
CPU power connectors
8+4 pin1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, internal I/O: 2 x CPU_PWR. Feature text: 8-pin + 4-pin CPU power connectors.
Extra slot power connector
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The internal I/O list has ATX_PWR and two CPU_PWR as its only power connectors.

Memory

Memory type
DDR41Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026
Memory slots
41Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026
Max memory
128GB1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: 4 x DDR4, maximum memory capacity 128 GB.
Max memory speed (overclocked)
5,333MT/s1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: 1DPC 1R max speed up to 5333+ MHz (OC). Two modules per channel and dual-rank modules list lower speeds, down to 4000+ MHz for 2DPC 2R. The list is not tied to a CPU family.
ECC memory
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: supports non-ECC, un-buffered memory.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16164CPU1
PCIe x1644Chipset1
PCIe x1613Chipset3
Source1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, slots: 5 x PCI-E x16 slots. PCI_E1 PCIe 4.0 up to x16 from the CPU, PCI_E3 PCIe 4.0 up to x4 from the chipset, and PCI_E2, PCI_E4, PCI_E5 PCIe 3.0 up to x1 from the chipset. Geizhals and the board photo show all five slots at x16 length. MSI's Spanish feature text calls the last three PCIe 3.0 x1 slots, which reads as their electrical width. The Key E M.2 socket of the Wi-Fi module is not stored.2Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026Feature text: 2 x PCIe 4.0/3.0 x16 slots, the main one with Steel Armor (supports x16/x4), and 3 x PCIe 3.0 x1 slots.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals: 2 x PCIe 4.0 x16 (1 x x16, 1 x x4) and 3 x PCIe 3.0 x16 (x1). The MSI Spanish feature text says 3 x PCIe 3.0 x1.
Full-length PCIe slots
5
Fastest PCIe x16 slot generation
4

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsinkShares lanes with
M.2_144CPUM.2 22110NoYesNot available
M.2_244ChipsetM.2 2280YesNoSATA8 is unavailable when an M.2 SATA SSD is in M.2_2
Source1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: M.2_1 from the CPU, PCIe 4.0 x4, 22110/2280/2260/2242. M.2_2 from the chipset, PCIe 4.0 x4 or SATA mode, 2280/2260/2242, stored as 2280. SATA8 is unavailable when an M.2 SATA SSD is in M.2_2. M.2_1 lists no SATA mode.2Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026Feature text: 2 x Gen4 x4 64 Gbps slots, one with the M.2 Shield Frozr.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals: 1 M.2 M-key PCIe 4.0 x4 (22110/2280/2260/2242), 1 M.2 M-key PCIe 4.0 x4 or SATA (2280/2260/2242), 1 M.2 passive heatsink. The board photo on Geizhals shows the heatsink over the slot next to the CPU (M.2_1) and none on M.2_2, which fits MSI saying one of the two slots has the shield.
M.2 slots
2
PCIe 5.0 M.2 slots
0
SATA ports
41Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: 4 x SATA 6G.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)
USB-CUSB 3.2 Gen 2110
USB-AUSB 3.2 Gen 2210
USB-AUSB 2.040.48
HDMIHDMI 2.11Not available
DisplayPortDisplayPort 1.41Not available
Ethernet (RJ45)Not available12.5
3.5 mm audioNot available5Not available
Optical S/PDIFNot available1Not available
PS/2Not available1Not available
Source1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Back panel list: PS/2 keyboard and mouse, DisplayPort, 2.5G LAN, USB 2.0 x4, Wi-Fi/Bluetooth, audio connectors, HDMI, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-C, S/PDIF out. Counts: USB list gives 4 USB 2.0, 2 Type-A and 1 Type-C at the rear. HDMI 2.1 and DisplayPort 1.4 are for processors with integrated graphics. The 5 audio jacks come from LDLC and Geizhals, since MSI's list does not count them. USB 2.0 is stored as 0.48 Gbps.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals external ports: 1 DisplayPort 1.4, 1 HDMI 2.1, 1 USB-C 10 Gb/s, 2 USB-A 10 Gb/s, 4 USB-A 2.0, 1 S/PDIF out, 5 3.5 mm audio jacks, 1 RJ-45 2.5G, 2 RP-SMA antenna connectors, 1 PS/2 combo.4Retailer pageldlc.com/en/product/PB00541762.htmlRead 15 October 2026LDLC rear panel list: 5 x 3.5 mm stereo jacks, 2 x SMA, 1 x PS/2, 1 x DisplayPort, 1 x HDMI, 1 x S/PDIF optical, 1 x RJ45, 2 USB 3.1 Type-A, 1 USB 3.1 Type-C and 4 USB 2.0. It also lists a USB 3.0 port that no MSI list has, which is not stored.
Rear USB ports
7
Rear USB-C ports
1
Fastest rear USB port
10Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header511
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4824
Source1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, internal I/O: 4 x USB 2.0 ports, 2 x USB 3.2 Gen1 Type-A ports and 1 x USB 3.2 Gen1 Type-C port. The header counts (two USB 2.0, one USB 3 20-pin, one Type-C) come from Geizhals.3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals: 1 USB 3.0 Key-A header (USB-C), 1 USB 3.0 20-pin header (2 USB-A) and 2 USB 2.0 9-pin headers (4 USB-A).
Front USB-C header speed
5Gbps
Fan headers
71Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, internal I/O: 1 CPU fan, 1 pump fan and 5 system fans.
ARGB headers
21Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, internal I/O: 2 x addressable V2 RGB LED connectors (JARGB_V2).
RGB headers
11Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, internal I/O: 1 x RGB LED connector (JRGB). Geizhals reads it as a 4-pin 12 V header.

Networking

Ethernet controllers
Realtek RTL81251Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: Realtek RTL8125BG 2.5G LAN. Stored as the chip family without the suffix.
Ethernet ports
1
Ethernet speed
2.5Gbps
Wi-Fi included
Yes1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: Intel Wi-Fi 6E, the wireless module is pre-installed in the M.2 (Key-E) slot. No source gives the module's part number.2Maker product pagees-store.msi.com/products/pro-b760-p-wifi-ddr4-placas-baseRead 15 October 2026Feature text: Intel Wi-Fi 6E module with Bluetooth 5.3.
Wi-Fi standard
Wi-Fi 6E1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: 2.4 GHz / 5 GHz / 6 GHz (160 MHz), up to 2.4 Gbps. 6 GHz depends on country regulations and Windows 11.
Max Wi-Fi channel width
160MHz1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: 160 MHz with the 6 GHz band.
Wi-Fi module
Not available
Bluetooth
5.31Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: Bluetooth 5.3.

Audio

Audio codec
Realtek ALC8971Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification: Realtek ALC897 codec, 7.1-channel HD audio.
DAC chip
Not available

Features

BIOS flashback
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The back panel list has no Flash BIOS button.
Clear CMOS button (rear)
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The back panel list has no Clear CMOS button.
POST code display
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Specification, LED feature: 4 x EZ Debug LED. These are status LEDs and not a two-digit display.
Power button on the board
No1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026The internal I/O list has no power or reset button.
Dual BIOS
No3Spec databasegeizhals.de/msi-pro-b760-p-wifi-ddr4-7d98-001r-a2872219.htmlRead 15 October 2026Geizhals BIOS: 1 x 32 MB (256 Mbit) flash. MSI does not state a dual BIOS.
Pre-installed I/O shield
No5Retailer pagestore.owl360it.com/products/msi-pro-b760-p-wifi-ddr4-atx-motherboardwifi6-1294218Read 15 October 2026The I/O shield is listed as a separate item in the box.
Tool-free features
Tool-free M.2 latch5Retailer pagestore.owl360it.com/products/msi-pro-b760-p-wifi-ddr4-atx-motherboardwifi6-1294218Read 15 October 2026EZ M.2 Clip is in the box. It holds an M.2 drive without a screw.

Measured

We could not find any of these 3 fields. Show them
VRM temperature under CPU load
Not available
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
Quick Installation Guide, European Union Regulatory Notice, I/O shield, SATA cable, Wi-Fi antenna, EZ M.2 Clip5Retailer pagestore.owl360it.com/products/msi-pro-b760-p-wifi-ddr4-atx-motherboardwifi6-1294218Read 15 October 2026Package contents: the motherboard, Quick Installation Guide, European Union Regulatory Notice, I/O Shield, SATA Cable, Wi-Fi Antenna, EZ M.2 Clip. A retail listing, not an MSI document. The SATA cable count is not stated.

Warranty

Manufacturer warranty (source market)
3years1Maker product pagede-store.msi.com/products/pro-b760-p-wifi-ddr4Read 15 October 2026Shop page: 3 years warranty, Germany.
