PC parts / Motherboards

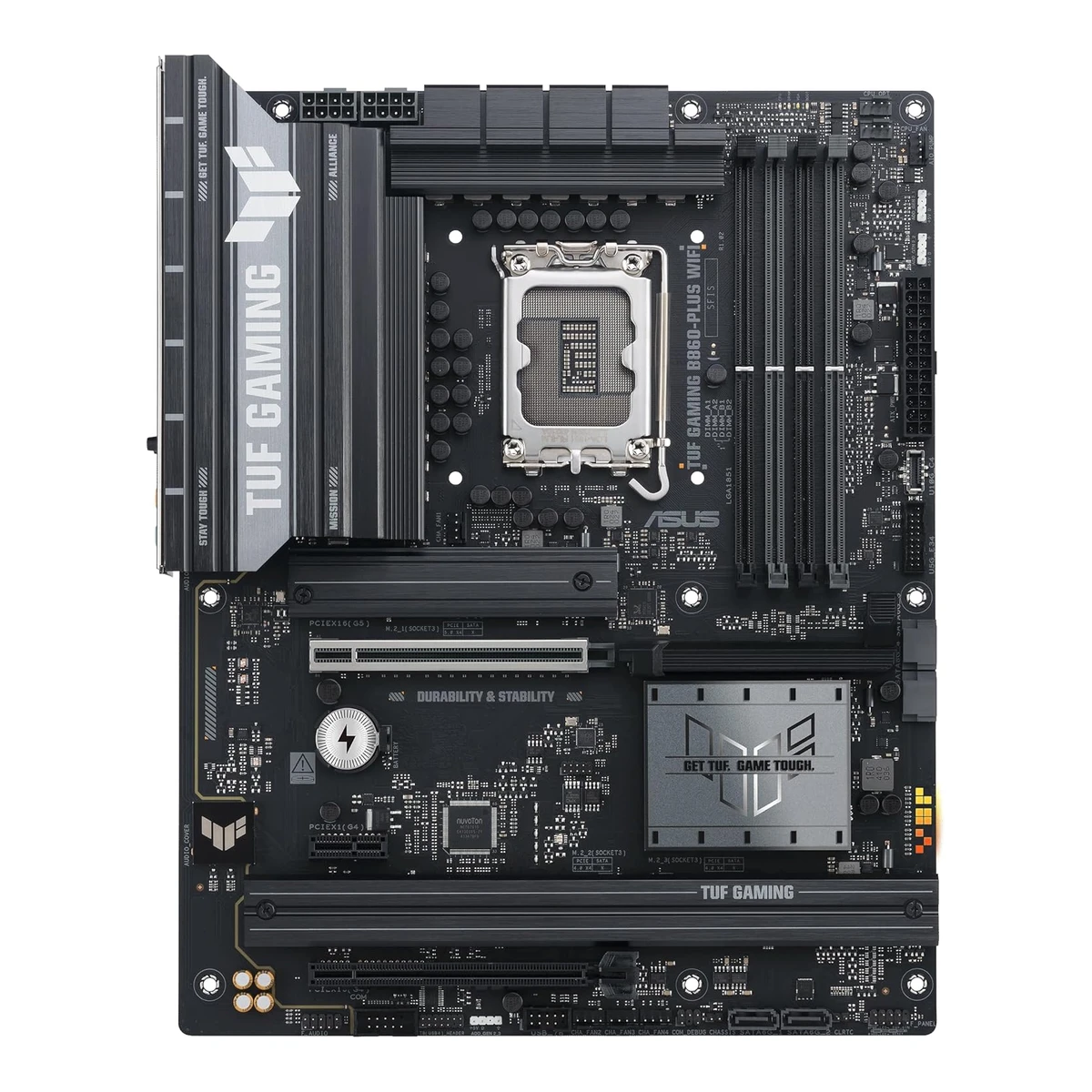

ASUSGaming motherboard
TUF GAMING B860-PLUS WIFI
Released January 2025.4Press articlefunkykit.com/news/asus-announces-intel-z890-b860-rog-strix-tuf-gaming-and-prime-motherboardsRead 15 October 2026The release gives no on-sale date. Mezha's review with a retail sample is dated 2025-01-17. The month is approximate. Last checked 16 October 2026.
- CPU socket
- LGA1851
- Chipset
- Intel B860
- Form factor
- ATX
- M.2 slots
- 3
63 of 78 fields known.
At a glance
Ports
- USB-C USB 3.2 Gen 2x2
- 2 USB-A USB 3.2 Gen 2
- 3 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- HDMI 2.1
- DisplayPort 1.4
- Ethernet (RJ45)
- 5 3.5 mm audio
- Optical S/PDIF
- USB-C header
- USB 3 header (19-pin)
- USB 2.0 header (9-pin)
General
- Model numbers
- TUF GAMING B860-PLUS WIFI, 90MB1JL0-M0AAY0, 90MB1JL0-MVAAY0, 90MB1JL0-M0EAY01Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026The ASUS spec page names the model TUF GAMING B860-PLUS WIFI. ASUS eShop US lists part number 90MB1JL0-MVAAY0 and ASUS eShop Canada lists 90MB1JL0-M0AAY0. Amazon and UK retailers list 90MB1JL0-M0EAY0.9Retailer pageamazon.com/dp/B0DPMT7BS3Read 15 October 2026The listing gives Mfr Part Number 90MB1JL0-M0EAY0.10Retailer pageeshop.asus.com/us/90mb1jl0-mvaay0-tuf-gaming-b860-plus-wifi.htmlRead 15 October 2026ASUS eShop US part number 90MB1JL0-MVAAY0.11Retailer pageeshop.asus.com/ca-en/90mb1jl0-m0aay0-tuf-gaming-b860-plus-wifi.htmlRead 15 October 2026ASUS eShop Canada part number 90MB1JL0-M0AAY0.
- GTIN / EAN
- 197105815148, 47113878151448Retailer pageamazon.com/dp/B0DFPNHCMXRead 15 October 2026The Amazon US listing for ASIN B0DFPNHCMX gives UPC 197105815148 and Mfr Part Number TUF GAMING B860-PLUS WIFI.9Retailer pageamazon.com/dp/B0DPMT7BS3Read 15 October 2026Amazon US listing for part number 90MB1JL0-M0EAY0 gives GTIN 04711387815144. UK retailers such as Teqex also list EAN 4711387815144.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- LGA18511Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026
- Chipset
- Intel B8601Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026
- Supported processors
- Intel Core Ultra (Series 2)1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Intel Core Ultra Processors (Series 2), LGA1851. The page refers to the ASUS download center for the CPU support list, which was not read. Read on 2026-10-15.
Board
Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 202612 inch x 9.6 inch (30.5 cm x 24.4 cm).
- PCB layers
- 62Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026Overview page: Six Layered PCB design.5Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026The review says the board uses a 6-layer PCB.
- Back-connect design
- No2Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026The ASUS spec lists the usual 24-pin, 8-pin and system panel connectors and the manual layout shows them at the usual board edges. No back-connect or BTF design is named.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026The layout in chapter 1 shows the usual front-side power, fan and USB connectors. The board is not a back-connect design.
Power delivery
- Power stage layout
- 12+1+2+12Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 202612(80A) + 1(80A) + 2(80A) + 1(80A) power stages: 12 VCCCORE, 1 VCCGT, 2 VCCSA and 1 VNNAON. Mezha writes the same layout as 12+1+2+1.5Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026The review says 16-phase circuit (12+1+2+1) with DrMOS stages rated up to 80A.
- CPU core (Vcore) power stages
- 122Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 202612 stages for VCCCORE. The first number is the Vcore count.
- Vcore power stage rating
- 80A2Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026Each stage is DrMOS rated for up to 80A.
- VRM controller
- Not available
- CPU power connectors
- 8+8 pin1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Power related list: 1 x 24-pin main power and 2 x 8-pin +12V CPU power connectors.2Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026ProCool power connectors: proprietary 8+8 pin connectors.
Memory
- Memory type
- DDR51Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026
- Max memory speed (overclocked)
- 8,666MT/s1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM). The page names no CPU family or module setup. The page footnote says speeds vary by CPU and memory configuration.
- CUDIMM support
- Yes1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Clocked Unbuffered DIMM (CUDIMM) is in the supported memory line with no bypass limit. ASUS also lists AEMP III, which tunes the CUDIMM clock driver. Chip.pl ran Kingston CUDIMM 8800 at 8533 MT/s on the board.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026Kingston CUDIMM 8800 MHz CL42 2 x 24 GB ran stable at 8533 MHz in Gear 2 on this board.
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 1 PCIe x1 1 4 Chipset 1 - Full-length PCIe slots
- 2
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M.2_1 5 4 CPU M.2 2280 No Yes M.2_2 4 4 Chipset M.2 22110 No Yes M.2_3 4 4 Chipset M.2 2280 No Yes Source1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Total 3 x M.2 slots (Key M). Series 2 CPU: M.2_1 type 2280 PCIe 5.0 x4. B860 chipset: M.2_2 type 2280/22110 PCIe 4.0 x4 and M.2_3 type 2242/2260/2280 PCIe 4.0 x4. No slot lists a SATA mode. The page lists no lane sharing between M.2 slots and other slots. The overview says Two M.2 Heatsinks for Three M.2 Slots.2Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026Overview: 1 x M.2 2280 PCIe 5.0 x4, 1 x M.2 2280/22110 PCIe 4.0 x4 and 1 x M.2 2242/2260/2280 PCIe 4.0 x4, with two M.2 heatsinks for the three slots.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026Chapter 1 item 6 matches the specification page. Chapter 1.5 shows heatsinks over the M.2 slots, held by screws.5Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026M.2_1 has its own heatsink above the PCIe x16 slot. The two other M.2 connectors are hidden under a long radiator plate. All three slots take drives with a PCIe interface.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026Every M.2 slot sits under a heatsink. The heatsinks use normal screws and the drives are mounted tool-free. ASUS lists no lane sharing between the M.2 slots.8Retailer pageamazon.com/dp/B0DFPNHCMXRead 15 October 2026The main product photo shows the board labels M.2_1 PCIE 5.0 X4, M.2_2 PCIE 4.0 X4 and M.2_3 PCIE 4.0 X4, each with SATA marked X.- M.2 slots
- 3
- PCIe 5.0 M.2 slots
- 1
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) DP Alt Mode USB-C USB 3.2 Gen 2x2 1 20 Yes USB-A USB 3.2 Gen 2 2 10 Not available USB-A USB 3.2 Gen 1 3 5 Not available USB-A USB 2.0 2 0.48 Not available HDMI HDMI 2.1 1 Not available Not available DisplayPort DisplayPort 1.4 1 Not available Not available Ethernet (RJ45) Not available 1 2.5 Not available 3.5 mm audio Not available 5 Not available Not available Optical S/PDIF Not available 1 Not available Not available - Rear USB ports
- 8
- Rear USB-C ports
- 1
- Fastest rear USB port
- 20Gbps
- Thunderbolt
- Not available
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 10 1 1 USB 3 header (19-pin) 5 1 2 USB 2.0 header (9-pin) 0.48 1 2 - Front USB-C header speed
- 10Gbps
- RGB headers
- 01Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026The internal connector list names 3 x Addressable Gen 2 headers and no 4-pin RGB header.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The reviewer writes three ARGB headers and no RGB header.
Networking
- Ethernet controllers
- Realtek RTL81255Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026The spec table lists a 2.5 GbE LAN from Realtek. The chip is not named. Chip.pl names the RTL8125D.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The review names a Realtek RTL8125D 2.5 Gb wired chip. The D suffix is dropped.
- Ethernet ports
- 1
- Ethernet speed
- 2.5Gbps
- Wi-Fi standard
- Wi-Fi 71Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 20262x2 Wi-Fi 7 (802.11be).
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Manual specification summary: supports 2.4/5/6GHz frequency band. The 6 GHz band and bandwidth vary by country.
- Max Wi-Fi channel width
- 160MHz1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Wi-Fi module
- MediaTek MT79255Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026The spec table lists Wi-Fi 7 (MediaTek MT7925, 802.11be, Bluetooth 5.4). ASUS does not name the module.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The review names Wi-Fi 7 MediaTek MT7925 with Bluetooth 5.4.
Audio
- Audio codec
- Realtek ALC8975Reviewmezha.ua/en/reviews/asus-tuf-gaming-b860-plus-wifi-motherboard-review-balancing-on-the-edgeRead 15 October 2026The spec table lists a Realtek ALC897 codec. ASUS writes only Realtek 7.1 Surround Sound High Definition Audio CODEC. Chip.pl also names the ALC897.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The review names Realtek ALC897.
- DAC chip
- Not available
Features
- Clear CMOS button (rear)
- No1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026The back panel list has a BIOS FlashBack button and no Clear CMOS button. Clear CMOS is a header on the board.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026Layout item 13 is a Clear CMOS header, and the rear panel connectors list no button.
- POST code display
- No1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026The Special Features list ASUS Q-LED (CPU, DRAM, VGA and boot device). No two-digit display is listed.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026The layout contents list Q-LEDs and a BIOS FlashBack LED. No two-digit display is listed. The manual never states that it is absent.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The reviewer writes that the board has no buttons and no POST code display, only status LEDs and a CMOS reset header.
- Power button on the board
- No1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026The internal connector list and the special features list name no power or start button on the board.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026Layout contents list only a PWR_BTN header for a case button. No power or start button is listed on the board.6Reviewchip.pl/2025/03/asus-tuf-gaming-b860-plus-wifi-test-recenzja-opiniaRead 15 October 2026The reviewer writes that the board has no buttons.
- Dual BIOS
- Not available
- Pre-installed I/O shield
- Yes1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026ASUS EZ DIY list: Pre-mounted I/O shield.
- Tool-free features
- Tool-free M.2 latch, PCIe slot release, Push-on antenna connector1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release and Q-Antenna. The M.2 heatsinks use screws, as Chip.pl and Mezha say.
Measured
We could not find any of these 3 fields. Show them
- VRM temperature under CPU load
- Not available
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x TUF GAMING sticker, 1 x Quick start guide1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026Accessories list on the specification page, the same as the manual's package contents.
Links
- Product page
- www.asus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi2Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifiRead 15 October 2026
- Spec sheet
- www.asus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspec1Maker product pageasus.com/us/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/techspecRead 15 October 2026
- Manual
- dlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdf3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/TUF_GAMING_B860-PLUS_WIFI/E25087_TUF_GAMING_B860-PLUS_WIFI_EM_WEB.pdfRead 15 October 2026ASUS user manual E25087, First Edition, December 2024, from dlcdnets.asus.com.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years8Retailer pageamazon.com/dp/B0DFPNHCMXRead 15 October 2026Warranty Description: 3 years (US listing). ASUS eShop US and Canada also say 3 year manufacturer warranty.10Retailer pageeshop.asus.com/us/90mb1jl0-mvaay0-tuf-gaming-b860-plus-wifi.htmlRead 15 October 20263 year manufacturer warranty.
