Mobile / Phones

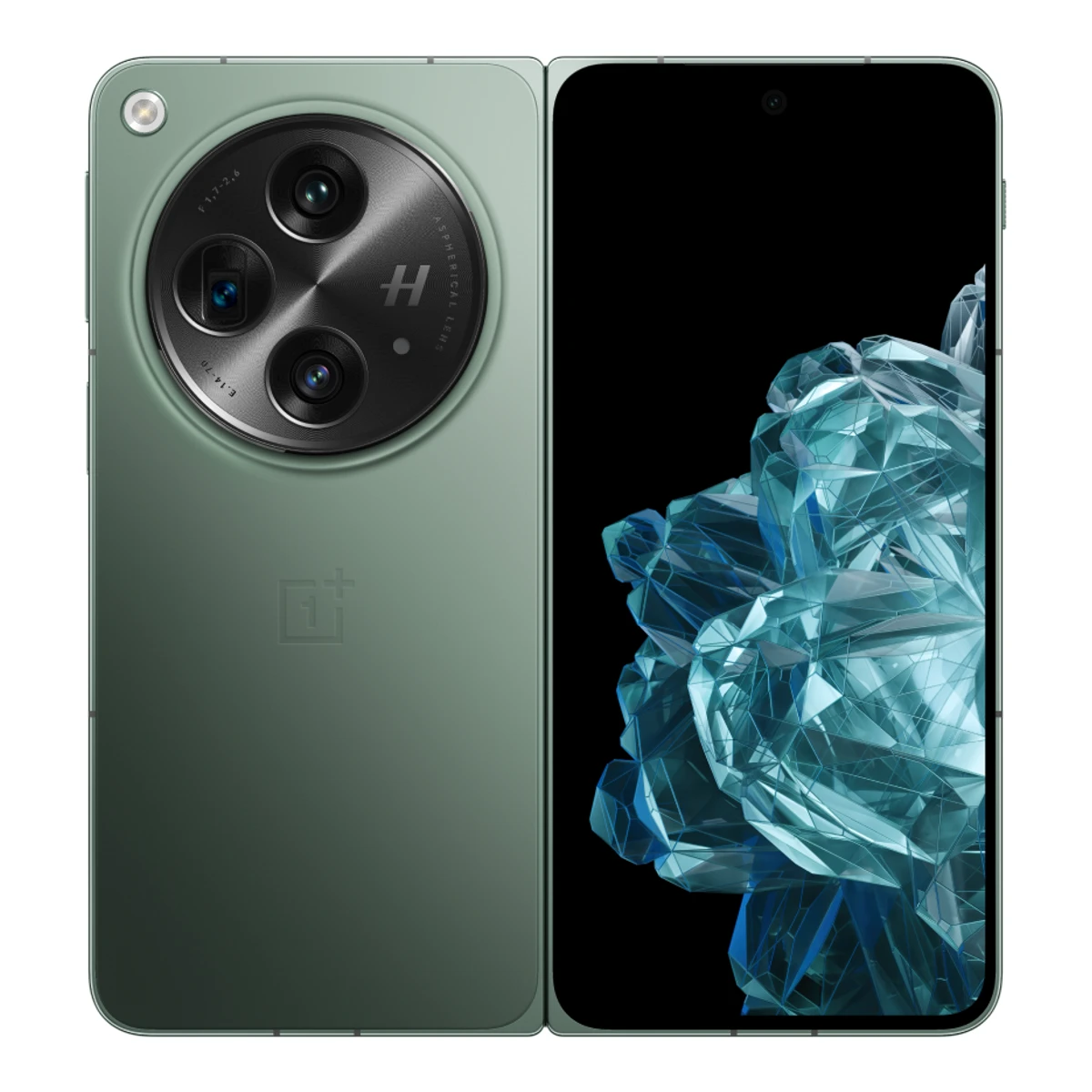

OnePlus Open

OnePlusPhone

Open

Released October 2023.4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Announced 2023-10-19, released 2023-10-26. Last checked 10 October 2026.

Screen size
7.82in
Chipset
Qualcomm Snapdragon 8 Gen 2
Main camera
48MP
Rated battery capacity
Not available

106 of 162 fields known.

Compare with another phoneDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
Not available
GTIN / EAN
Not available
Announced
19 October 20234Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Announced 2023-10-19.
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
EU, GB3Maker product pageoneplus.com/de/open/specsRead 10 October 2026The German spec page lists the same bands, RAM, storage and 67W adapter as the UK page.
Colours
Emerald Dusk, Voyager Black, Crimson Shadow2Maker product pageoneplus.com/uk/openRead 10 October 2026Overview lists Voyager Black, Emerald Dusk and Crimson Shadow (Apex Edition, 16GB RAM + 1TB). GSMArena says Emerald Dusk is the only color sold in Europe.
Form factor
Foldable (book)2Maker product pageoneplus.com/uk/openRead 10 October 2026Maker page images show a book-style foldable with an unfolded main display.
OS support period (claimed)
Not available
Security support period (claimed)
5years1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Footnote 7: at least four Android OS generations and five years of security updates from the launch date.
Security updates until
Not available

Body

Front and side, drawn to scale.

Height
153.4mm1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Opened: 153.4 mm high, 143.1 mm wide. Closed: 73.3 mm wide.
Width
143.1mm1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Thickness
5.8mm1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Opened thickness 5.8 mm for the Emerald Dusk variant. Voyager Black and Crimson Shadow are 5.9 mm. GSMArena says the glass-back Emerald Dusk is the thicker one, the maker page says the opposite. The maker page is used.
Thickness with camera bump
Not available
Folded dimensions
Height153.4Width73.3Thickness11.7mm(6 × 2.9 × 0.5 in)1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Closed thickness 11.7 mm for Emerald Dusk, 11.9 mm for Voyager Black and Crimson Shadow. Folded thickness is not a per-variant field, so only the Emerald Dusk value is stored.
Weight
245g(8.6 oz)1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Emerald Dusk 245 g. Voyager Black 239 g. Crimson Shadow 239 g. Footnote 2: the screen protector adds 3 to 4 g.
Frame
Not available
Front
Ceramic Guard1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Cover screen: "Protective Material: Ceramic Guard". The main display uses "Ultra Thin Glass".
Back
Glass4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Build: glass back or eco leather back. The review says Emerald Dusk, the color sold in Europe, has a matte glass back and Voyager Black has a vegan leather back.
Dust and water rating
IPX44Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026IPX4 splash resistant. The review text confirms IPX4, not IPX8.
Water resistance depth
Not available
Water resistance time
Not available
MIL-STD-810
Not available
SIM capacity
Nano-SIMs2Active eSIM capacity11Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Dual nano-SIM slot. The UK page lists an "eSIM" entry without a count. The active eSIM count comes from GSMArena (nano + nano + eSIM, max 2 at a time).
Stylus
Not available
Stylus name
Not available

Display

Screen size
7.82in(19.9 cm)1Maker product pageoneplus.com/uk/open/specsRead 10 October 20267.82 inch main display, measured diagonally corner to corner.
Resolution
2268 × 2440px1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Published as "2440*2268 (2K), 426 ppi". The aspect ratio 1.0758:1 equals 2440 / 2268, so the main display is 2268 wide and 2440 high in this orientation.
Pixel density
426ppi
Aspect ratio
1.0758:11Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Published as 1.0758:1.
Display type
LTPO OLED1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Flexi-fluid AMOLED with LTPO 3.0", 1-120 Hz dynamic.
Display type (as published)
Flexi-fluid AMOLED with LTPO 3.01Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Max refresh rate
120Hz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Min refresh rate
1Hz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Touch sampling rate
240Hz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Instant touch sampling
Not available
Display brightness (typical, claimed)
Not available
Outdoor brightness (claimed)
1,400nits1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Typical (HBM) / Peak Brightness: 1400 / 2800 nits" for the main display.
Peak display brightness (claimed)
2,800nits1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Same line. Window size and mode are not stated.
Minimum brightness
Not available
Colour depth per channel
10bits1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
DCI-P3 coverage
100%1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"97% NTSC / 100% DCI-P3" for the main display.
HDR playback formats
Dolby Vision, HDR10, HDR10+1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
PWM dimming frequency
1,440Hz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Pulse-Width Modulation: 1440 Hz" for the main display.
Always-on display
Not available
Front camera cutout
Punch hole4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026GSMArena photos show a punch-hole selfie camera on the main display.
Cover screen size
6.31in(16 cm)1Maker product pageoneplus.com/uk/open/specsRead 10 October 20266.31 inch, 2484*1116, 431 ppi, 20:9, 10-120 Hz dynamic, Ceramic Guard.
Cover screen resolution
1116 × 2484px1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Cover screen refresh rate
120Hz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Cover screen "10-120 Hz dynamic".
Cover screen type
Super Fluid AMOLED with LTPO 3.01Maker product pageoneplus.com/uk/open/specsRead 10 October 2026

Platform

OS at launch
Android 131Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Software
OxygenOS 13.21Maker product pageoneplus.com/uk/open/specsRead 10 October 2026OxygenOS 13.2 based on Android 13 for Emerald Dusk and Voyager Black. Crimson Shadow ships OxygenOS 14.0.
Latest stable OS (verified)
Not available
Chipset
Qualcomm Snapdragon 8 Gen 21Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Process
4nm4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm).
CPU cores
84Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026
CPU configuration
CountCoreMax clock (GHz)
1Cortex-X33.2
2Cortex-A7152.8
2Cortex-A7102.8
3Cortex-A5102
Source4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 20261x3.2 GHz Cortex-X3, 2x2.8 GHz Cortex-A715, 2x2.8 GHz Cortex-A710, 3x2.0 GHz Cortex-A510.
Max CPU clock
3.2GHz
GPU
Adreno 7401Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
NPU performance
Not available

Memory

RAM
16GB1Maker product pageoneplus.com/uk/open/specsRead 10 October 202616 GB only. The 1 TB model is the Apex Edition (Crimson Shadow) on the overview page.
RAM type
LPDDR5X1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Storage (nominal)
512 GB, 1 TB1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Page lists 512GB/1TB UFS 4.0. Stored as 512 and 1000 GB decimal.
Storage type
UFS 4.01Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Memory card
None4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Card slot: No.
Max card size
Not available

Rear cameras

Physical rear cameras
RoleResolution (MP)Aperture (f/)Focal length (35 mm equivalent) (mm)Sensor optical formatPixel size (µm)AutofocusOISOptical zoomField of viewSensor
Main481.7241/1.43"1.12PDAFYesNot available85°Sony LYT-T808
Telephoto642.6701/2.0"0.7PDAFYes3×33.4°OmniVision OV64B
Ultrawide482.2141/2.0"0.8PDAFNot availableNot available114°Sony IMX581
Source1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Main: Sony LYT-T808, 1/1.43 in, 48 MP, 1.12 um, f/1.7, 24 mm equivalent, 85 degrees, OIS and EIS. Telephoto: OmniVision OV64B, 1/2 in, 64 MP, 0.7 um, f/2.6, 70 mm equivalent (3X), 33.4 degrees. Ultra-wide: Sony IMX581, 0.8 um, f/2.2, 14 mm equivalent, 114 degrees. Ultra-wide resolution, telephoto OIS and PDAF, and the 1/2.0 in sensor sizes are from GSMArena. Macro focus down to 3.5 cm is a ultra-wide mode.
Number of rear cameras
3
Main camera
48MP
Longest physical-lens optical zoom
3×
Maximum photo digital zoom
120×1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Ultra Res (digital) Zoom: Up to 120X". Video digital zoom is up to 20X.
Flash
LED1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Camera features
Hasselblad Camera for Mobile, Nightscape, Smart Scene Recognition, Portrait Mode, Pro Mode, Panorama, Tilt-Shift mode, Long Exposure, Dual-View Video, Retouch, Movie Mode, XPan Mode, Focus Peaking, Raw file, Raw Plus file, Filters, Super Stable, Video Nightscape, Video HDR, Focus Lock, Time-lapse, Google Lens1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Maximum rear video rate per resolution
Width (px)Height (px)Highest capture rate (fps)
3840216060
19201080480
1280720480
Source1Maker product pageoneplus.com/uk/open/specsRead 10 October 20264K at 30/60, 1080p at 30/60, 720p at 30/60. Slo-mo at 1080p and 720p, 240/480 fps. Highest 1080p and 720p 480 fps are slow-motion modes.
Max video resolution
3840 × 2160px
Recorded video HDR formats
Dolby Vision1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026The page lists Dolby Vision HDR recording at 4K 30 fps and 1080p 30 fps. GSMArena also lists HDR10+, which is not stored because the maker page names only Dolby Vision for recording.
Log recording
Not available
Video recording codecs
Not available
Video stabilisation
OIS, EIS1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Main camera lists "Optical Image Stabilization: Yes" and "Electronic Image Stabilization: Yes".
Maximum slow-motion capture rate
480fps1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026

Front camera

Front cameras
RoleResolution (MP)Aperture (f/)Focal length (35 mm equivalent) (mm)Sensor optical formatPixel size (µm)AutofocusField of view
Main202.2201/4"0.7Fixed91°
Main322.4221/3.14"0.7Fixed88.5°
Source1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Inner camera first: 20 MP, 1/4 in, 0.7 um, 20 mm equivalent, f/2.2, 91 degrees, fixed focus. Cover camera second: 32 MP, 1/3.14 in, f/2.4, 22 mm equivalent, 88.5 degrees, fixed focus. The 0.7 um pixel size of the cover camera is from GSMArena.
Maximum front video rate per resolution
Width (px)Height (px)Highest capture rate (fps)
3840216030
1920108030
128072030
Source1Maker product pageoneplus.com/uk/open/specsRead 10 October 20264K, 1080p (default) and 720p at 30 fps on the front cameras.
Front autofocus
No

Audio

Stereo speakers
Yes1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
3.5 mm jack
No1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Audio features
Dolby Atmos, Noise cancellation1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Reality" Speakers, noise cancellation and Dolby Atmos.
Microphones
Not available

Network

Network
GSM, UMTS, HSPA, LTE, 5G4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026GSM / HSPA / LTE / 5G.
2G bands
GSM 850, GSM 900, GSM 1800, GSM 19001Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
3G bands
B1, B2, B4, B5, B6, B8, B191Maker product pageoneplus.com/uk/open/specsRead 10 October 2026WCDMA B1, 2, 4, 5, 6, 8, 19. UK model. The German page lists the same bands. The US page lists fewer bands.
4G bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B30, B32, B66, B71, B38, B39, B40, B41, B46, B481Maker product pageoneplus.com/uk/open/specsRead 10 October 2026LTE-FDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/30/32/66/71 and LTE-TDD B38/39/40/41/46/48. UK model.
5G bands
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n38, n40, n41, n66, n71, n75, n77, n781Maker product pageoneplus.com/uk/open/specsRead 10 October 20265G NR n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n38, n40, n41, n66, n71, n75, n77, n78. UK model. The US page lacks n40.
5G modes
SA, NSA4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 20265G bands listed as SA/NSA.
5G mmWave
Not available
Maximum modem download rate
Not available
Satellite
Not available
Wi-Fi calling
Not available

Connectivity

Wi-Fi
Wi-Fi 71Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Wi-Fi 6E, Wi-Fi 7".
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Support 2.4G/5G/5.8G, Wi-Fi 6E, Wi-Fi 7". Wi-Fi 6E and the GSMArena tri-band listing mean 6 GHz is supported.
Bluetooth
5.31Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Bluetooth audio codecs
aptX HD, aptX, LDAC, LHDC, AAC, SBC1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
NFC
Yes1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Ultra-wideband
Not available
Positioning
GPS (L1+L5), GLONASS, Galileo (E1+E5a), BeiDou, QZSS1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026GPS (L1+L5 Dual Band), GLONASS, Galileo (E1+E5a Dual Band), Beidou, A-GPS, QZSS.
Dual-frequency GNSS
Yes1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026GPS L1+L5 and Galileo E1+E5a are named as dual band.
Connector
USB-C1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
USB data standard
USB 3.11Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Port listed as "USB 3.1, Type-C".
Video out over USB
Not available
IR blaster
Yes1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Infrared Sensor" in the sensor list. GSMArena lists an infrared port.
FM radio
No4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Radio: No.

Features and sensors

Fingerprint
Side button1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Side-mounted Fingerprint Sensor".
Face unlock
2D1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Front camera features list "Face Unlock". There is no depth sensor in the sensor list, so it is camera-based 2D unlock.
Sensors
Accelerometer, Electronic Compass, Gyroscope, Ambient Light Sensor, Proximity Sensor, Sensor Core, Flick-detect Sensor, Multi-channel color temperature sensor1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026
Extra buttons
Not available
Haptic motor
X-axis motor1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"Haptics: X-axis motor".

Battery and charging

Rated battery capacity
Not available
Battery capacity (typical)
4,805mAh1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Footnote 5: typical 3295 and 1510 mAh in two cells, total equivalent 4805 mAh. No rated capacity is published.
Rated battery energy
Not available
Battery type
Li-Po4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Li-Po 4805 mAh.
Claimed battery life
Not available
Maximum wired charging power (claimed)
67W1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026"67W SUPERVOOC Charging".
Wired charging standards
SUPERVOOC, USB PD4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Charging: 67W wired, PD.
Charge 0 to 50% (claimed)
Not available
Charge 0 to 100% (claimed)
42min1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026Overview footnote 7: 1% to 100% in 42 minutes with the official SUPERVOOC adapter and Smart Rapid Charging Mode, screen off, 25 C. The start level is 1%, not 0%.
Wireless charging
No6Measurementgsmarena.com/oneplus_open-review-2627p3.phpRead 10 October 2026Review: "There is no wireless charging on the OnePlus Open."
Wireless charging power
Not available
Wireless standards
Not available
Built-in alignment magnets
Not available
Reverse wireless output power
Not available
Reverse wired
Yes4Spec databasegsmarena.com/oneplus_open-12619.phpRead 10 October 2026Charging: Reverse wired.
Charger in box
Yes1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026The UK box list includes the 67W adapter.
Included adapter rated power
67W1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026

Measured

Geekbench single-core
1,555points7Measurementgsmarena.com/oneplus_open-review-2627p4.phpRead 10 October 2026GSMArena review chart, Geekbench 6, main display, default mode, 16 GB + 512 GB unit: 1555. The performance-mode row shows 2016.
Geekbench multi-core
4,169points7Measurementgsmarena.com/oneplus_open-review-2627p4.phpRead 10 October 2026Geekbench 6 multi-core, main display, default mode: 4169. Performance mode shows 5214.
3DMark Wild Life Extreme
3,607points7Measurementgsmarena.com/oneplus_open-review-2627p4.phpRead 10 October 20263DMark Wild Life Extreme, main display, default mode: 3607.
AnTuTu
1,349,633points7Measurementgsmarena.com/oneplus_open-review-2627p4.phpRead 10 October 2026AnTuTu 10, main display, default mode: 1349633. Performance mode shows 1511862.
Display brightness (measured)
1,238nits6Measurementgsmarena.com/oneplus_open-review-2627p3.phpRead 10 October 2026GSMArena max display brightness test, white pattern at 75% fill, main display, auto mode: 1238 nits. Manual mode gave 595 nits. The cover display measured 1159 nits in auto mode.
PWM dimming (measured)
Not available
Mixed-use battery life (measured)
11.98h1Maker product pageoneplus.com/uk/open/specsRead 10 October 20265Reviewgsmarena.com/oneplus_open-review-2627.phpRead 10 October 20266Measurementgsmarena.com/oneplus_open-review-2627p3.phpRead 10 October 2026
Full charge time (measured)
42min1Maker product pageoneplus.com/uk/open/specsRead 10 October 20265Reviewgsmarena.com/oneplus_open-review-2627.phpRead 10 October 20266Measurementgsmarena.com/oneplus_open-review-2627p3.phpRead 10 October 2026
Loudspeaker loudness (measured)
-28.2LUFS1Maker product pageoneplus.com/uk/open/specsRead 10 October 20265Reviewgsmarena.com/oneplus_open-review-2627.phpRead 10 October 20266Measurementgsmarena.com/oneplus_open-review-2627p3.phpRead 10 October 2026

EU label and regulatory

We could not find any of these 10 fields. Show them
EU energy class
Not available
Battery endurance per cycle (EU test)
Not available
Battery endurance in cycles (EU test)
Not available
Drop resistance class
Not available
Repairability class
Not available
SAR head (US)
Not available
SAR body (US)
Not available
SAR head (EU)
Not available
SAR body (EU)
Not available
Hearing aid compatibility
Not available

In the box

In the box
67W SUPERVOOC Power Adapter, Type-A to C Cable, Quick Start Guide, Welcome Letter, Safety Information and Warranty Card, Logo sticker, Protective Case, Screen Protector (pre-applied), SIM Tray Ejector1Maker product pageoneplus.com/uk/open/specsRead 10 October 2026UK box list, Emerald Dusk configuration.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a phone to see both side by side. Differences are marked yellow.

More phone comparisons

Variants

Each variant lists only what differs from the specs above.

ColoursThicknessWeightBackMixed-use battery life (measured)Full charge time (measured)Loudspeaker loudness (measured)
Voyager Black5.9 mm239 gVegan leather11.98 h42 min-28.2 LUFS

Sources

We read 7 sources for this phone. The numbers match the markers in the sheet.

  1. Maker product pageoneplus.com/uk/open/specs
    Read 10 October 2026Backs 73 fields
  2. Maker product pageoneplus.com/uk/open
    Read 10 October 2026Backs 3 fields
  3. Maker product pageoneplus.com/de/open/specs
    Read 10 October 2026Backs 1 field
  4. Read 10 October 2026Backs 15 fields
  5. Read 10 October 2026Backs 1 field
  6. Read 10 October 2026Backs 3 fields
  7. Read 10 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
