Mobile / Phones
SamsungPhone

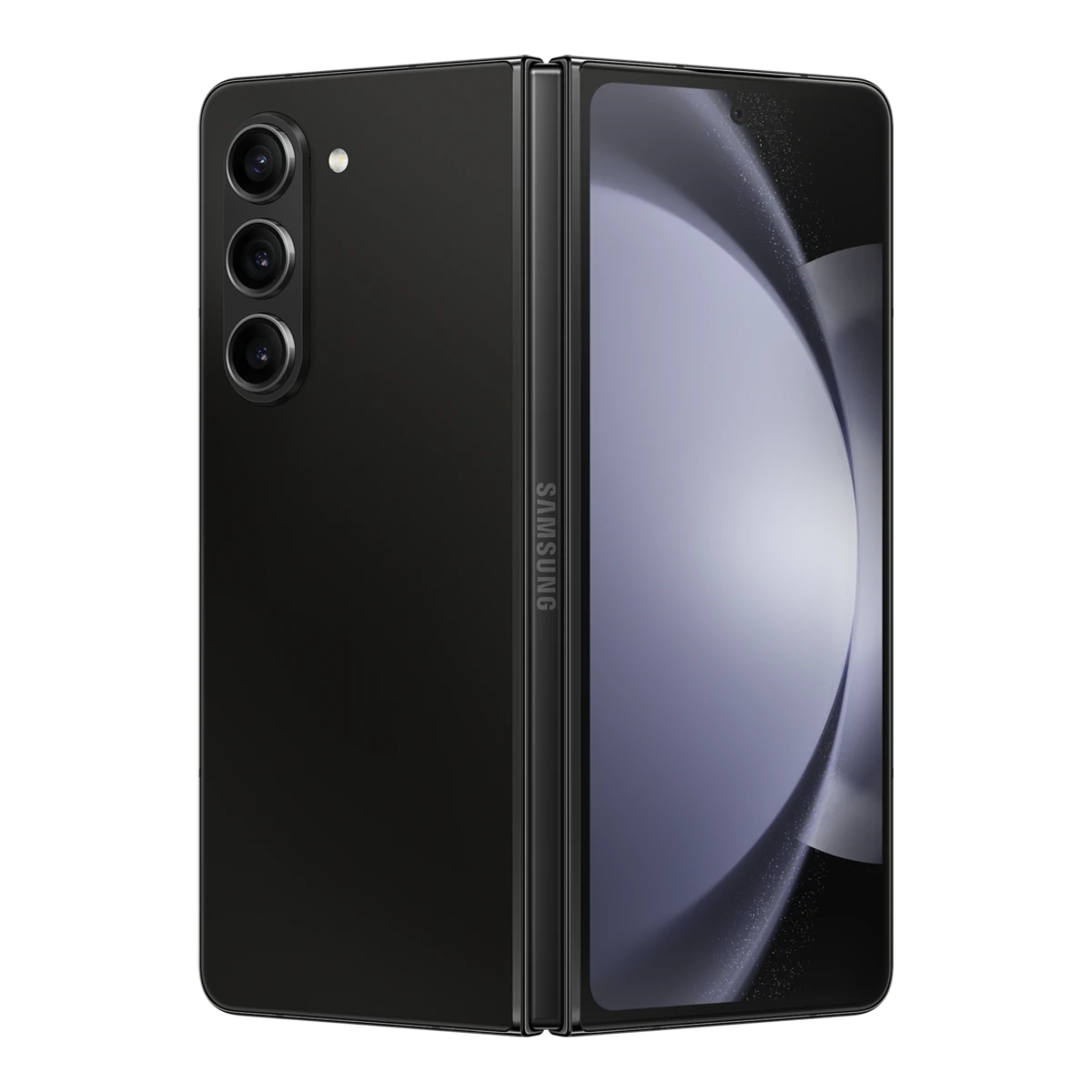

Galaxy Z Fold5
Released August 2023.5Press releasenews.samsung.com/uk/samsung-announces-launch-of-galaxy-z-flip5-galaxy-z-fold5-galaxy-watch6-series-and-galaxy-tab-s9-seriesRead 5 October 2026Actual maker retrospective August 11, 2023 UK availability. Last checked 23 October 2026.
- Screen size
- 7.6in
- Chipset
- Snapdragon 8 Gen 2 for Galaxy
- Main camera
- 50MP
- Rated battery capacity
- 4,270mAh
87 of 162 fields known.
General
- Model numbers
- SM-F946B/DS2Maker product pagesamsung.com/uk/support/model/SM-F946BZKBEUBRead 5 October 2026Exact UK support and native EU guide identify SM-F946B/DS. Other regional models excluded.
- GTIN / EAN
- Not available
- Announced
- 26 July 20233Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Status
- Not available
- Predecessor
- Samsung Galaxy Z Fold47Reviewnotebookcheck.net/Samsung-Galaxy-Z-Fold5-review-Small-steps-toward-being-the-best-foldable-smartphone.743358.0.htmlRead 5 October 2026Notebookcheck's review of the Galaxy Z Fold5 calls it the successor of the Galaxy Z Fold4.
- Successor
- Samsung Galaxy Z Fold68Press articleandroidcentral.com/phones/samsung-galaxy-z-fold-6-vs-galaxy-z-fold-5Read 23 October 2026Android Central says the Galaxy Z Fold 6 is the successor to last year's Z Fold 5.
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Colours
- Icy Blue, Phantom Black, Cream, Blue, Grey3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Form factor
- Foldable (book)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- OS support period (claimed)
- Not available
- Security support period (claimed)
- 5years3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026Five security years expressly in launch. Four OS generations not converted into years, starting basis unstated.
Body
Front and side, drawn to scale.
- Width
- 129.9mm1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Thickness
- 6.1mm1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Thickness with camera bump
- Not available
- Folded dimensions
- Height154.9Width67.1Thickness13.4mm(6.1 × 2.6 × 0.5 in)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Exact fixed folded body 154.9 x 67.1 x 13.4 mm. No thickness range or sagging claim.
- Weight
- 253g(8.9 oz)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Front
- Corning Gorilla Glass Victus 23Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026Exterior cover-display glass explicitly maker-named, not flexible inner main-display film.
- Dust and water rating
- IPX83Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Water resistance time
- 30min3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026Same exact freshwater laboratory condition.
- MIL-STD-810
- Not available
Display
- Screen size
- 7.6in(19.3 cm)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Resolution
- 1812 × 2176px1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Main unfolded display portrait width/height. Cover screen is separate.
- Pixel density
- 372.6ppi
- Aspect ratio
- Not available
- Display type
- OLED1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Display type (as published)
- Dynamic AMOLED 2X1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Max refresh rate
- 120Hz1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Min refresh rate
- 1Hz3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Touch sampling rate
- Not available
- Instant touch sampling
- Not available
- Display brightness (typical, claimed)
- Not available
- Outdoor brightness (claimed)
- Not available
- Peak display brightness (claimed)
- Not available
- Minimum brightness
- Not available
- Colour depth per channel
- Not available
- DCI-P3 coverage
- Not available
- HDR playback formats
- Not available
- PWM dimming frequency
- Not available
- Front camera cutout
- Under-display6Owner's manualdownloadcenter.samsung.com/content/UM/202308/20230807151431229/SM-F946B_UM_EU_TT_Eng_Rev.1.0_230721.pdfRead 5 October 2026
- Cover screen size
- 6.2in(15.7 cm)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Cover screen resolution
- 904 × 2316px1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Exact portrait cover width 904/height 2316, maker publishes 2316x 904.
- Cover screen refresh rate
- 120Hz3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Cover screen type
- Dynamic AMOLED 2X1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
Platform
- OS at launch
- Android 133Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Software
- One UI 5.1.13Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Latest stable OS (verified)
- Not available
- Chipset
- Snapdragon 8 Gen 2 for Galaxy3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Process
- Not available
- CPU cores
- 81Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- CPU configuration
- Not available
- Max CPU clock
- Not available
- NPU performance
- Not available
Memory
- RAM type
- Not available
- Storage (nominal)
- 256GB1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Storage type
- Not available
- Memory card
- Not available
- Max card size
- Not available
Rear cameras
- Physical rear cameras
Role Resolution (MP) Aperture (f/) Pixel size (µm) Autofocus OIS Optical zoom Field of view Main 50 1.8 1 Dual Pixel PDAF Yes Not available 85° Ultrawide 12 2.2 1.12 Not available Not available Not available 123° Telephoto 10 2.4 1 PDAF Yes 3× 36° - Number of rear cameras
- 3
- Main camera
- 50MP
- Longest physical-lens optical zoom
- 3×
- Maximum photo digital zoom
- 30×1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Flash
- Rear flash1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Camera features
- Not available
- Maximum rear video rate per resolution
Width (px) Height (px) Highest capture rate (fps) 7680 4320 30 1920 1080 240 - Max video resolution
- 7680 × 4320px
- Recorded video HDR formats
- HDR10+6Owner's manualdownloadcenter.samsung.com/content/UM/202308/20230807151431229/SM-F946B_UM_EU_TT_Eng_Rev.1.0_230721.pdfRead 5 October 2026Same exact camera settings explicitly HDR10+ recording. Display playback not used.
- Log recording
- Not available
- Maximum slow-motion capture rate
- Not available
Front camera
- Front cameras
Role Resolution (MP) Aperture (f/) Pixel size (µm) Autofocus OIS Field of view Main 4 1.8 2 Fixed No 80° Main 10 2.2 1.22 Fixed Not available 85° Source1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Inner under-display selfie camera first and cover selfie camera second. Exact AF No means fixed focus, OIS No explicitly only on inner row.4Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026Exact Galaxy Z Fold 5 camera table. Under-display inner camera first, cover selfie second. Physical pixel pitches and fields of view, no effective binning pitch.- Maximum front video rate per resolution
- Not available
- Front autofocus
- No
Audio
Network
- Network
- GSM, UMTS, LTE, 5G1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026GSM, LTE and 5G explicit. The 3G WCDMA/UMTS bands are listed, so UMTS is stored. They do not establish HSPA.
- 2G bands
- GSM850, GSM900, DCS1800, PCS19001Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- 3G bands
- B1(2100), B2(1900), B4(AWS), B5(850), B8(900)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- 4G bands
- B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B12(700), B13(700), B17(700), B18(800), B19(800), B20(800), B25(1900), B26(850), B28(700), B32(1500), B66(AWS-3), B38(2600), B39(1900), B40(2300), B41(2500)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- 5G bands
- N1(2100), N2(1900), N3(1800), N5(850), N7(2600), N8(900), N12(700), N20(800), N25(1900), N28(700), N66(AWS-3), N38(2600), N40(2300), N41(2500), N77(3700), N78(3500), N75(1500+)1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- 5G modes
- Not available
- 5G mmWave
- Not available
- Maximum modem download rate
- Not available
- Satellite
- Not available
- Wi-Fi calling
- Not available
Connectivity
- Wi-Fi
- Wi-Fi 6E1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Exact UK Wi-Fi frequency-band table. Only explicitly named 2.4/5/6GHz bands retained.
- Bluetooth
- 5.31Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Bluetooth audio codecs
- Not available
- Ultra-wideband
- Yes1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Positioning
- GPS, Glonass, Beidou, Galileo, QZSS1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Dual-frequency GNSS
- Not available
- Connector
- USB-C1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- USB data standard
- USB 3.2 Gen 11Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- IR blaster
- Not available
- FM radio
- Not available
Features and sensors
- Fingerprint
- Side button3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Face unlock
- Not available
- Sensors
- Accelerometer, Barometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, Light Sensor, Proximity Sensor1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Extra buttons
- Not available
- Haptic motor
- Not available
Battery and charging
- Battery capacity (typical)
- 4,400mAh1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026
- Rated battery energy
- Not available
- Battery type
- Not available
- Claimed battery life
Use case Hours (h) Video playback 21 Audio playback 73 - Maximum wired charging power (claimed)
- Not available
- Wired charging standards
- Quick Charge 2.0, AFC3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Charge 0 to 100% (claimed)
- Not available
- Wireless charging
- Yes3Press releasenews.samsung.com/uk/samsung-galaxy-z-flip5-and-galaxy-z-fold5-delivering-flexibility-and-versatility-without-compromiseRead 5 October 2026
- Wireless charging power
- Not available
- Wireless standards
- Not available
- Built-in alignment magnets
- Not available
- Reverse wireless output power
- Not available
- Reverse wired
- Not available
- Included adapter rated power
- Not available
Measured
We could not find any of these 9 fields. Show them
- Geekbench single-core
- Not available
- Geekbench multi-core
- Not available
- 3DMark Wild Life Extreme
- Not available
- AnTuTu
- Not available
- Display brightness (measured)
- Not available
- PWM dimming (measured)
- Not available
- Mixed-use battery life (measured)
- Not available
- Full charge time (measured)
- Not available
- Loudspeaker loudness (measured)
- Not available
EU label and regulatory
We could not find any of these 10 fields. Show them
- EU energy class
- Not available
- Battery endurance per cycle (EU test)
- Not available
- Battery endurance in cycles (EU test)
- Not available
- Drop resistance class
- Not available
- Repairability class
- Not available
- SAR head (US)
- Not available
- SAR body (US)
- Not available
- SAR head (EU)
- Not available
- SAR body (EU)
- Not available
- Hearing aid compatibility
- Not available
In the box
We could not find any of these 1 fields. Show them
- In the box
- Not available
Links
- Product page
- www.samsung.com/uk/support/model/SM-F946BZKBEUB2Maker product pagesamsung.com/uk/support/model/SM-F946BZKBEUBRead 5 October 2026
- Spec sheet
- searchapi.samsung.com/v6/front/b2c/product/spec/detail1Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detailRead 5 October 2026Exact UK SKU SM-F946BZKBEUB. Live maker specification table.
- Manual
- downloadcenter.samsung.com/content/UM/202308/20230807151431229/SM-F946B_UM_EU_TT_Eng_Rev.1.0_230721.pdf6Owner's manualdownloadcenter.samsung.com/content/UM/202308/20230807151431229/SM-F946B_UM_EU_TT_Eng_Rev.1.0_230721.pdfRead 5 October 2026Native exact EU English cover includes SM-F946B/DS.
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
Compare with
Pick a phone to see both side by side. Differences are marked yellow.
Sources
We read 8 sources for this phone. The numbers match the markers in the sheet.
- Maker product pagesearchapi.samsung.com/v6/front/b2c/product/spec/detail
- Maker product pagesamsung.com/uk/support/model/SM-F946BZKBEUB
