PC parts / Power supplies

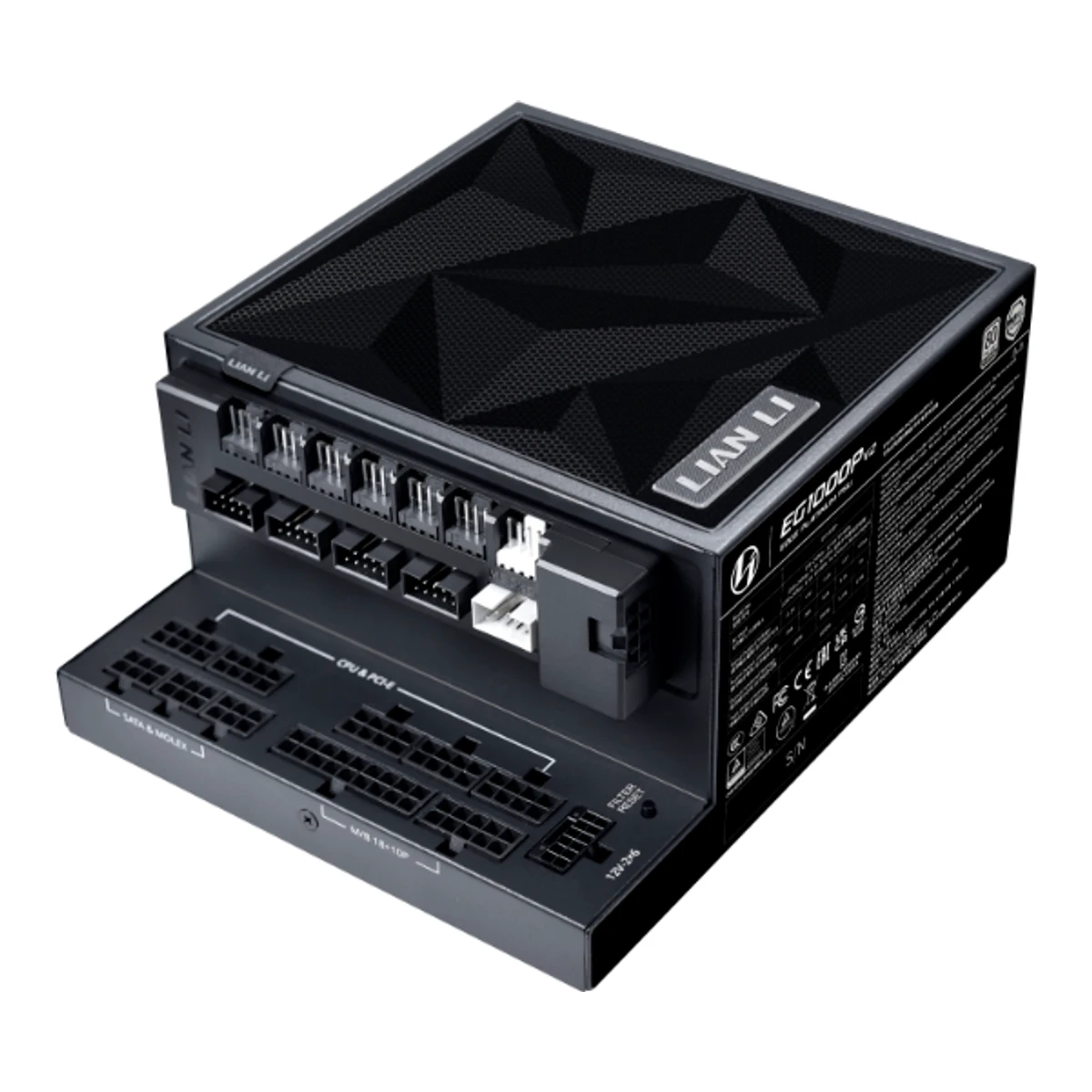

Lian Li EDGE Platinum V2 1000W

Lian LiPower supply

EDGE Platinum V2 1000W

Released October 2026.5Press articletbreak.com/lian-li-edge-platinum-v2-gpu-cable-monitoringRead 15 October 2026Article dated Oct 2, 2026 reports the launch release and the US prices. Last checked 15 October 2026.

Power
1,000W
Efficiency
80 PLUS Platinum
Modular cables
Fully modular
ATX version
ATX 3.1

55 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
EDGE Platinum V21Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Page title Edge Platinum V2. The series has 1350W, 1200W and 1000W models.
Model numbers
EG1000P1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: model EG1000P for the 1000W. The manual title reads EG1000PV2 / EG1200PV2 and Cybenetics lists EG1000Pv2.7Press articlegdm.or.jp/crew/2026/1002/654519Read 15 October 2026The Japanese models are named EG1000P-BH-JP (black) and EG1000P-WH-JP (white). They are stored as aliases of EG1000P.
GTIN / EAN
Not available
Announced
June 20268Press article3dnews.ru/1143343/lian-li-predstavila-rossip-blokov-pitaniya-edge-platinum-v2-edge-gold-v2-i-sx-goldRead 15 October 2026Article dated June 10, 2026 says Lian Li showed the Edge Platinum V2 series with 1000, 1200 and 1350 W models at Computex 2026. It named September 11 as the planned sales date.
Status
Available5Press articletbreak.com/lian-li-edge-platinum-v2-gpu-cable-monitoringRead 15 October 2026The launch release lists US prices and Japanese retailers sell the unit from October 2, 2026.7Press articlegdm.or.jp/crew/2026/1002/654519Read 15 October 2026The 1000W is on sale in Japan from October 2, 2026.
Predecessor
Not available
Successor
Not available
Launch price (US)
$164.995Press articletbreak.com/lian-li-edge-platinum-v2-gpu-cable-monitoringRead 15 October 2026Price table: Edge Platinum V2 1000W, black or white, with Edge Hub V2, 164.99 USD. The article says the launch release lists US prices. No tax treatment is named. KitGuru and XiaomiToday report the same price.
Launch price (EU)
Not available
Markets
US, JP5Press articletbreak.com/lian-li-edge-platinum-v2-gpu-cable-monitoringRead 15 October 2026US from the launch release price list.7Press articlegdm.or.jp/crew/2026/1002/654519Read 15 October 2026Japan listing.
Colours
Black, White1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Color Black / White for the 1000W. The page says 1200W and 1000W come with the Edge Hub V2.
Form factor
ATX1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026The back face is 150 x 86 mm, the ATX size. The maker calls the form factor ATX 3.1 and Cybenetics lists type ATX12V.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Type ATX12V.
ATX version
ATX 3.11Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Form factor ATX 3.1. The page tags list ATX 3.1 power supply. The page names no PCIe CEM revision, so that field stays empty.
PCIe CEM version
Not available
Modular cables
Fully modular1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Power supply design Fully Modular.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Cable Design Fully Modular.
Built by (OEM)
Helly Technology3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026DUT Information: OEM/ODM Helly Technology (Guangzhou) Co., Ltd. Parts Description: Manufacturer (OEM) Helly Technology.

Power

Rated continuous power
1,000W1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Max. DC output 1000W.2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1, total output wattage 1000W for the EG1000P.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Manufacturer-provided information: Rated Power 1000 W.
Full power rated up to
40°C3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Manufacturer-provided information: Operating Temperature (Continuous Full Load) 0 - 40 C. The Lian Li page does not state it.
12V rail design
Single rail3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Power Specifications: one +12V column with 83 A and 996 W, and one 12V OCP result.
+12V max current
83A2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1, rated output current: +3.3V 20A, +5V 20A, +12V 83A, -12V 0.3A, +5Vsb 3A.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Power Specifications table: +12V 83 A.
+12V max power
996W1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Combined +12V 996W for the 1000W.2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1, rated combined wattage: +12V 996W.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Power Specifications table: +12V 996 W.
+3.3V and +5V combined power
100W1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Combined +3.3V & +5V 100W.2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1: 100W is printed once across +3.3V and +5V, so it is one shared limit.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Power Specifications table: one merged 100 W cell for 3.3V and 5V, 20 A each.
+5V standby current
3A2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1, rated output current: +5Vsb 3A, 15W.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Power Specifications table: 5VSB 3 A, 15 W.
AC input voltage
Lowest100Highest240V2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1, AC input rating: 100-240Vac 12-6A 50-60Hz for the EG1000P. The product page prints 110-240Vac. The manual and Cybenetics agree on 100 V, so 100 is stored.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Manufacturer-provided information: 100-240 Vrms, 6-12 A, 50-60 Hz.
Alternative low power mode (ALPM)
Yes3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Temperature and Compliance Info: ALPM compatible, checked.

Certifications

80 PLUS rating
80 PLUS Platinum4Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/Lian%20Li%20Industrial%20Co.%20Ltd._EG1000P_1000W_SOCE%208167.2_Report.pdfRead 15 October 202680 PLUS ID 8167.2, model EG1000P, 1000W, Platinum at 115V, certified 04/06/2026, 92.54 percent at 50 percent load. The list has no sample serial, so the match is by model code and wattage.
Cybenetics efficiency at 115V
Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Report 26PS3427A, certification ID 263427, issued Oct 9, 2026. The database name is Lian Li EG1000Pv2 and the sample serial is G9PEG1000PBY263500004. The database lists ETA Platinum at 115V. Lian Li states Cybenetics Platinum.
Cybenetics efficiency at 230V
Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026The database lists ETA Platinum at 230V.
Cybenetics noise at 115V
A3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026The database lists LAMBDA A at 115V.
Cybenetics noise at 230V
A3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026The database lists LAMBDA A at 230V.

Measured

Average efficiency at 115V (measured)
90.246%3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Average over more than 1450 load combinations at 115V. Tested Oct 9, 2026, ambient 28-32 C, sample received Sep 8, 2026.
Average efficiency at 230V (measured)
92.176%3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
69.472%3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
Average power factor at 115V (measured)
0.9793Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.944.
Average noise at 115V (measured)
22.25dB(A)3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 22.69 dBA.
Noise at full load at 115V (measured)
37.5dB(A)3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Typical load tests at 115V, 100% load row: 37.5 dB(A) at 1830 rpm fan speed, 45.23 C intake temperature.
Standby power with no load at 115V (measured)
0.0689W3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0689 W. At 230V it is 0.1219 W.
Hold-up time (measured)
24.2ms3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 24.2 ms, AC loss to PWR_OK 21.3 ms. A DUT note says the hold-up time was re-checked on 2026-10-15 and the lowest of all captures is logged.
12V ripple at full load (measured)
43.95mV3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 43.64 mV.
12V load regulation (measured)
0.25%3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.24%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1160016-22AWGNot available
CPU 8-pin (EPS, 4+4)2270018AWGNot available
PCIe 8-pin (6+2)3355018AWGNot available
12V-2x61165016AWG600
SATA power4130018AWGNot available
SATA power3140018AWGNot available
SATA power4137518AWGNot available
4-pin Molex1140018AWGNot available
Source2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Page 1 contents table, 1000W row: motherboard 1 x 24/20-pin 600mm, CPU 1 x 8-pin 700mm, CPU 1 x 4+4-pin 700mm, PCI-E 3 x 8/6+2 pin 550mm, 12V-2x6 1 x (600W) 650mm, SATA 4 x SATA 300-15-15-15mm, SATA 3 x SATA + PATA 400-150-150-150mm, SATA 4 x Y-type SATA (375-150mm) x 2. The manual does not give the wire gauge, which comes from the Cybenetics report. Lengths run to the first plug. Cybenetics measured 305, 405 and 380 mm for the three SATA cables.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 600 mm 16-22AWG, 4+4 pin EPS12V 700 mm 18AWG, 8 pin EPS12V 700 mm 18AWG, 3 single 6+2 pin PCIe 550 mm 18AWG, 12+4 pin PCIe 650 mm 16-28AWG, SATA 405+150+150 mm with 3 plugs and one 4-pin Molex plug 150 mm further, SATA 305+15+15+15 mm with 4 plugs, SATA Y cable 380 mm with two 150 mm branches and 4 plugs, all 18AWG. The 16-28AWG range of the 12V-2x6 cable includes the thin sideband wires, so the stored gauge is the 16AWG power wire. Cybenetics prints 450W for the 12+4 pin cable while the Lian Li manual prints 600W, so the maker figure is stored.
CPU (EPS) connectors
2
PCIe 8-pin connectors
3
16-pin GPU connectors
1
SATA power connectors
11
4-pin Molex connectors
1
Cable style
Sleeved6Press articlekitguru.netRead 15 October 2026Platinum V2 units feature individually braided cables with pre-installed combs and dual-colour 12V-2x6 connectors. Gold V2 models use flat cables.

Fan

Fan size
120mm1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Fan type 120mm FDB Fan. The 1000W fan speed is 2000RPM.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Fan Hong Hua HA1225M12F-Z, 120 mm.
Fan bearing
Fluid dynamic (FDB)1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: 120mm FDB Fan.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Fan Hong Hua HA1225M12F-Z, 120 mm, 12 V, 0.45 A, Fluid Dynamic Bearing.
Fan mode
Semi-passive1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Page: the fan features 0 RPM operation at low loads.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Semi-Passive Operation checked (selectable). The typical load rows at 10 to 40 percent load show 720 to 865 rpm, so the test ran with the fan stop mode off.
Fan mode switch
Yes1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Page: a fan on/off switch enables 0 RPM operation. Easily switch between fan-on and fan-stop modes.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: Protective circuit OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP. NLP is no-load protection.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Protection tests tick OPP, +12V OCP, OVP (per rail), OTP, SCP, UVP at 90V and 80V, NLO and SIP (surge MOV, inrush NTC and bypass relay). Fan failure protection is not present.
All-Japanese capacitors
Yes1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Page: 100% Japanese capacitors, built entirely with Japanese capacitors from Rubycon, Nichicon and Nippon Chemi-Con.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Parts Description lists Nippon Chemi-Con and Rubycon electrolytic capacitors and 31 Nippon Chemi-Con polymer capacitors.
MTBF (claimed)
Not available

Monitoring and lighting

Software monitoring
Not available
Software
L-Connect 31Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026The page names L-Connect 3 for the EDGE Hub V2, which manages USB ports and fans. The PSU itself reports no readings.
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth182mm(5.9 × 3.4 × 7.2 in)1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Specifications table: (D)182 mm X (W)86 mm X (H)150 mm for all three models. The maker names the 150 mm side height and the 86 mm side width. The stored width and height follow the ATX back face of 150 x 86 mm and the depth is 182 mm. Cybenetics lists 150 x 86 x 182 mm.3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026DUT Information: 150 x 86 x 182 mm (W x H x D).
Weight
1.69kg(3.7 lb)3Measurementcybenetics.com/evaluations/psus/3427Read 15 October 2026Cybenetics Measurements: 1.69 kg (3.72 lb). The maker states no weight. The report does not say whether the Edge Hub V2 is included. No Hardware Busters review of this model was found.

In the box

In the box
EDGE Hub V2, USB 3.0 20pin to USB 2.0 9pin / USB 3.0 Type-A header cable, USB 2.0 9pin to USB 2.0 9pin sync cable, PWM to PWM sync cable, AC power cord1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 2026Edge Hub V2 specification table, included cables: 1 x USB 3.0 20pin to USB 2.0 9pin / USB 3.0 Type-A header, 1 x USB 2.0 9pin to USB 2.0 9pin Sync Cable, 1 x PWM to PWM Sync Cable. The page says the 1200W and 1000W models include the Edge Hub V2. The PSU cables are listed in cables.2Owner's manualdrive.google.com/file/d/11JtiYl3acE3a0hL-jkTk61xbAYELnNWI/viewRead 15 October 2026Contents table: an AC power cord, which varies by region, and the EDGE Hub V2 with its USB and fan cables.

Warranty

Manufacturer warranty (source market)
10years1Maker product pagelian-li.com/product/edge-platinum-v2Read 15 October 202610 Years for the power supply and 2 years for the included hub. The page is the global maker page and names no market.
